CABLINE®-CX II With Cover

CABLINE-CX II with Cover Product Image
较窄间距（0.25 mm pitch）, 较低嵌合高度(嵌合高度 = 1.00 mm max.), EMI屏蔽罩和多点接地设计，机械锁扣，水平插拔款的极细同轴线连接器

    空间有限的小型电子产品的理想选择

    360˚ EMI 屏蔽机械式锁扣罩防止 EMI 外泄

    EMI 屏蔽和多点接地设计
Contact Pitch:
0.25 (mm)
嵌合类型:
水平
Mated Height:
1.0 max. (mm)
可提供Pin数:
40
Micro-Coaxial Cable:
AWG 44 AWG 46
Discrete Cable:
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.1 A AC/DC [AWG 46] per contact/up to 40 contacts 0.15 A AC/DC [AWG 44] per contact/up to 40 contacts 0.3 A AC/DC [AWG 39] per contact/up to 40 contacts

下载

空间有限的小型电子产品的理想选择

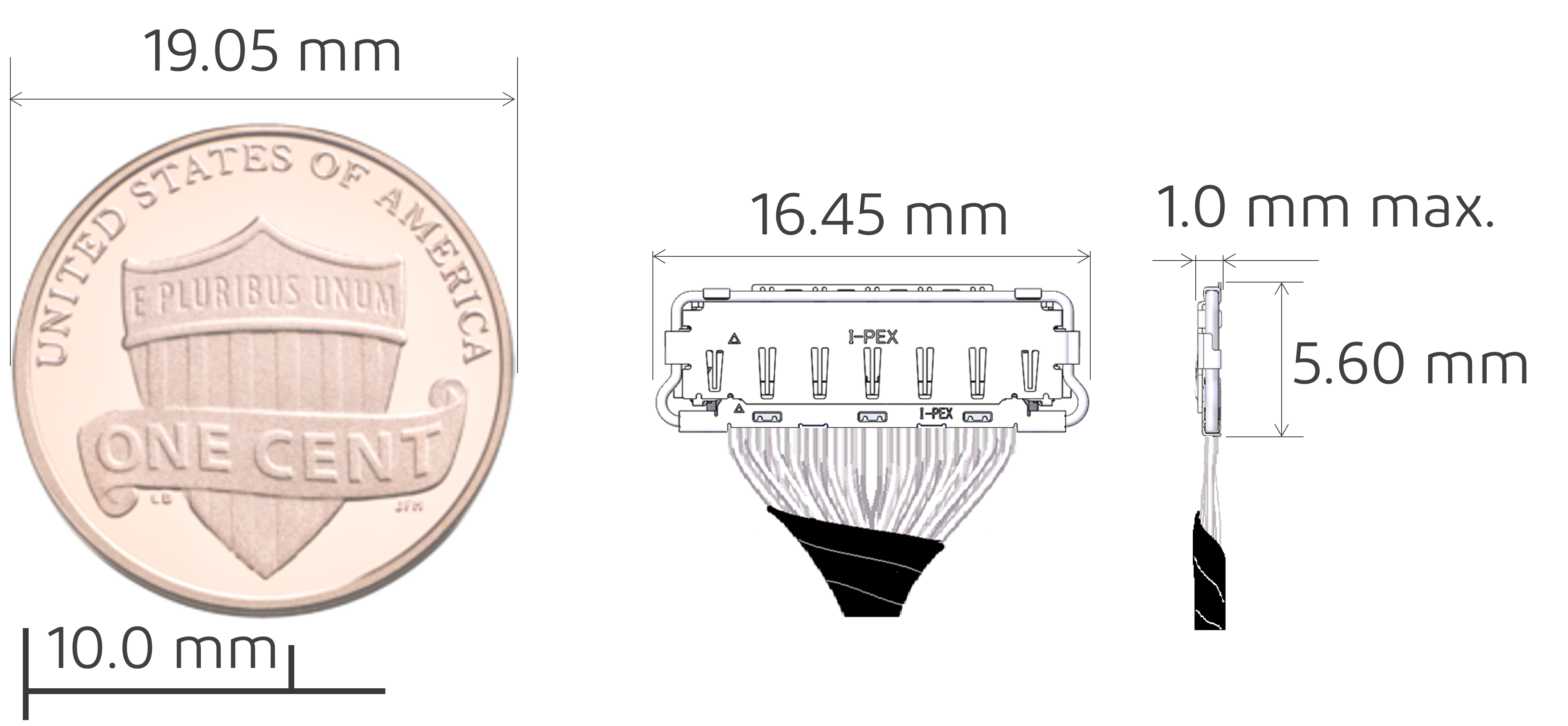

CABLINE-CX II 40p 连接器的大小比一分钱硬币还小。
组合高度: 最高 1.0 mm                                                          穿越转轴组件- CABLINE®连接器

CABLINE-CX II_FAB1-1_ALL CABLINE-UX II_FAB1-2.jpg

柔软的极细同轴线束适合用于有转轴设计的应用

360˚ EMI 屏蔽机械式锁扣罩防止 EMI 外泄
CABLINE-CX II_FAB2-1嵌合

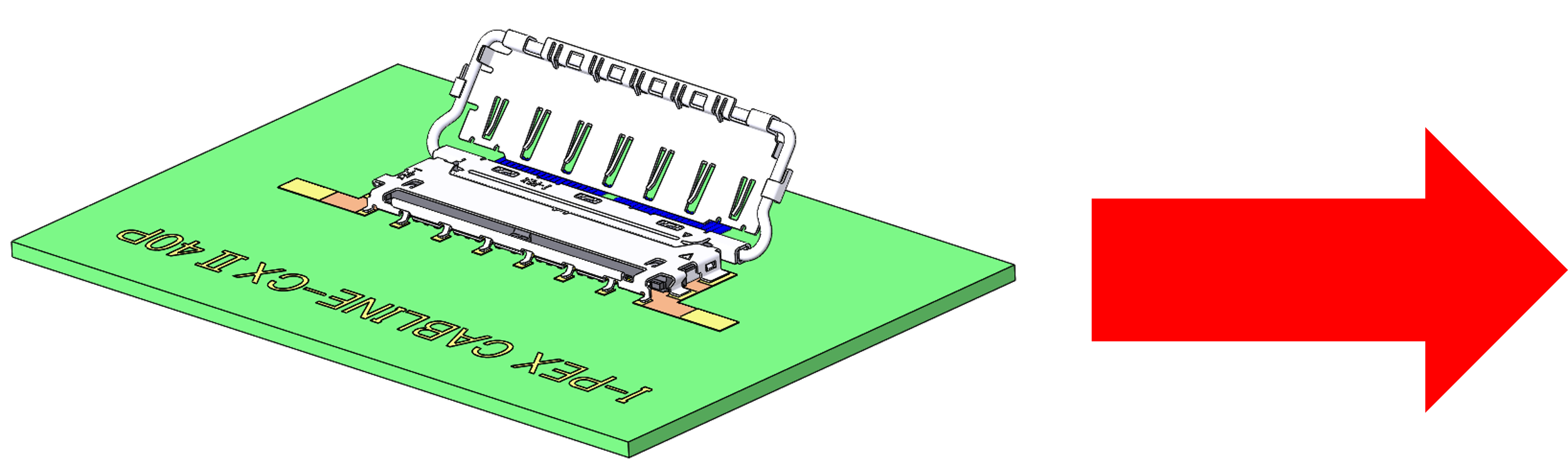

CABLINE-CX II_FAB2-2锁定
 CABLINE-CX II_FAB2-3

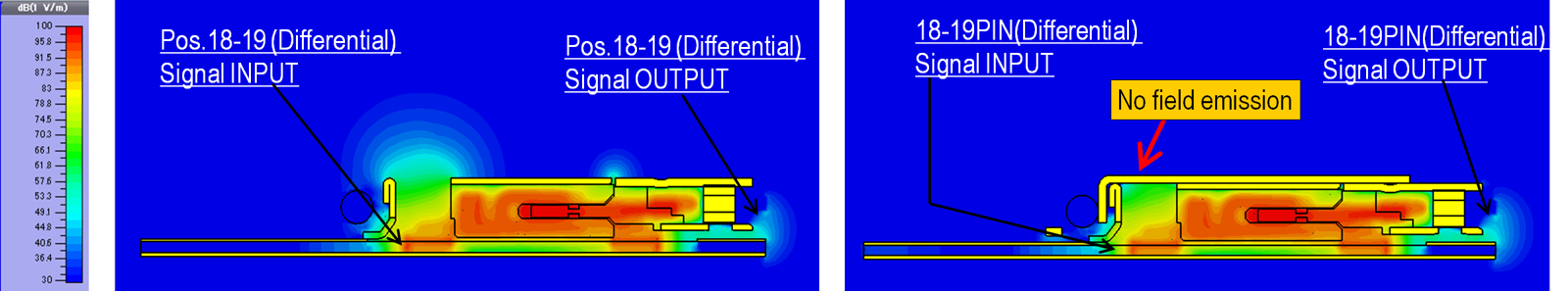

EMI 模拟 (2.4 GHz)

CABLINE-CX II_FAB2-4
                                        不带 EMI 屏蔽罩                                                    带 EMI 屏蔽罩








EMI 屏蔽和多点接地设计

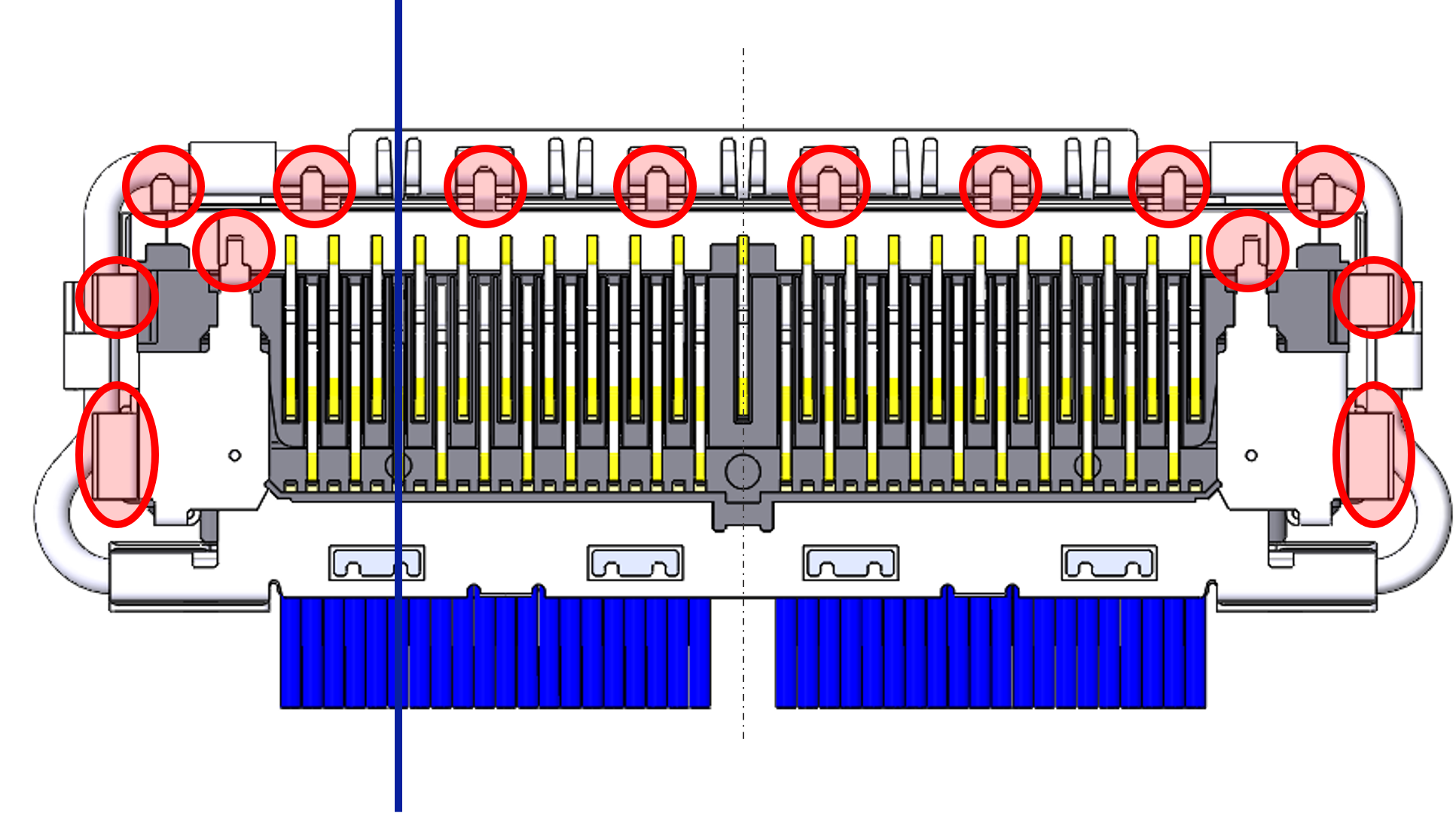

CABLINE-CX II_FAB3-1
底部图

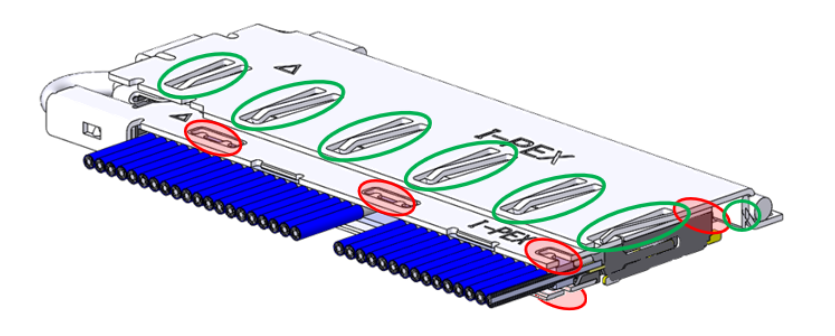

CABLINE-CX II_FAB3-2

UAII_Fab3-3 焊接接触点
UAII_Fab3-4 机械接触点

　　

线端屏蔽到
接地杆		 FAB3 接地杆
到公座外壳		 FAB3 公座外壳
到屏蔽罩外壳		 FAB3 屏蔽罩外壳
到母座外壳 & PCB





Transmission Speed (Reference Only) 5 Gbps/Lane NRZ
Contact Pitch
0.25 (mm)
嵌合类型
水平
Mated Height
1.0 max. (mm)
Available Pin Counts
40
Depth
5.21 (mm)
Width Formula
16.45 (mm)
Micro-Coaxial Cable
AWG 44 AWG 46
Discrete Cable
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.1 A AC/DC [AWG 46] per contact/up to 40 contacts 0.15 A AC/DC [AWG 44] per contact/up to 40 contacts 0.3 A AC/DC [AWG 39] per contact/up to 40 contacts
Applicable Standards (Reference Only)
USB3.1 Gen1 (5 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) eDP (2.7 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



DIAGRAMS_CABLINE-CX_II_WITH_COVER

CABLINE-CX II With Cover RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II with cover plug cable assembly 40pin 20977-040T-01 139.28
CABLINE-CX II plug housing 40pin 20974-040T-01 32.53
CABLINE-CX II plug shell A 40pin 3655-0401 19.35
CABLINE-CX II with cover plug lock bar assembly 40pin 20975-040T-01 87.4
CABLINE-CX II receptacle 40pin 20976-040E-01 78.353



CABLINE-CX II With Cover SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II 40pin micro-coaxial 46AWG L=300mm 1-N  Zenshield type 82439-100B-02-D -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-CX II (type-A) 40pin 91583-040B-001 73853.52
CABLINE-CX_II(TYPE-A)_TB-836_Main_(C)
Main Board
CABLINE-CX_II(TYPE-A)_TB-836_Thru_(C)
Thru  Board


SI Test Board for CABLINE-CX II (type-B) 40pin 91584-040B-001 80553.52
CABLINE-CX_II(TYPE-B)_TB-836_Main_(C)
Main Board
CABLINE-CX_II(TYPE-B)_TB-836_Thru_(C)
Thru Board



CABLINE-CX II With Cover Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-CX II plug 40pin 20833-040T-01-1 20974-040T-01 old P/N
CABLINE-CX II lock bar 40pin 20834-040T-01-1 20975-040T-01 old P/N
CABLINE-CX II with cover 40pin 20844-040T-01-1 20977-040T-01 old P/N
CABLINE-CX II without cover 40pin 20845-040T-01-1 20978-040T-01 old P/N
CABLINE-CX II plug shell A 40pin 3398-0401-1 3655-0401 old P/N
CABLINE-CX II lock bar 40pin 3400-0402-1 3656-0402 old P/N
