CABLINE®-CX II Without Cover

CABLINE-CX II Without Cover Product Image
较窄间距（0.25 mm pitch）, 较低嵌合高度(嵌合高度 = 0.78 mm max), 机械锁扣，带屏蔽，多点接地设计，水平插拔款的极细同轴线连接器

    空间有限的小型电子产品的理想选择

    可选机械锁扣，可以防止连接器不完全插入或者连接器的脱落

    EMI 屏蔽和多点接地设计

Contact Pitch:
0.25 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.73 +/- 0.05 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial):
AWG 39 (*)AWG 44AWG 46* (Characteristic impedance unmatching)
Cable Size (Discrete):
AWG 39
Current Rating:
[AWG 46] 0.1 A/contact (up to 40 contacts)[AWG 44] 0.15 A/contact (up to 40 contacts)[AWG 39] 0.3 A/contact (up to 40 contacts)

下载

空间有限的小型电子产品的理想选择

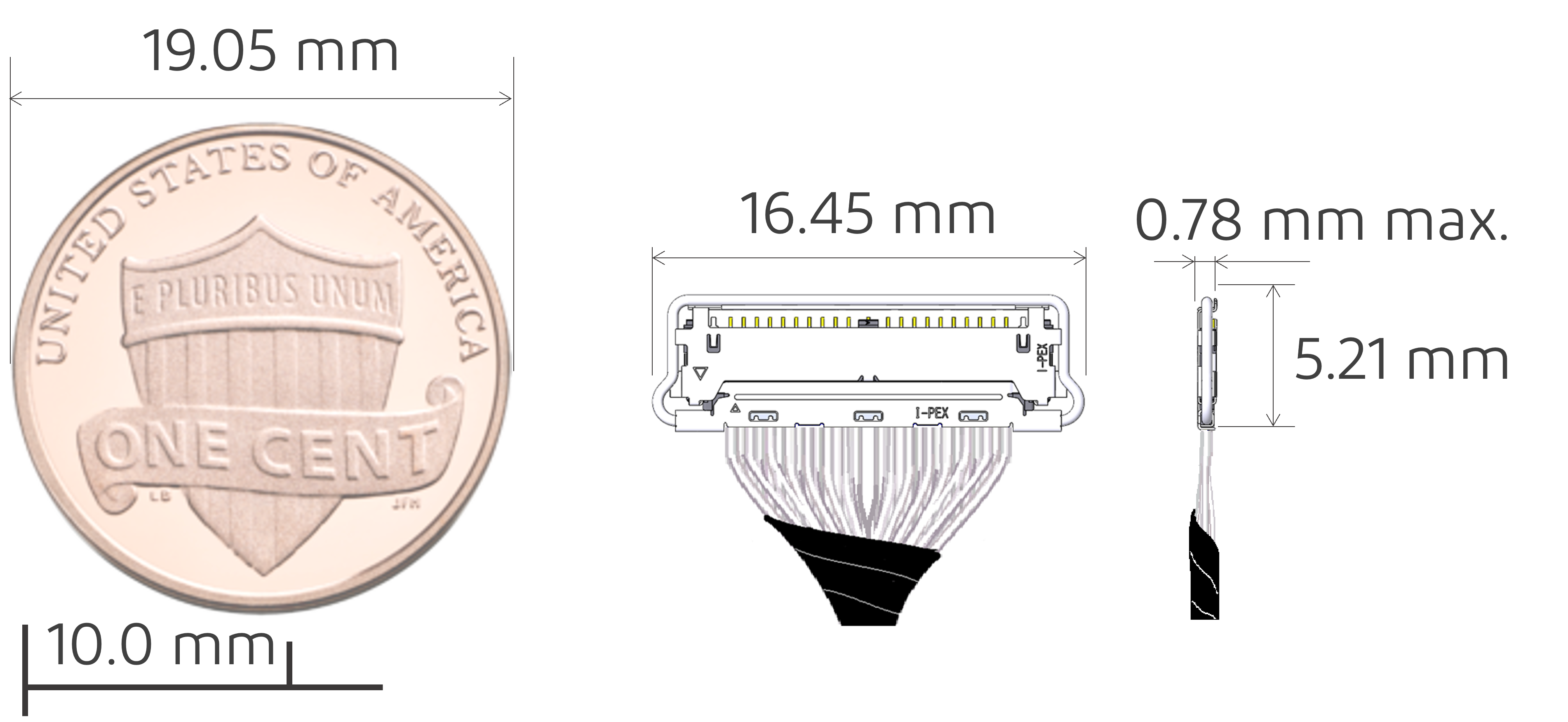

CABLINE-CX II 40Pin 连接器的大小比一分钱硬币还小。

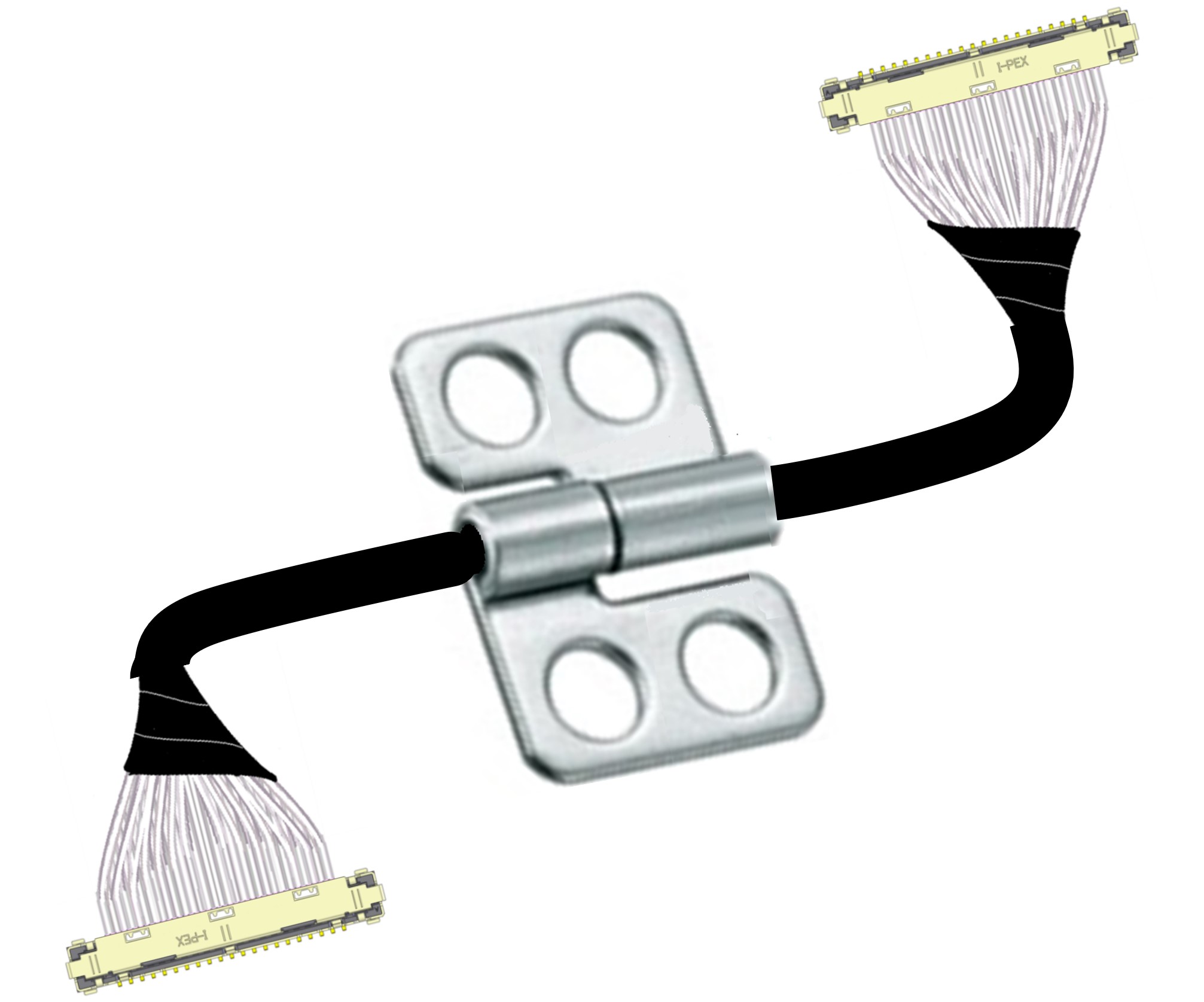

组合高度: 最高 0.78mm                                                   穿越转轴组件- CABLINE®连接器

CABLINE-CX_II_FAB1-1 CABLINE-UX II_FAB1-2.jpg

柔软的极细同轴线束
适合用于具有转轴类产品的应用

可选机械锁扣，可以防止连接器不完全插入或者连接器的脱落

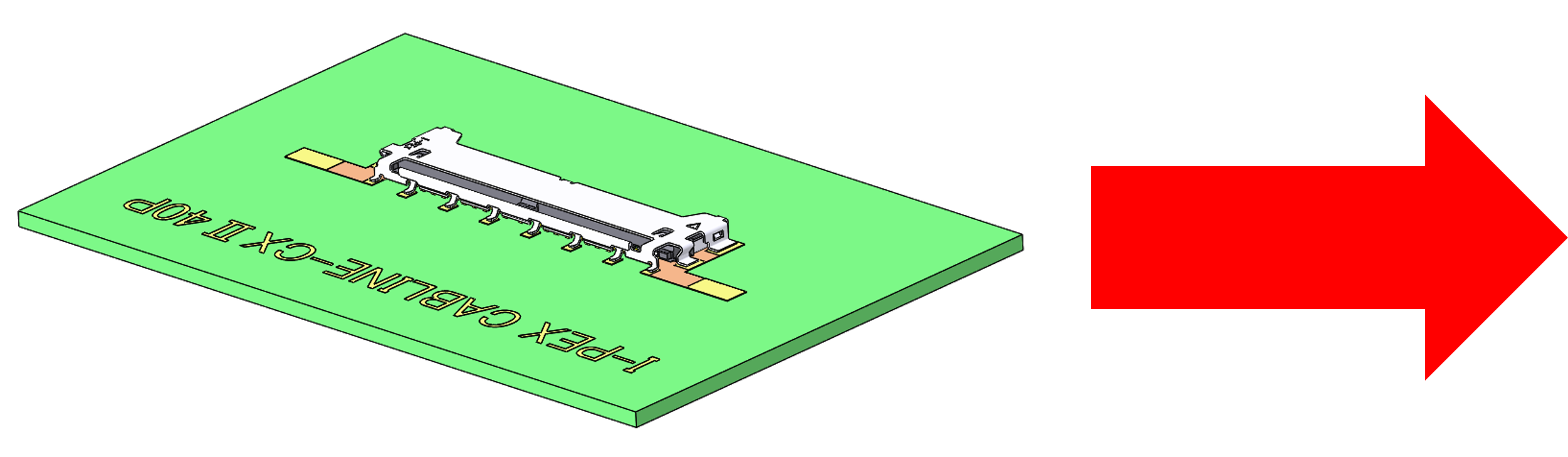

CABLINE-CX II_FAB2-1嵌合

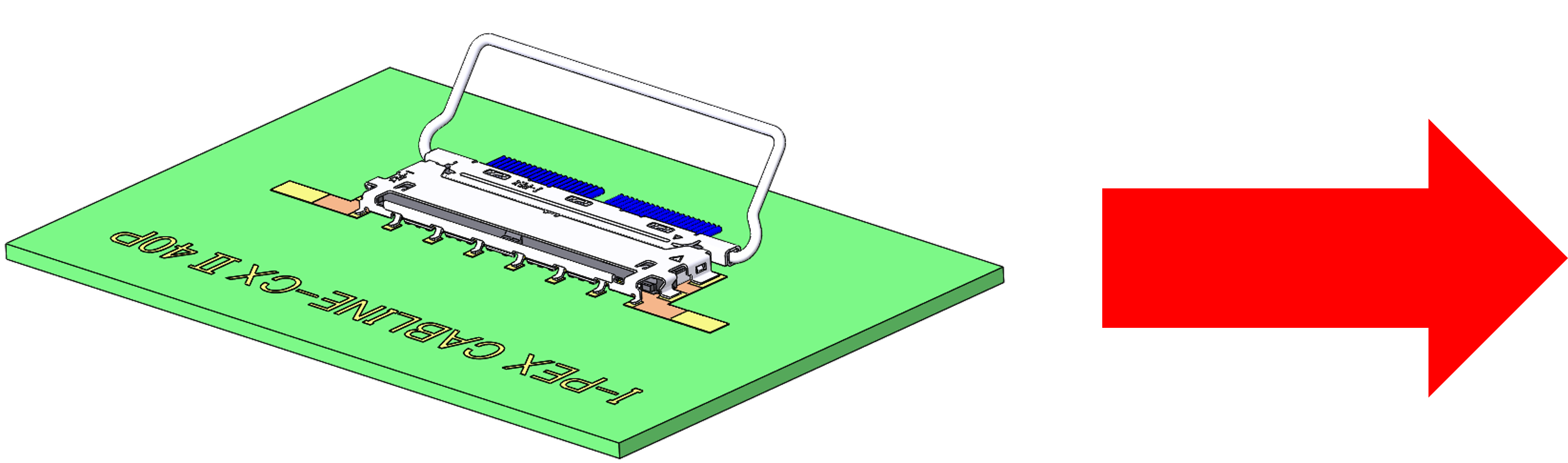

CABLINE-CX_II_FAB2-2锁定

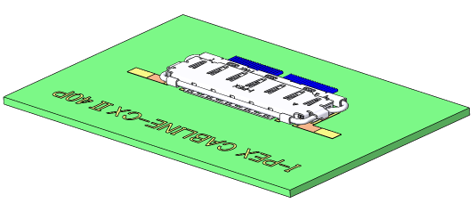

 CABLINE-CX II_FAB2-3
                                                             只有当公座完全和母座嵌合时，机械锁扣才能锁上。

干涉

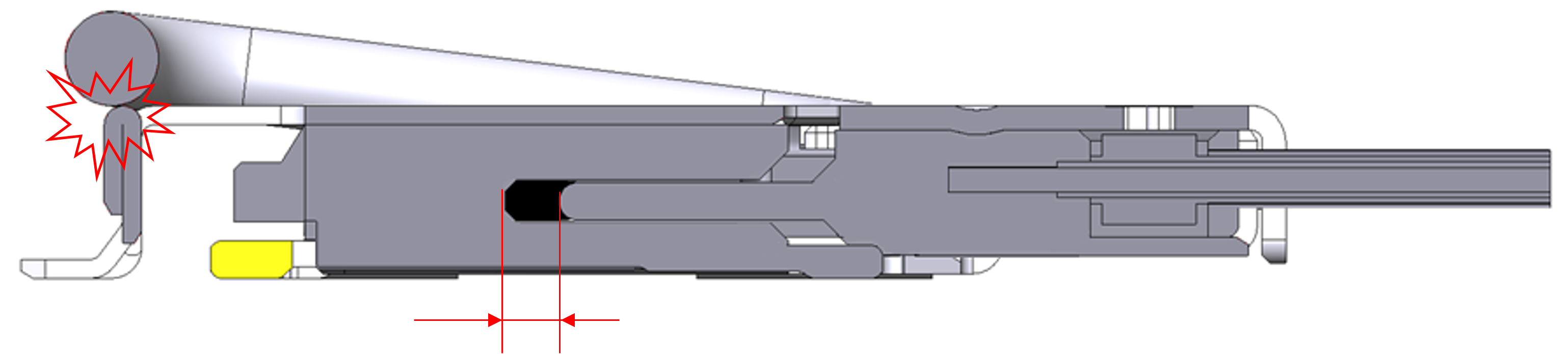

CABLINE-CX_II_FAB2-4                                           半嵌合

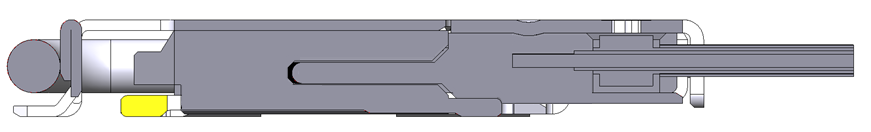

CABLINE-CX_II_FAB2-5
                                     完全嵌合



EMI 屏蔽和多点接地设计

UAII_Fab3-3 焊接触点
UAII_Fab3-4 机械触点

1. 公座外壳到
母座外壳

 FAB3

2. 母座外壳
到 PCB

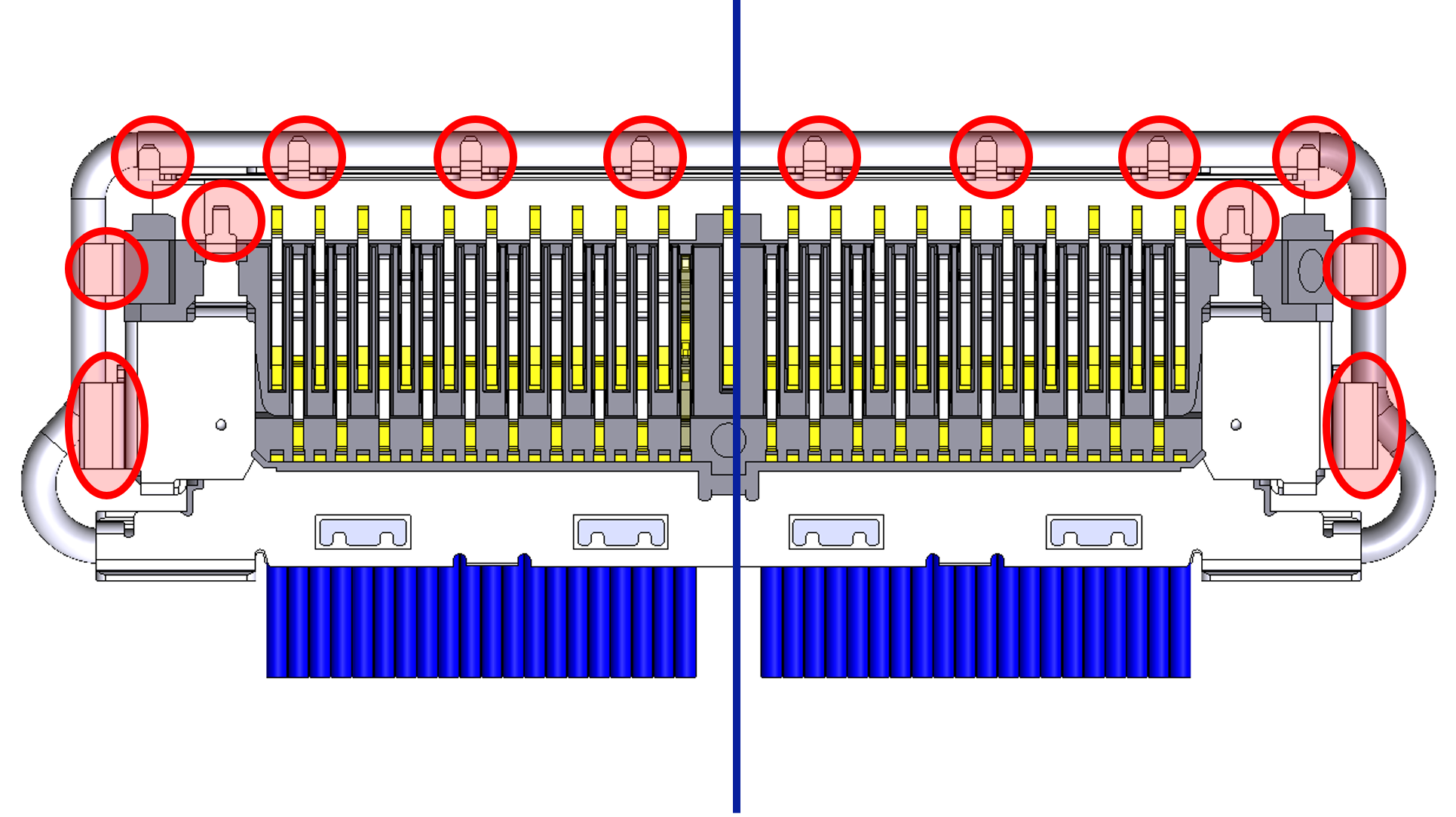

CABLINE-CX_II_FAB3-1

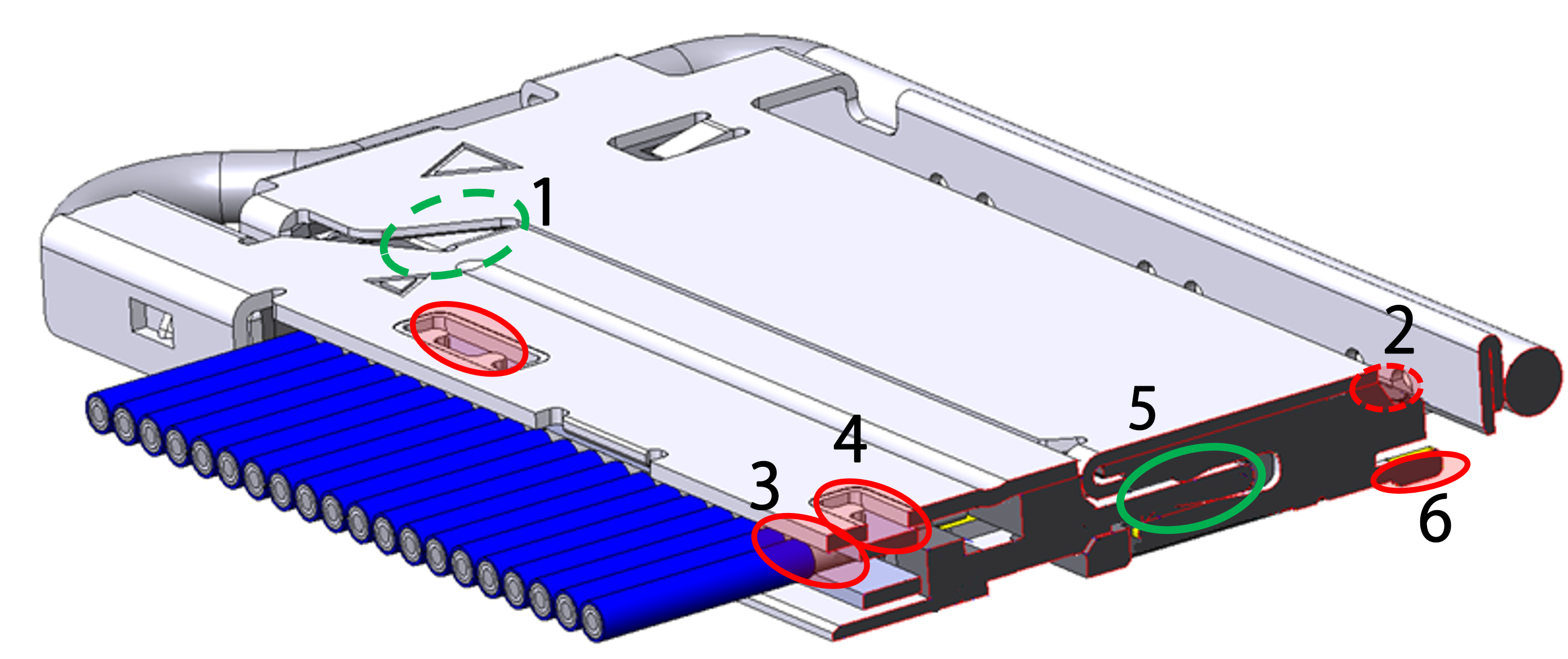

                          底面图		 CABLINE-CX_II_FAB3-2_2
3. 线端屏蔽到
接地杆		 FAB3 4. 接地杆
到公座外壳		 ​​FAB3 5. 公座外壳到
屏蔽罩外壳		 FAB3 6. 屏蔽罩外壳到
母座外壳 & PCB






Transmission Speed (Reference Only) 5 Gbps/lane NRZ
Contact Pitch
0.25 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.73 +/- 0.05 mm
Available Pin Count Signal: 40
Depth
5.21 mm
Width
6.45 + (0.25 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial)
AWG 39 (*)AWG 44AWG 46* (Characteristic impedance unmatching)
Cable Size (Discrete)
AWG 39
Current Rating
[AWG 46] 0.1 A/contact (up to 40 contacts)[AWG 44] 0.15 A/contact (up to 40 contacts)[AWG 39] 0.3 A/contact (up to 40 contacts)
Applicable Standards (Reference Only)
USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



DIAGRAMS_CABLINE-CX_II_WITHOUT_COVER

CABLINE-CX II Without Cover RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II without cover plug cable assembly 40pin 20978-040T-01 79.48
CABLINE-CX II plug housing 40pin 20974-040T-01 32.53
CABLINE-CX II plug shell A 40pin 3655-0401 19.35
CABLINE-CX II without cover plug lock bar assembly 40pin 3656-0402 27.6
CABLINE-CX II receptacle 40pin 20976-040E-01 78.353



CABLINE-CX II Without Cover SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II 40pin micro-coaxial 46AWG L=300mm 1-N  Zenshield type 82439-100B-02-D -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-CX II (type-A) 40pin 91583-040B-001 73853.52
CABLINE-CX_II(TYPE-A)_TB-836_Main_(C)
Main Board

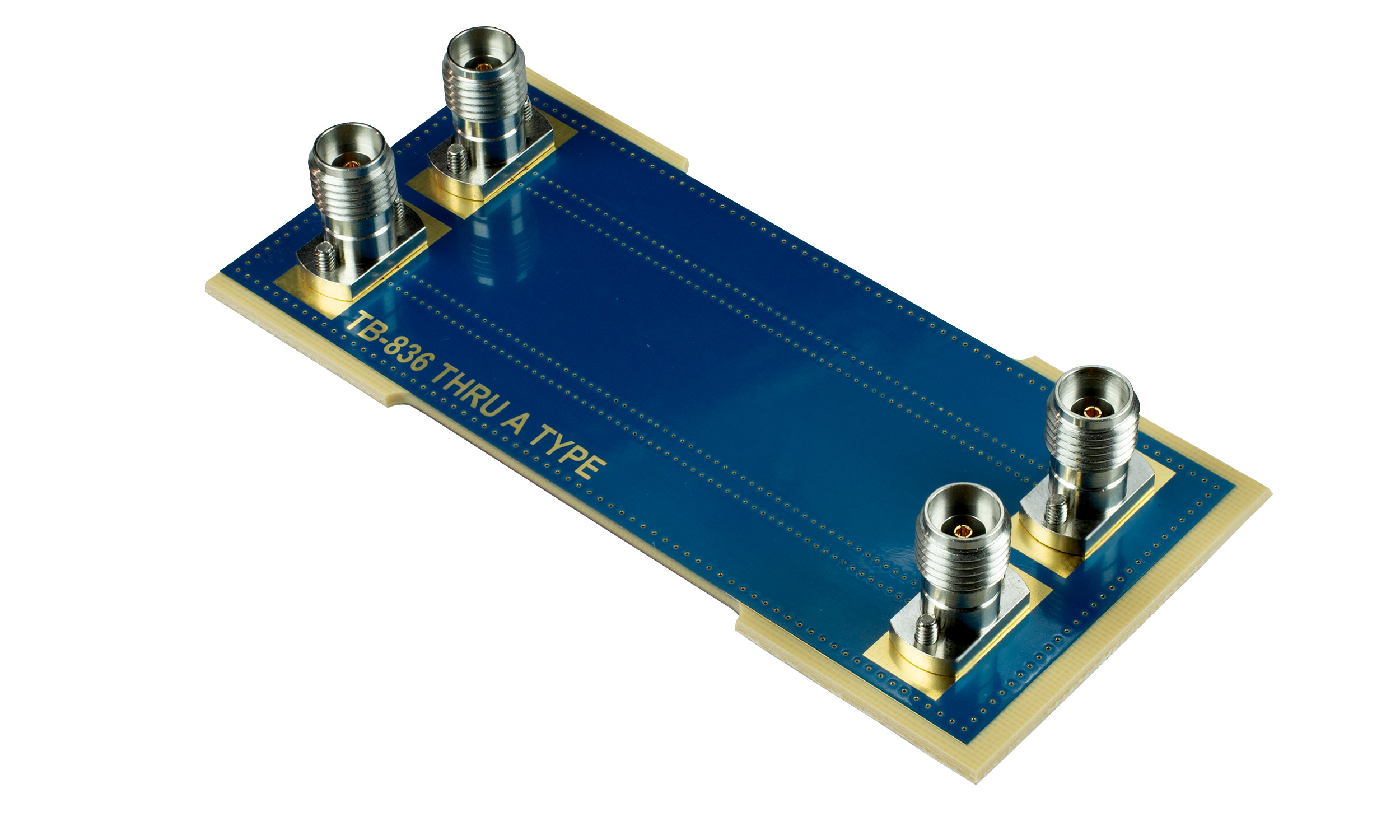

CABLINE-CX_II(TYPE-A)_TB-836_Thru_(C)
Thru  Board


SI Test Board for CABLINE-CX II (type-B) 40pin 91584-040B-001 80553.52

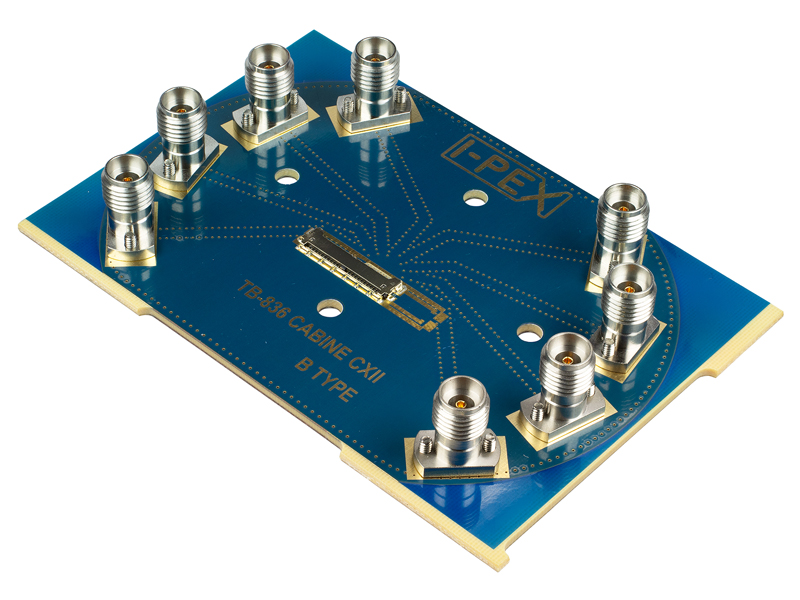

CABLINE-CX_II(TYPE-B)_TB-836_Main_(C)
Main Board

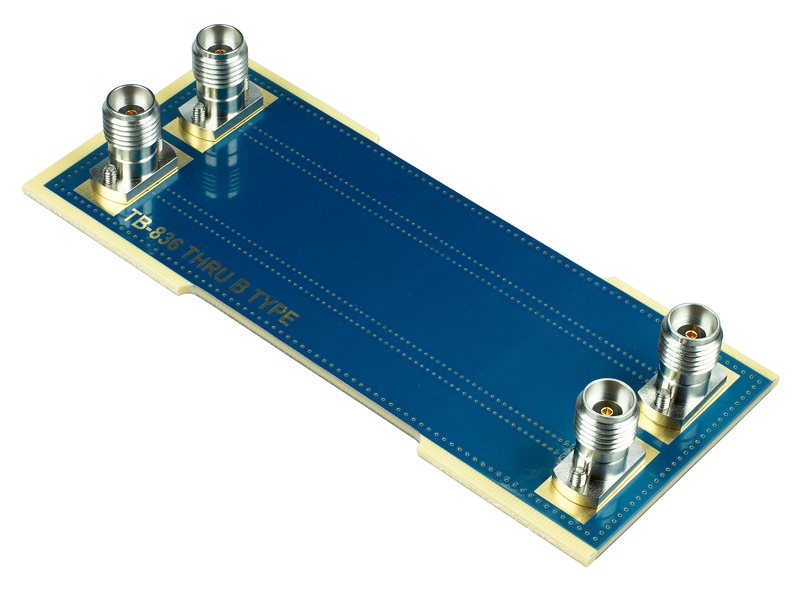

CABLINE-CX_II(TYPE-B)_TB-836_Thru_(C)
Thru Board



CABLINE-CX II Without Cover Plan to EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
CABLINE-CX II plug 40pin 20833-040T-01-1 old P/N 20974-040T-01 new recommended P/N
CABLINE-CX II lock bar 40pin 20834-040T-01-1 old P/N 20975-040T-01 new recommended P/N
CABLINE-CX II with cover 40pin 20844-040T-01-1 old P/N 20977-040T-01 new recommended P/N
CABLINE-CX II without cover 40pin 20845-040T-01-1 old P/N 20978-040T-01 new recommended P/N
CABLINE-CX II plug shell A 40pin 3398-0401-1 old P/N 3655-0401 new recommended P/N
CABLINE-CX II lock bar 40pin 3400-0402-1 old P/N 3656-0402 new recommended P/N
