MHF^® 4L

M.2 규격 표준 Connector: 결합높이 1.2 mm, 1.4 mm, 1,7mm max., ～12 GHz 주파수에 우수한 전송특성을 발휘

최소한의 제품 사이즈로 ～12GHz에서 우수한 퍼포먼스를 실현

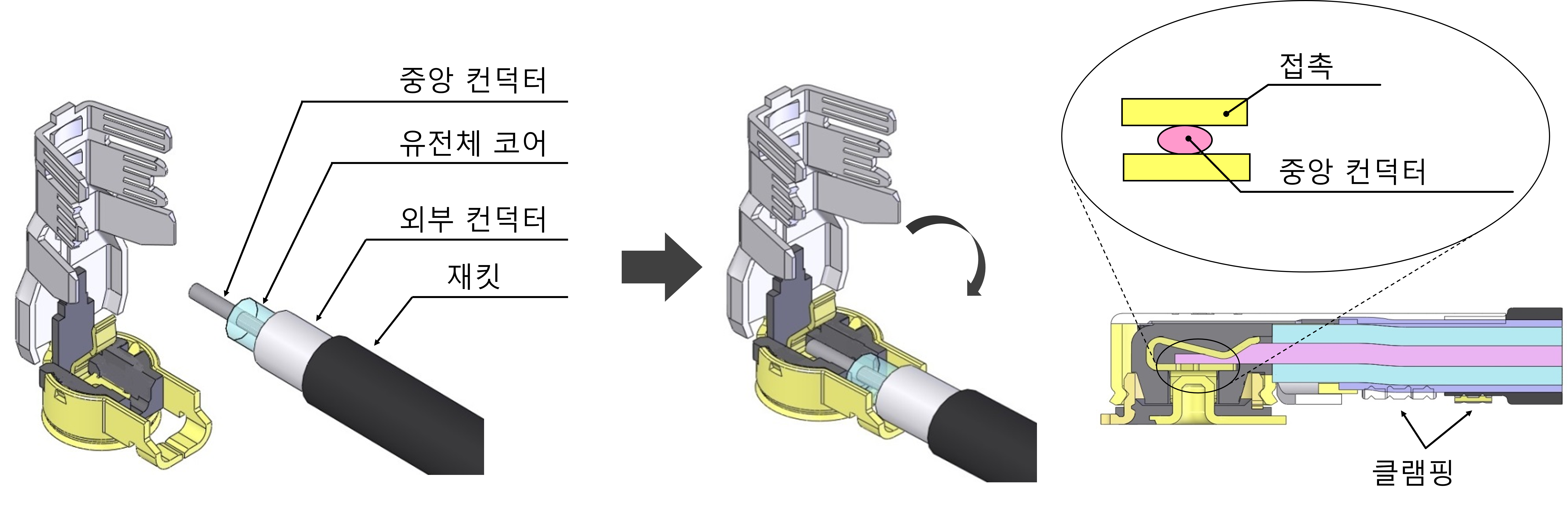

신뢰성 높은 무납땜 결선 기술 “i-Fit®” 테크놀러지로, 안정된 성능의 하네스 제공

MHF^® 4L는 다양한 케이블 직경과 기계적인 락킹 대응

*MHF^® 4L은 MHF^® 4와 결합 가능합니다.
*기계적인 LOCK 구조로 높은 결합 유지력의 PLUG CABLE ASSEMBLY MHF^® 4L LK도 준비되어 있습니다.
*Connecor의 취급 방법은‘삽입 방법’동영상을 참조 부탁 드립니다.

Mated Height:

1.7 mm max.1.4 mm max.1.2 mm max.

Operating Temperature:

-40 to 90℃ (233 to 363 K)

Cable Size (Micro-Coaxial):

AWG 30 O.D. 1.37 mmAWG 32 O.D. 1.13 mmAWG 33 O.D. 0.95 mmAWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mm

최소한의 제품 사이즈로 ～12GHz에서 우수한 퍼포먼스를 실현

신뢰성 높은 무납땜 결선 기술 “i-Fit®” 테크놀러지로, 안정된 성능의 하네스 제공

MHF^® 4L는 다양한 케이블 직경과 기계적인 락킹 대응


Product name		MHF^® 4L LK	MHF^® 4L	MHF^® 4L	MHF^®4L
Lock		With Lock	Without Lock	Without Lock	Without Lock
Mating Height		2.0 mm max.	1.7 mm max.	1.4 mm max.	1.2 mm max.
Coaxial O.D. (Center Conductor AWG)	1.37 mm (AWG 30)	●	●
	1.13 mm (AWG 32)			●
	0.95 mm (AWG 33)			●
	0.81 mm (AWG 36)				●
	0.64 mm (AWG 36)				●
Receptacle		MHF^® 4 receptacle (20449-001E-03), MHF^® 4L receptacle (20579-001E)

Product Type	Coaxial RF Connector
Mated Height	1.7 mm max.1.4 mm max.1.2 mm max.
SMT Size	2.0 x 2.0 mm
Frequency Range	Up to 12 GHz (Up to 12 GHz for MHF®4L receptacle, Up to 9 GHz for MHF®4 receptacle)
Operating Temperature	-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)	AWG 30 O.D. 1.37 mmAWG 32 O.D. 1.13 mmAWG 33 O.D. 0.95 mmAWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mm
V.S.W.R (Plug)	DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.4 max.(O.D. 1.37mm), 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)6 to 9 GHz: 1.5 max.(O.D. 1.37mm), 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)9 to 12 GHz: 1.6 max.(O.D. 1.37mm), 1.9 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
Applicable Standards (Reference Only)	5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)	No
Mechanical Lock	No

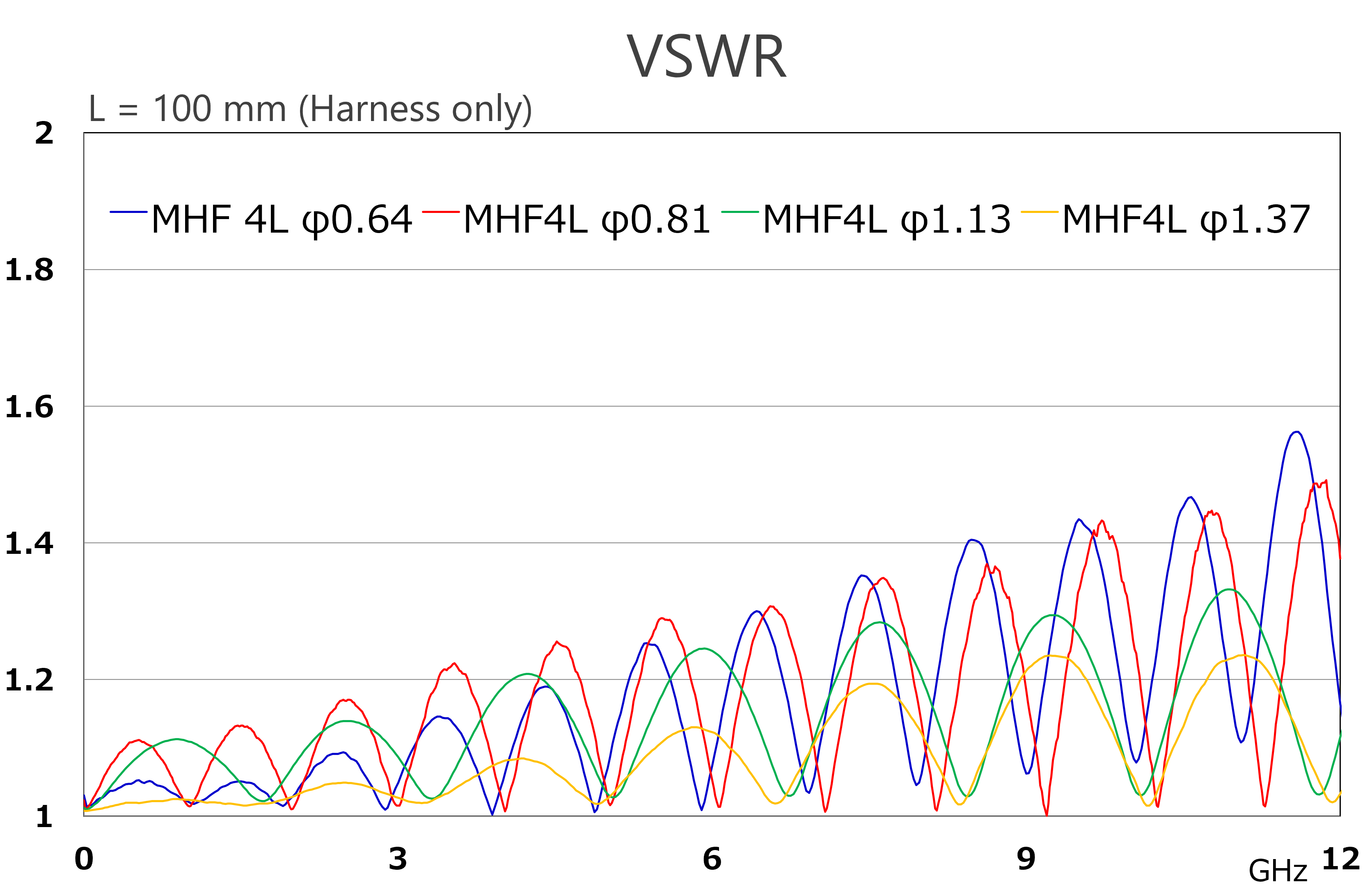

VSWR (Harness only)	DC ~ 3 GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) 3 ~ 6 GHz : 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm) 3 ~ 6 GHz : 1.4 max. (O.D. 1.37 mm) 6 ~ 9 GHz : 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm) 6 ~ 9 GHz : 1.5 max. (O.D. 1.37 mm) 9 ~ 12 GHz : 1.9 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm) 9 ~ 12 GHz : 1.6 max. (O.D. 1.37 mm)

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.

MHF 4L RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF 4L plug OD=0.81/0.64mm	20572-001R-08	20.2
MHF 4L plug OD=1.13/0.95mm	20565-001R-13	20.2
MHF 4L plug OD=1.37mm	20632-001R-37	33.2
MHF 4L receptacle	20579-001E	8.48

MHF 4L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF 4L-4L harness OD=0.64mm L=50mm	8-25-0437	130
MHF 4L-4L harness OD=0.64mm L=100mm	8-25-0438	190
MHF 4L-4L harness OD=0.64mm L=200mm	8-25-0439	310
MHF 4L-4L harness OD=0.81mm L=50mm	8-25-0466	190
MHF 4L-4L harness OD=0.81mm L=100mm	8-25-0467	310
MHF 4L-4L harness OD=0.81mm L=200mm	8-21-0042	500
MHF 4L-4L harness OD=0.81mm L=300mm	8-25-0926	377.8
MHF 4L-4L harness OD=0.81mm L=400mm	8-25-0927	492.8
MHF 4L-4L harness OD=0.81mm L=500mm	8-25-0928	835
MHF 4L-4L harness OD=0.95mm L=100mm	8-25-0953	282
MHF 4L-4L harness OD=0.95mm L=200mm	8-25-0954	524
MHF 4L-4L harness OD=0.95mm L=300mm	8-25-0955	757
MHF 4L-4L harness OD=0.95mm L=400mm	8-25-0956	996
MHF 4L-4L harness OD=0.95mm L=500mm	8-25-0957	1250
MHF 4L-4L harness OD=1.13mm L=50mm	8-23-0115	560
MHF 4L-4L harness OD=1.13mm L=100mm	8-23-0112	570
MHF 4L-4L harness OD=1.13mm L=200mm	8-21-0043	790
MHF 4L-4L harness OD=1.13mm L=300mm	8-26-0047	943
MHF 4L-4L harness OD=1.13mm L=400mm	8-26-0048	1244
MHF 4L-4L harness OD=1.13mm L=500mm	8-24-0128	690
MHF 4L-4L harness OD=1.37mm L=50mm	8-23-0116	570
MHF 4L-4L harness OD=1.37mm L=100mm	8-23-0113	660
MHF 4L-4L harness OD=1.37mm L=200mm	8-23-0114	630
MHF 4L-4L harness OD=1.37mm L=300mm	8-26-0049	1354.8
MHF 4L-4L harness OD=1.37mm L=400mm	8-26-0050	1784.8
MHF 4L-4L harness OD=1.37mm L=500mm	8-24-0129	680

MHF 4L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

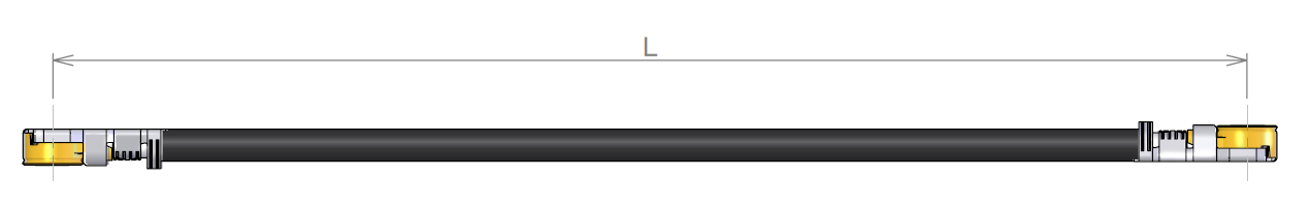

MHF 4L-4L OD0.95MM 100MM Type-2

Part Number Description	Part Number	Weight (mg)
MHF 4L-4L harness OD=0.64mm L=50mm 180 degree orientation	8-25-0922	86.1
MHF 4L-4L harness OD=0.64mm L=100mm 180 degree orientation	8-25-0923	115
MHF 4L-4L harness OD=0.64mm L=200mm 180 degree orientation	8-25-0924	230
MHF 4L-4L harness OD=0.81mm L=50mm 180 degree orientation	8-25-0934	207.1
MHF 4L-4L harness OD=0.81mm L=100mm 180 degree orientation	8-25-0935	167
MHF 4L-4L harness OD=0.81mm L=200mm 180 degree orientation	8-25-0936	334
MHF 4L-4L harness OD=0.81mm L=300mm 180 degree orientation	8-25-0937	624.6
MHF 4L-4L harness OD=0.81mm L=400mm 180 degree orientation	8-25-0938	700.8
MHF 4L-4L harness OD=0.81mm L=500mm 180 degree orientation	8-25-0939	867.8
MHF 4L-4L harness OD=0.95mm L=100mm 180 degree orientation	8-25-0972	282
MHF 4L-4L harness OD=0.95mm L=200mm 180 degree orientation	8-25-0973	524
MHF 4L-4L harness OD=0.95mm L=300mm 180 degree orientation	8-25-0974	757
MHF 4L-4L harness OD=0.95mm L=400mm 180 degree orientation	8-25-0975	996
MHF 4L-4L harness OD=0.95mm L=500mm 180 degree orientation	8-25-0976	1235
MHF 4L-4L harness OD=1.13mm L=50mm 180 degree orientation	8-25-0947	190.5
MHF 4L-4L harness OD=1.13mm L=100mm 180 degree orientation	8-25-0948	341
MHF 4L-4L harness OD=1.13mm L=200mm 180 degree orientation	8-25-0949	642
MHF 4L-4L harness OD=1.13mm L=300mm 180 degree orientation	8-25-0950	943
MHF 4L-4L harness OD=1.13mm L=400mm 180 degree orientation	8-25-0951	1244
MHF 4L-4L harness OD=1.13mm L=500mm 180 degree orientation	8-25-0952	1545
MHF 4L-4L harness OD=1.37mm L=50mm 180 degree orientation	8-25-0959	279.8
MHF 4L-4L harness OD=1.37mm L=100mm 180 degree orientation	8-25-0960	494
MHF 4L-4L harness OD=1.37mm L=200mm 180 degree orientation	8-25-0961	924
MHF 4L-4L harness OD=1.37mm L=300mm 180 degree orientation	8-25-0962	1354.8
MHF 4L-4L harness OD=1.37mm L=400mm 180 degree orientation	8-25-0963	1784.8
MHF 4L-4L harness OD=1.37mm L=500mm 180 degree orientation	8-25-0964	2214.8

다른 형번

이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.

MHF 4L OTHER PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF 4 receptacle	20449-001E-03	4.54
MHF 4 receptacle thick plating type	20449-001E	4.54
MHF 4L plug OD=0.83mm	20565-001R-83	20.2
MHF 4L plug OD=0.81mm	20572-002R-08	20.2

MHF 4L ACCESSORIES PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Image
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check	90449-001	2571.2
MHF 4/4L/4L LK adapter for plug voltage-check	90449-003-01	680
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check	90449-002	1685
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle	90698-0001	7170
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm	90577-0100	4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm	90577-0200	5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm	90577-0350	6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm	90577-0750	9769.8
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe	90576-0001	1458.1
MHF series SMA adapter for receptacle high-cycle detachable base	90684-0001	15104.1
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe	90683-0001	1822.3
MHF 4L insertion/extraction tool [20572-001R-08][20565-001R-13]	90609-0001	600
MHF 4L insertion/extraction tool [20632-001R-37]	90873-0001	1020
MHF 4L insertion/extraction tweezer [20572-001R-08]	90616-0008	17320
MHF 4L insertion/extraction tweezer [20565-001R-13]	90615-0013	17730
MHF 4L type 06 semi-auto jig	90599-006	7500000
MHF 4L type 08 semi-auto jig	90599-008	7500000
MHF 4L type 13 semi-auto jig	90600-013	-
MHF 4L type 37 semi-auto jig	90703-037	-

SI Test Board with 2.92mm Adapter

Part Number Description

Part Number

Weight (mg)


SI Test Board for MHF 4L

91602-001B-001

18066

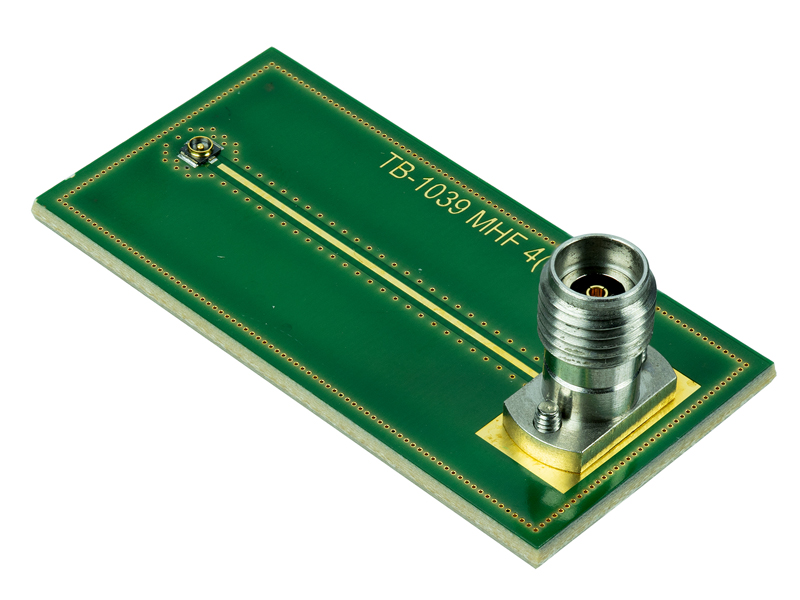

MHF_4L_SI_TB-859_Test_Board_(C)

Main Board

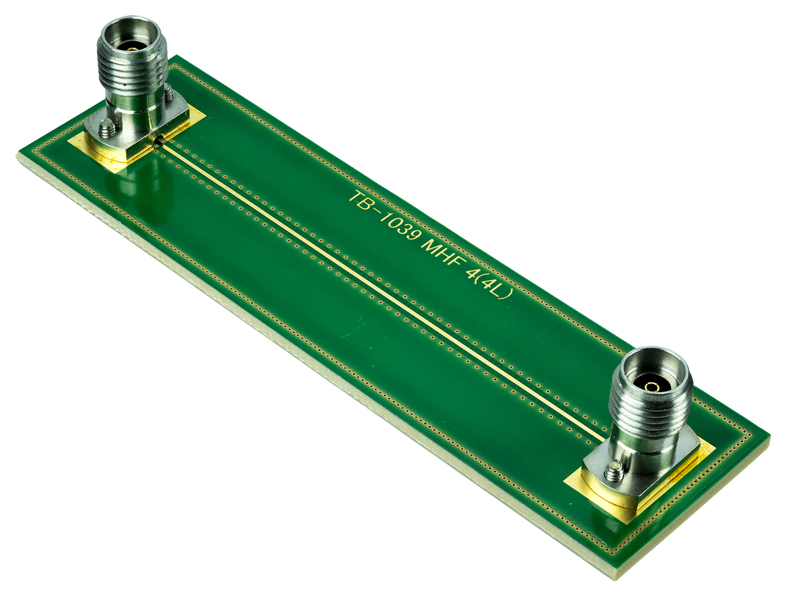

MHF_4L_SI_TB-859_THRU_Board_(C)
Thru Board

Insertion/Extraction tools and tweezers are ready for MHF^® 4L

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.

Insertion/Extraction tools

How to extract

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.

Insertion/Extraction tweezers

How to extract

Closing the tool lightly, slide it to the end.

Clip the plug and pull the tool vertically from the receptacle to withdraw.

Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series	High Cycle Series
Standard series	Standard type	Narrow Pitch type	Detachable type
Durability: 500	Durability: 10,000	Durability: 10,000 (Probe), 100 (Cable)	Durability: 10,000 (Probe), 200,000 (Base)
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.	The Standard type connects directly from the probe to the measuring instrument.	The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.	The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.

SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board

MHF 4L EOL PART NUMBERS

Part Number Description	EOL P/N	EOL feature	Alternative P/N	Alternative feature
MHF 4L receptacle	20579-001E-01	Larger reel size, MOQ: 20,000	20579-001E	Smaller reel size, MOQ: 10,000
