ISH® HORIZONTAL

ISH Horizontal Product Image
耐高温・耐振動性に優れた水平嵌合SMTコネクタ

    高い接触信頼性を求める機器に最適な優れた耐高温性・耐振動性

    独自のバネ構造端子による高い長期接触信頼性

    各種車載スペックに適合し高温・振動環境の産業用途等に最適
    LV214/USCAR-2規格準拠品もラインアップ
コンタクトピッチ (mm):
2 mm
Height:
7.5 Max 12.2 Max
芯数:
3 6 8 12 16 20 32
Discrete Cable (AWG):
#20 #22
嵌合タイプ:
水平嵌合

ダウンロード

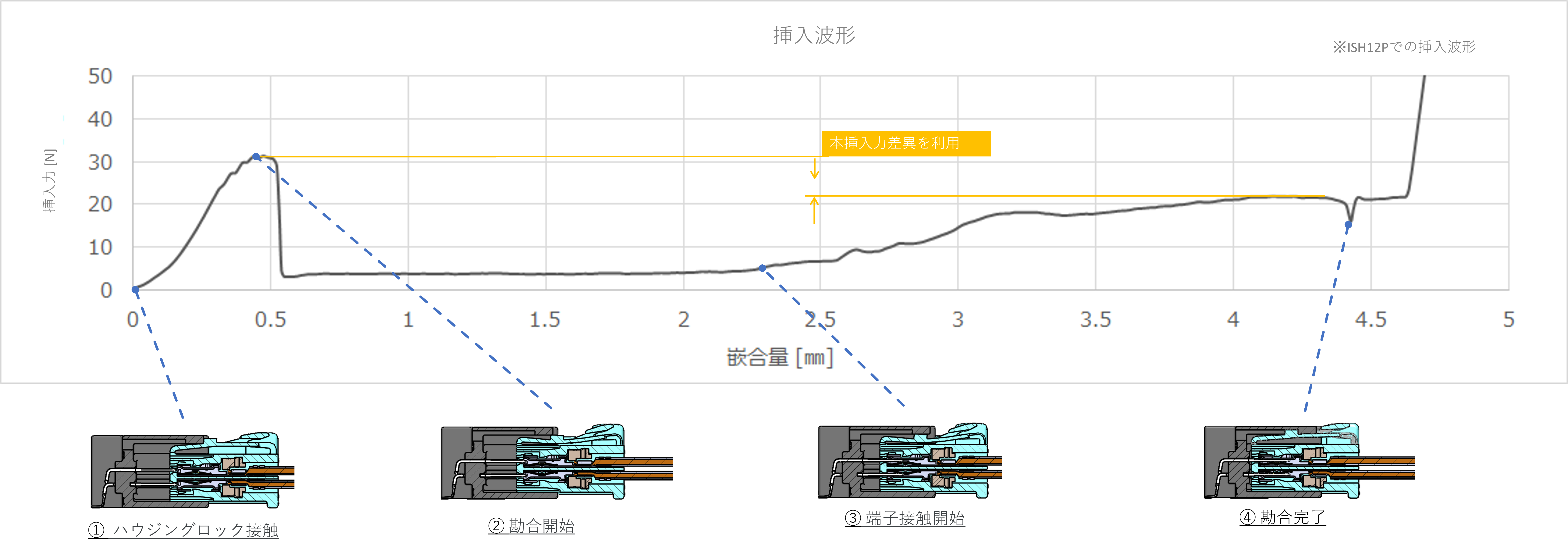

高い接触信頼性を求める機器に最適な優れた耐高温性・耐振動性
ISH Horizontal Type FAB1 J

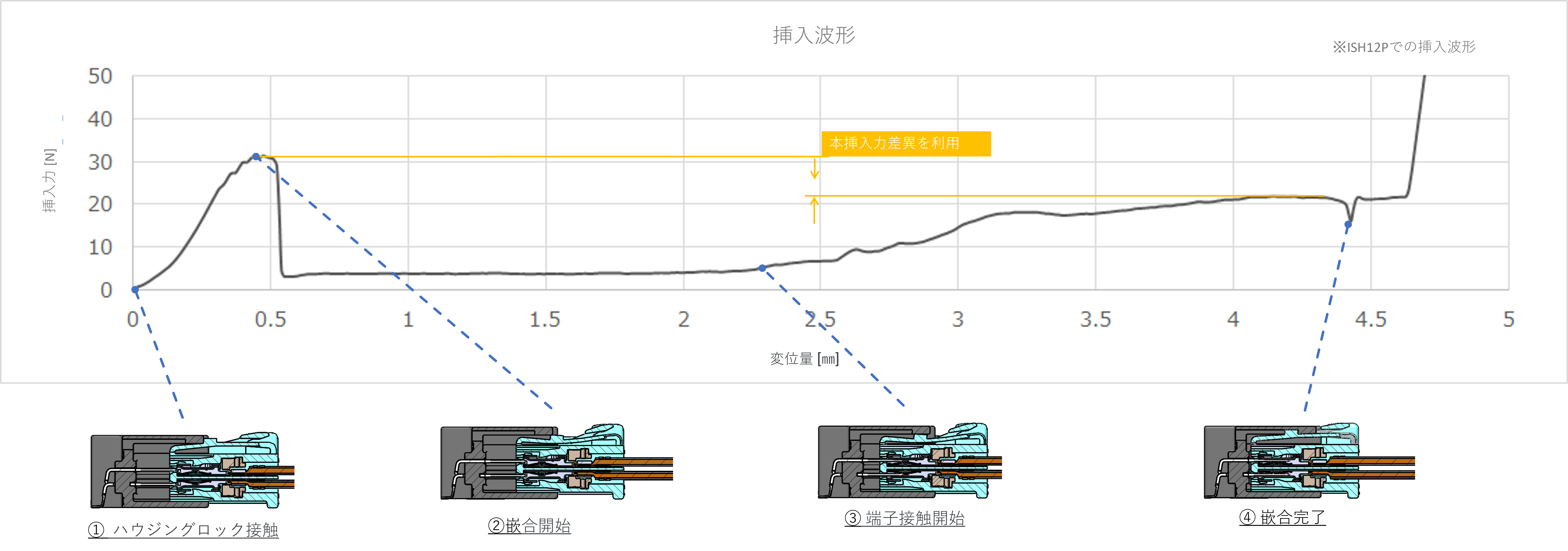

独自のバネ構造端子による高い長期接触信頼性
ISH Horizontal Type FAB2 J

各種車載スペックに適合し高温・振動環境の産業用途等に最適
LV214/USCAR-2規格準拠品もラインアップ

車載機器

その他機器
For Automotive For Non-Automotive
  • ヘッドランプ＆その他車載照明機器
  • インバータ＆DC/DCコンバータ
  • バッテリーコントロールモジュール
  • フロント/リアカメラECU
  • 車載インフォテインメント
  • オフロード車　(ATV/UTV車、 QUAD車、 3輪車)
  • トラック、農機・建機(油圧ショベル、 建機用ローダー)
  • 工場自動化

LV214/USCAR-2規格準拠が必要な機器

LV214/USCAR-2準拠品番については上記の「型番」タブをご参照願います



嵌合タイプ
水平嵌合
Contact pitch
2 mm
Height
7.5 Max 12.2 Max
Width Formula
ISH : Single row=8.9+2.0*pin Double row=8.9+1.0*pin / ISHV : 10.1+1.0*pin mm
Pin count
3 6 8 12 16 20 32
Discrete Cable (AWG)
#20 #22
Current rating
0.7A 3A 4.5A
Mechanical lock
Yes
Automotive Standards USCAR-2 (ISH 8P and 12P tested. Except for retention force specification) / LV214 (ISHV 12P and 16P tested)
Mated Height (MAX) Single Row: 7.50mm
Double Row: 12.20mm

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



ISH (Horizontal Type) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL male connector 3pin single V0111-003E-01 1316 　
ISH HORIZONTAL male connector 6pin double keyA V0114-006E-01 1759.98 　
ISH HORIZONTAL male connector 8pin double V0114-008E-02 2098.8 USCAR‐2(*)
ISH HORIZONTAL male connector 12pin double keyC V0114-012E-21 2478.04 USCAR‐2(*)
ISH HORIZONTAL male connector 16pin double V0114-016E-01 2897.92 　
ISH HORIZONTAL male connector 20pin double V0114-020E-01 3307.96 　
ISH HORIZONTAL male connector 32pin double V0114-032E-01 4493.24 　
ISH HORIZONTAL female housing 3pin single V0113-91003-01 502.6 　
ISH HORIZONTAL female housing 6pin double keyA V0116-91006-01 698.6 　
ISH HORIZONTAL female housing 8pin double keyA norearcover V0116-91008-02 781.8 USCAR‐2(*), rear cover non-applicable
ISH HORIZONTAL female housing 12pin double keyC V0116-91012-22 1074.2 USCAR‐2(*)
ISH HORIZONTAL female housing 16pin double V0116-91016-01 1315 　
ISH HORIZONTAL female housing 20pin double V0116-91020-01 1679.6 　
ISH HORIZONTAL female housing 32pin double V0116-91032-02 2997 　
ISH HORIZONTAL female retainer 6pin double V0116-92006-01 74.2 　
ISH HORIZONTAL female retainer 8pin double V0116-92008-01 78.7 USCAR‐2(*)
ISH HORIZONTAL female retainer 12pin double V0116-92012-01 126 USCAR‐2(*)
ISH HORIZONTAL female retainer 16pin double norearcover V0116-92016-01 128.1 rear cover non-applicable
ISH HORIZONTAL female retainer 20pin double V0116-92020-01 187.6 　
ISH HORIZONTAL female retainer 32pin double V0116-92032-01 333 　
ISH HORIZONTAL cable cover 3pin single V0113-93003-01 271.5 　
ISH HORIZONTAL cable cover 6pin double natural V0116-93006-01 381.2 　
ISH HORIZONTAL rear cover 8pin double V0116-94008-01 680 USCAR‐2(*)
ISH HORIZONTAL rear cover 12pin double V0116-94012-01 940.3 USCAR‐2(*)
ISH HORIZONTAL rear cover 16pin double V0116-94016-01 898 　
ISH HORIZONTAL rear cover 20pin double V0116-94020-01 1052.9 　
ISH female terminal tabsize=0.5mm(020) Sn VT009-02 92.3 Signal Terminal

Note (*):All specifications have been complied with USCAR-2 except for retention force.



ISH (Horizontal Type) RECOMMENDED PART NUMBERS (LV214 Complied)

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL male terminal LV214 3pin single V0085-003E-001 1420.197 Au plating
ISH HORIZONTAL male terminal LV214 12pin double V0025-012E-001 2458.5 　
ISH HORIZONTAL male terminal LV214 16pin double V0025-016E-001 2888.9 　
ISH HORIZONTAL female terminal LV214 3pin single V0037-91003-211 535 　
ISH HORIZONTAL female terminal LV214 12pin double V0027-91012-211 1096 　
ISH HORIZONTAL female terminal LV214 16pin double V0027-91016-211 1349.6 　
ISH HORIZONTAL female retainer LV214 12pin double V0027-92012-211 114.9 　
ISH HORIZONTAL female retainer LV214 16pin double V0027-92016-211 149.9 　
ISH female terminal_tabsize=0.5mm(020) Sn VT009-02 92.3 Signal Terminal
ISH female terminal_tabsize=0.5mm(020) Au VT009-03 88 Signal Terminal


その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。



OTHER ISH (Horizontal Type) PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL male connector 6p double keyB V0114-006E-11 1759.98 　
ISH HORIZONTAL male connector 8p double keyB V0114-008E-12 2100.72 USCAR‐2(*)
ISH HORIZONTAL male connector 8p double keyC V0114-008E-22 2098.8 USCAR‐2(*)
ISH HORIZONTAL male connector 8p double keyD V0114-008E-32 2100.72 USCAR‐2(*)
ISH HORIZONTAL male connector 12p double keyA V0114-012E-01 2473.66 USCAR‐2(*), normal lock
ISH HORIZONTAL male connector 12p double keyB normal-lock V0114-012E-11 1806.92 USCAR‐2(*), normal lock
ISH HORIZONTAL male connector 12p double keyD V0114-012E-31 2478.04 USCAR‐2(*)
ISH HORIZONTAL male connector 12p double keyB V0114-012E-12 2474.565 USCAR‐2(*)
ISH HORIZONTAL female housing 6p double keyB V0116-91006-11 698.6 　
ISH HORIZONTAL female housing 8p double keyA V0116-91008-03 781.8 USCAR‐2(*), rear cover applicable
ISH HORIZONTAL female housing 8p double keyB V0116-91008-12 778.7 USCAR‐2(*)
ISH HORIZONTAL female housing 8p double keyC V0116-91008-22 781.9 USCAR‐2(*)
ISH HORIZONTAL female housing 12p double keyA normal-lock norearcover V0116-91012-01 1060.3 USCAR‐2(*), normal lock, rear cover non-applicable
ISH HORIZONTAL female housing 12p double keyA normal-lock V0116-91012-02 1063.1 USCAR‐2(*), normal lock
ISH HORIZONTAL female housing 12p double keyB normal-lock norearcover V0116-91012-11 1062 USCAR‐2(*), normal lock, rear cover non-applicable
ISH HORIZONTAL female housing 12p double keyB V0116-91012-12 1078.1 USCAR‐2(*)
ISH HORIZONTAL female housing 12p double keyC norearcover V0116-91012-21 1078.1 USCAR‐2(*)
ISH HORIZONTAL female housing 12p double keyD V0116-91012-31 1048.44 USCAR‐2(*)
ISH HORIZONTAL female retainer 16p double V0116-91016-02 1315 　
ISH HORIZONTAL cable cover 6p double black V0116-93006-02 381.2 Color: black

Note (*):All specifications have been complied with USCAR-2 except for retention force.
