ISH® WIRE TO WIRE
耐高温・耐振動性に優れた電線対電線中継接続コネクタ

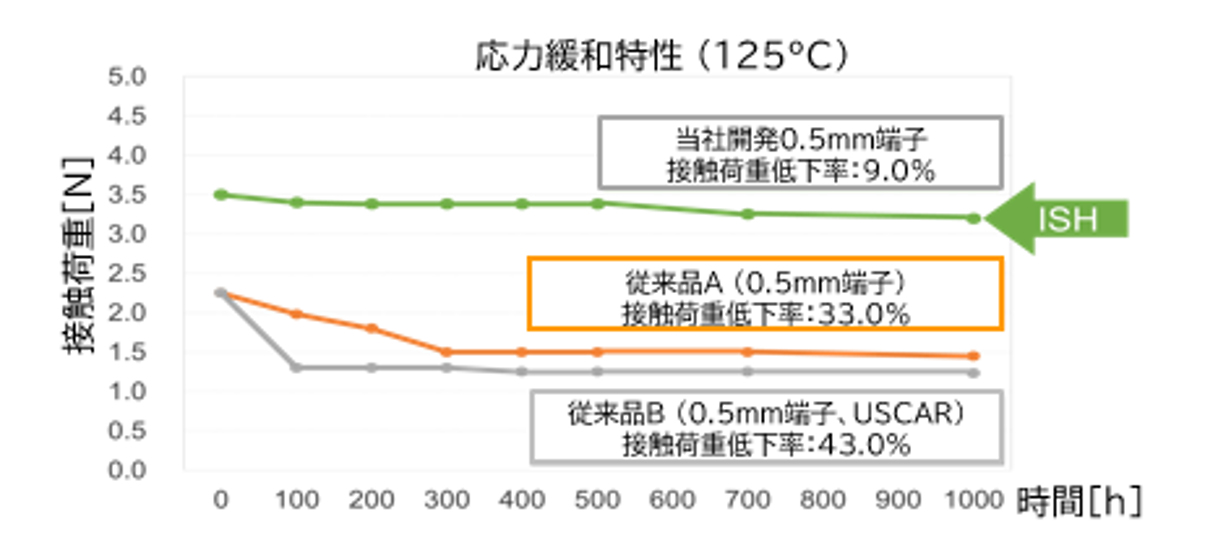

高い接触信頼性を求める機器に最適な優れた耐高温性・耐振動性

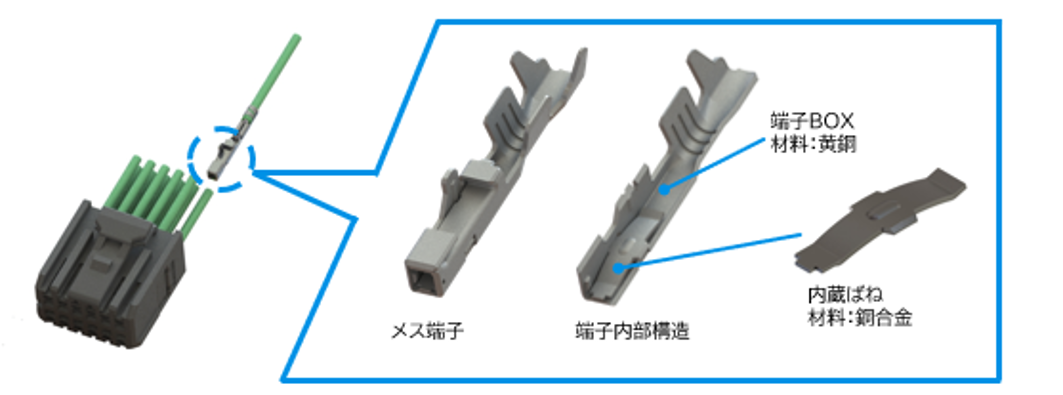

独自のバネ構造端子による高い長期接触信頼性
各種車載スペックに適合、高温・振動環境の産業用途等に最適
USCAR-2規格準拠品もラインアップ
Contact Pitch:
2.0 mm
Mating Type / Direction:
Wire-to-Wire
Mated Height:
Single-row: 8.0 mm max.Double-row: 11.7 mm max.
Cable Size (Discrete):
AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
ダウンロード
*SIテストボードのデータは製品図面下にあります
高い接触信頼性を求める機器に最適な優れた耐高温性・耐振動性
独自のバネ構造端子による高い長期接触信頼性
各種車載スペックに適合、高温・振動環境の産業用途等に最適
USCAR-2規格準拠品もラインアップ
車載機器 |
その他機器 |
 |
 |
|
|
USCAR-2規格準拠が必要な機器USCAR-2準拠品番については上記の「型番」タブをご参照願います |
|
| Product Type | Discrete wire
|
| Contact Pitch | 2.0 mm
|
| Mating Type / Direction | Wire-to-Wire
|
| Mated Height | Single-row: 8.0 mm max.Double-row: 11.7 mm max.
|
| Available Pin Count | Single-row: 3 Double-row: 8 |
| Width | Single-row: 4.9 + (2.0 x pin count) mm (excluding unlock button)Double-row: 5.3 + (1.0 x pin count) mm
|
| Contact Type | signal pins only
|
| Operating Temperature | |
| Cable Size (Discrete) | AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|

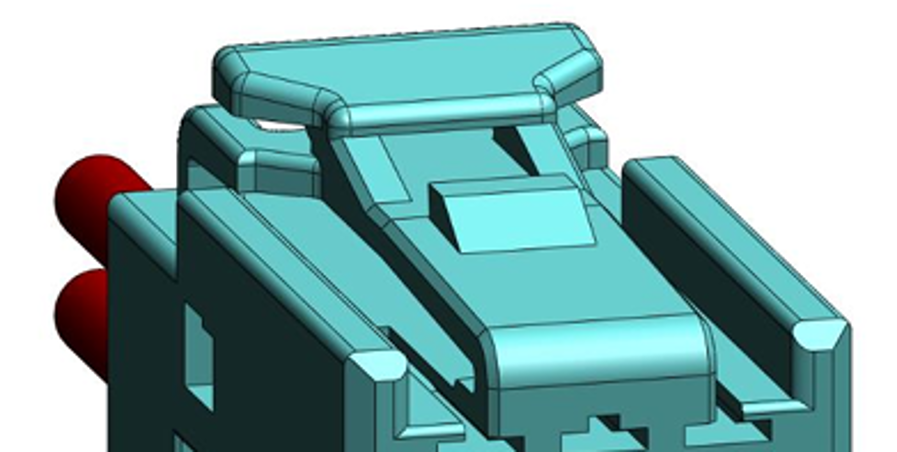

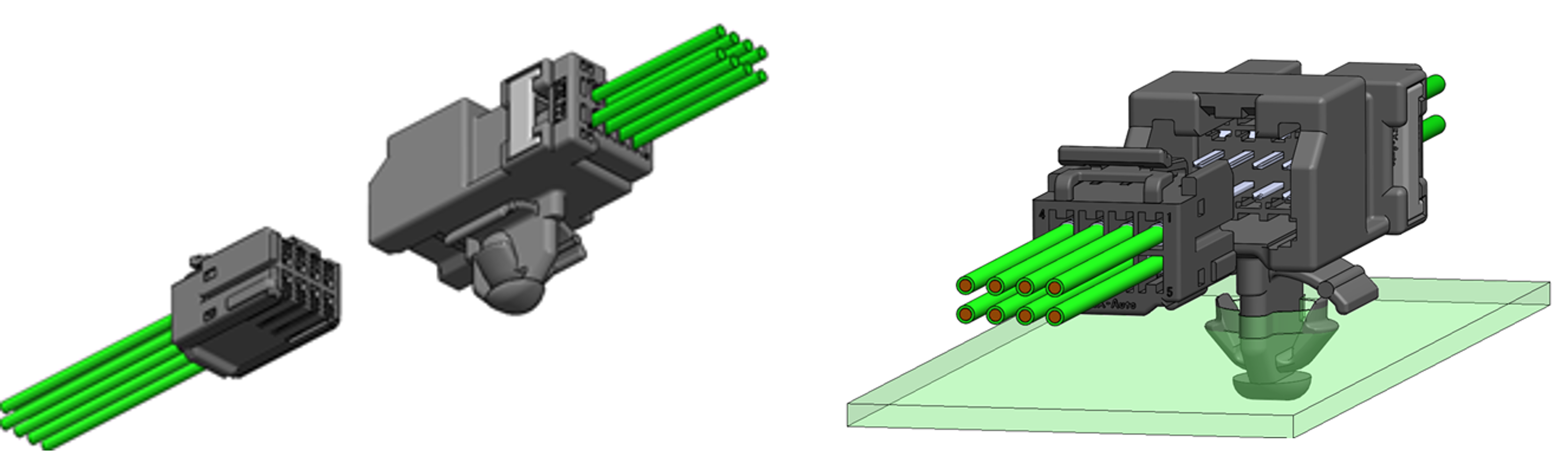

| Mechanical lock | Yes
|
| Automotive Standards | LV214 (8P tested) |
| Mated Height (MAX) | Single Row: 8.00mm Double Row: 11.70mm |
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
ISH (Wire-to-Wire Type) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH WIRE TO WIRE male housing 3pin | V0112-91003-01 | 1437 | |
| ISH WIRE TO WIRE male sub-assembly 8pin | V0031-008B-201 | 3400 | LV214 |
| ISH female housing 3pin | V0113-91003-01 | 502.6 | |
| ISH female housing 8pin coding-A | V0116-91008-02 | 781.8 | LV214 |
| ISH WIRE-TO-WIRE TYPE female retainer 8pin double | V0116-92008-01 | 78.7 | LV214 |
| ISH WIRE TO WIRE male terminal 0.5mm | VT010-01 | 108 | Signal Terminal |
| ISH female terminal 0.5mm SL | VT009-02 | 92.3 | Signal Terminal |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
OTHER ISH (Wire-to-Wire Type) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH WIRE TO WIRE male sub-assembly 8pin coding-B | V0031-008B-202 | 3400 | LV214 |
| ISH WIRE-TO-WIRE TYPE female housing 8pin double keyB | V0116-91008-12 | 778.7 | LV214 |
ISH (Wire-to-Wire Type) ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH/ISHV releasing JIG for female terminal 0.5mm | 91691-0001 | 32844 | |
| ISH/ISHV releasing JIG for retainer -2 | 91696-0001 | 8409 |
ISH (Wire-to-Wire Type) Products adaptable with the JIG
| Part Number Description | Part Number | Products adaptable with the JIG |
| ISH/ISHV releasing JIG for retainer-2 | 91696-0001 | V0116-91008-02 |
| V0116-91008-12 |
