ISH® HORIZONTAL HYBRID
耐高温・耐振動性に優れたパワー端子付水平嵌合SMTコネクタ
独自のバネ構造端子による高い長期接触信頼性
慣性ロックバージョンを設定
各種車載スペックに適合、高温・振動環境の産業用途等に最適
USCAR-2規格準拠品もラインアップ
Contact Pitch:
2.0 mm (Signal)3.8 mm (Power)
Mating Type / Direction:
Horizontal-Hybrid
Mated Height:
13.6 mm max.
Cable Size (Discrete):
AWG 20 (*1, *2)AWG 22 (*1)*1 (Signal: Insulation Diameter 1.6 mm max.)*2 (Power: Insulation Diameter 1.9 mm max.)
ダウンロード

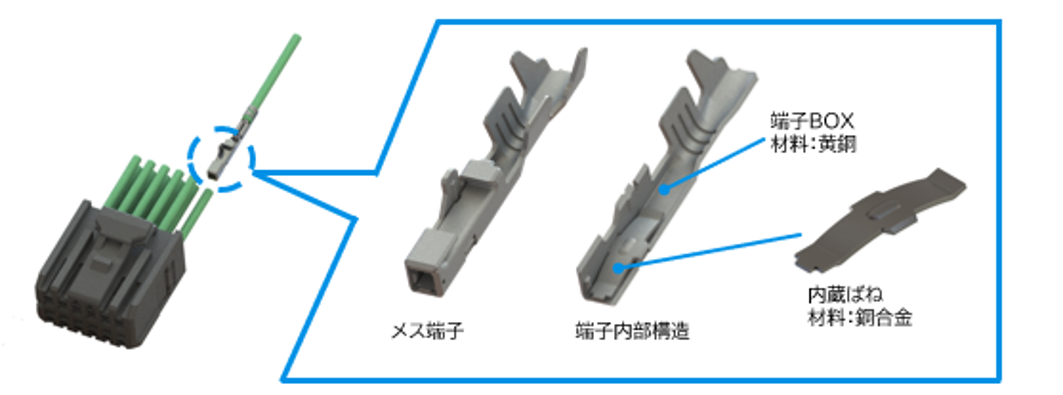

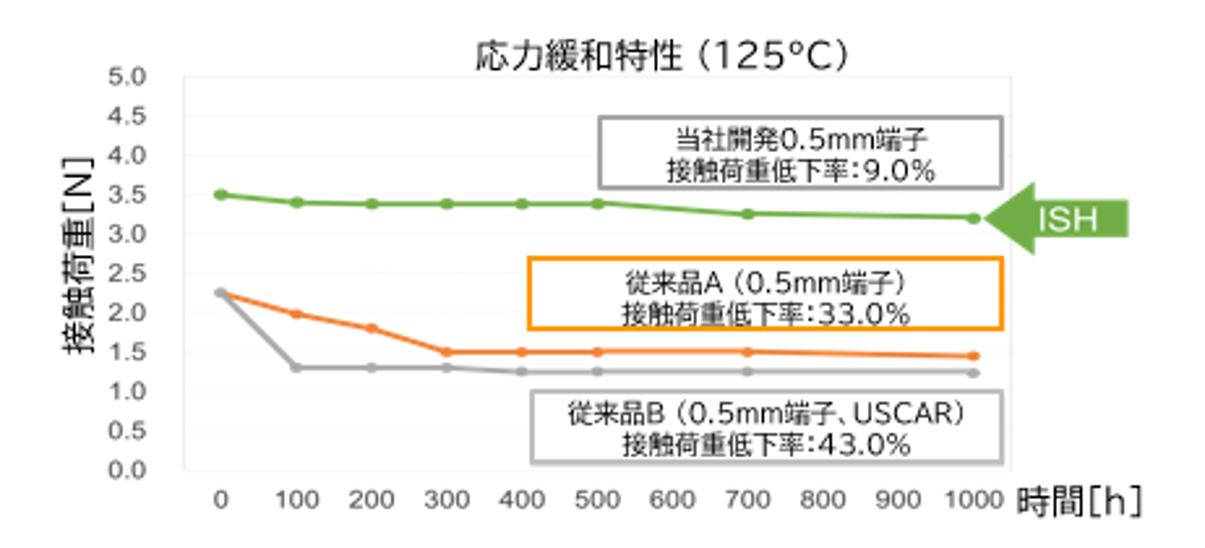

独自のバネ構造端子による高い長期接触信頼性
 |
 |
慣性ロックバージョンを設定
端子接触前の挿入力を意図的に高く設定することにより半嵌合を防止します 20Pで設定あり
各種車載スペックに適合、高温・振動環境の産業用途等に最適
USCAR-2規格準拠品もラインアップ
車載機器 |
その他機器 |
 |
 |
・ヘッドランプ＆その他車載照明機器
|
・オフロード車 (ATV/UTV車、 QUAD車、 3輪車)
|
USCAR-2規格準拠が必要な機器USCAR-2準拠品番については弊社ホームページにてご確認いただけます |
|
| Product Type | Discrete wire
|
| Contact Pitch | 2.0 mm (Signal)3.8 mm (Power)
|
| Mating Type / Direction | Horizontal-Hybrid
|
| Mated Height | 13.6 mm max.
|
| Available Pin Count | Double-row: 18+2, 26+2 |
| Width | 13.0 + (1.0 x pin count) mm
|
| Contact Type | signal plus power pins
|
| Operating Temperature | |
| Cable Size (Discrete) | AWG 20 (*1, *2)AWG 22 (*1)*1 (Signal: Insulation Diameter 1.6 mm max.)*2 (Power: Insulation Diameter 1.9 mm max.)
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| Automotive Standards | USCAR-2 (20P tested. Rear cover needed to satisfy specification. Except for Male power terminal retention force specification) |
| Mated Height (MAX) | 13.60mm |
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
ISH (Horizontal Type-Hybrid) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH HORIZONTAL TYPE HYBRID male connector 20pin double keyA | V0123-020E-01 | 4825.03 | USCAR‐2(**) |
| ISH HORIZONTAL TYPE HYBRID male connector 28pin double | V0123-028E-01 | 5512.36 | |
| ISH HORIZONTAL TYPE HYBRID female housing 20pin double keyA | V0124-020B-01 | 3444.3 | USCAR‐2(**) |
| ISH HORIZONTAL TYPE HYBRID female housing 28pin double | V0124-028B-02 | 4360 | |
| ISH HYBRID female rear cover 20pin | V0124-94020-01 | 1400 | |
| ISH female terminal 0.5mm SL | VT009-02 | 92.3 | Signal Terminal |
| ISH female terminal 1.5mm SL | VT011-02 | 170.77 | Power Terminal |
Note (**): Rear Cover is needed to be complied with USCAR-2. (Except for retention force of male power terminals)
ISH (Horizontal Type-Hybrid) JUMPER WIRE FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH/ISHV jumper wire 0.5mm terminal L=100mm | 91683-000B-01 | 644 | |
| ISH/ISHV jumper wire 0.5mm terminal L=200mm | 91683-000B-02 | 1081 | |
| ISH/ISHV jumper wire 0.5mm terminal L=300mm | 91683-000B-03 | 1518 | |
| ISH jumper wire 1.5mm terminal L=100mm | 91684-000B-01 | 1174 | |
| ISH jumper wire 1.5mm terminal L=200mm | 91684-000B-02 | 1945 | |
| ISH jumper wire 1.5mm terminal L=300mm | 91684-000B-03 | 2715 |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
ISH (Horizontal Type-Hybrid) OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH HORIZONTAL TYPE HYBRID male terminal 20pin double keyB | V0123-020E-11 | 4825.03 | USCAR‐2(**) |
| ISH HORIZONTAL TYPE HYBRID female housing 20pin double keyB | V0124-020B-11 | 3444.3 | USCAR‐2(**) |
ISH (Horizontal Type-Hybrid) ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH/ISHV releasing JIG for terminal 0.5mm | 91691-0001 | 32844 | |
| ISH releasing JIG for terminal 1.5mm | 91692-0001 | 32946 |
