CABLINE®-CX II With Cover

CABLINE-CX II with Cover Product Image
狭ピッチ(0.25 mmピッチ)、低背(高さ = 1.00 mm max.)、 シールドカバー＆多点グランド接点、水平嵌合タイプ細線同軸コネクタ

    狭小スペースに最適

    メカニカルロックカバーによるシールド構造のEMI対策

    EMIシールドと多点グランド接点設計

Contact Pitch:
0.25 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.83 +/- 0.17 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial):
AWG 39 (*)AWG 44AWG 46 (*)* (Characteristic impedance unmatching)
Cable Size (Discrete):
AWG 39
Current Rating:
[AWG 46] 0.1 A/contact (up to 40 contacts)[AWG 44] 0.15 A/contact (up to 40 contacts)[AWG 39] 0.3 A/contact (up to 40 contacts)

ダウンロード

狭小スペースに最適

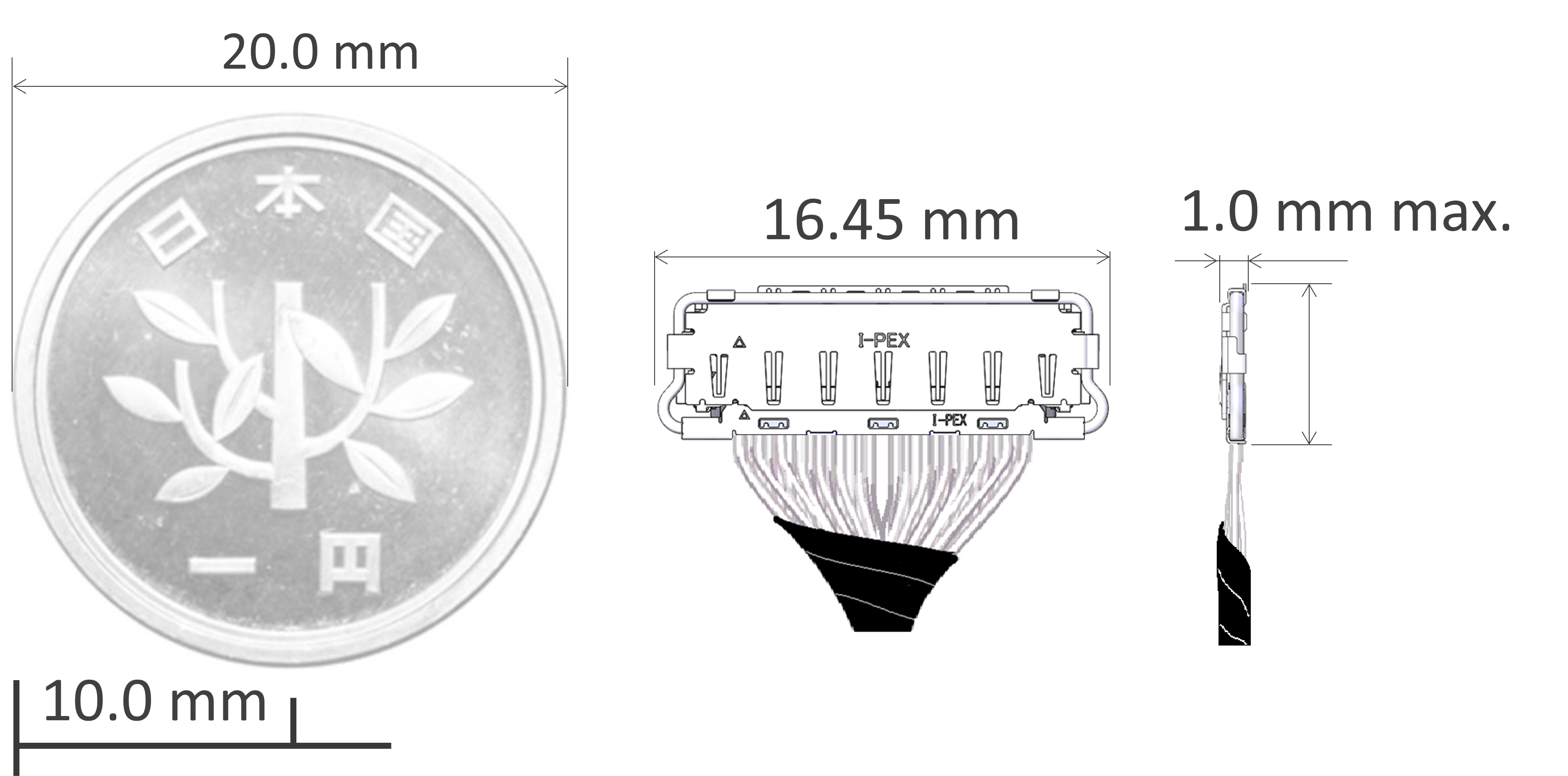

CABLINE-CX II 40p と 1円硬貨のサイズ比較
嵌合高さ: 1.0mm max.                                                        細線同軸コネクタハーネスによるヒンジ部通過シミュレーション

CABLINE-CX II_FAB1-1_J CABLINE-UX II_FAB1-2.jpg

柔軟な細線同軸ケーブルハーネスは
ヒンジのある小型アプリケーションに適応

メカニカルロックカバーによるシールド構造のEMI対策

CABLINE-CX II_FAB2-1Mate
CABLINE-CX II_FAB2-2 Locked
 CABLINE-CX II_FAB2-3
EMI シュミレーション (2.4 GHz)

CABLINE-CX II_FAB2-4
                      　　　    EMIカバーなし                                                   EMIカバーあり










EMIシールドと多点グランド接点設計



CABLINE-CX II_FAB3-1
下から見たコネクタ

CABLINE-CX II_FAB3-2

UAII_Fab3-3  はんだ付け接点部
UAII_Fab3-4  メカニカル接点部

　　

Wire Shield
 から
Ground Bar		 FAB3 Ground Bar
 から
Plug Shell		 ​​FAB3 Plug Shell
 から
Cover Shell		 FAB3

Cover Shell から
Receptacle Shell & PCB






Transmission Speed (Reference Only) 5 Gbps/lane NRZ
Contact Pitch
0.25 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.83 +/- 0.17 mm
Available Pin Count Signal: 40
Depth
5.6 mm
Width
6.45 + (0.25 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial)
AWG 39 (*)AWG 44AWG 46 (*)* (Characteristic impedance unmatching)
Cable Size (Discrete)
AWG 39
Current Rating
[AWG 46] 0.1 A/contact (up to 40 contacts)[AWG 44] 0.15 A/contact (up to 40 contacts)[AWG 39] 0.3 A/contact (up to 40 contacts)
Applicable Standards (Reference Only)
USB 3.1 Gen 1 (5 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



DIAGRAMS_CABLINE-CX_II_WITH_COVER

CABLINE-CX II With Cover RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II with cover plug cable assembly 40pin 20977-040T-01 139.28
CABLINE-CX II plug housing 40pin 20974-040T-01 32.53
CABLINE-CX II plug shell A 40pin 3655-0401 19.35
CABLINE-CX II with cover plug lock bar assembly 40pin 20975-040T-01 87.4
CABLINE-CX II receptacle 40pin 20976-040E-01 78.353



CABLINE-CX II With Cover SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II 40pin micro-coaxial 46AWG L=100mm 1-N  Zenshield type 82877-100B-02-D 　-
CABLINE-CX II 40pin micro-coaxial 46AWG L=200mm 1-N  Zenshield type 82878-100B-02-D 　-
CABLINE-CX II 40pin micro-coaxial 46AWG L=300mm 1-N  Zenshield type 82439-100B-02-D 　-



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-CX II (type-A) 40pin 91583-040B-001 73853.52
CABLINE-CX_II(TYPE-A)_TB-836_Main_(C)
Main Board
CABLINE-CX_II(TYPE-A)_TB-836_Thru_(C)
Thru  Board


SI Test Board for CABLINE-CX II (type-B) 40pin 91584-040B-001 80553.52
CABLINE-CX_II(TYPE-B)_TB-836_Main_(C)
Main Board
CABLINE-CX_II(TYPE-B)_TB-836_Thru_(C)
Thru Board



CABLINE-CX II With Cover Plan to EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
CABLINE-CX II plug 40pin 20833-040T-01-1 old P/N 20974-040T-01 new recommended P/N
CABLINE-CX II lock bar 40pin 20834-040T-01-1 old P/N 20975-040T-01 new recommended P/N
CABLINE-CX II with cover 40pin 20844-040T-01-1 old P/N 20977-040T-01 new recommended P/N
CABLINE-CX II without cover 40pin 20845-040T-01-1 old P/N 20978-040T-01 new recommended P/N
CABLINE-CX II plug shell A 40pin 3398-0401-1 old P/N 3655-0401 new recommended P/N
CABLINE-CX II lock bar 40pin 3400-0402-1 old P/N 3656-0402 new recommended P/N
