CABLINE®-UMF

CABLINE-UMF
フルシールド、多点グランド接点、メカニカルロック付き、高速伝送対応 (40 Gbps/lane PAM3)、0.4 mmピッチ、ライトアングル縦嵌合タイプFPCコネクタ

    ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適

    ロックカバーと0.65 mm以上の有効嵌合長により、高い接触信頼性を実現

    40 Gbps/lane PAM3 の高速伝送接続に最適

Contact Pitch:
0.4 mm
Mating Type / Direction:
Vertical (Right Angle)
Mated Height:
Nom. 2.2 +/- 0.15 mm
Operating Temperature:
-40 to 105℃ (233 to 378 K)
FPC / FFC Thickness:
0.34 mm
Current Rating:
0.5 A/contact (up to 31 contacts)0.3 A/contact (up to 70 contacts)

ダウンロード

ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適

レセプタクル裏側 一般的なコネクタ、ZenShield®コネクタ



ロックカバーと0.65 mm以上の有効嵌合長により、高い接触信頼性を実現

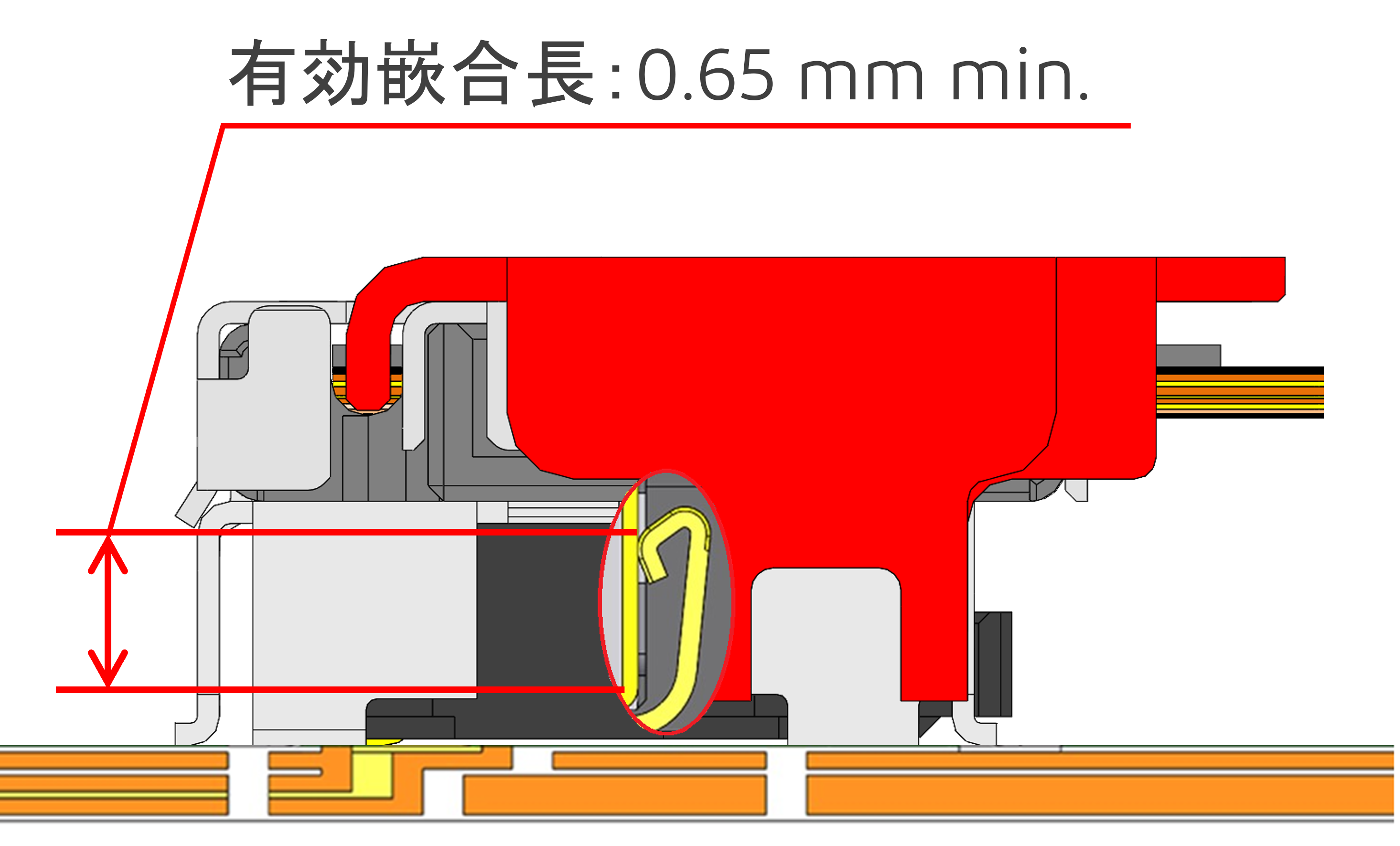

Lock Cover付き ---嵌合保持力増強 有効嵌合長：0.65 mm min.



40 Gbps/lane PAM3 の高速伝送接続に最適

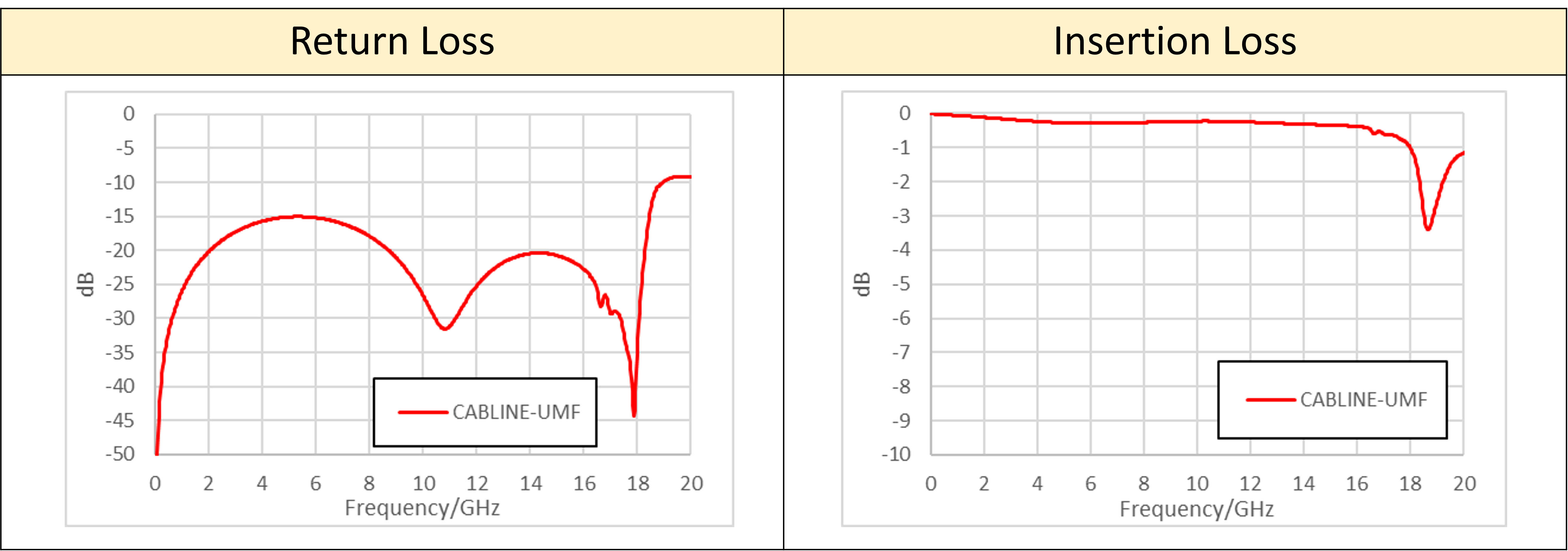

Simulation results

Connector:
PLUG: CABLINE®-UMF
RECEPTACLE: CABLINE®-UM

Pin Assignment: GSSGSSG


 Simulation results




Transmission Speed (Reference Only) 40 Gbps/lane PAM3
Contact Pitch
0.4 mm
Mating Type / Direction
Vertical (Right Angle)
Mated Height
Nom. 2.2 +/- 0.15 mm
Available Pin Count Signal: 40, 70
Depth
5 mm
Width
5.0 + (0.4 x pin count) mm
Operating Temperature
-40 to 105℃ (233 to 378 K)
FPC / FFC Thickness
0.34 mm
FPC Type
Shielded/Non-shielded FPC
Current Rating
0.5 A/contact (up to 31 contacts)0.3 A/contact (up to 70 contacts)
Applicable Standards (Reference Only)
USB4 Gen4 (40 Gbps/lane PAM3)Thunderbolt 5 (40 Gbps/lane PAM3)Thunderbolt 4 (20 Gbps/lane)USB4 Gen3 (20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)PCIe 4.0 (16 Gbps/lane)V-By-One US (16 Gbps/lane)DisplayPort UHBR13.5 (13.5 Gbps/lane)HDMI 2.1 (12 Gbps/lane)DisplayPort UHBR10 (10 Gbps/lane)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)HDMI 2.0 (6 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.

CABLINE-UMF RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UMF plug FPC assembly with lock cover 40pin 21102-040E-21 -
CABLINE-UMF plug FPC assembly with lock cover 70pin 21102-070E-21 -
CABLINE-UMF plug housing 40pin 21103-040E-02 -
CABLINE-UMF plug housing 70pin 21103-070E-02 -
CABLINE-UMF shell A 40pin 3912-0401 -
CABLINE-UMF shell A 70pin 3912-0701 -
CABLINE-UMF plug lock cover 40pin 3914-0401 -
CABLINE-UMF plug lock cover 70pin 3914-0701 -
CABLINE-UM receptacle 40pin 20879-040E-01 146.43
CABLINE-UM receptacle 70pin 20879-070E-01 -



その他の型番

CABLINE-UMF OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UMF plug FPC assembly without lock cover 40pin 21102-040E-22 -
CABLINE-UMF plug FPC assembly without lock cover 70pin 21102-070E-22 -
CABLINE-UMF plug FPC assembly with pull tape holder 40pin 21102-040E-23 -
CABLINE-UMF plug FPC assembly with pull tape holder 70pin 21102-070E-23 -
CABLINE-UM receptacle 40pin 20879-040E-02 146.43
CABLINE-UM receptacle 40pin 20879-040E-11 146.43
CABLINE-UM receptacle 70pin 20879-070E-11 220
CABLINE-UM receptacle 70pin 20879-070E-11 220
