0.3 mm 피치, 우측 각도 수직 결합 유형 마이크로 동축 커넥터
  • 소형 커넥터 공간에 적합

  • 슬림 플러그 설계, 힌지 관통 조립에 적합

  • EMI 차폐 및 다중 점 접지 설계

단자Pitch:
0.300
Height:
1.37 Max (1.27 Nom.) ,
유효핀수:
26 32 40 50
세선동출케이블사이즈(AWG):
#42 #44 #46
Discrete Cable (AWG):
#39 #40 #42 #44 #46
결합타입:
Vertical

다운로드


  • 카탈로그

  • 2D Drawing (제품도면)

  • 제품 규격

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Symbols & Footprints

  • 테스트 레포트

  • SI 테스트 보드

  • 설명서

  • 포장 규격

  • 인증서

  • 소형 커넥터 공간에 적합

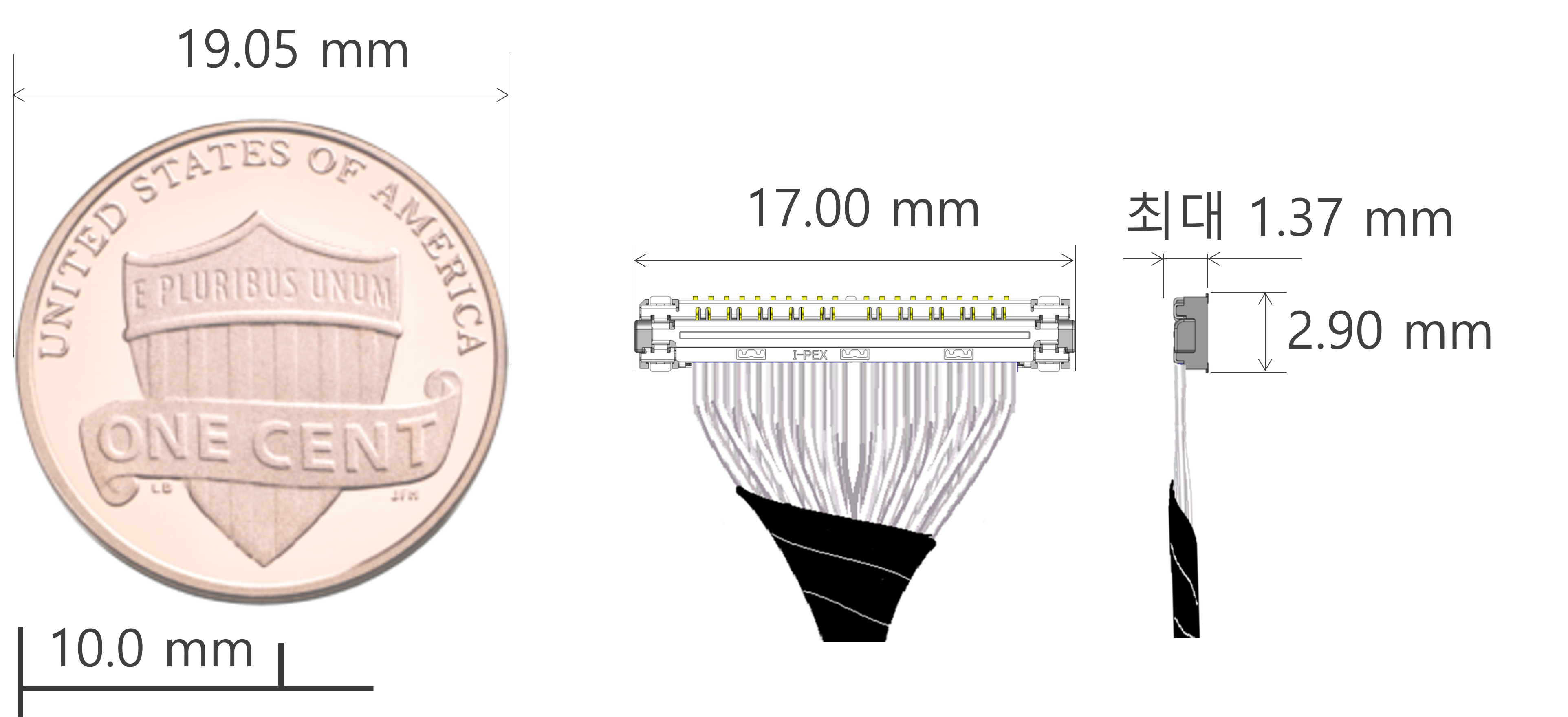

    CABLINE®-UA II 40p size is smaller than a one-cent coin.

    UAII_Fab1-1 UAII_Fab1-2

    Flexible micro-coaxial cable harness is
    suitable for small applications with hinge design.




    슬림 플러그 설계, 힌지 관통 조립에 적합

    Simulation Reference Example:

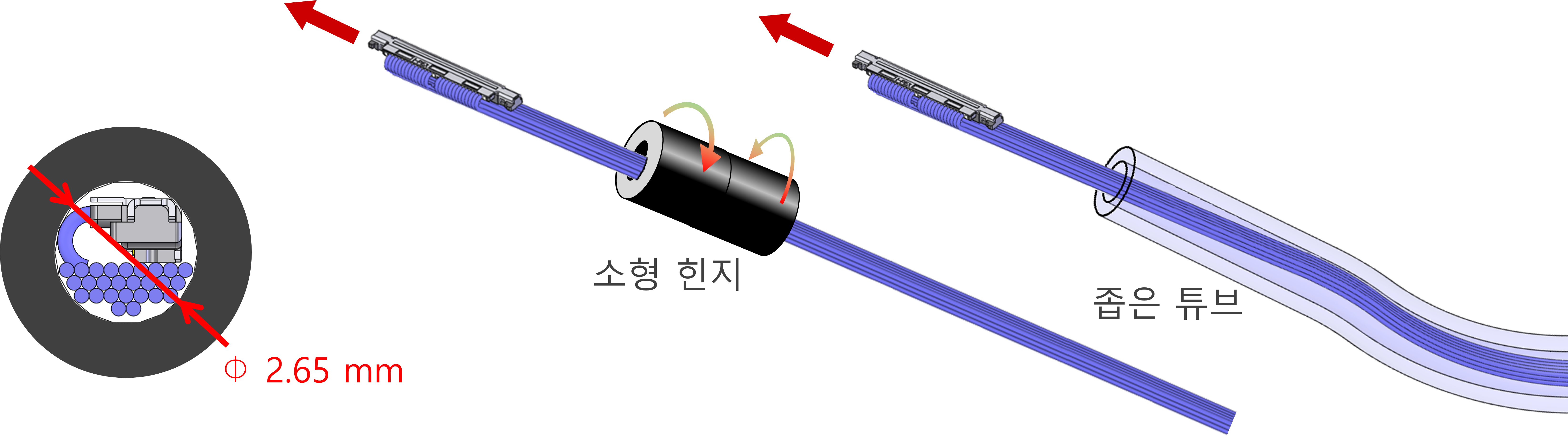

    UA II 26p plug with 0.29 mm cable outer diameter harness can go through 2.65 mm inner diameter.

    UAII_Fab2






    EMI 차폐 및 다중 점 접지 설계



    UAII_Fab3-1
    View From Underside
    UAII_Fab3-2
    UAII_Fab3-3  Soldered contacts
    UAII_Fab3-4 Mechanical contacts




    Contact pitch
    0.300 mm
    Height
    1.37 Max (1.27 Nom.) ,
    Depth
    2.90 mm
    Width Formula
    5.0+(0.3*?p) mm
    Pin count
    26 32 40 50
    Current rating
    0.15A AC/DC [AWG #46] per contact 0.19A AC/DC [AWG #44] per contact 0.20A AC/DC [AWG #42] per contact
    Applicable Standards (Reference Only)
    USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
    Full shielding (ZenShield®)
    No

    추천품번

    찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.



    DIAGRAMS_CABLINE-UA_II



    CABLINE-UA II RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 26 20496-026T-40
    32 20496-032T-40
    40 20496-040T-40
    50 20496-050T-40
    Plug parts PLUG HOUSING 26 20497-026T-30
    32 20497-032T-30
    40 20497-040T-30
    50 20497-050T-30
    PLUG METAL COVER 26 2679-026-10
    32 2679-032-10
    40 2679-040-10
    50 2679-050-10
    RECEPTACLE 26 20498-026E-41
    32 20498-032E-41
    40 20498-040E-41
    50 20498-050E-41

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Harness Length Part Number
    CABLINE®-UA II 26P HARNESS 200 mm 82068-100B-02-D
    CABLINE®-UA II 40P HARNESS 200 mm 81467-100B-02-D
    다른 형번
    이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
    신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.



    OTHER CABLINE-UA II PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 26 20496-026T-30
    26 20496-R26T-30
    26 20496-R26T-40
    32 20496-032T-30
    32 20496-R32T-30
    32 20496-R32T-40
    40 20496-040T-30
    40 20496-R40T-30
    40 20496-R40T-40
    50 20496-050T-30
    50 20496-R50T-30
    50 20496-R50T-40
    Plug parts PLUG HOUSING 26 20497-026T-00
    26 20497-026T-20
    26 20497-R26T-30
    32 20497-032T-00
    32 20497-032T-20
    32 20497-R32T-30
    40 20497-040T-00
    40 20497-040T-20
    40 20497-R40T-30
    50 20497-050T-20
    50 20497-R50T-30
    50 20497-050T-01
    PLUG METAL COVER 26 2679-026-00
    32 2679-032-00
    40 2679-040-00
    50 2679-050-00
    RECEPTACLE 26 20498-026E-00
    26 20498-026E-01
    26 20498-026E-20-C
    26 20498-026E-21
    26 20498-026E-30
    26 20498-026E-31
    26 20498-026E-40
    26 20498-R26E-30
    26 20498-R26E-31
    26 20498-R26E-40
    26 20498-R26E-41
    26 20499-026E-01
    26 20537-026E-01
    32 20498-032E-00
    32 20498-032E-01
    32 20498-032E-30
    32 20498-032E-31
    32 20498-032E-40
    32 20498-R32E-30
    32 20498-R32E-31
    32 20498-R32E-40
    32 20498-R32E-41
    32 20499-032E-01
    40 20498-040E-00
    40 20498-040E-01
    40 20498-040E-30
    40 20498-040E-31
    40 20498-040E-40
    40 20498-R40E-30
    40 20498-R40E-31
    40 20498-R40E-40
    40 20498-R40E-41
    40 20499-040E-01
    50 20498-050E-00
    50 20498-050E-01
    50 20498-050E-30
    50 20498-050E-31
    50 20498-050E-40
    50 20498-R50E-30
    50 20498-R50E-31
    50 20498-R50E-40
    50 20498-R50E-41
    50 20499-050E-01

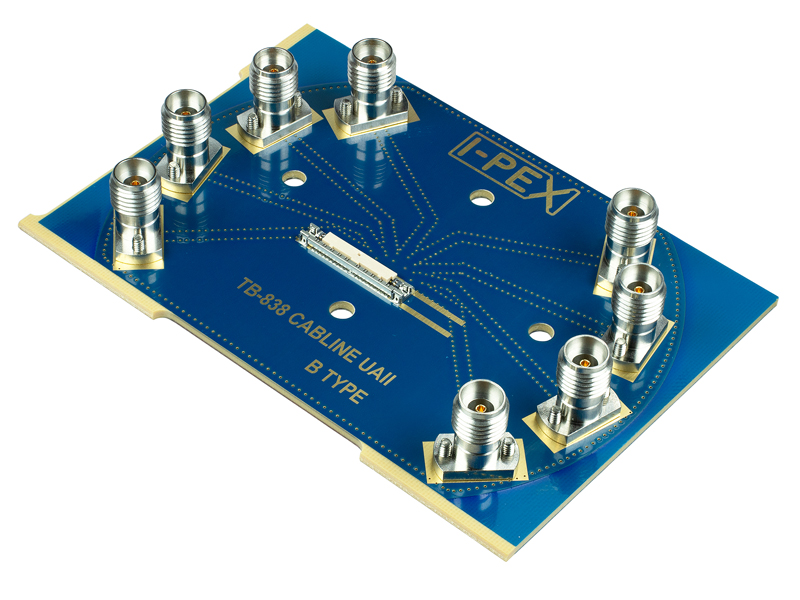

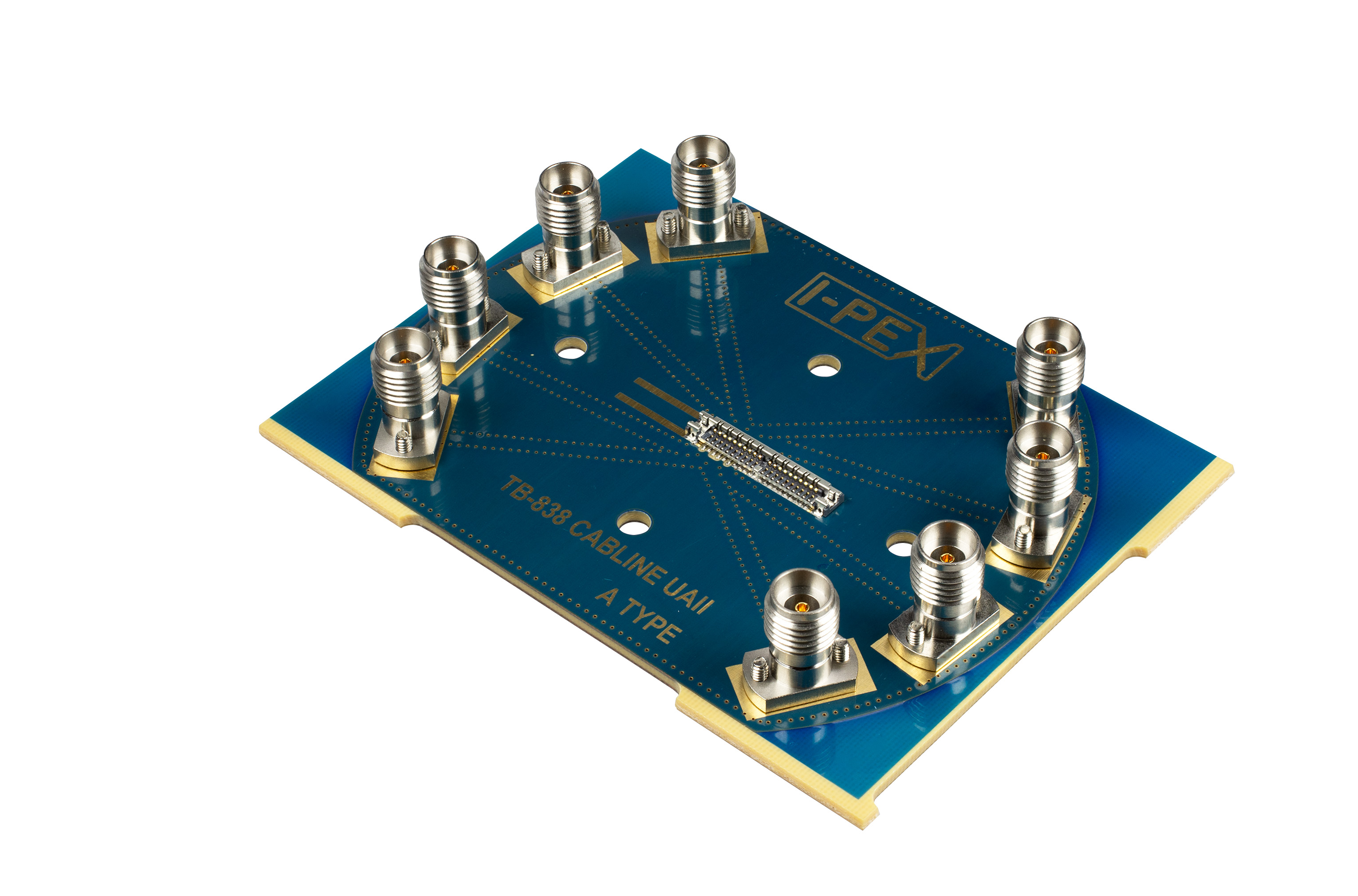

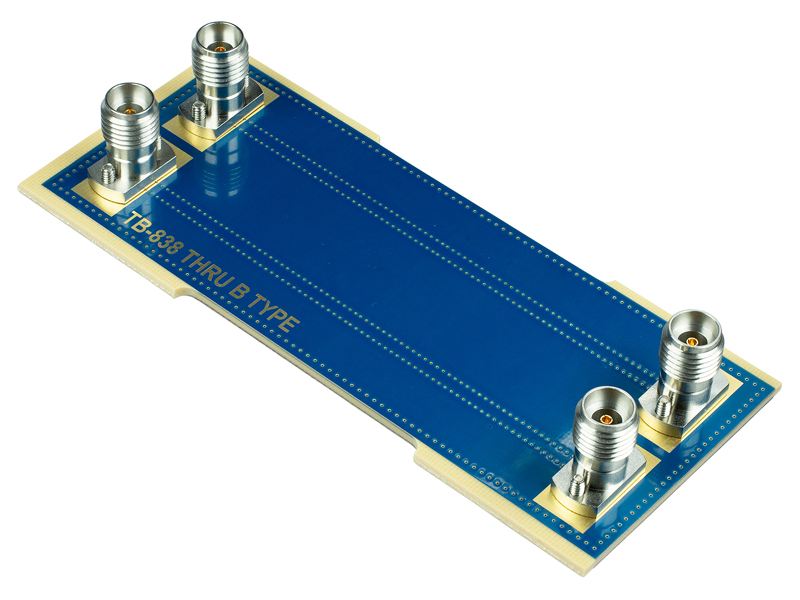

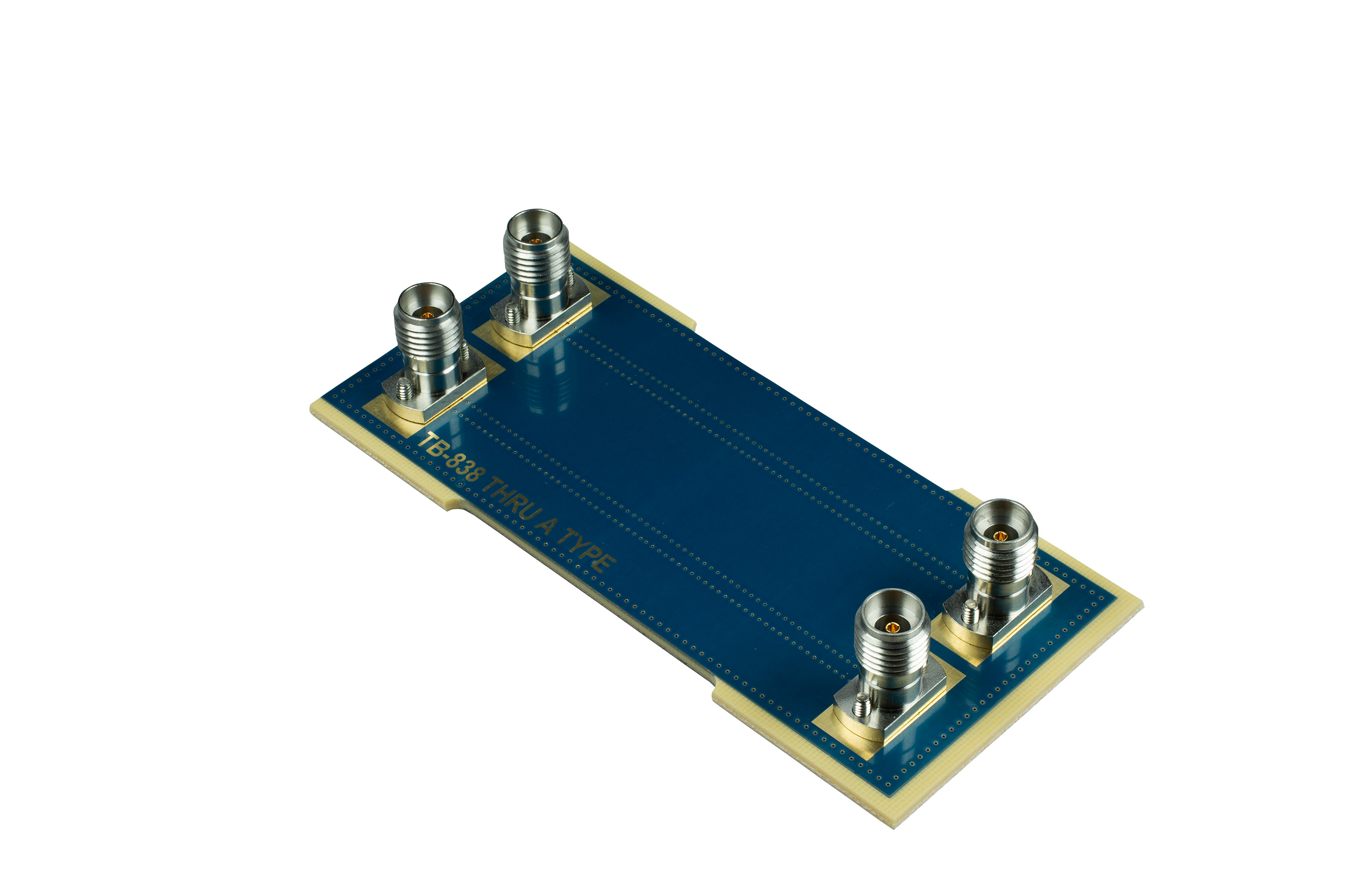

    SI Test Board with 2.92mm Adapter Part Number
    SI Test Board for CABLINE-UA II (TYPE-A) 26P 91567-026B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 32P 91567-032B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 40P 91567-040B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 50P 91567-050B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 26P 91585-026B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 32P 91585-032B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 40P 91585-040B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 50P 91585-050B-001

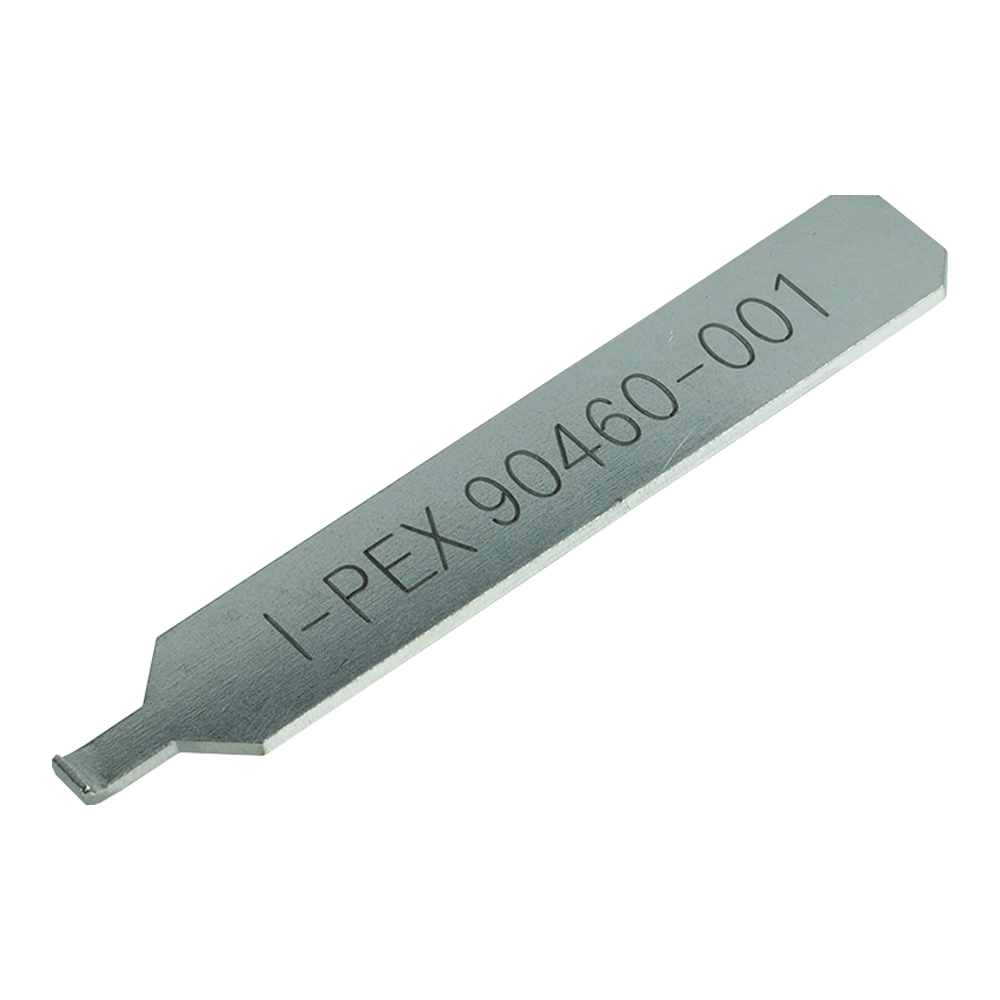

    Hand Tool Part Number
    CABLINE-UA II / UX II PULLING HAND TOOL 90460-001
    CABLINE-UA II PULLING HAND TOOL-26P 90466-026
    CABLINE-UA II PULLING HAND TOOL-32P 90466-032
    CABLINE-UA II PULLING HAND TOOL-34P 90466-034
    CABLINE-UA II PULLING HAND TOOL-40P 90466-040
    CABLINE-UA II PULLING HAND TOOL-50P 90466-050
