Does I-PEX offer any test boards to evaluate the Signal Integrity Performance of CABLINE^® series connectors and harness assemblies?

Signal Integrity testing measures and analyzes the extent to which high speed signals maintain their integrity, when transmitted through a connector.

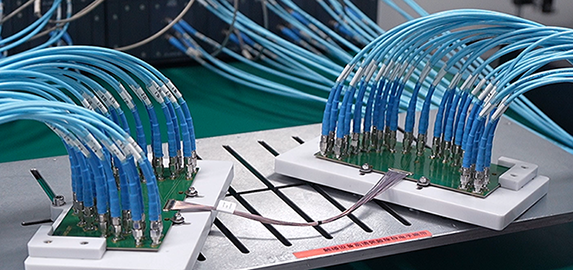

I-PEX offers Signal Integrity test boards designed for evaluating the high-speed transmission characteristics of connectors and harnesses. The SI test boards enable comprehensive signal integrity evaluation not only for the connector itself but also for the entire test board including high speed signal traces on the board.

By using an SI test board, key signal integrity parameters such as insertion loss, return loss, VSWR, and crosstalk can be measured with high accuracy. SI test boards include main break out board where the pins of CABLINE^® series connector are fanned out to SMA/2.92mm RF connectors via traces of matched impedance on board and through pass calibration boards to measure and de-embed the losses in PCB traces. Thru calibration boards have SMA/2.92mm RF connectors on each side separated by matched PCB traces on board.

These test boards are widely used for performance verification and design evaluation of high-speed interfaces including PCIe^®, USB, HDMI, and SerDes. Table 1 and 2 below show the SI test board line up for CABLINE^® series connectors.

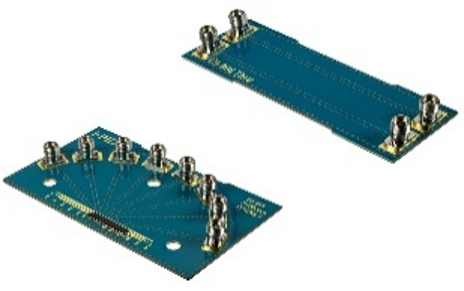

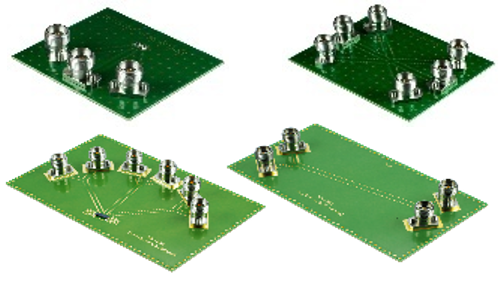

Type	CABLINE®-CA IIP PLUS	CABLINE®-CAP	CABLINE®-UY	CABLINE®-VS II	CABLINE®-CA II	CABLINE®-CA II PLUS
Appearance   (Reference Only)
Description And Part Number	main-board A * 91623-060B-001	50 pin 91616-001B-001	5 pin 91565-005B-001	20 pin 91579-020B-001	20 pin 91568-020B-001	60 pin 91548-060B-001
	main-board B * 91623-060B-002	-	10 pin 91688-010B-001	30 pin 91579-030B-001	30 pin 91568-030B-001	-
	-	-	12 pin 91688-012B-001	40 pin 91579-040B-001	40 pin 91568-040B-001	-
	-	-	-	-	50 pin 91568-050B-001	-

(*): A and B are the same main boards with receptacle set on different position. Please refer to the 2D Drawing for detail.

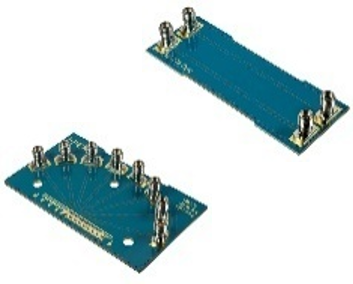

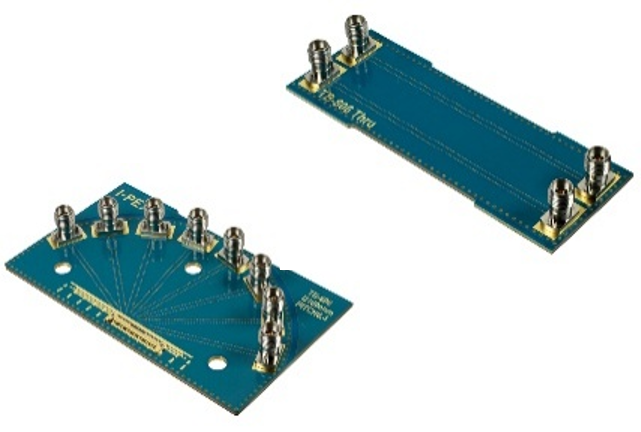

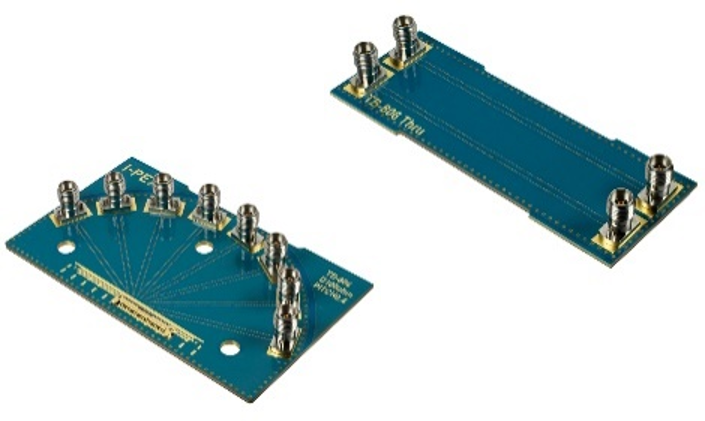

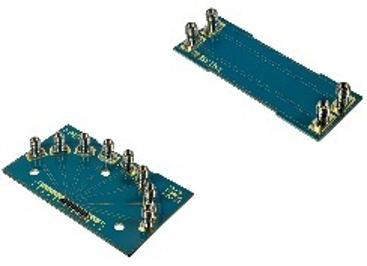

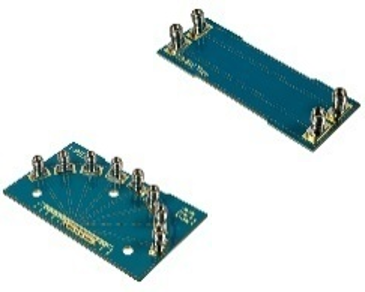

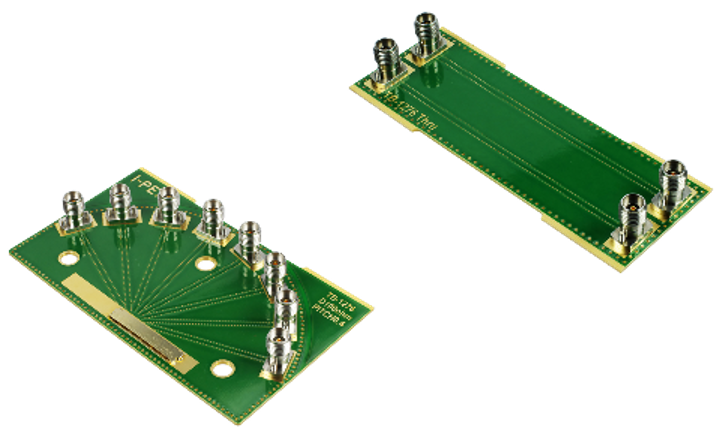

Type	CABLINE®-UM	CABLINE®-CA	CABLINE®-VS	CABLINE®-CAL	CABLINE®-CA IIF PLUS	CABLINE®-CAL IIF
Appearance   (Reference Only)
Description And Part Number	30 pin 91580-030B-001	10 pin 91582-010B-001	20 pin 91575-020B-001	30 pin 91689-030B-001	60 pin 91548-060B-001	50 pin 91690-050B-001
	40 pin 91580-040B-001	12 pin 91582-012B-001	30 pin 91575-030B-001	40 pin 91689-040B-001	-	-
	50 pin 91580-060B-001	20 pin 91582-020B-001	40 pin 91575-040B-001	-	-	-
	60 pin 91580-050B-001	30 pin 91582-030B-001	50 pin 91575-050B-001	-	-	-
	-	40 pin 91582-040B-001	-	-	-	-
	-	50 pin 91582-050B-001	-	-	-	-
	-	60 pin 91582-060B-001	-	-	-	-

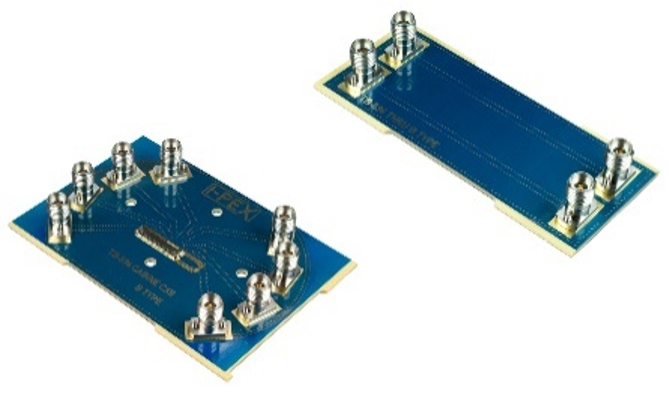

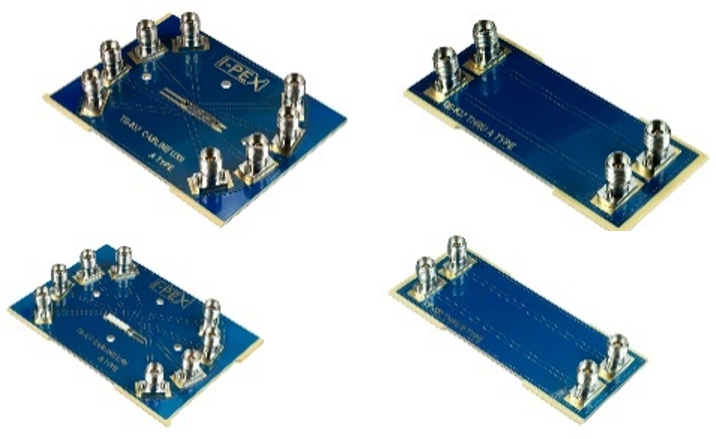

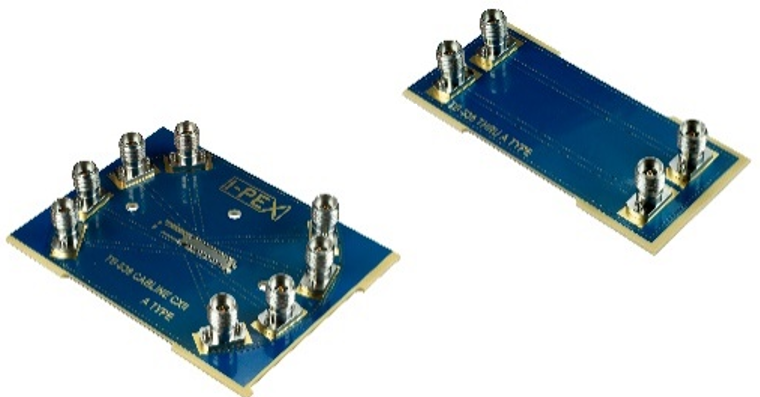

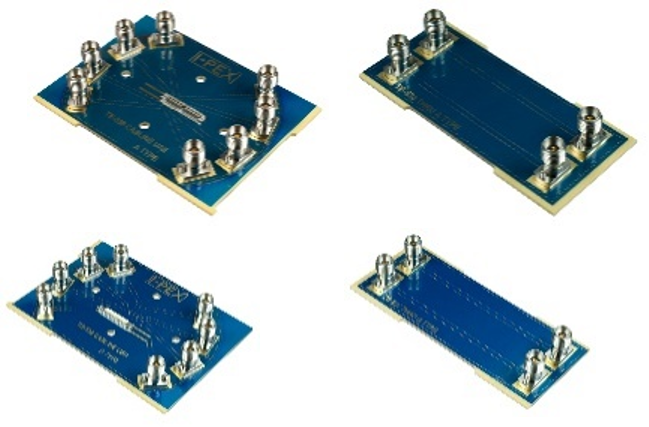

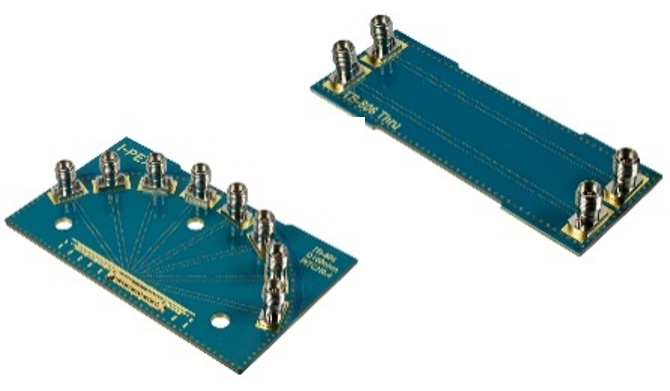

Type	CABLINE®-UA II	CABLINE®-UX II	CABLINE®-SS	CABLINE®-CX II With Cover	CABLINE®-CX II Without Cover
Appearance   (Reference Only)
Description And Part Number	(type-A) *1 26 pin 91567-026B-001	(type-A) *2 30 pin 91576-030B-001	10 pin 91586-010B-001	(type-A) *3 40 pin 91583-040B-001	(type-A) *3 40 pin 91583-040B-001
	(type-A) *1 32 pin 91567-032B-001	(type-A) *2 34 pin 91576-034B-001	14 pin 91586-014B-001	(type-B) *3 40 pin 91584-040B-001	(type-B) *3 40 pin 91584-040B-001
	(type-A) *1 40 pin 91567-040B-001	(type-A) *2 40 pin 91576-040B-001	20 pin 91586-020B-001	-	-
	(type-A) *1 50 pin 91567-050B-001	(type-A) *2 50 pin 91576-050B-001	30 pin 91586-030B-001	-	-
	(type-B) *1 26 pin 91585-026B-001	(type-B) *2 30 pin 91577-030B-001	32 pin 91586-032B-001	-	-
	(type-B) *1 32 pin 91585-032B-001	(type-B) *2 34 pin 91577-034B-001	35 pin 91586-035B-001	-	-
	(type-B) *1 40 pin 91585-040B-001	(type-B) *2 40 pin 91577-040B-001	-	-	-
	(type-B) *1 50 pin 91585-050B-001	(type-B) *2 50 pin 91577-050B-001	-	-	-

(*1): Two types(A and B) of main board set to have variety of assignment pattern for CABLINE-UA II. (Type A: GSSGSSG, Type B: GSGSG)
(*2): Two types(A and B) of main board set to have variety of assignment pattern for CABLINE-UX II. (Type A: GSSGSSG, Type B: GSGSG)
(*3): Two types(A and B) of main board set to have variety of assignment pattern for CABLINE-CX II (with/without cover). (Type A: GSSGSSG, Type B: GSGSG)
