ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
Unique embedded spring terminals for long-term stable electrical connection
Designed with fixing clip
USCAR-2 compliant options available, designed for automotive and
industrial grade applications
Contact Pitch:
2.0 mm
Mating Type / Direction:
Wire-to-Wire
Mated Height:
Single-row: 8.0 mm max.Double-row: 11.7 mm max.
Cable Size (Discrete):
AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
Downloads
-
3D Models
-
Specs & Test Reports
-
Product Specification
-

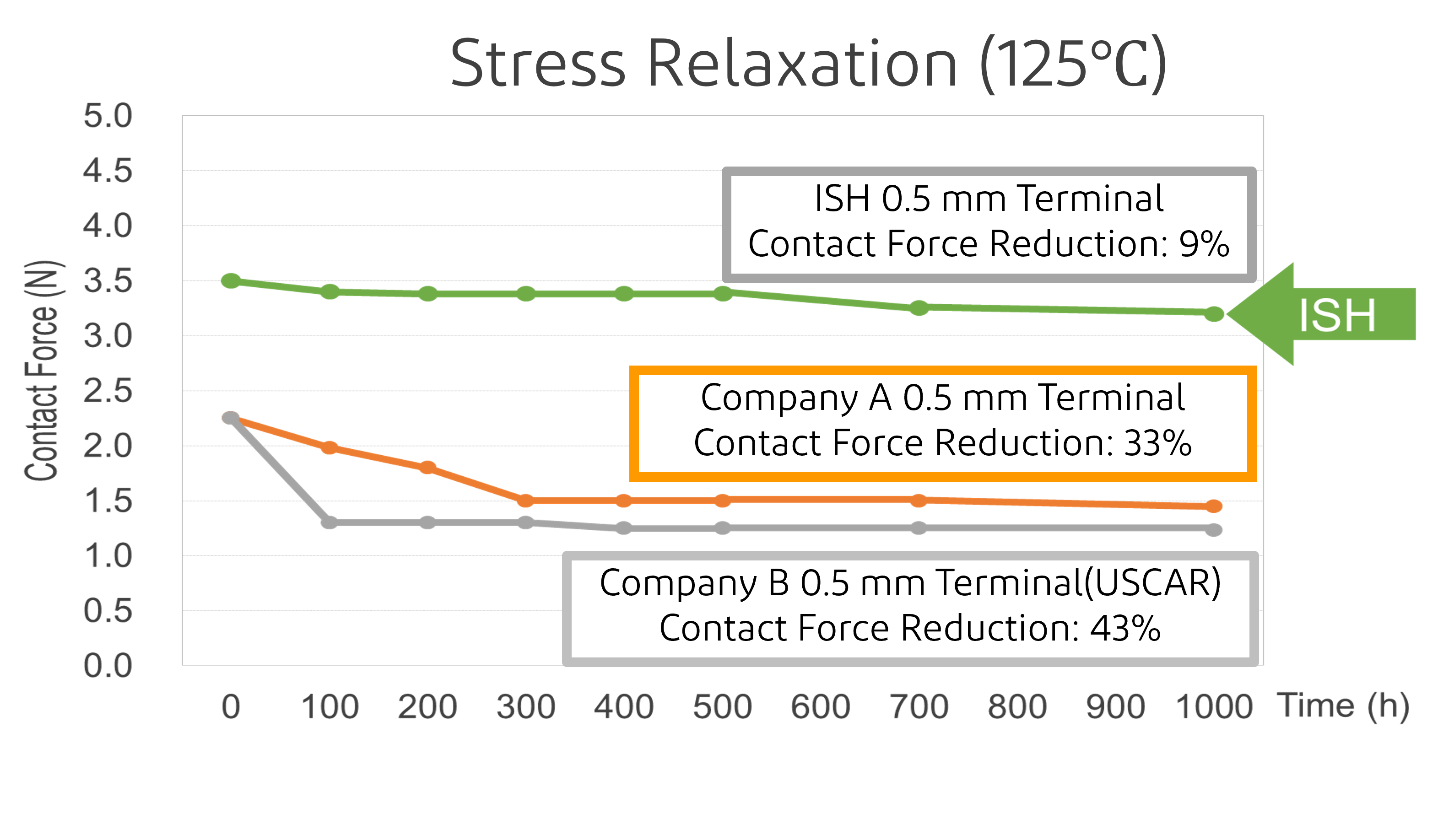

Unique embedded spring terminals for long-term stable electrical connection
 |
 |
Designed with fixing clip
Designed with an integrated clip for secure mounting to the enclosure, contributing to improved work efficiency.
USCAR-2 compliant options available, designed for automotive and
industrial grade applications
For Automotive |
For Non-Automotive |
 |
 |
・Headlamp & other automotive lamps
|
・Offroad vehicles (ATV/UTVs, QUADS, Tricycles)
|
For applications that require compliance with USCAR-2
|
|
| Product Type | Discrete wire
|
| Contact Pitch | 2.0 mm
|
| Mating Type / Direction | Wire-to-Wire
|
| Mated Height | Single-row: 8.0 mm max.Double-row: 11.7 mm max.
|
| Available Pin Count | Single-row: 3 Double-row: 8 |
| Width | Single-row: 4.9 + (2.0 x pin count) mm (excluding unlock button)Double-row: 5.3 + (1.0 x pin count) mm
|
| Contact Type | signal pins only
|
| Operating Temperature | |
| Cable Size (Discrete) | AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| Contact Size | 0.5 x 0.4 mm (020) |
| Vibration Resistance | 10 G |
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
ISH (Wire-to-Wire Type) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH WIRE TO WIRE male housing 3pin | V0112-91003-01 | 1437 | |
| ISH WIRE TO WIRE male sub-assembly 8pin | V0031-008B-201 | 3400 | LV214 |
| ISH female housing 3pin | V0113-91003-01 | 502.6 | |
| ISH female housing 8pin coding-A | V0116-91008-02 | 781.8 | LV214 |
| ISH WIRE-TO-WIRE TYPE female retainer 8pin double | V0116-92008-01 | 78.7 | LV214 |
| ISH WIRE TO WIRE male terminal 0.5mm | VT010-01 | 108 | Signal Terminal |
| ISH female terminal 0.5mm SL | VT009-02 | 92.3 | Signal Terminal |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER ISH (Wire-to-Wire Type) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH WIRE TO WIRE male sub-assembly 8pin coding-B | V0031-008B-202 | 3400 | LV214 |
| ISH WIRE-TO-WIRE TYPE female housing 8pin double keyB | V0116-91008-12 | 778.7 | LV214 |
ISH (Wire-to-Wire Type) ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| ISH/ISHV releasing JIG for female terminal 0.5mm | 91691-0001 | 32844 | |
| ISH/ISHV releasing JIG for retainer -2 | 91696-0001 | 8409 |
ISH (Wire-to-Wire Type) Products adaptable with the JIG
| Part Number Description | Part Number | Products adaptable with the JIG |
| ISH/ISHV releasing JIG for retainer-2 | 91696-0001 | V0116-91008-02 |
| V0116-91008-12 |
