NOVASTACK® 35-HDP

NOVASTACK 35-HDP Product Image
支持高速传输 (20+ Gbps/lane)全屏蔽构造, 带电源端子, 0.35 mm 间距, 高度:0.7 mm

    ZenShield® 的全屏蔽设计和多点接地，有效防止 EMI 外泄

    高速率传输, USB4 / Thunderbolt 4 (20+ Gbps / lane) 应用的理想之选

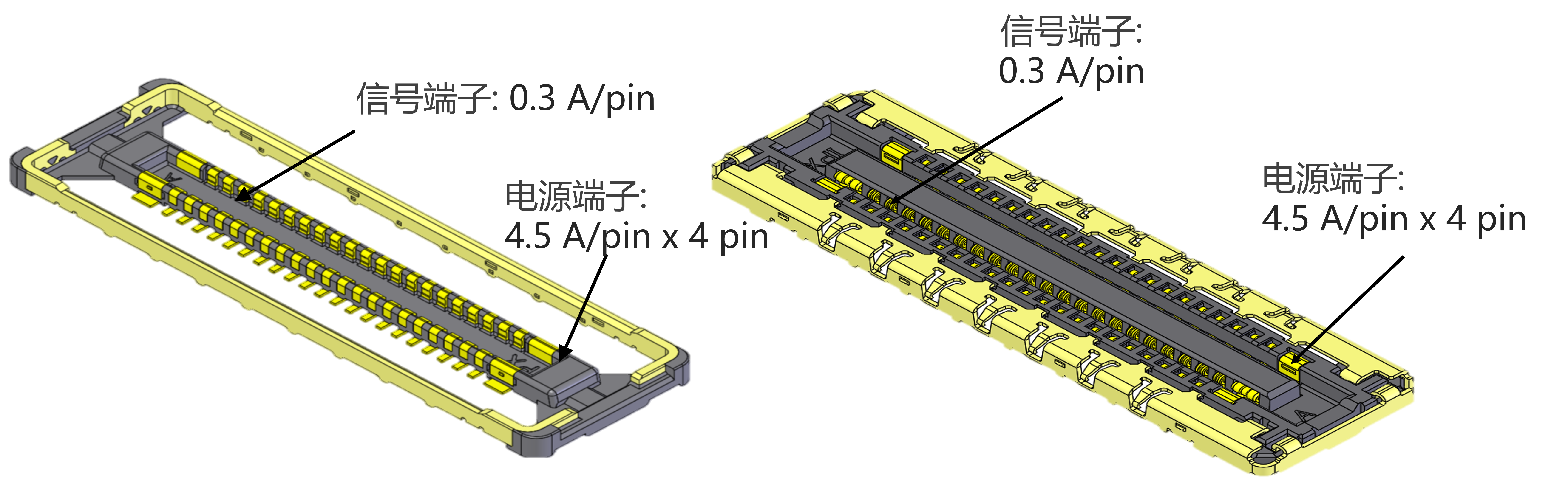

    电源端子支持大电流传输，2.2 A/Pin x 4

Contact Pitch:
0.35 mm
Mated Height:
Nom. 0.7 +/- 0.05 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Current Rating:
Signal: 0.3 A/pinPower: 2.2 A/pin x 4

下载

ZenShield® 的全屏蔽设计和多点接地，有效防止 EMI 外泄


高速率传输, USB4 / Thunderbolt 4 (20+ Gbps / lane) 应用的理想之选


电源端子支持大电流传输，2.2 A/Pin x 4






Contact Pitch
0.35 mm
Mated Height
Nom. 0.7 +/- 0.05 mm
Available Pin Count Signal+Power: 16+4, 28+4, 34+4, 42+4, 56+4, 62+4
Depth
3.7 mm
Width
4.89 + (0.35 x pin count / 2) mm
Contact Type
signal plus power pins
Operating Temperature
-40 to 85℃ (233 to 358 K)
Current Rating
Signal: 0.3 A/pinPower: 2.2 A/pin x 4
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane)USB 3.1 Gen 2 (10 Gbps)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps)eDP (2.7 Gbps)HDMI 2.0 (6 Gbps)V-By-One HS 1.4 (4 Gbps)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
No
Other Features
全屏蔽

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



NOVASTACK 35-HDP RECOMMENDED PART NUMBERS

Part Number Description PART NUMBERS Weight (mg) Note
NOVASTACK 35-HDP plug 28pin 20697-028E-01 28.9
NOVASTACK 35-HDP plug 34pin 20697-034E-01 33
NOVASTACK 35-HDP plug 42pin 20697-042E-01 34.88
NOVASTACK 35-HDP plug 56pin 20697-056E-01 41.24
NOVASTACK 35-HDP plug 62pin 20697-062E-01 45
NOVASTACK 35-HDP receptacle 16pin 20698-016E-01 22.1
NOVASTACK 35-HDP receptacle 28pin 20698-028E-01 29.543
NOVASTACK 35-HDP receptacle 34pin 20698-034E-01 32.49
NOVASTACK 35-HDP receptacle 42pin 20698-042E-01 36.8
NOVASTACK 35-HDP receptacle 56pin 20698-056E-01 44.96
NOVASTACK 35-HDP receptacle 62pin 20698-062E-01 48.53
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



NOVASTACK 35-HDP OTHER PART NUMBERS

Part Number Description Part Number Weight (mg) Note
NOVASTACK 35-HDP with cap 21001-042E-01 -
NOVASTACK 35-HDP plug 34pin 20697-034E-03 33.7
NOVASTACK 35-HDP receptacle 34pin 20698-034E-03 32.5
NOVASTACK 35-HDP receptacle 62pin 20875-062E-01 48.53
NOVASTACK 35-HDP FPC assembly 62pin 91130-0002 -
NOVASTACK 35-HDP FPC assembly 62pin 91130-0002-01 -



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for NOVASTACK 35-HDP 42pin 91654-042B-001 84611.67

NOVASTACK_35-HDP_TB-1009_Plug_Jack-side_(C)

Main Board

NOVASTACK_35-HDP_TB-1009_Thru_(C)

Thru Board
SI Test Board for NOVASTACK 35-HDP 56pin 91654-056B-001 84625
SI Test Board for NOVASTACK 36-HDP 62pin 91654-062B-001 84631.2

NOVASTACK 35-HDP EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
NOVASTACK 35-HDP plug 42pin 20697-042E-01M MOQ: 5K 20697-042E-01 MOQ: 10K
NOVASTACK 35-HDP plug 56pin 20697-056E-01M MOQ: 5K 20697-056E-01 MOQ: 10K
NOVASTACK 35-HDP receptacle 42pin 20698-042E-01M MOQ: 5K 20698-042E-01 MOQ: 10K
NOVASTACK 35-HDP receptacle 56pin 20698-056E-01M MOQ: 5K 20698-056E-01 MOQ: 10K
