MHF® 7S
独特的屏蔽设计 (ZenShield®) 减少5G mmWave应用中不必要的电磁干扰
超小体积， 最大驻波比为1.5
业内首创：将母座的信号Pin的封装位于接地环内侧
*操作方法请参考"如何嵌合和拔出"视频。
下载
-
产品目录
-
2D图面
-
电缆组件
-
O.D. 1.13 mm
Standard orientation
180 degree orientation
-
-
3D STEP & IGES
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
-
操作手册
独特的屏蔽设计 (ZenShield®) 减少5G mmWave应用中不必要的电磁干扰

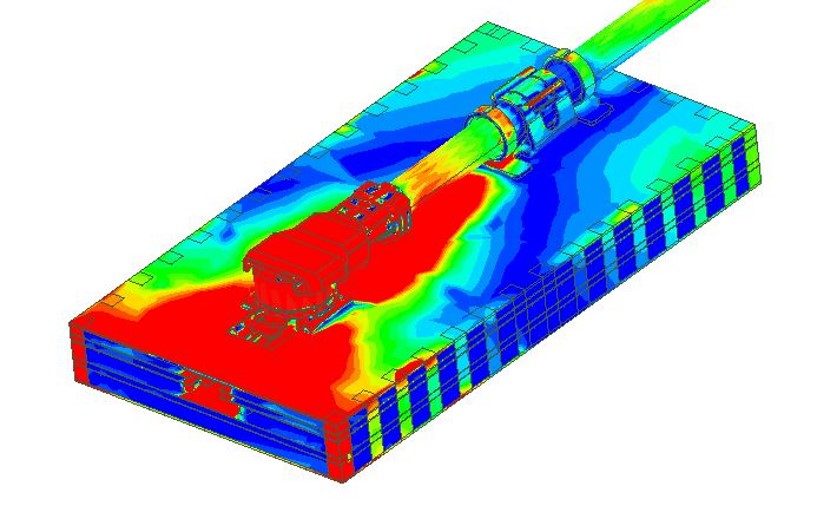

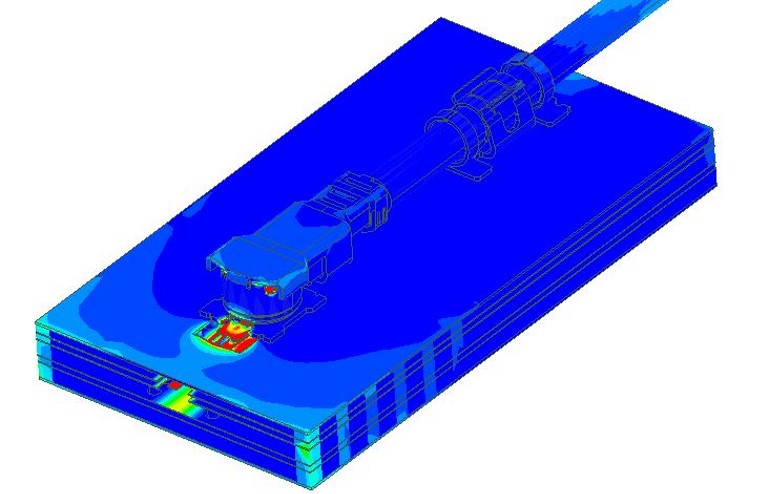

| 电场强度分布(模拟) | |
| MHF® 4L General design |
MHF® 7S High-performance EMI shielding design |
 |
 |

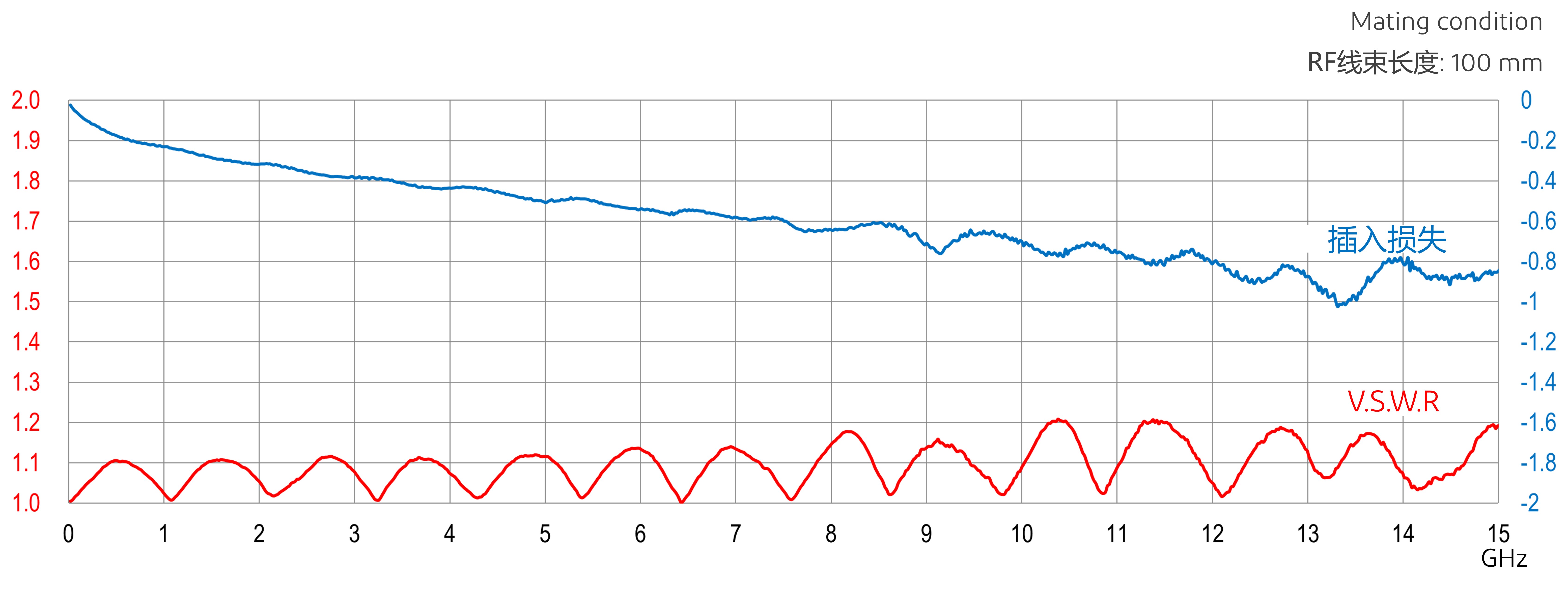

超小体积， 最大驻波比为1.5
业内首创：将母座的信号Pin的封装位于接地环内侧

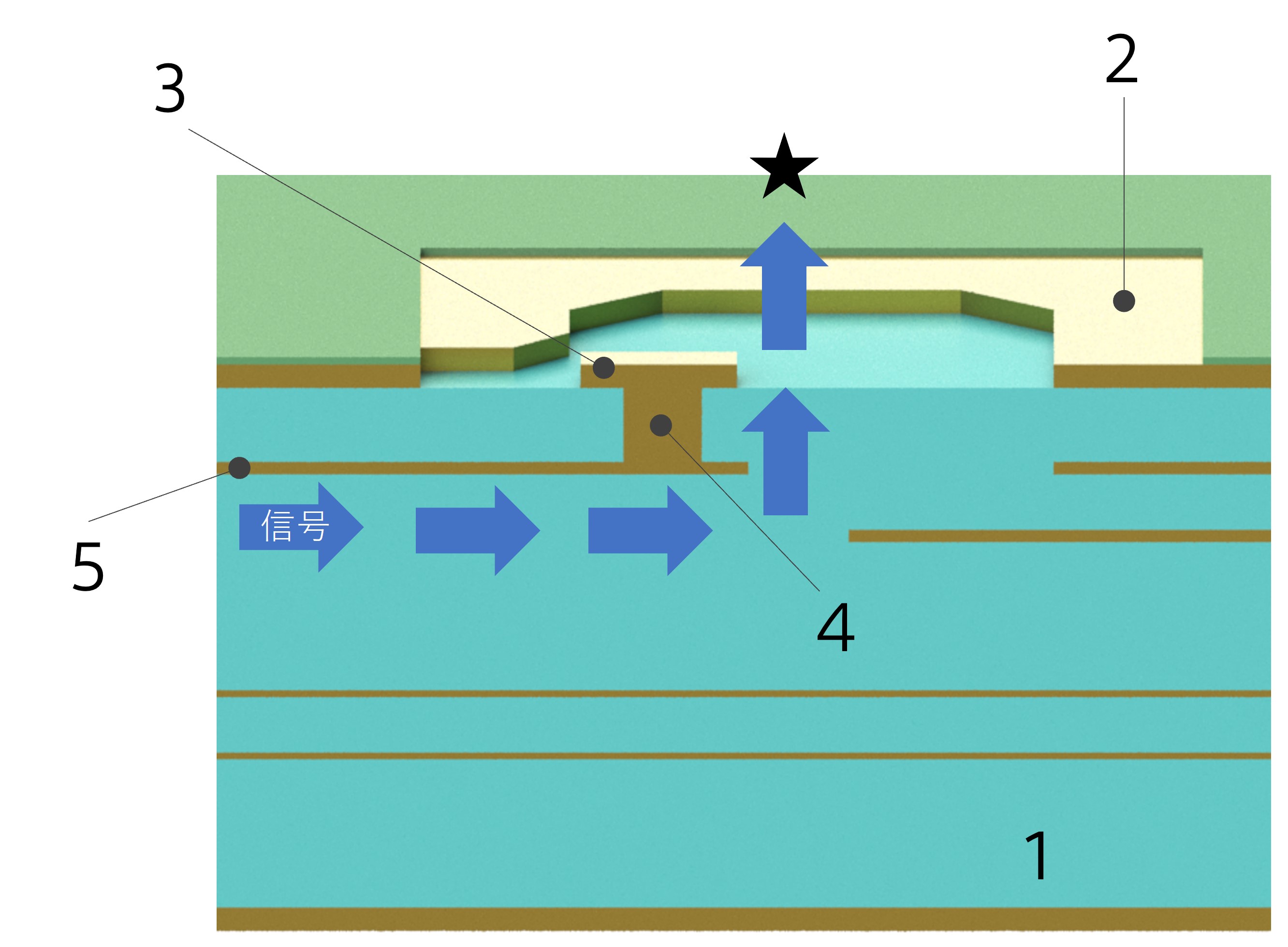

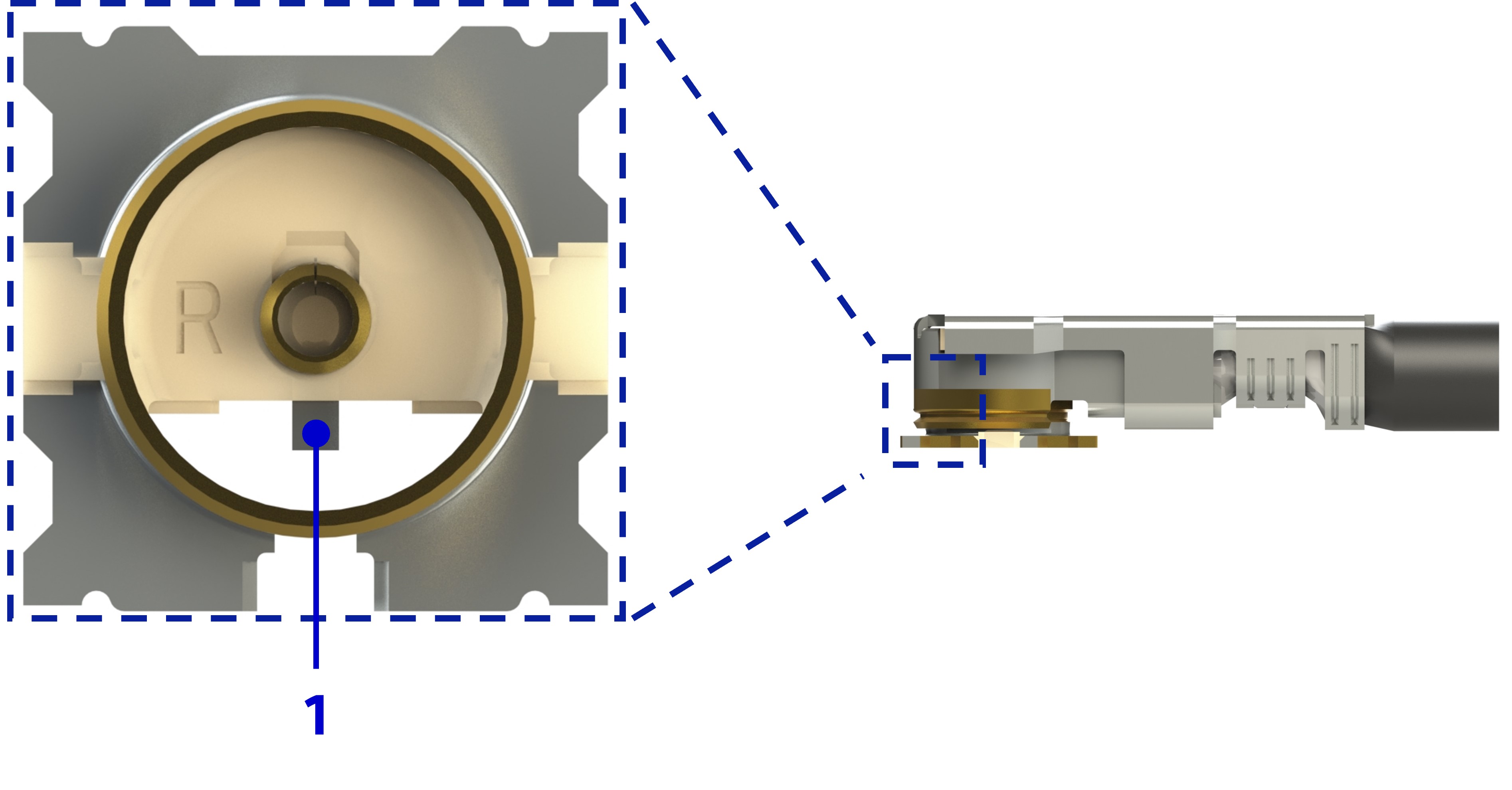

1. 信号Pin的封装位于接地环内侧 |
★输入连接器
|
| Product Type | Coaxial RF Connector
|
| Mated Height | 1.4 mm max.
|
| SMT Size | 2.0 x 2.0 mm
|
| Frequency Range | Up to 15 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 32 O.D. 1.13 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.35 max.6 to 9 GHz: 1.4 max.9 to 12 GHz: 1.45 max.12 to 15 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G mmWave(~15 GHz)5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical Lock | No
|
| VSWR (Harness & Rece) | DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.35 max. 6 ~ 9 GHz : 1.4 max. 9 ~ 12 GHz : 1.45 max. 12 ~ 15 GHz : 1.5 max. |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
*MHF 7S仅以MHF 7S 线束的形式销售
请指定线束组件规格（单端或双端、电缆尺寸、长度、颜色）。
MHF 7S RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF 7S harness OD=1.13mm | Offered as harness only | - | *see note below |
| MHF 7S receptacle | 20981-001E-02 | 3.72 |
*The MHF 7S is offered as our MHF 7S harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).
MHF 7S SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF 7S-7S harness OD=1.13mm L=50mm | 8-24-0162 | 208.5 |
| MHF 7S-7S harness OD=1.13mm L=100mm | 8-22-0127 | 560 |
| MHF 7S-7S harness OD=1.13mm L=150mm | 8-23-0117 | 640 |
| MHF 7S-7S harness OD=1.13mm L=200mm | 8-21-0046 | 780 |
| MHF 7S-7S harness OD=1.13mm L=300mm | 8-26-0059 | 1463 |
| MHF 7S-7S harness OD=1.13mm L=400mm | 8-26-0060 | 1780 |
| MHF 7S-7S harness OD=1.13mm L=500mm | 8-24-0163 | 1635 |
MHF 7S SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF 7S-7S harness OD=1.13mm L=50mm 180 degree orientation | 8-25-0940 | 670.5 |
| MHF 7S-7S harness OD=1.13mm L=100mm 180 degree orientation | 8-25-0941 | 317 |
| MHF 7S-7S harness OD=1.13mm L=150mm 180 degree orientation | 8-25-0942 | 829 |
| MHF 7S-7S harness OD=1.13mm L=200mm 180 degree orientation | 8-25-0943 | 634 |
| MHF 7S-7S harness OD=1.13mm L=300mm 180 degree orientation | 8-25-0944 | 1463 |
| MHF 7S-7S harness OD=1.13mm L=400mm 180 degree orientation | 8-25-0945 | 1780 |
| MHF 7S-7S harness OD=1.13mm L=500mm 180 degree orientation | 8-25-0946 | 2097 |
MHF 7S ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch without-floating-function | 91136-0001 | 824.5 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch cable SMA plug | 91197-300P | 4718.8 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch cable SMA Jack | 91197-300J | 4451.3 |  |
| MHF 7S adapter for plug voltage-check | 91245-0001 | 790 | |
| MHF 7S insertion/extraction tool | 91186-0001 | 697.5 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch with-floating-function | 91145-0001 | 736.3 |  |
| MHF 7S SMA adapter for plug electrical-performance-check | 91255-0001 | 2725.9 | |
| MHF 7S SMA adapter for receptacle electrical-performance-check SMA | 91256-0001 | 2718.8 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF 7S | 91606-001B-001 | 20262 |
Main Board |
Insertion/Extraction tools to handle MHF® 7S
Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.
How to extract
Slide the tool until it reaches a stopper, lift vertically to the PCB surface.
Adapters for plugs and receptacles
For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.
| Standard series | High Cycle Series | ||
| Standard type | Narrow Pitch type | Detachable type | |
| Durability: 500 | Durability: 10,000 | Durability: 10,000 (Probe), 100 (Cable) | Durability: 10,000 (Probe), 200,000 (Base) |
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories. |
The Standard type connects directly from the probe to the measuring instrument. |
The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously. |
The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series. |
SI Test boards for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
MHF 7S EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| MHF 7S receptacle | 20981-001E-01 | Ground contact & Housing shape difference | 20981-001E-02 | Ground contact & Housing shape difference |
