天线连接的行业标准，支持最高可达 9 GHz，射频连接器最大嵌合高度为 2.5/3.0 mm

    i-Fit®是一种无焊料的极细同轴线端子技术， i-Fit®提供稳定的性能

    对应9 GHz的高性能小型连接器

    我们可提供MHF® I公座的各种线缆外径和附加机械锁扣供您选择

*有关机械锁扣额外的嵌合保持力，请查看 MHF® I LK 公座电缆组件。

*如需额外的焊接剪切力和更好的中心校准，请查看 MHF® I 4 焊盘母座。
Mated Height:
3.0 mm max.2.5 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 26 O.D. 2.0 mmAWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm

下载

i-Fit®是一种无焊料的极细同轴线端子技术， i-Fit®提供稳定的性能

FAB2_1.jpg FAB2_2.jpg FAB2_3.jpg
1. 中心导体  2. 绝缘体
3. 外层导体  4. 外被

 5. 端子  6. 中心导体
7. 卷边

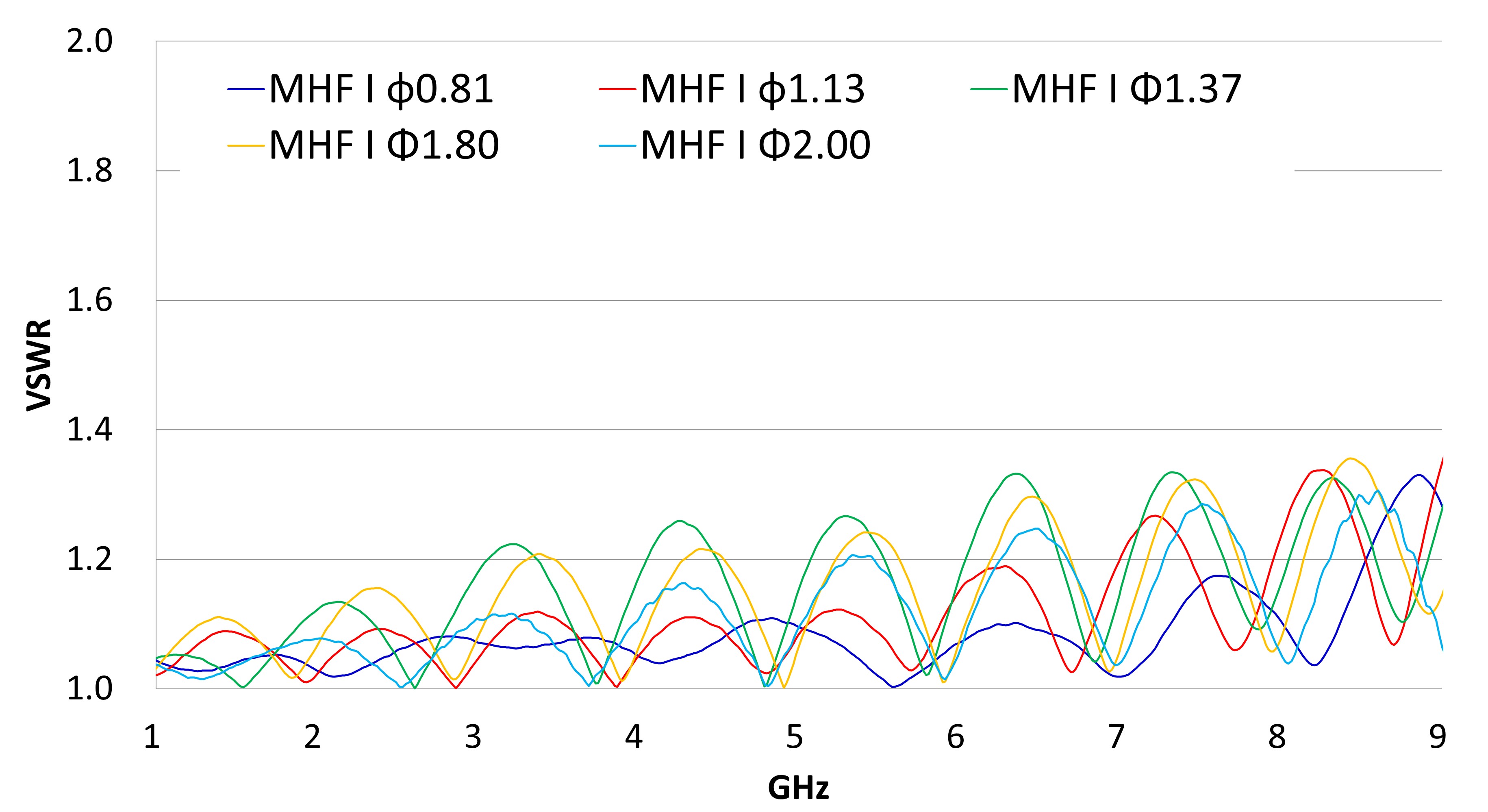

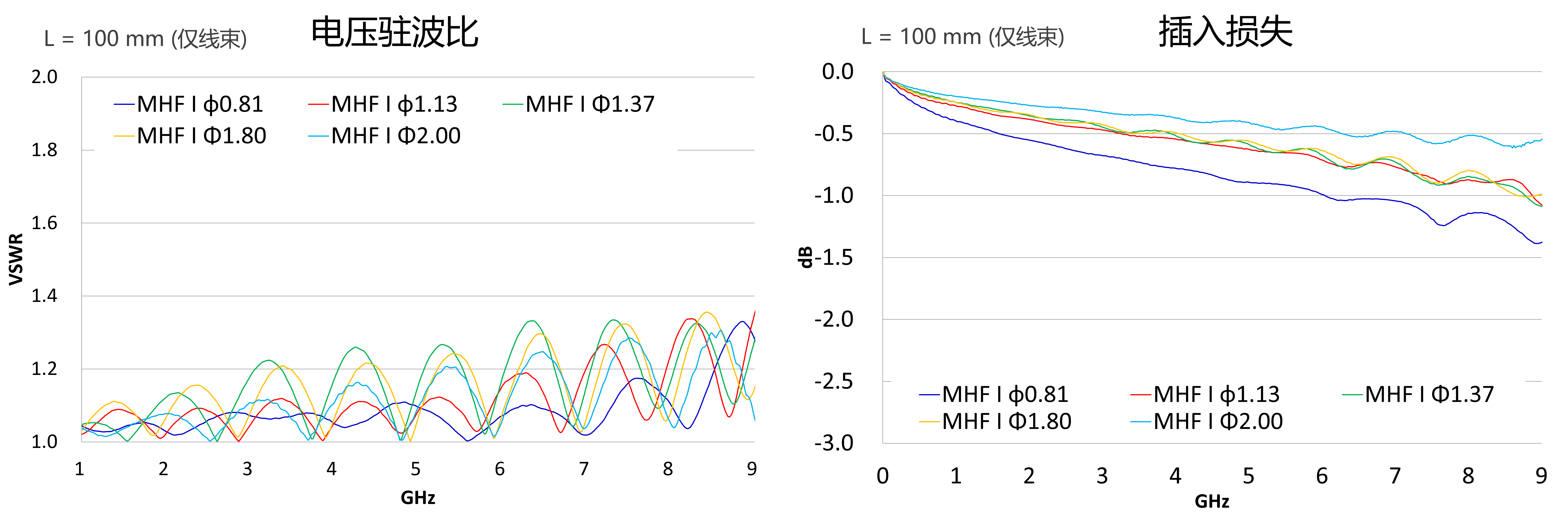

对应9 GHz的高性能小型连接器

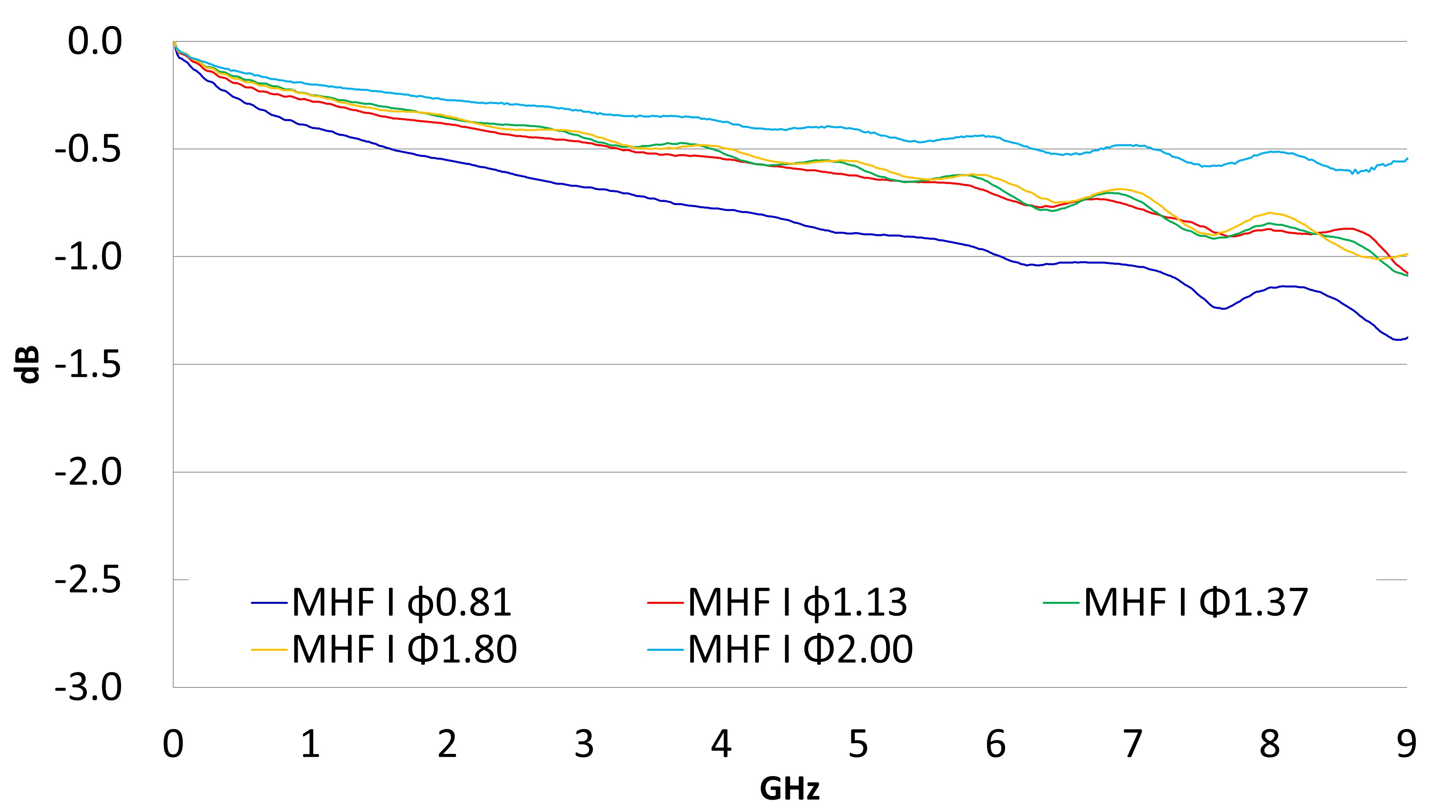

对应9 GHz的高性能小型连接器

我们可提供MHF® I公座的各种线缆外径和附加机械锁扣供您选择



  4padFab_3_0
Product name MHF® I LK MHF® I MHF® I
Lock With Lock Without Lock Without Lock
Mating Height 2.9 mm max. 2.5 mm max. 3.0 mm max.
Coaxial O.D. (Center Conductor AWG) 2.00 mm (AWG 26)     ●
1.80 mm (AWG 30) ● ●
1.37 mm (AWG 30) ● ●
1.32 mm (AWG 32) ● ●
1.13 mm (AWG 32) ● ●
0.81 mm (AWG 36) ● ●
Receptacle MHF® I receptacle  20279-001E-03 (3 pads) / 20441-001E-01 (4 pads)




Product Type
Coaxial RF Connector
Mated Height
3.0 mm max.2.5 mm max.
SMT Size
3.1 x 3.0 mm
Frequency Range Up to 9 GHz
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 26 O.D. 2.0 mmAWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 1.6 max. (O.D. 1.32, 2.0 mm)6 to 9 GHz: 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.8 mm)
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
No
VSWR (Harness only) DC ~ 3 GHz : 1.3 max.
3 ~ 6 GHz : 1.5 max.
6 ~ 9 GHz : 1.6 max. (O.D. 1.32, 2.0 mm)
6 ~ 9 GHz : 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.80 mm)

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



MHF I RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug OD=0.81mm  20278-112R-08 61.52
MHF I plug OD=1.13mm 20278-112R-13 61.52
MHF I plug OD=1.32mm 20278-112R-32 61.52
MHF I plug OD=1.37mm 20351-112R-37 61.52
MHF I plug OD=1.80mm 20278-112R-18 61.52
MHF I plug OD=2.00mm 20767-001R-20 101.6
MHF I receptacle 3 pads 20279-001E-03 16



MHF I SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I
Part Number Description Part Number Weight (mg)
MHF I-I harness OD=0.81mm L=100mm 8-25-0819 290.6
MHF I-I harness OD=0.81mm L=200mm 8-25-0820 457.6
MHF I-I harness OD=0.81mm L=300mm 8-25-0821 624.6
MHF I-I harness OD=0.81mm L=400mm 8-25-0822 791.6
MHF I-I harness OD=0.81mm L=500mm 8-25-0823 958.6
MHF I-I harness OD=1.13mm L=50mm 8-24-0113 730
MHF I-I harness OD=1.13mm L=100mm 8-24-0114 670
MHF I-I harness OD=1.13mm L=200mm 8-21-0048 870
MHF I-I harness OD=1.13mm L=300mm 8-25-1005 1018
MHF I-I harness OD=1.13mm L=400mm 8-25-1006 1319
MHF I-I harness OD=1.13mm L=500mm 8-24-0115 720
MHF I-I harness OD=1.32mm L=100mm 8-25-0814 613
MHF I-I harness OD=1.32mm L=200mm 8-25-0815 1097
MHF I-I harness OD=1.32mm L=300mm 8-25-0816 1581
MHF I-I harness OD=1.32mm L=400mm 8-25-0817 2065
MHF I-I harness OD=1.32mm L=500mm 8-25-0818 2549
MHF I-I harness OD=1.37mm L=50mm 8-24-0140 670
MHF I-I harness OD=1.37mm L=100mm 8-24-0141 720
MHF I-I harness OD=1.37mm L=200mm 8-24-0142 670
MHF I-I harness OD=1.37mm L=300mm 8-26-0040 1433.8
MHF I-I harness OD=1.37mm L=400mm 8-26-0041 1863.8
MHF I-I harness OD=1.37mm L=500mm 8-24-0143 690
MHF I-I harness OD=1.80mm L=100mm 8-25-0858 912.8
MHF I-I harness OD=1.80mm L=200mm 8-25-0859 1682.8
MHF I-I harness OD=1.80mm L=300mm 8-25-0860 2452.8
MHF I-I harness OD=1.80mm L=400mm 8-25-0861 3222.8
MHF I-I harness OD=1.80mm L=500mm 8-25-0862 3992.8



MHF I SAMPLE HARNESS FOR EVALUATION PART NUMBERS

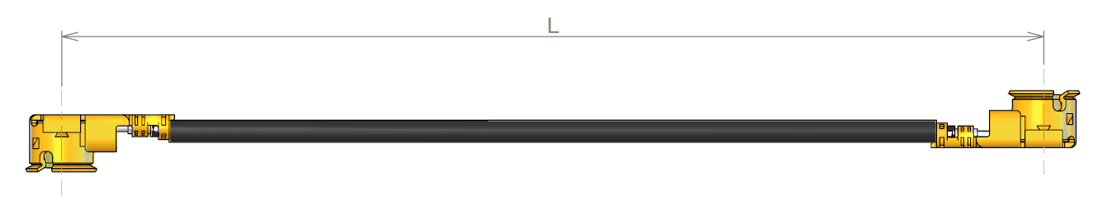

MHF I-I OD0.81MM 100MM Type-2

Part Number Description Part Number Weight (mg)
MHF I-I harness OD=0.81mm L=100mm 180 degree orientation 8-25-0832 290.6
MHF I-I harness OD=0.81mm L=200mm 180 degree orientation 8-25-0833 457.6
MHF I-I harness OD=0.81mm L=300mm 180 degree orientation 8-25-0834 624.6
MHF I-I harness OD=0.81mm L=400mm 180 degree orientation 8-25-0835 791.6
MHF I-I harness OD=0.81mm L=500mm 180 degree orientation 8-25-0836 958.6
MHF I-I harness OD=1.13mm L=50mm 180 degree orientation 8-25-0826 265.5
MHF I-I harness OD=1.13mm L=100mm 180 degree orientation 8-25-0827 416
MHF I-I harness OD=1.13mm L=200mm 180 degree orientation 8-25-0828 717
MHF I-I harness OD=1.13mm L=300mm 180 degree orientation 8-25-0829 1018
MHF I-I harness OD=1.13mm L=400mm 180 degree orientation 8-25-0830 1319
MHF I-I harness OD=1.13mm L=500mm 180 degree orientation 8-25-0831 1620
MHF I-I harness OD=1.32mm L=100mm 180 degree orientation 8-25-0837 613
MHF I-I harness OD=1.32mm L=200mm 180 degree orientation 8-25-0838 1097
MHF I-I harness OD=1.32mm L=300mm 180 degree orientation 8-25-0839 1581
MHF I-I harness OD=1.32mm L=400mm 180 degree orientation 8-25-0840 2065
MHF I-I harness OD=1.32mm L=500mm 180 degree orientation 8-25-0841 2549
MHF I-I harness OD=1.37mm L=50mm 180 degree orientation 8-25-0844 358.8
MHF I-I harness OD=1.37mm L=100mm 180 degree orientation 8-25-0845 573.8
MHF I-I harness OD=1.37mm L=200mm 180 degree orientation 8-25-0846 1003.8
MHF I-I harness OD=1.37mm L=300mm 180 degree orientation 8-25-0847 1433.8
MHF I-I harness OD=1.37mm L=400mm 180 degree orientation 8-25-0848 1863.8
MHF I-I harness OD=1.37mm L=500mm 180 degree orientation 8-25-0849 2293.8
MHF I-I harness OD=1.80mm L=100mm 180 degree orientation 8-25-0853 912.8
MHF I-I harness OD=1.80mm L=200mm 180 degree orientation 8-25-0854 1682.8
MHF I-I harness OD=1.80mm L=300mm 180 degree orientation 8-25-0855 2452.8
MHF I-I harness OD=1.80mm L=400mm 180 degree orientation 8-25-0856 3222.8
MHF I-I harness OD=1.80mm L=500mm 180 degree orientation 8-25-0857 3992.8



MHF I SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I
Part Number Description Part Number Weight (mg)
MHF I-SMA Jack harness OD=1.13mm L=100mm 8-25-0046 3800
MHF I-SMA Jack harness OD=1.13mm L=150mm 8-25-0047 4000
MHF I-SMA Jack harness OD=1.13mm L=200mm 8-25-0048 4100
MHF I-SMA Jack harness OD=1.37mm L=100mm 8-25-0066 4100
MHF I-SMA Jack harness OD=1.37mm L=150mm 8-25-0067 4400
MHF I-SMA Jack harness OD=1.37mm L=200mm 8-25-0068 4700
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



MHF I OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug 20643-112R-13 61.52
MHF I plug smooth insert type OD=0.81mm 20723-112R-08-0T 62.92
MHF I plug smooth insert type OD=1.13mm 20723-112R-13-0T 62.92
MHF I plug smooth insert type OD=1.32mm 20723-112R-32-0T 62.92
MHF I plug smooth insert type OD=1.37mm 20723-112R-37-0T 62.92
MHF I plug smooth insert type OD=0.81mm 20631-112R-08 62.92
MHF I plug smooth insert type OD=1.13mm 20631-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 20631-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 20631-112R-37 62.92
MHF I plug smooth insert type Ni plating OD=0.81mm 20670-001R-08 62.92
MHF I plug smooth insert type Ni plating OD=1.13mm 20670-001R-13 62.92
MHF I plug smooth insert type Ni plating OD=1.32mm 20670-001R-32 62.92
MHF I plug smooth insert type Ni plating OD=1.37mm 20670-001R-37 62.92
MHF I plug smooth insert type Ni plating OD=1.80mm 20670-001R-18 62.92
MHF I plug smooth insert type OD=1.13mm 105℃ 20797-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 105℃ 20797-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 105℃ 20797-112R-37 62.92
MHF I receptacle 3 pads 20279-001E-05 16
MHF I receptacle 3 pads 20279-001E-06 16
MHF I receptacle 3 pads 105℃ 20803-001E 16
MHF I receptacle 4 pads 20431-001E-01 62.92
MHF I receptacle 4 pads 20441-001E-01 16

MHF I ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF I/I LK SMA adapter for plug electrical-performance-check 90193-001 2293.7

MHF I&I LK Adapter for Plug Electorical
MHF I/I LK adapter for plug voltage-check 90194-001 709.1

MHF I&I LK Adapter for Plug Voltage
MHF I/I LK SMA adapter for receptacle electrical-performance-check 90193-002 1453.3 MHF I&I LK Adapter for Rece Electorical
MHF I/I LK SMA adapter for receptacle high-cycle 90539-001 6737.3 RF_t7_ACC2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm 90577-0100 4503.2 Adaptor cable (Attach to probe)
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm 90577-0200 5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm 90577-0750 9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe 90575-0001 1499

MHF I&I LK High Cycle Narrow-Pitch Adapter for Rece Electorical
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF I&I LK High Cycle Detachable Base for Rece Electorical
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe 90416-001 1650

Probe
MHF I insertion/extraction tool 90224-001 1572.2

Insertion/Extraction tool
MHF I insertion/extraction tool 90885-0001 -
MHF I extraction tool 90192-001 1501.4

Extraction tool



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF I 91604-001B-001 17788

MHF_I_SI_TB-1037_テストボード_(C)

Main Board
MHF_I_SI_TB-1037_THRU_ボード_(C)
Thru Board



Insertion/Extraction tools to handle MHF® I

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.

How to extract

Insertion/Extraction tools to handle MHF® I (4 pads receptacle)

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.



Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series High Cycle Series
Standard type Narrow Pitch type Detachable type
Durability: 500 Durability: 10,000 Durability: 10,000 (Probe), 100 (Cable) Durability: 10,000 (Probe), 200,000 (Base)
MHF_I&_LK_Rece_Standard

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.

 MHF_I&_LK_Rece_High_Cycle_Standard

The Standard type connects directly from the probe to the measuring instrument.

 MHF_I&_LK_Rece_High_Cycle_Narrow

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

 MHF_I&_LK_Rece_High_Cycle_Detachable

The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.



SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board

MHF I Plan to EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF I plug Ni plating OD=1.37mm 20278-212R-13 Ground contact Ni top plating 20278-112R-13 Ground contact Au plating
MHF I receptacle 3 pads 20279-001E-01 2,500 pcs/reel 20279-001E-03 5,000 pcs/reel
MHF I plug Ag 20308-112R-13 Ground contact Ag Plating 20278-112R-13 Ground contact Au plating
MHF I plug Ag 20308-212R-37 Ground contact Ag Plating 20351-112R-37 Ground contact Au plating



MHF I EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF I plug non-HF 20278-101R-08 Housing Non halogen free 20278-112R-08 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-08 Housing Non halogen free 20278-112R-08 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-13 Housing Non halogen free 20278-112R-13 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-32 Housing Non halogen free 20278-112R-32 Housing halogen free
MHF I receptacle 3 pads plastic reel 20279-001E-02 2,500 pcs/reel 20279-001E-03 5,000 pcs/reel
MHF I receptacle Ag 20314-001E-01 Ground contact Ag Plating 20279-001E-03 Ground contact Au Plating
MHF I plug Au housing non-halogen free 20351-111R-37 Housing Non Halogen Free 20351-112R-37 Housing Halogen free
MHF I plug Au 20351-312R-37 Ground contact Au plating thickness: 0.38 um, Main contact Au plating thickness: 0.38 um 20351-112R-37 Ground contact Au plating thcikness: 0.05 um, Main contact Au plating thickness: 0.1 um
MHF I 08 type hand tool 90187-008C 　 Contact us 　
MHF I 13 type hand tool 90187-013C 　 Contact us
