MHF® I (4 pads receptacle)

带有额外第 4 个焊盘的 MHF® I 母座在通过回流焊安装在电路板上时可改善中心对齐，并增加焊料剪切力

    通过增加焊盘改善中心校准

    通过增加焊盘提高焊锡剪切力

    可匹配 MHF® I 系列各种电缆外径和附加机械锁扣选项

*有关机械锁扣额外的嵌合保持力，请查看 MHF® I LK 公座电缆组件。

*有关 MHF I 系列的一般信息，请查看 MHF® I。
Mated Height:
2.5 max. 3.0 max. (mm)
频率范围:
Up to 9 GHz
Micro-Coaxial Cable:
AWG 26 O.D. 2.4 mm AWG 26 O.D. 2.0 mm AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm

下载

通过增加焊盘改善中心校准



4个焊盘的母座
4padFab_1
                           回流焊前      　    ▶　 　　回流焊后

☑ 提高实施过程的质量

☑ 实现接近理想中的射频电路设计

☑ 允许使用射频线束进行精确定位



通过增加焊盘提高焊锡剪切力



MHF® I Receptacle Solder Shear Strength

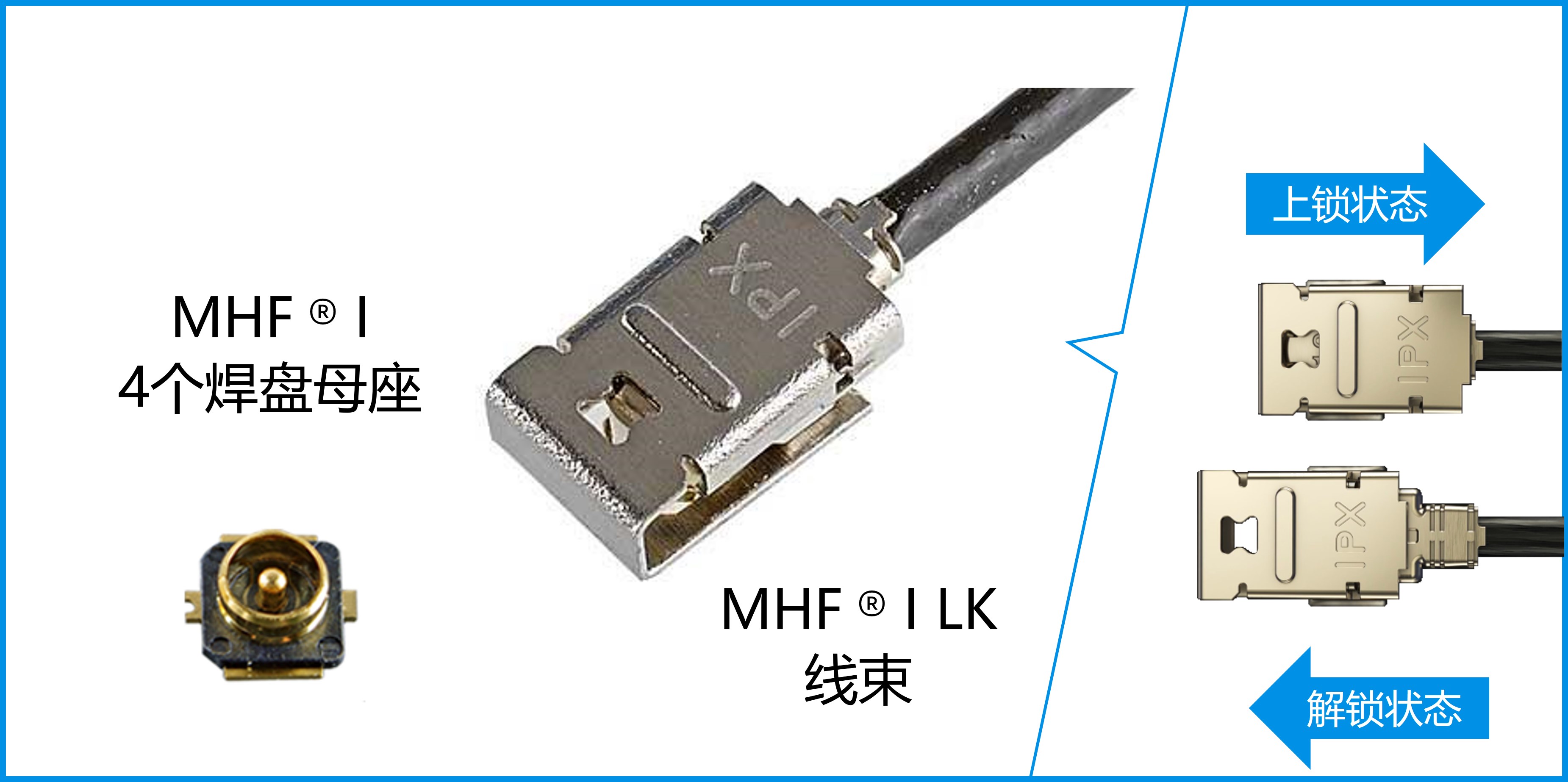

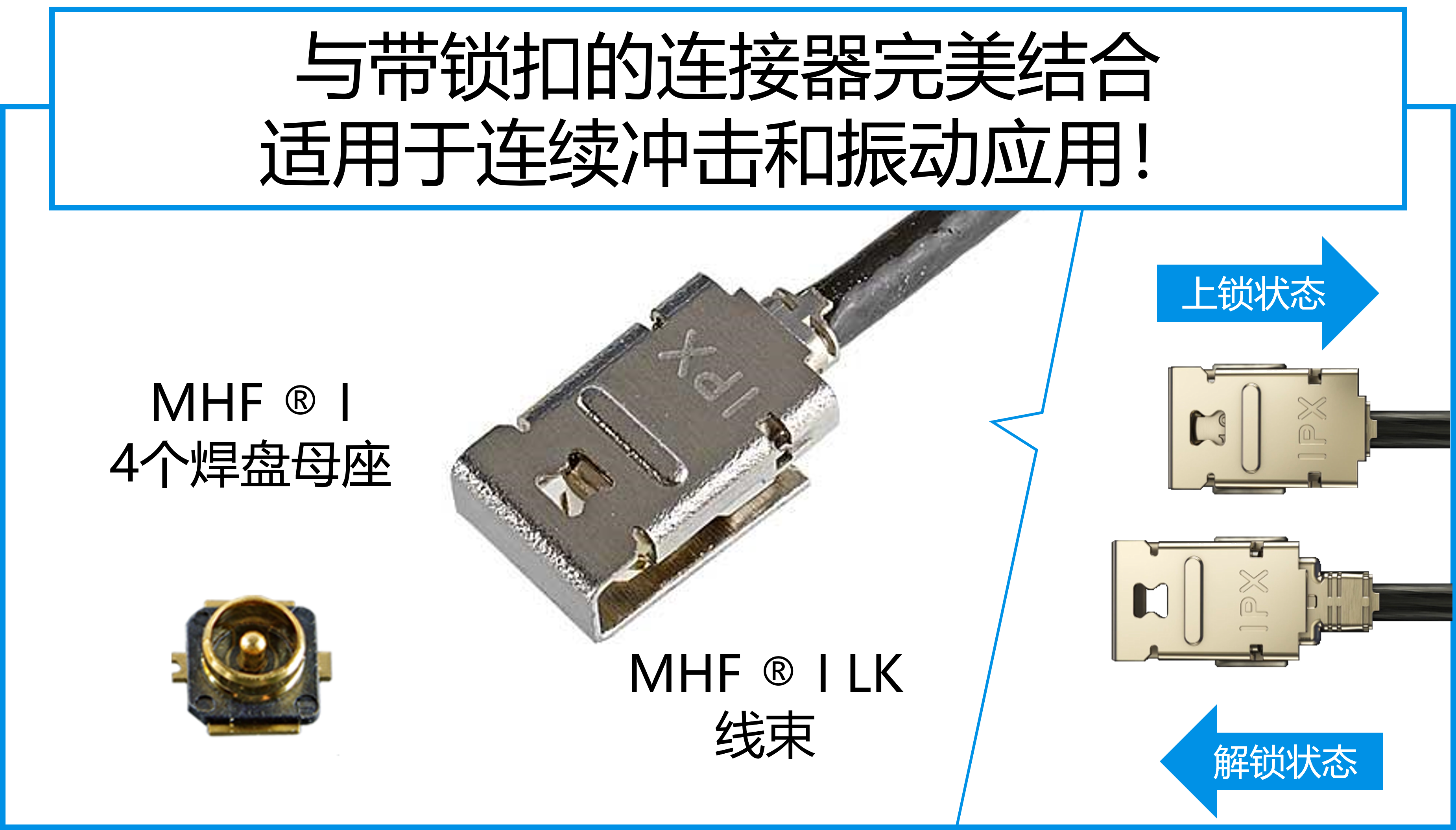

4padFab_2-1		 与带锁扣的连接器完美结合
适用于连续冲击和振动应用！
4padFab_2-2E



可匹配 MHF® I 系列各种电缆外径和附加机械锁扣选项



  4padFab_3_0
Product name MHF® I LK MHF® I MHF® I
Lock With Lock Without Lock Without Lock
Mating Height 2.9 mm max. 2.5 mm max. 3.0 mm max.
Coaxial O.D. (Center Conductor AWG) 2.00 mm (AWG#26)     ●
1.80 mm (AWG#30) ● ●
1.37 mm (AWG#30) ● ●
1.32 mm (AWG#32) ● ●
1.13 mm (AWG#32) ● ●
0.81 mm (AWG#36) ● ●
Receptacle MHF® I receptacle  20279-001E-** (3 pads) / 20441-001E-01 (4 pads)



Mated Height
2.5 max. 3.0 max. (mm)
SMT Size
3.1 x 3.0 mm
Frequency range Up to 9 GHz
Micro-Coaxial Cable
AWG 26 O.D. 2.4 mm AWG 26 O.D. 2.0 mm AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm
Shielded FPC / FFC
No
Applicable Standards (Reference Only)
5G sub6 IEEE802.11n IEEE802.11ac IEEE802.11ax IEEE802.11be Wi-Fi 4 Wi-Fi 5 Wi-Fi 6/6E Wi-Fi 7 LTE / LTE-Advanced LPWA Bluetooth GPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
VSWR (PLUG) DC~3GHz : 1.3 max.
3GHz~6GHz : 1.5 max.
6GHz~9GHz : 1.6 max. (O.D.1.32, 2.0 mm)
6GHz~9GHz : 1.9 max. (O.D.0.81, 1.13, 1.37, 1.80 mm)
VSWR (RECEPTACLE) DC~3GHz : 1.3 max.
3GHz~6GHz : 1.4 max.
6GHz~9GHz : 1.8 max.

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MHF I RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug OD=0.81mm  20278-112R-08 61.52
MHF I plug OD=1.13mm 20278-112R-13 61.52
MHF I plug OD=1.32mm 20278-112R-32 61.52
MHF I plug OD=1.37mm 20351-112R-37 61.52
MHF I plug OD=1.80mm 20278-112R-18 61.52
MHF I plug OD=2.00mm 20767-001R-20 101.6
MHF I receptacle 4 pads 20441-001E-01 16




其他料号
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.

MHF I OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug smooth insert type OD=0.81mm 20631-112R-08 62.92
MHF I plug smooth insert type OD=1.13mm 20631-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 20631-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 20631-112R-37 62.92
MHF I plug smooth insert type Ni plating OD=0.81mm 20670-001R-08 62.92
MHF I plug smooth insert type Ni plating OD=1.13mm 20670-001R-13 62.92
MHF I plug smooth insert type Ni plating OD=1.80mm 20670-001R-18 62.92
MHF I plug smooth insert type Ni plating OD=1.32mm 20670-001R-32 62.92
MHF I plug smooth insert type Ni plating OD=1.37mm 20670-001R-37 62.92
MHF I plug smooth insert type OD=1.13mm 105℃ 20797-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 105℃ 20797-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 105℃ 20797-112R-37 62.92
MHF I plug Ni plating OD=1.37mm 20351-212R-37 61.52
MHF I receptacle 3 pads 20279-001E-05 16
MHF I receptacle 3 pads 20279-001E-06 16
MHF I receptacle 3 pads 105℃ 20803-001E 16


SMA Adapters for MHF® Receptacles
　RF_t7_ACC1.png RF_t7_ACC2.png RF_t7_ACC3.png RF_t7_ACC4.png RF_t7_ACC5.png RF_t7_ACC6.png
90193-002 90539-001 90577-0100
90577-0350		 90575-0001 90684-0001 90416-001
SMA Adapters for MHF® Plugs MHF® Accessories: Hand Tool
　RF_t6_ACC1.png RF_t6_ACC3.png  RF_t8_ACC1.png  RF_t8_ACC2.png
90193-001 90194-001 90224-001
90885-0001(*)		 90192-001



MHF I ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I/I LK SMA adapter for plug electrical-performance-check 90193-001 2293.7
MHF I/I LK SMA adapter for plug voltage-check 90194-001 709.1
MHF I/I LK SMA adapter for receptacle electrical-performance-check 90193-002 1453.3
MHF I/I LK SMA adapter for receptacle high-cycle 90539-001 6737.3
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm 90577-0100 4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm 90577-0750 9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe 90575-0001 1499
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe 90416-001 1650
MHF I insertion/extraction tool 90224-001 1572.2
MHF I extraction tool 90192-001 1501.4



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for MHF I for 4 pads receptacle 91616-001B-001 17700

MHF I Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
MHF I receptacle 3 pads 20279-001E-01 20279-001E-03 (3 pad)
20441-001E-01 (4 pad)		 MOQ
Additional soldering pad
