MHF^® I LK

业内创举-锁扣解决方案计，适用于所有 MHF®I 类型的母座，支持可达9 GHz, 组合高度最大为 2.9 mm

连续冲击和震动的理想解决方案

MHF^® I 公座自带锁扣结构

可匹配所有 MHF^® I 母座

*如需额外的焊接剪切力和更好的中心校准，请查看 MHF^® I 4 焊盘母座。
*有关 MHF I 系列的一般信息，请查看 MHF^® I。
*概述请参考"锁定功能"视频，操作方法请参考"如何嵌合和拔出/窄间距"视频。

Mated Height:

2.9 max. mm

频率范围:

Up to 9 GHz

Micro-Coaxial Cable:

AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm

下载

Specs & Test Reports
PCB/FPC Data
- Symbols(脚位图)和Footprints(封装图)

*SI测试板数据位于二维图纸中

配件
产品详情
技术参数技术参数
型号

连续冲击和震动的理想解决方案

Disengagement force comparison

MHF^® I 公座自带锁扣结构

可匹配所有 MHF^® I 母座


Product name		MHF^® I LK	MHF^® I	MHF^® I
Lock		With Lock	Without Lock	Without Lock
Mating Height		2.9 mm max.	2.5 mm max.	3.0 mm max.
Coaxial O.D. (Center Conductor AWG)	2.00 mm (AWG 26)			●
	1.80 mm (AWG 30)	●	●
	1.37 mm (AWG 30)	●	●
	1.32 mm (AWG 32)	●	●
	1.13 mm (AWG 32)	●	●
	0.81 mm (AWG 36)	●	●
Receptacle		MHF® I receptacle 20279-001E-03(3 pads) / 20441-001E-01 (4 pads)

Product Type	Coaxial RF Connector
Mated Height	2.9 max. mm
SMT Size	3.1 x 3.0 mm
Frequency range	Up to 9 GHz
Micro-Coaxial Cable	AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm
Shielded FPC / FFC	No
Applicable Standards (Reference Only)	5G sub6IEEE802.11nIEEE802.11acIEEE802.11axIEEE802.11beWi-Fi 4Wi-Fi 5Wi-Fi 6/6EWi-Fi 7LTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)	No
Mechanical lock	Yes
VSWR (Harness only)	DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.5 max. 6 ~ 9 GHz : 1.6 max. (O.D. 1.32 mm) 6 ~ 9 GHz : 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.80 mm)

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。
*MHF I LK仅以MHF I LK 线束的形式销售
请指定线束组件规格（单端或双端、电缆尺寸、长度、颜色）。

MHF I LK RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I LK harness OD=1.80/1.37/1.32/1.13/0.81mm	Offered as harness only	-
MHF I receptacle 3 pads	20279-001E-03	16
MHF I receptacle 4 pads	20441-001E-01	16

*The MHF I LK is offered as our MHF I LK harness assembly only.
Please specify wire harness assembly specification (single-end or double-ended, cable size, length, color).

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I LK_1

Part Number Description	Part Number	Weight (mg)
MHF I LK-I LK harness OD=0.81mm L=100mm	8-25-0458	440
MHF I LK-I LK harness OD=0.81mm L=200mm	8-25-0459	640
MHF I LK-I LK harness OD=0.81mm L=500mm	8-25-0460	1300
MHF I LK-I LK harness OD=1.13mm L=100mm	8-23-0118	800
MHF I LK-I LK harness OD=1.13mm L=200mm	8-21-0047	840
MHF I LK-I LK harness OD=1.13mm L=500mm	8-23-0120	760
MHF I LK-I LK harness OD=1.32mm L=100mm	8-25-0452	850
MHF I LK-I LK harness OD=1.32mm L=200mm	8-25-0453	1500
MHF I LK-I LK harness OD=1.32mm L=500mm	8-25-0454	3390
MHF I LK-I LK harness OD=1.37mm L=100mm	8-23-0119	720
MHF I LK-I LK harness OD=1.37mm L=200mm	8-21-0049	650
MHF I LK-I LK harness OD=1.37mm L=500mm	8-23-0121	710
MHF I LK-I LK harness OD=1.80mm L=100mm	8-25-0443	1090
MHF I LK-I LK harness OD=1.80mm L=200mm	8-25-0444	1950
MHF I LK-I LK harness OD=1.80mm L=500mm	8-25-0445	4630

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF I LK-I LK OD0.81MM 100MM Type-2

Part Number Description	Part Number	Weight (mg)
MHF I LK-I LK harness OD=0.81mm L=100mm 180 degree orientation	8-25-0880	402.8
MHF I LK-I LK harness OD=0.81mm L=200mm 180 degree orientation	8-25-0881	569.8
MHF I LK-I LK harness OD=1.13mm L=100mm 180 degree orientation	8-25-0864	528.2
MHF I LK-I LK harness OD=1.13mm L=200mm 180 degree orientation	8-25-0865	829.2
MHF I LK-I LK harness OD=1.32mm L=100mm 180 degree orientation	8-25-0891	725.2
MHF I LK-I LK harness OD=1.32mm L=200mm 180 degree orientation	8-25-0892	1209.2
MHF I LK-I LK harness OD=1.37mm L=100mm 180 degree orientation	8-25-0901	686
MHF I LK-I LK harness OD=1.37mm L=200mm 180 degree orientation	8-25-0902	1116
MHF I LK-I LK harness OD=1.80mm L=100mm 180 degree orientation	8-25-0917	1025
MHF I LK-I LK harness OD=1.80mm L=200mm 180 degree orientation	8-25-0918	1795

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I LK_2

Part Number Description	Part Number	Weight (mg)
MHF I LK-SMA Jack harness OD=1.13 L=100mm	8-25-0049	3900
MHF I LK-SMA Jack harness OD=1.13 L=150mm	8-25-0050	4000
MHF I LK-SMA Jack harness OD=1.13 L=200mm	8-25-0051	4200
MHF I LK-SMA Jack harness OD=1.37 L=100mm	8-25-0069	4200
MHF I LK-SMA Jack harness OD=1.37 L=150mm	8-25-0070	4400
MHF I LK-SMA Jack harness OD=1.37 L=200mm	8-25-0071	4700

其他料号

请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。

MHF I LK OTHER PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I receptacle 3 pads	20279-001E-05	16
MHF I receptacle 3 pads	20279-001E-06	16

SMA Adapters for MHF^® Receptacles

90193-002	90539-001	90577-0100 90577-0200 90577-0350 90577-0750	90575-0001	90684-0001	90416-001

SMA Adapters for MHF^® Plugs		MHF^® Accessories: Hand Tool

90193-001	90194-001	91026-0001	91492-0001

MHF I LK ACCESSORIES PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I/I LK SMA adapter for plug electrical-performance-check	90193-001	2293.7
MHF I/I LK SMA adapter for plug voltage-check	90194-001	709.1
MHF I/I LK SMA adapter for receptacle electrical-performance-check	90193-002	1453.3
MHF I/I LK SMA adapter for receptacle high-cycle	90539-001	6737.3
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm	90577-0100	4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=200mm	90577-0200	-
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm	90577-0350	6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm	90577-0750	9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe	90575-0001	1499
MHF series SMA adapter for receptacle high-cycle detachable base	90684-0001	15104.1
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe	90416-001	1650

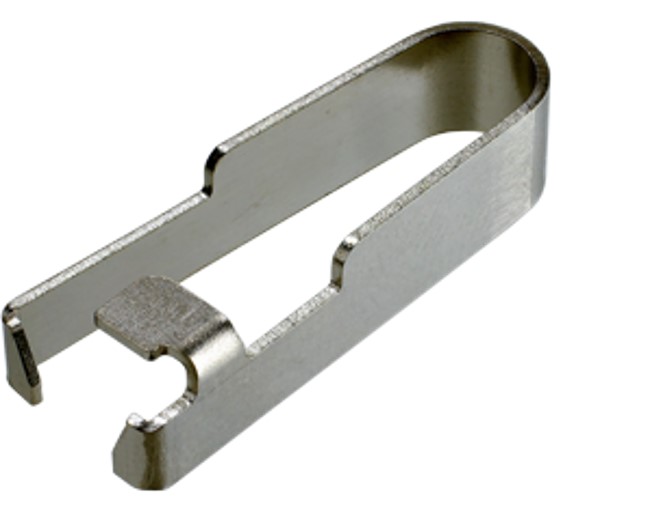

MHF I LK extraction tweezer	91026-0001	980
MHF I LK extraction tweezer narrow-pitch	91492-0001	3740
