MHF®-TI

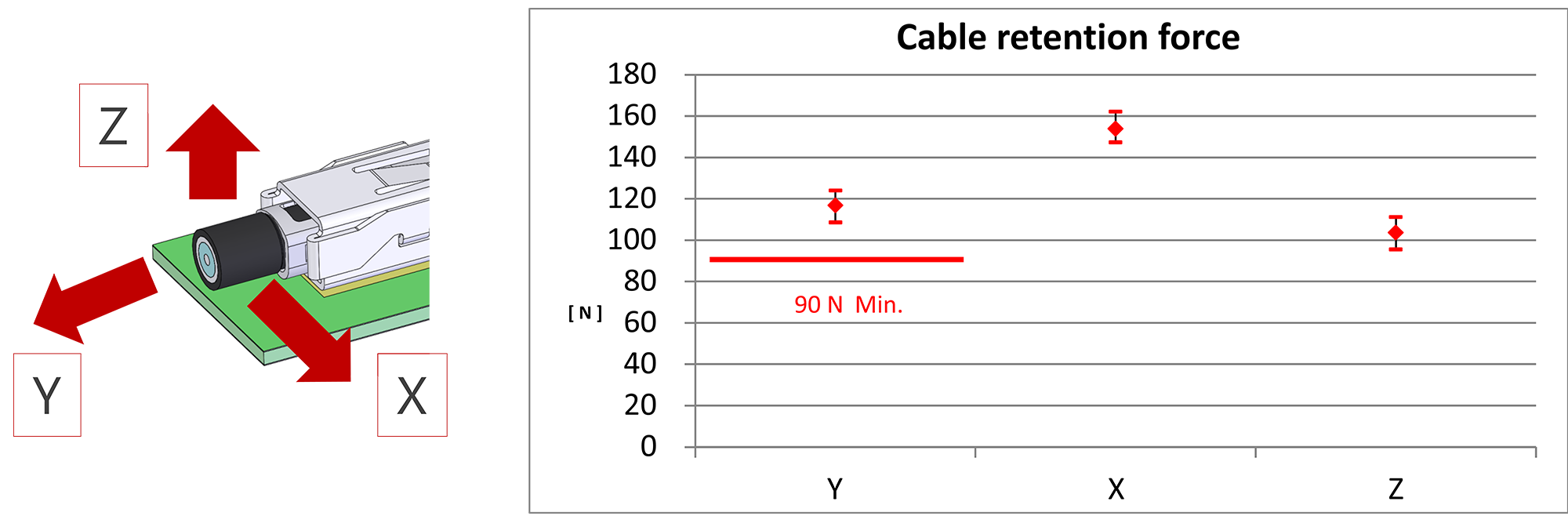

超高的保持力，达90 N Min.
机械锁扣稳定持久并提供实时触感反馈，确保接触可靠性/提供拆卸工具

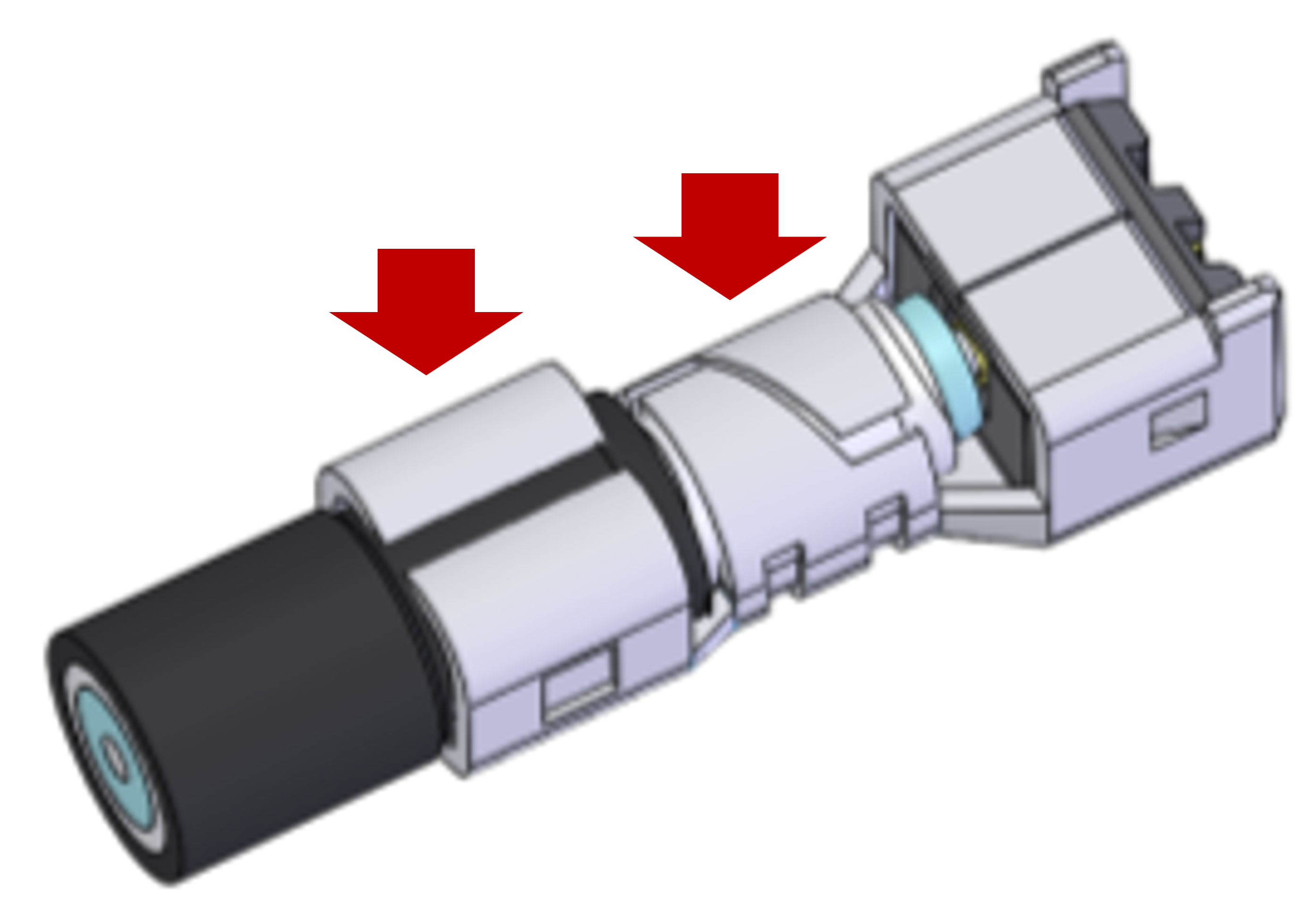

铆合结构，灵活搭配直径2.8 ~ 3.0 mm的同轴线缆
*操作方法请参考"如何嵌合和拔出"视频。
下载
-
产品目录
-
2D图面
-
电缆组件
-
O.D. 2.8 mm
-
O.D. 3.0 mm
-
-
3D STEP & IGES
-
STEP
-
IGES
-
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
超高的保持力，达90 N Min.
机械锁扣稳定持久并提供实时触感反馈，确保接触可靠性/提供拆卸工具
铆合结构，灵活搭配直径2.8 ~ 3.0 mm的同轴线缆
| Product Type | Coaxial RF Connector
|
| Mated Height | 3.65 mm max.
|
| SMT Size | 9.4 x 5.18 mm
|
| Frequency Range | Up to 6 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 26 O.D. 2.8 mmAWG 25 O.D. 3.0 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.5 max.3 to 6 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | Yes
|
| Automotive Standards | USCAR-2 (20859-001R-01 Plug & 20860-001E-01 Rece. Rev.6 - 5.4.6 (Vibration), 5.6.1 (Thermal Shock), 5.6.2 (Temp. & Humidity Cycle), 5.6.3 (High Temp. Exposure & Life) evaluation passed) |
| VSWR (Harness & Rece) | DC ~ 6 GHz : 1.5 max. |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
MHF-TI RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF-TI harness OD=3.0mm/2.8mm | Offered as harness only | - | *see note below |
| MHF-TI receptacle | 20860-001E-01 | 342.49 |
*The MHF-TI is offered as our MHF-TI harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |

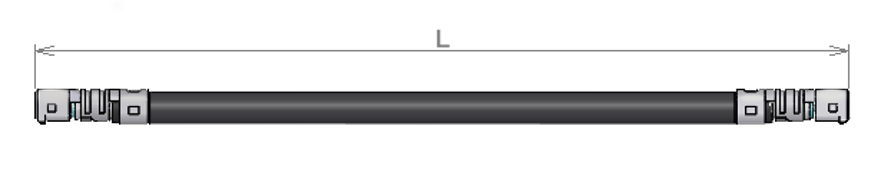

| MHF-TI-TI harness OD=2.80mm L=500mm | 8-24-0161 | 6252 |
| MHF-TI-TI harness OD=2.80mm L=1,000mm | 8-25-0153 | 15830 |
| MHF-TI-TI harness OD=3.00mm L=500mm | 8-24-0238 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1,000mm | 8-25-0154 | 18330 |
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm 180 degree orientation | 8-26-0061 | 6525 |

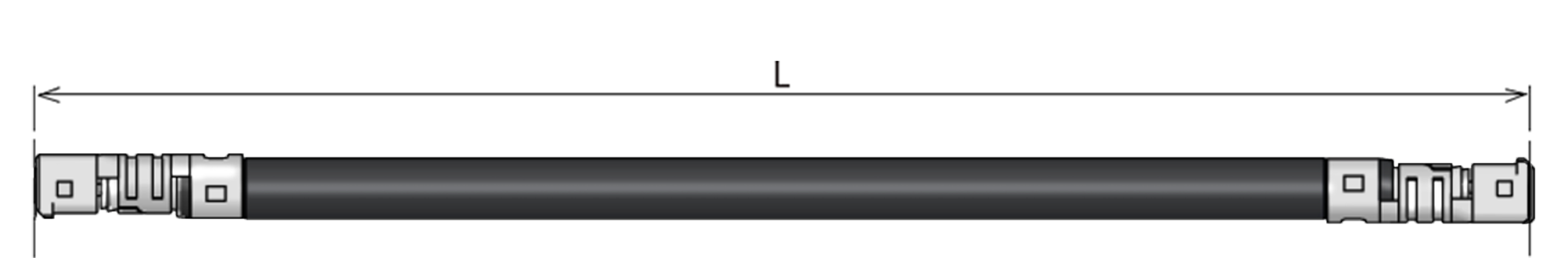

| MHF-TI-TI harness OD=2.80mm L=1000mm 180 degree orientation | 8-26-0062 | 12670 |
| MHF-TI-TI harness OD=3.00mm L=500mm 180 degree orientation | 8-26-0063 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1000mm 180 degree orientation | 8-26-0064 | 15010 |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
MHF-TI OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI receptacle without jig guide | 20860-001E-00 | 342.49 |
MHF-TI ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF-TI Unlocking tool | 91097-0001 | 19330 |
|
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF TI | 91666-001B-001 | 18909 |
Main Board
Thru Boar |

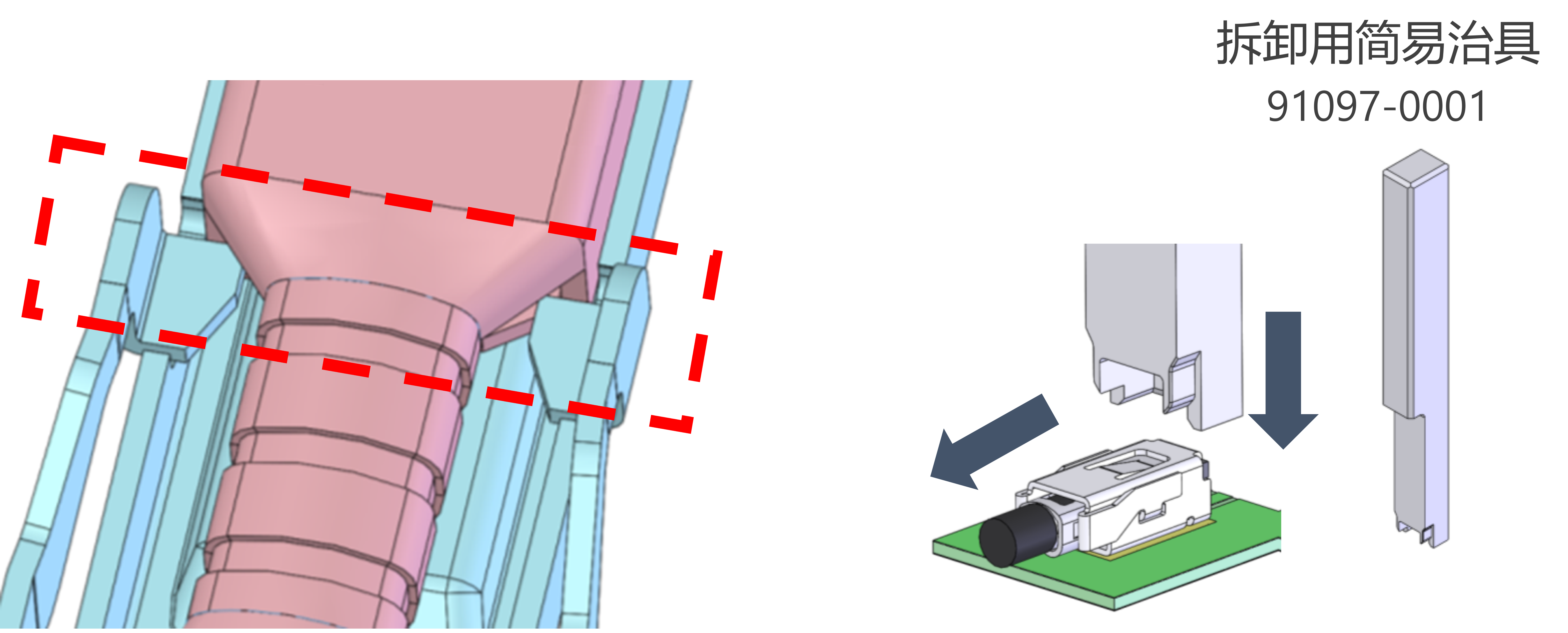

Unlocking tool to handle MHF®-TI
MHF®-TI is a mechanical lock type. A dedicated extraction tool is provided for unlocking.
Push the tool vertically and unlock the mating lock.
Keep unlock condition and pull the cable plug horizontally for unmating.
SI Test board for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
