MHF^® 5L

采用高性能设计，具备优异的电压驻波比（VSWR），适用于高频段，支持最高可达 15 GHz，射频连接器最大嵌合高度为 1.3 mm

对应15 GHz 的高性能小型连接器

使用“i-Fit^®” 技术的无需焊接极细同轴线连结

极细同轴线外径(AWG) : 1.13 mm (32), 0.84 mm (33)

*如需与 MHF^® 5L 母座匹配的，更低高度的公座，请查看 MHF^® 5。

Mated Height:

1.3 mm max.

Operating Temperature:

-40 to 90℃ (233 to 363 K)

Cable Size (Micro-Coaxial):

AWG 32 O.D. 1.13 mmAWG 33 O.D. 0.84 mm

下载

Specs & Test Reports
- 技术参数
  PRODSPEC MHF 5L PRS-2192

  PRODSPEC MHF 5L PRS-2236
- 测试报告
  TEST-REPORT MHF 5L TR-16003

  TEST-REPORT MHF 5L TR-16049
- 包装标准
  PACKING MHF 5 RECEPTACLE PST-12036

  PACKING MHF CABLE ASSEMBLY OD 081 084 095 PST-14042

  PACKING MHF CABLE ASSEMBLY OD 113 PST-14043
PCB/FPC Data
- Symbols(脚位图)和Footprints(封装图)

配件
产品详情
技术参数技术参数
型号

对应15 GHz 的高性能小型连接器

使用“i-Fit^®” 技术的无需焊接极细同轴线连结

使用 “i-Fit®” 技术的无需焊接极细同轴线连接

极细同轴线外径(AWG) : 1.13 mm (32), 0.84 mm (33)

Product name		MHF^® 5	MHF^® 5L
Mating Height		1.0 mm max.	1.3 mm max.
Coaxial O.D. (Center Conductor AWG)	1.13 mm (AWG 32)		●
	0.84 mm (AWG 33)		●
	0.81 mm (AWG 36)	●
	0.64 mm (AWG 36)	●
	0.48 mm (AWG 38)	●
Product name		MHF^® 5 receptacle

Product Type	Coaxial RF Connector
Mated Height	1.3 mm max.
SMT Size	2.0 x 2.0 mm
Frequency Range	Up to 15 GHz
Operating Temperature	-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)	AWG 32 O.D. 1.13 mmAWG 33 O.D. 0.84 mm
V.S.W.R (Plug)	DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.4 max.6 to 12 GHz: 1.5 max.12 to 15 GHz: 1.6 max.
Applicable Standards (Reference Only)	5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)	No
Mechanical Lock	No

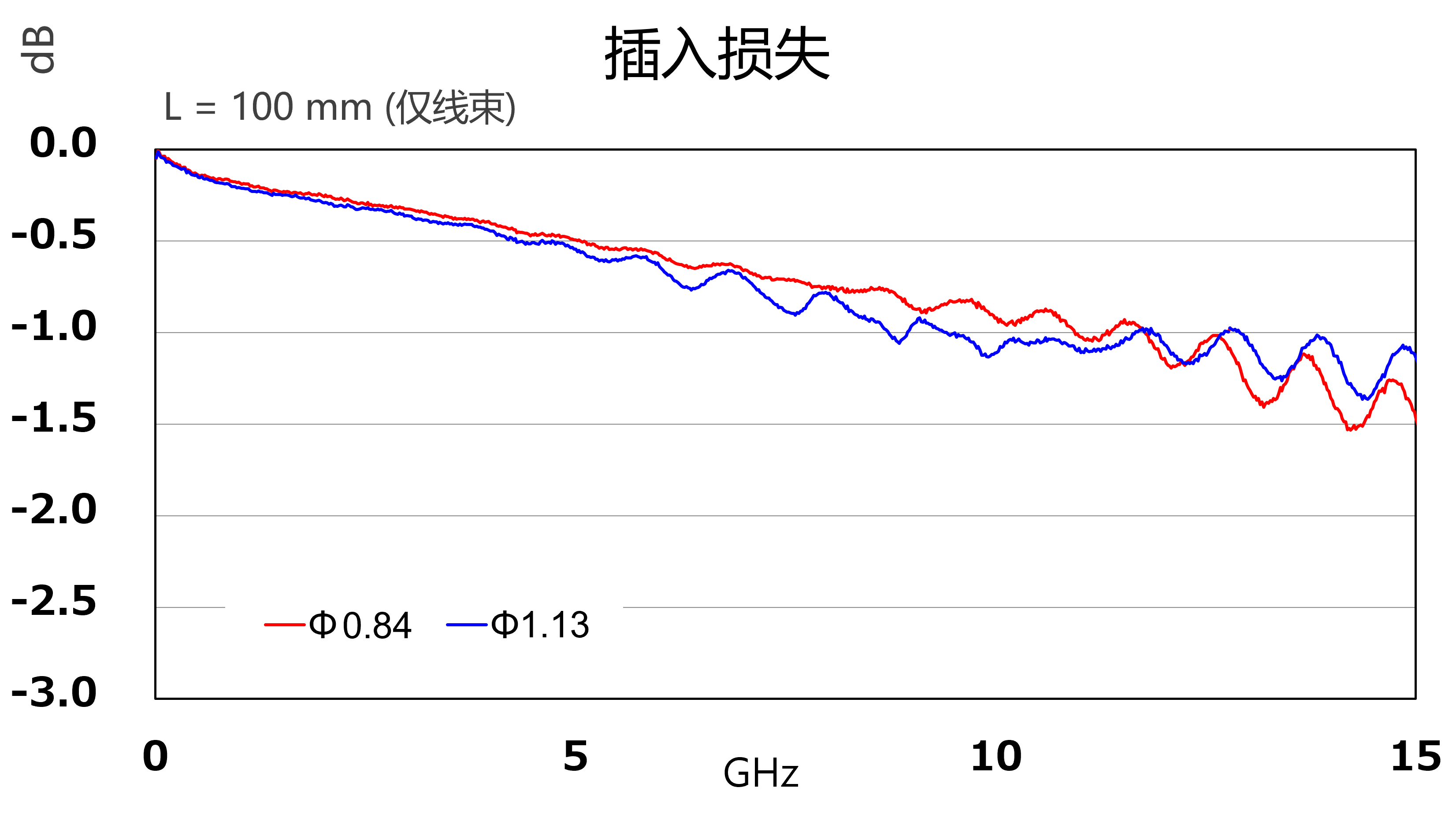

VSWR (Harness only)	DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.4 max. 6 ~ 12 GHz : 1.5 max. 12 ~ 15 GHz : 1.6 max.

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。

MHF 5L RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Note
MHF 5L harness OD=0.84mm	Offered as harness only	-	*see note below
MHF 5L harness OD=1.13mm	Offered as harness only	-	*see note below
MHF 5/5L receptacle	20566-001E-01	3.6

*The MHF 5L is offered as our MHF 5L harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).

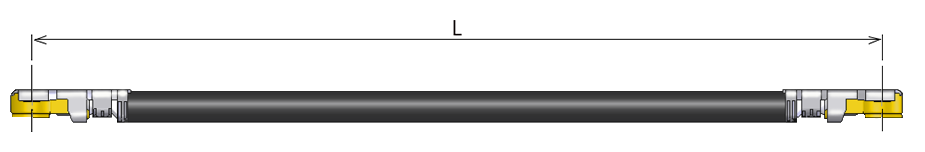

MHF 5L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF 5L-5L harness OD=0.84mm L=100mm	8-25-0929	228
MHF 5L-5L harness OD=0.84mm L=200mm	8-25-0930	418
MHF 5L-5L harness OD=0.84mm L=300mm	8-25-0931	608
MHF 5L-5L harness OD=0.84mm L=400mm	8-25-0932	798
MHF 5L-5L harness OD=0.84mm L=500mm	8-25-0933	988
MHF 5L-5L harness OD=1.13mm L=50mm	8-24-0146	210
MHF 5L-5L harness OD=1.13mm L=100mm	8-24-0147	380
MHF 5L-5L harness OD=1.13mm L=200mm	8-24-0148	660
MHF 5L-5L harness OD=1.13mm L=300mm	8-26-0051	945
MHF 5L-5L harness OD=1.13mm L=400mm	8-26-0052	1246
MHF 5L-5L harness OD=1.13mm L=500mm	8-24-0149	1545

MHF 5L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

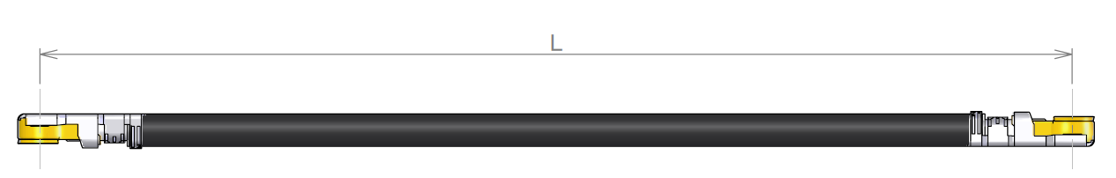

MHF 5L-5L OD1.13MM 100MM Type-2

Part Number Description	Part Number	Weight (mg)
MHF 5L-5L harness OD=0.84mm L=100mm 180 degree orientation	8-25-0967	228
MHF 5L-5L harness OD=0.84mm L=200mm 180 degree orientation	8-25-0968	418
MHF 5L-5L harness OD=0.84mm L=300mm 180 degree orientation	8-25-0969	608
MHF 5L-5L harness OD=0.84mm L=400mm 180 degree orientation	8-25-0970	798
MHF 5L-5L harness OD=0.84mm L=500mm 180 degree orientation	8-25-0971	988
MHF 5L-5L harness OD=1.13mm L=50mm 180 degree orientation	8-25-0906	192.5
MHF 5L-5L harness OD=1.13mm L=100mm 180 degree orientation	8-25-0907	301
MHF 5L-5L harness OD=1.13mm L=200mm 180 degree orientation	8-25-0908	602
MHF 5L-5L harness OD=1.13mm L=300mm 180 degree orientation	8-25-0909	945
MHF 5L-5L harness OD=1.13mm L=400mm 180 degree orientation	8-25-0910	1246
MHF 5L-5L harness OD=1.13mm L=500mm 180 degree orientation	8-25-0911	1547

MHF 5L ACCESSORIES PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Image
MHF 5/5L SMA adapter for plug electrical-performance-check	90543-0001	2294.5
MHF 5/5L adapter for plug voltage-check	90586-0002	703.8
MHF 5/5L SMA adapter for receptacle electrical-performance-check	90847-0001	1610
MHF 5/5L SMA adapter for receptacle electrical-performance-check	90543-0002	1451.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm	90577-0100	4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm	90577-0200	5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm	90577-0350	6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm	90577-0750	9769.8
MHF series SMA adapter for receptacle high-cycle detachable base	90684-0001	15104.1
MHF 5/5L SMA adapter for receptacle high-cycle detachable probe	90690-0001	1818.9
MHF 5/5L insertion/extraction tool	90612-0001	706.5
MHF 5/5L insertion tool	90624-0001	9158.5
MHF 5/5L SMA adapter for receptacle high-cycle	90793-0001	7160

SI Test Board with 2.92mm Adapter

Part Number Description

Part Number

Weight (mg)


SI Test Board for MHF 5

91605-001B-001

17855

MHF_5_SI_TB-1040_Test_Borad_(C)

Main Board

MHF_5_SI_TB-1040_THRU_Board_(C)

Thru Board

Insertion/Extraction tools to handle MHF^® 5L

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.

How to extract

Insertion/Extraction tools to handle MHF® 5

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.

Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series	High Cycle Series
Standard series	Standard type	Narrow Pitch type	Detachable type
Durability: 500	Durability: 10,000	Durability: 10,000 (Probe), 100 (Cable)	Durability: 10,000 (Probe), 200,000 (Base)
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.	The Standard type connects directly from the probe to the measuring instrument.	The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.	The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.
