MHF®-TI
車載テレマティクスアンテナ/カメラセンサー向け小型堅牢RFコネクタ
90 N min.の高嵌合保持力
クリック感ある強固なポジティブロックで確実に保持/抜去用JIG提供可能
外径2.８ ~ 3.0 mmワイヤー結線可能
Mated Height:
3.65
max.
mm
周波数帯域:
Up to 6 GHz
Micro-Coaxial Cable:
AWG 25 O.D. 3.0 mm
AWG 26 O.D. 2.8 mm
ダウンロード
90 N min.の高嵌合保持力

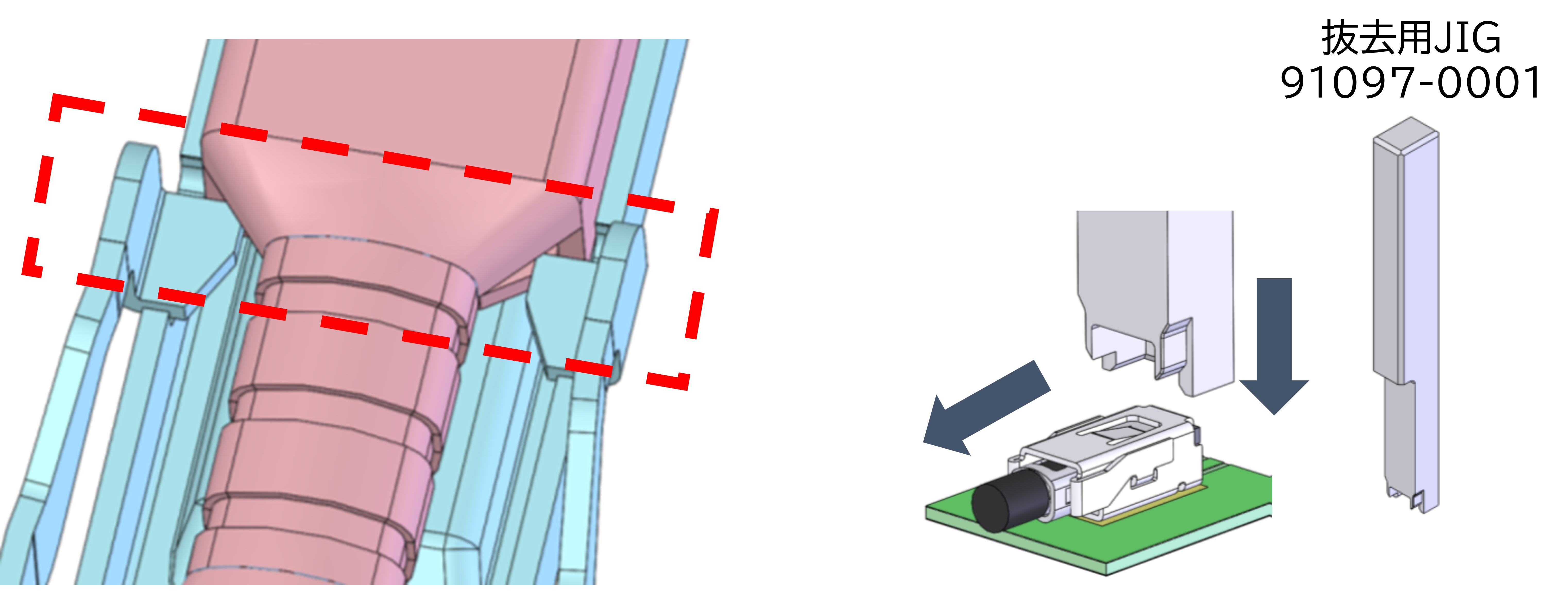

クリック感ある強固なポジティブロックで確実に保持/抜去用JIG提供可能
外径2.８ ~ 3.0 mmワイヤー結線可能
| Product Type | Coaxial RF Connector
|
| Mated Height |
3.65
max.
mm
|
| SMT Size | 9.4 x 5.18 mm
|
| Frequency range | Up to 6 GHz |
| Micro-Coaxial Cable |
AWG 25 O.D. 3.0 mm
AWG 26 O.D. 2.8 mm
|
| Shielded FPC / FFC | No
|
| Applicable Standards (Reference Only) | 5G sub6IEEE802.11nIEEE802.11acIEEE802.11axIEEE802.11beWi-Fi 4Wi-Fi 5Wi-Fi 6/6EWi-Fi 7LTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| Automotive Standards | USCAR-2 (20859-001R-01 Plug & 20860-001E-01 Rece. Rev.6 - 5.4.6 (Vibration), 5.6.1 (Thermal Shock), 5.6.2 (Temp. & Humidity Cycle), 5.6.3 (High Temp. Exposure & Life) evaluation passed) |
| VSWR (Harness only) | DC ~ 6 GHz : 1.5 max. |
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
MHF-TI RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF-TI harness OD=3.0mm/2.8mm | Offered as harness only | - | *see note below |
| MHF-TI receptacle | 20860-001E-01 | 342.49 |
*The MHF-TI is offered as our MHF-TI harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).

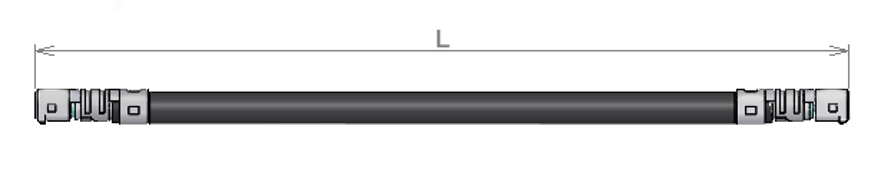

MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=1,000mm | 8-25-0153 | 15830 |
| MHF-TI-TI harness OD=3.00mm L=1,000mm | 8-25-0154 | 18330 |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
MHF-TI OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI receptacle without jig guide | 20860-001E-00 | 342.49 |
| MHF® Accessories: Hand Tool |
 |
| 91097-0001 |
MHF-TI ACCESSORIES PART NUMBERS
| Part Number Description | Part Number |
| MHF-TI extraction tool | 91097-0001 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for MHF TI | 91666-001B-001 | 18909 |
