CABLINE®-UMF
全屏蔽设计和多点接地设计，机械锁扣，高速数据传输(40 Gbps/lane PAM3), 0.4 mm间距, 90度出线垂直插拔款的FPC连接器
ZenShield® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

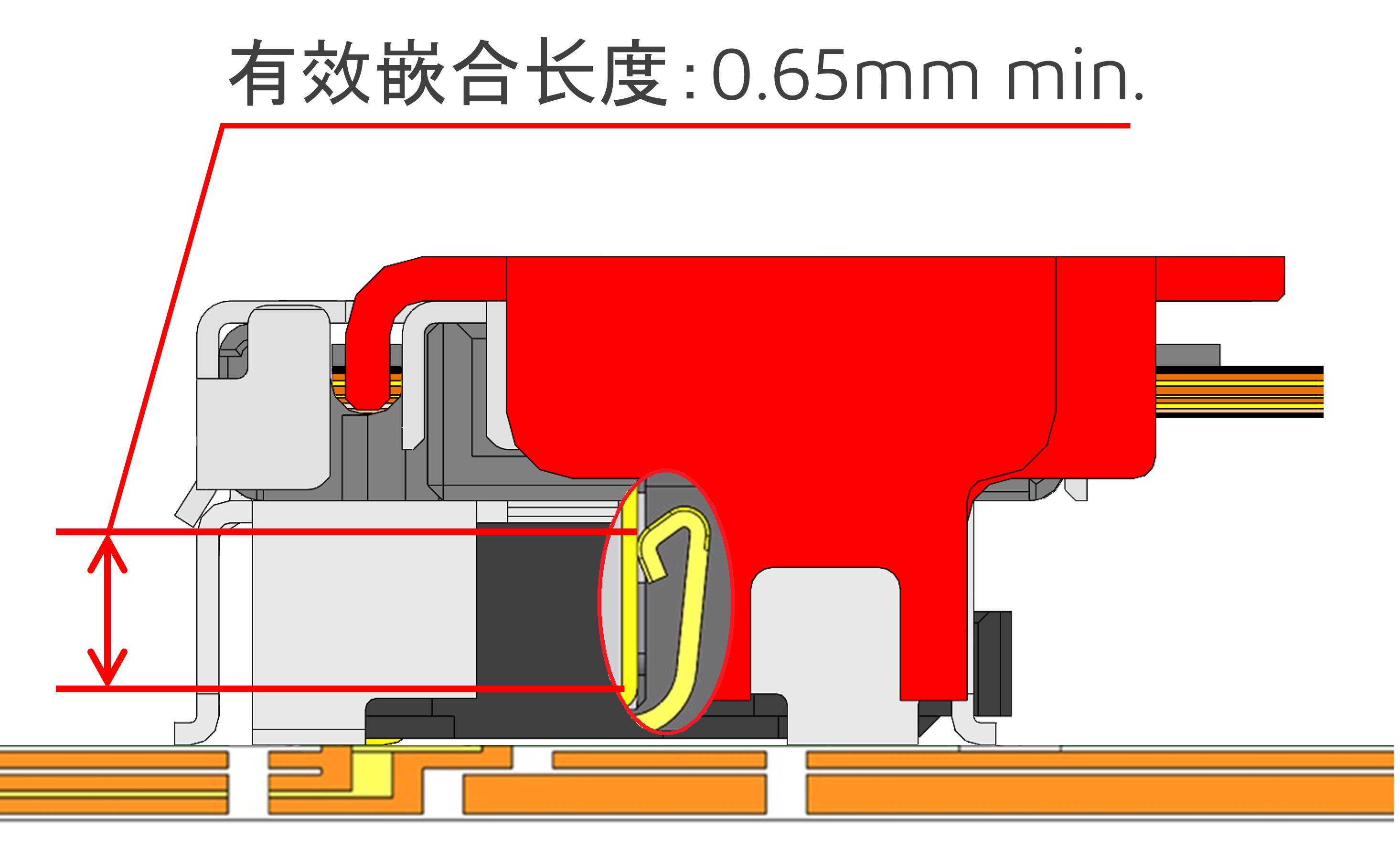

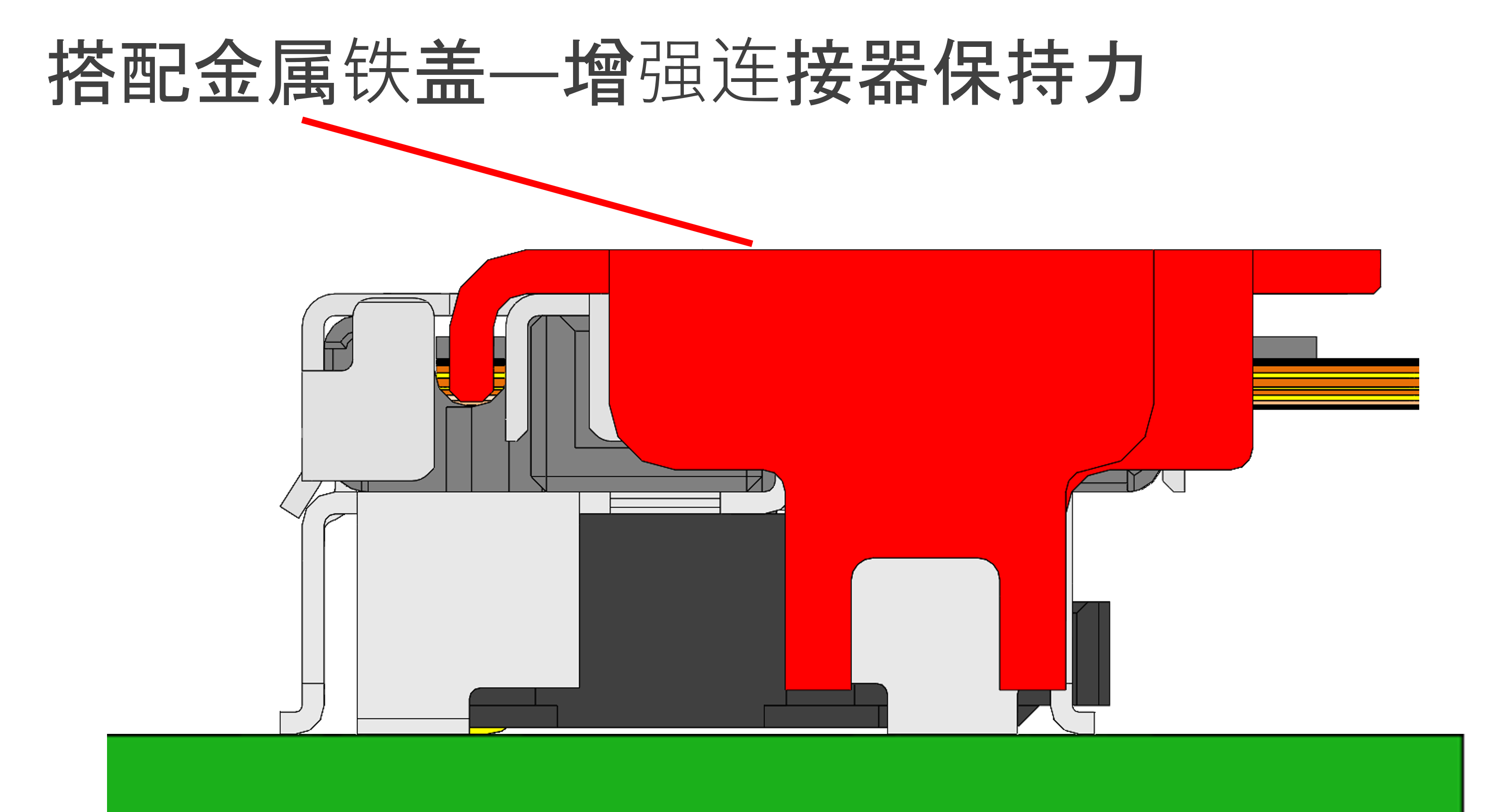

拥有鎖蓋以及0.65 毫米以上的有效嵌合长度，提供超高接觸可靠性
高速率传输, 40 Gbps/lane PAM3应用的理想之选
Contact Pitch:
0.4 mm
Mating Type / Direction:
Vertical (Right Angle)
Mated Height:
Nom. 2.2 +/- 0.15 mm
FPC / FFC Thickness:
0.34 mm
下载
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
ZenShield® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择
 |
 |
拥有鎖蓋以及0.65 毫米以上的有效嵌合长度，提供超高接觸可靠性
 |
 |
高速率传输, 40 Gbps/lane PAM3应用的理想之选
|
Simulation results Connector: Pin Assignment: GSSGSSG |
 |
| Transmission Speed (Reference Only) | 40 Gbps/lane PAM3 |
| Contact Pitch | 0.4 mm
|
| Mating Type / Direction | Vertical (Right Angle)
|
| Mated Height | Nom. 2.2 +/- 0.15 mm
|
| Available Pin Count | Signal: 40, 70 |
| Depth | 5 mm
|
| Width | 5.0 + (0.4 x pin count) mm
|
| Operating Temperature | |
| FPC / FFC Thickness | 0.34 mm
|
| FPC Type | Shielded/Non-shielded FPC
|
| Current Rating | |
| Applicable Standards (Reference Only) | USB4 Gen4 (40 Gbps/lane PAM3)Thunderbolt 5 (40 Gbps/lane PAM3)Thunderbolt 4 (20 Gbps/lane)USB4 Gen3 (20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)PCIe 4.0 (16 Gbps/lane)V-By-One US (16 Gbps/lane)DisplayPort UHBR13.5 (13.5 Gbps/lane)HDMI 2.1 (12 Gbps/lane)DisplayPort UHBR10 (10 Gbps/lane)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)HDMI 2.0 (6 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical lock | Yes
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
CABLINE-UMF RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UMF plug FPC assembly with lock cover 40pin | 21102-040E-21 | - |
| CABLINE-UMF plug FPC assembly with lock cover 70pin | 21102-070E-21 | - |
| CABLINE-UMF plug housing 40pin | 21103-040E-02 | - |
| CABLINE-UMF plug housing 70pin | 21103-070E-02 | - |
| CABLINE-UMF shell A 40pin | 3912-0401 | - |
| CABLINE-UMF shell A 70pin | 3912-0701 | - |
| CABLINE-UMF plug lock cover 40pin | 3914-0401 | - |
| CABLINE-UMF plug lock cover 70pin | 3914-0701 | - |
| CABLINE-UM receptacle 40pin | 20879-040E-01 | 146.43 |
| CABLINE-UM receptacle 70pin | 20879-070E-01 | - |
其他料号
CABLINE-UMF OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UMF plug FPC assembly without lock cover 40pin | 21102-040E-22 | - |
| CABLINE-UMF plug FPC assembly without lock cover 70pin | 21102-070E-22 | - |
| CABLINE-UMF plug FPC assembly with pull tape holder 40pin | 21102-040E-23 | - |
| CABLINE-UMF plug FPC assembly with pull tape holder 70pin | 21102-070E-23 | - |
| CABLINE-UM receptacle 40pin | 20879-040E-02 | 146.43 |
| CABLINE-UM receptacle 40pin | 20879-040E-11 | 146.43 |
| CABLINE-UM receptacle 70pin | 20879-070E-11 | 220 |
| CABLINE-UM receptacle 70pin | 20879-070E-11 | 220 |
