CABLINE®-UMF
Fully-shielded and multi-point ground, Mechanical lock, High-data-rate transfer (40 Gbps/lane PAM3), 0.4 mm pitch, Right angle vertical mating type FPC connector

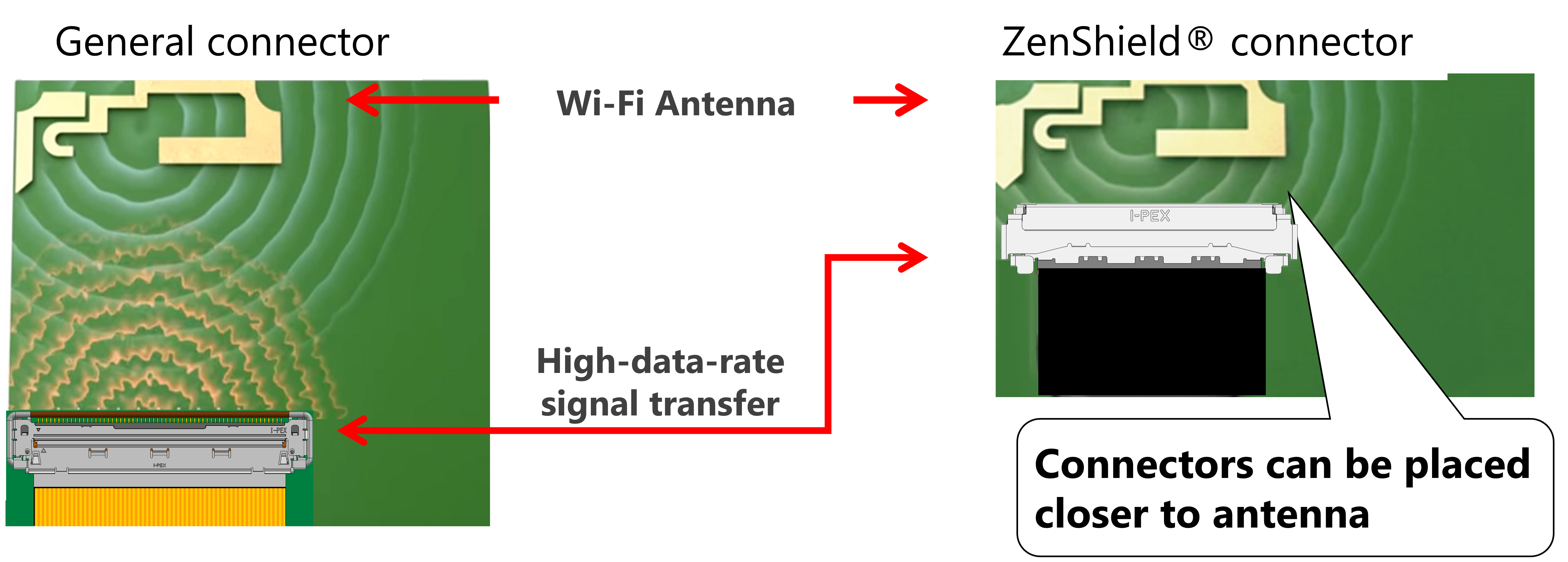

ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions

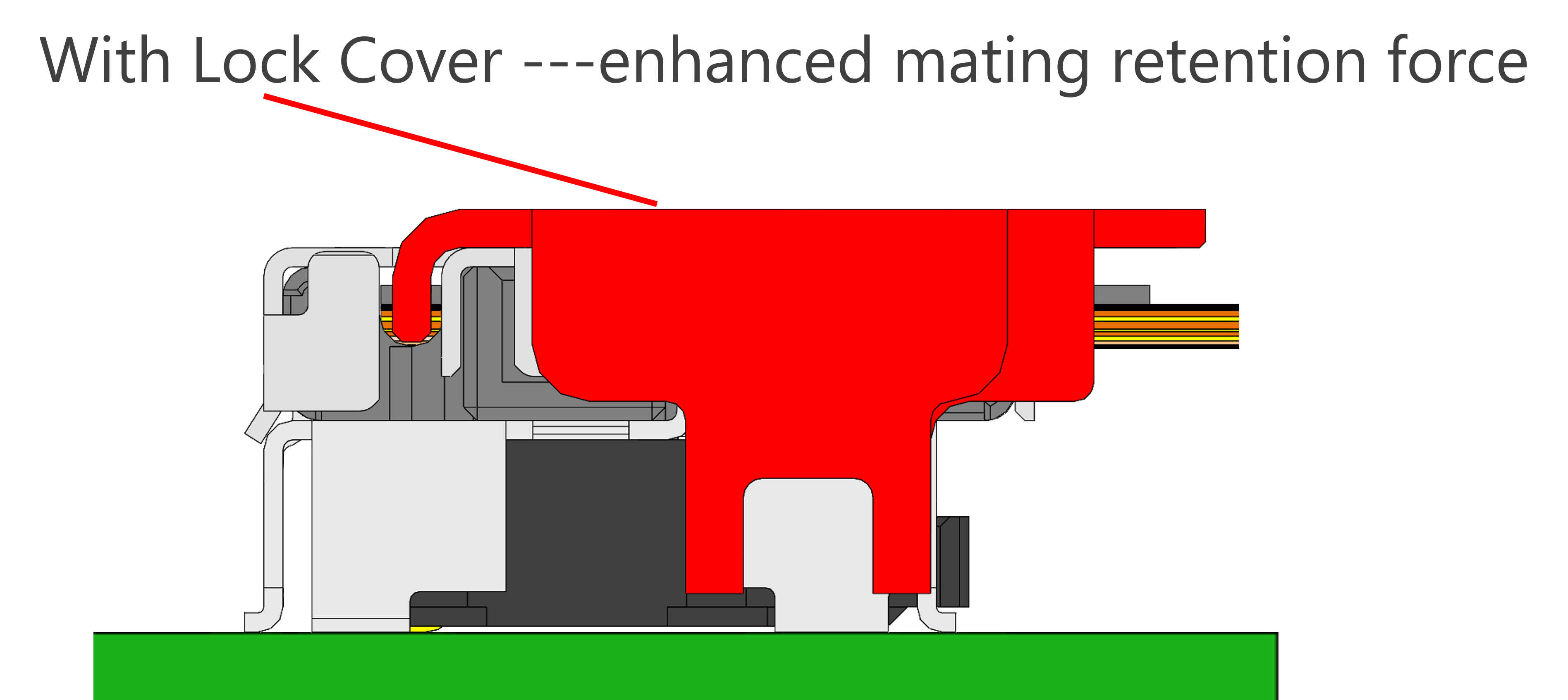

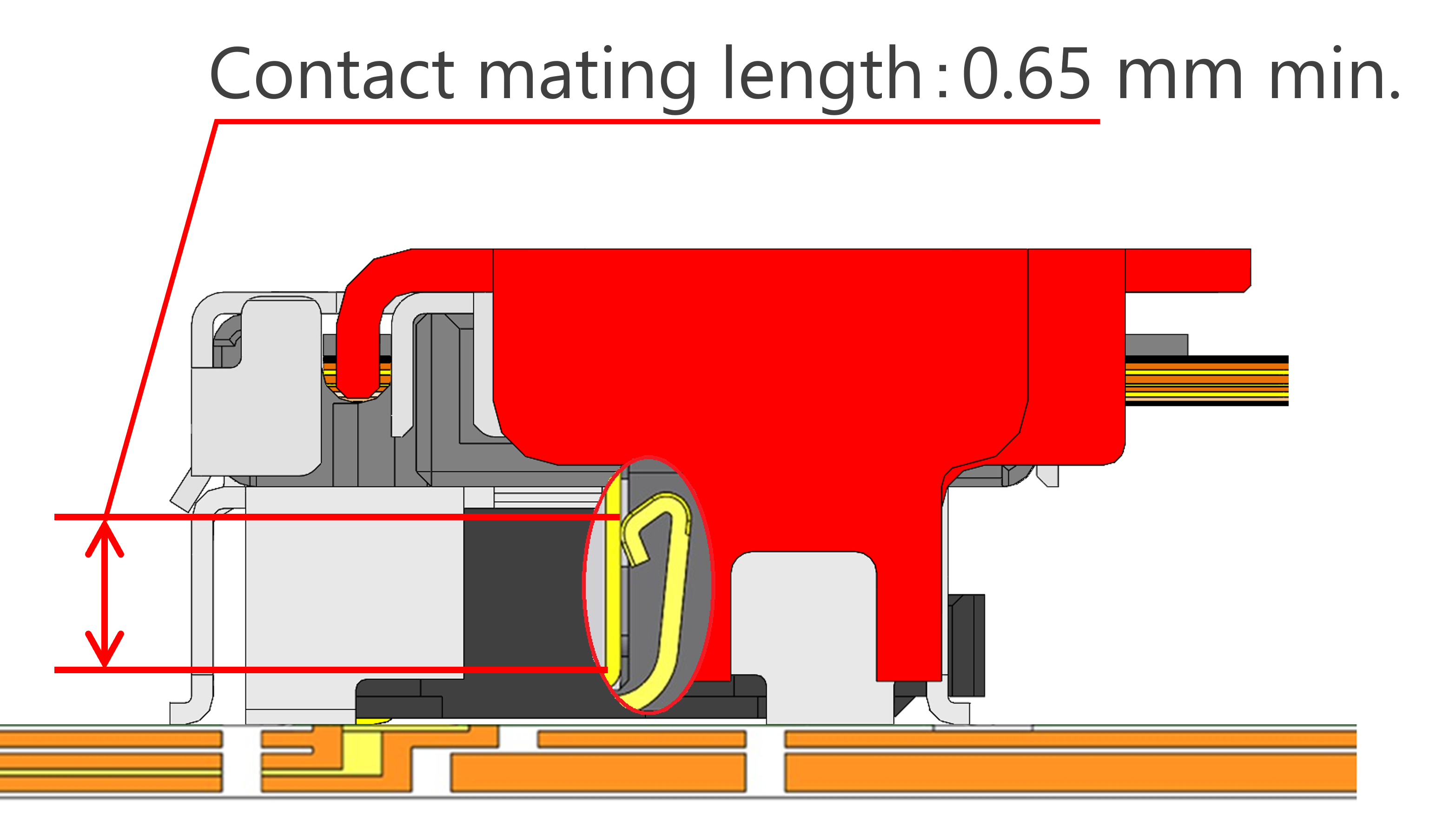

Lock cover and 0.65 mm min. contact mating length provides high contact reliability
High-data-rate transfer, ideal for 40 Gbps/lane PAM3 applications
Contact Pitch:
0.4
mm
Mating Direction:
Vertical (Right Angle)
Mated Height:
2.35
max.
mm
Available Pin Count (signal + power):
40
70
FPC/FFC Thickness:
0.34 mm
Downloads
-
Specs & Test Reports
-
Product Specification
-
Test Reports
-
*SI Test Boards data are under 2D Drawings
ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions
 |
 |
Lock cover and 0.65 mm min. contact mating length provides high contact reliability
 |
 |
High-data-rate transfer, ideal for 40 Gbps/lane PAM3 applications
|
Simulation results Connector: Pin Assignment: GSSGSSG |
 |
| Product Type | FPC connector
|
| Transmission Speed (Reference Only) | 40 Gbps/Lane PAM3 |
| Contact Pitch |
0.4
mm
|
| Mating Direction | Vertical (Right Angle)
|
| Mated Height |
2.35
max.
mm
|
| Available Pin Count (signal + power) | 40
70
|
| Depth |
5 mm
|
| Width Formula |
With Lock Cover: 2.35 mm max., Without Lock Cover: 2.15 mm max.
|
| Operating Temperature | |
| FPC/FFC Thickness | 0.34 mm
|
| Shielded FPC | Yes
|
| Shielded FFC | No
|
| Current rating | |
| Applicable Standards (Reference Only) | USB4 Gen4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)Thunderbolt 4 (20 Gbps/Lane)USB4 Gen3 (20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/Lane)PCIe 4.0 (16 Gbps/Lane)V-By-One US (16 Gbps/Lane)DisplayPort UHBR13.5 (13.5 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)DisplayPort UHBR10 (10 Gbps/Lane)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical lock | Yes
|
CABLINE-UMF RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| CABLINE-UMF plug housing 40pin | 21103-040E-02 | - | |
| CABLINE-UMF plug housing 70pin | 21103-070E-02 | - | |
| CABLINE-UMF shell A 40pin | 3912-0401 | - | |
| CABLINE-UMF shell A 70pin | 3912-0701 | - |
