MHF^® I LK

MHF® I 리셉터클과 호환되는 안전한 기계식 잠금 솔루션으로, 최대 9 GHz를 지원하며 최대 결합 높이 2.9 mm의 RF 커넥터입니다

지속적인 충격 및 진동 대책에 최적

MHF^®I Plug용 결합 Lock 시스템

모든 MHF^® I 리셉터클과 체결

*기판 실장시의 센터 얼라인먼트성, 납땜 박리 강도를 향상한 MHF^® I 4 pads receptacle참고 부탁 드립니다.
*MHF^® I시리즈의 종합제품정보는 MHF^® I에서 참조해 주세요.
*개요는 ‘락킹 기능’ 영상에서, 취급 방법은 ‘삽입 방법/협피치용’ 영상에서 확인하실 수 있습니다.

Mated Height:

2.9 mm max.

Operating Temperature:

-40 to 90℃ (233 to 363 K) *

Cable Size (Micro-Coaxial):

AWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm

지속적인 충격 및 진동 대책에 최적

Disengagement force comparison

MHF^®I Plug용 결합 Lock 시스템

모든 MHF^® I 리셉터클과 체결


Product name		MHF^® I LK	MHF^® I	MHF^® I
Lock		With Lock	Without Lock	Without Lock
Mating Height		2.9 mm max.	2.5 mm max.	3.0 mm max.
Coaxial O.D. (Center Conductor AWG)	2.00 mm (AWG 26)			●
	1.80 mm (AWG 30)	●	●
	1.37 mm (AWG 30)	●	●
	1.32 mm (AWG 32)	●	●
	1.13 mm (AWG 32)	●	●
	0.81 mm (AWG 36)	●	●
Receptacle		MHF® I receptacle 20279-001E-03 (3 pads) / 20441-001E-01 (4 pads)

Product Type	Coaxial RF Connector
Mated Height	2.9 mm max.
SMT Size	3.1 x 3.0 mm
Frequency Range	Up to 9 GHz
Operating Temperature	-40 to 90℃ (233 to 363 K) *
Cable Size (Micro-Coaxial)	AWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm
V.S.W.R (Plug)	DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 1.6 max. (O.D. 1.32 mm), 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.8 mm)
Applicable Standards (Reference Only)	5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPSLPWABluetoothGPS
Full EMI Shielding (ZenShield®)	No
Mechanical Lock	Yes
VSWR (Harness only)	DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.5 max. 6 ~ 9 GHz : 1.6 max. (O.D. 1.32 mm) 6 ~ 9 GHz : 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.80 mm)

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.
*MHF I LK는 MHF I LK 하니스 어셈블리 제품만 판매됩니다.
하니스 어셈블리의 사양(한쪽이나 양단, 케이블 사이즈, 길이, 색상)을 지정해 주십시오.

MHF I LK RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I LK harness OD=1.80/1.37/1.32/1.13/0.81mm	Offered as harness only	-
MHF I receptacle 3 pads	20279-001E-03	16
MHF I receptacle 4 pads	20441-001E-01	16

*The MHF I LK is offered as our MHF I LK harness assembly only.
Please specify cable harness assembly specification (single-end or double-ended, cable size, length, color).

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I LK-I LK harness OD=0.81mm L=100mm	8-25-0458	440
MHF I LK-I LK harness OD=0.81mm L=200mm	8-25-0459	640
MHF I LK-I LK harness OD=0.81mm L=300mm	8-26-0023	736.8
MHF I LK-I LK harness OD=0.81mm L=400mm	8-26-0024	903.8
MHF I LK-I LK harness OD=0.81mm L=500mm	8-25-0460	1300
MHF I LK-I LK harness OD=1.13mm L=100mm	8-23-0118	800
MHF I LK-I LK harness OD=1.13mm L=200mm	8-21-0047	840
MHF I LK-I LK harness OD=1.13mm L=300mm	8-26-0043	1130.2
MHF I LK-I LK harness OD=1.13mm L=400mm	8-26-0044	1431.2
MHF I LK-I LK harness OD=1.13mm L=500mm	8-23-0120	760
MHF I LK-I LK harness OD=1.32mm L=100mm	8-25-0452	850
MHF I LK-I LK harness OD=1.32mm L=200mm	8-25-0453	1500
MHF I LK-I LK harness OD=1.32mm L=300mm	8-25-0996	1693.2
MHF I LK-I LK harness OD=1.32mm L=400mm	8-25-0997	2177.2
MHF I LK-I LK harness OD=1.32mm L=500mm	8-25-0454	3390
MHF I LK-I LK harness OD=1.37mm L=100mm	8-23-0119	720
MHF I LK-I LK harness OD=1.37mm L=200mm	8-21-0049	650
MHF I LK-I LK harness OD=1.37mm L=300mm	8-26-0045	1546
MHF I LK-I LK harness OD=1.37mm L=400mm	8-26-0046	1976
MHF I LK-I LK harness OD=1.37mm L=500mm	8-23-0121	710
MHF I LK-I LK harness OD=1.80mm L=100mm	8-25-0443	1090
MHF I LK-I LK harness OD=1.80mm L=200mm	8-25-0444	1950
MHF I LK-I LK harness OD=1.80mm L=300mm	8-25-1003	2565
MHF I LK-I LK harness OD=1.80mm L=400mm	8-25-1004	3335
MHF I LK-I LK harness OD=1.80mm L=500mm	8-25-0445	4630

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

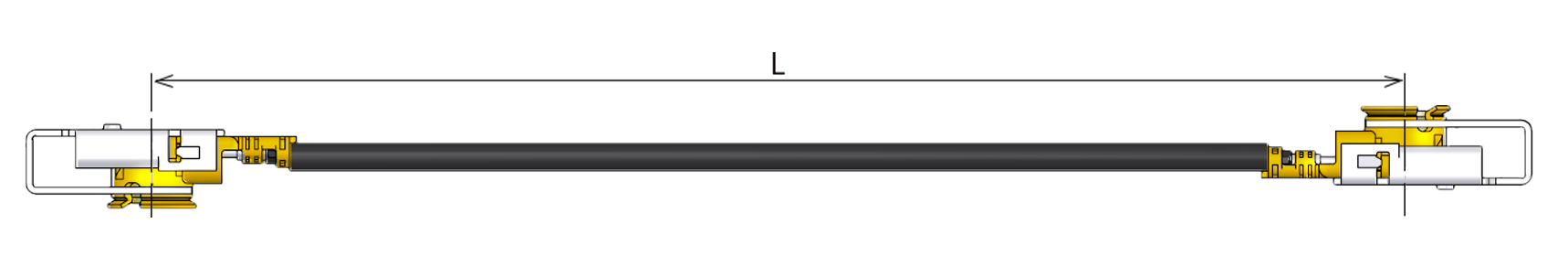

MHF I LK-I LK OD0.81MM 100MM Type-2

Part Number Description	Part Number	Weight (mg)
MHF I LK-I LK harness OD=0.81mm L=100mm 180 degree orientation	8-25-0880	402.8
MHF I LK-I LK harness OD=0.81mm L=200mm 180 degree orientation	8-25-0881	569.8
MHF I LK-I LK harness OD=0.81mm L=300mm 180 degree orientation	8-25-0882	736.8
MHF I LK-I LK harness OD=0.81mm L=400mm 180 degree orientation	8-25-0883	903.8
MHF I LK-I LK harness OD=0.81mm L=500mm 180 degree orientation	8-25-0884	1070.8
MHF I LK-I LK harness OD=1.13mm L=100mm 180 degree orientation	8-25-0864	528.2
MHF I LK-I LK harness OD=1.13mm L=200mm 180 degree orientation	8-25-0865	829.2
MHF I LK-I LK harness OD=1.13mm L=300mm 180 degree orientation	8-25-0866	1130.2
MHF I LK-I LK harness OD=1.13mm L=400mm 180 degree orientation	8-25-0867	1431.2
MHF I LK-I LK harness OD=1.13mm L=500mm 180 degree orientation	8-25-0868	1732.2
MHF I LK-I LK harness OD=1.32mm L=100mm 180 degree orientation	8-25-0891	725.2
MHF I LK-I LK harness OD=1.32mm L=200mm 180 degree orientation	8-25-0892	1209.2
MHF I LK-I LK harness OD=1.32mm L=300mm 180 degree orientation	8-25-0893	1693.2
MHF I LK-I LK harness OD=1.32mm L=400mm 180 degree orientation	8-25-0894	2177.2
MHF I LK-I LK harness OD=1.32mm L=500mm 180 degree orientation	8-25-0895	2661.2
MHF I LK-I LK harness OD=1.37mm L=100mm 180 degree orientation	8-25-0901	686
MHF I LK-I LK harness OD=1.37mm L=200mm 180 degree orientation	8-25-0902	1116
MHF I LK-I LK harness OD=1.37mm L=300mm 180 degree orientation	8-25-0903	1546
MHF I LK-I LK harness OD=1.37mm L=400mm 180 degree orientation	8-25-0904	1976
MHF I LK-I LK harness OD=1.37mm L=500mm 180 degree orientation	8-25-0905	4105
MHF I LK-I LK harness OD=1.80mm L=100mm 180 degree orientation	8-25-0917	1025
MHF I LK-I LK harness OD=1.80mm L=200mm 180 degree orientation	8-25-0918	1795
MHF I LK-I LK harness OD=1.80mm L=300mm 180 degree orientation	8-25-0919	2565
MHF I LK-I LK harness OD=1.80mm L=400mm 180 degree orientation	8-25-0920	3335
MHF I LK-I LK harness OD=1.80mm L=500mm 180 degree orientation	8-25-0921	4105

MHF I LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I LK-SMA Jack harness OD=1.13mm L=100mm	8-25-0049	3900
MHF I LK-SMA Jack harness OD=1.13mm L=150mm	8-25-0050	4000
MHF I LK-SMA Jack harness OD=1.13mm L=200mm	8-25-0051	4200
MHF I LK-SMA Jack harness OD=1.37mm L=100mm	8-25-0069	4200
MHF I LK-SMA Jack harness OD=1.37mm L=150mm	8-25-0070	4400
MHF I LK-SMA Jack harness OD=1.37mm L=200mm	8-25-0071	4700

다른 형번

이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.

MHF I LK OTHER PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I receptacle 3 pads	20279-001E-05	16
MHF I receptacle 3 pads	20279-001E-06	16

MHF I LK ACCESSORIES PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Image
MHF I/I LK SMA adapter for plug electrical-performance-check	90193-001	2293.7
MHF I/I LK adapter for plug voltage-check	90194-001	709.1
MHF I/I LK SMA adapter for receptacle electrical-performance-check	90193-002	1453.3
MHF I/I LK SMA adapter for receptacle high-cycle	90539-001	6737.3
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm	90577-0100	4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm	90577-0200	5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm	90577-0350	6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm	90577-0750	9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe	90575-0001	1499
MHF series SMA adapter for receptacle high-cycle detachable base	90684-0001	15104.1
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe	90416-001	1650
MHF I LK extraction tweezer	91026-0001	980
MHF I LK extraction tweezer narrow-pitch	91492-0001	3740

SI Test Board with 2.92mm Adapter

Part Number Description

Part Number

Weight (mg)


SI Test Board for MHF I

91604-001B-001

17788

MHF_I_SI_TB-1037_テストボード_(C)

Main Board
MHF_I_SI_TB-1037_THRU_ボード_(C)
Thru Board

Locking/Unlocking and Insertion/Extraction tweezer to handle MHF^® I LK

Hand Tools to operate locking/unlocking and insertion/extraction.

Unlocking, Extraction tweezer	Narrow Pitch, Locking/Unlocking, Extraction tweezer
Unlock the lock and remove it while holding the plug.	The narrow-pitch design enables unlocking as well as insertion and removal, making it suitable for work in confined spaces.

Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series	High Cycle Series
Standard series	Standard type	Narrow Pitch type	Detachable type
Durability: 500	Durability: 10,000	Durability: 10,000 (Probe), 100 (Cable)	Durability: 10,000 (Probe), 200,000 (Base)
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.	The Standard type connects directly from the probe to the measuring instrument.	The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.	The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.
