MHF®-TI
90 N min.의 강한 결합 유지력
Click감이 있는 견고한 Positive Lock으로 확실하게 결합/발거용 JIG를 제공 가능함
외경 2.8 ~ 3.0 mm 와이어와 결선 가능
*Connecor의 취급 방법은‘삽입 방법’동영상을 참조 부탁 드립니다.
다운로드
-
카탈로그
-
제품도면
-
케이블 어셈블리
-
O.D. 2.8 mm
-
O.D. 3.0 mm
-
-
액세서리
-
SI 테스트 보드
-
3D STEP & IGES
-
STEP
-
제품
-
-
IGES
-
제품
-
-
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols & Footprints
-
-
-
설명서
90 N min.의 강한 결합 유지력
Click감이 있는 견고한 Positive Lock으로 확실하게 결합/발거용 JIG를 제공 가능함
외경 2.8 ~ 3.0 mm 와이어와 결선 가능
| Product Type | Coaxial RF Connector
|
| Mated Height | 3.65 mm max.
|
| SMT Size | 9.4 x 5.18 mm
|
| Frequency Range | Up to 6 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 26 O.D. 2.8 mmAWG 25 O.D. 3.0 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.5 max.3 to 6 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | Yes
|
| Automotive Standards | USCAR-2 (20859-001R-01 Plug & 20860-001E-01 Rece. Rev.6 - 5.4.6 (Vibration), 5.6.1 (Thermal Shock), 5.6.2 (Temp. & Humidity Cycle), 5.6.3 (High Temp. Exposure & Life) evaluation passed) |
| VSWR (Harness & Rece) | DC ~ 6 GHz : 1.5 max. |
추천품번
찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.
MHF-TI RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF-TI harness OD=3.0mm/2.8mm | Offered as harness only | - | *see note below |
| MHF-TI receptacle | 20860-001E-01 | 342.49 |
*The MHF-TI is offered as our MHF-TI harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).

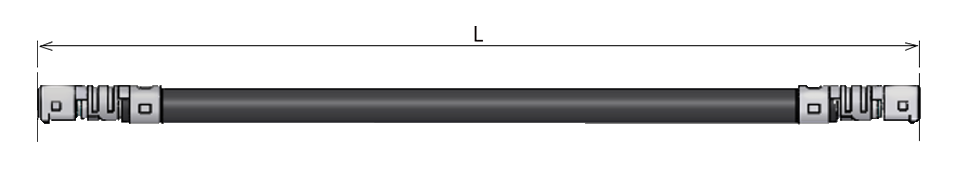

MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm | 8-24-0161 | 6252 |
| MHF-TI-TI harness OD=2.80mm L=1,000mm | 8-25-0153 | 15830 |
| MHF-TI-TI harness OD=3.00mm L=500mm | 8-24-0238 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1,000mm | 8-25-0154 | 18330 |
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm 180 degree orientation | 8-26-0061 | 6525 |
| MHF-TI-TI harness OD=2.80mm L=1000mm 180 degree orientation | 8-26-0062 | 12670 |
| MHF-TI-TI harness OD=3.00mm L=500mm 180 degree orientation | 8-26-0063 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1000mm 180 degree orientation | 8-26-0064 | 15010 |
다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.
MHF-TI OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI receptacle without jig guide | 20860-001E-00 | 342.49 |
MHF-TI ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |

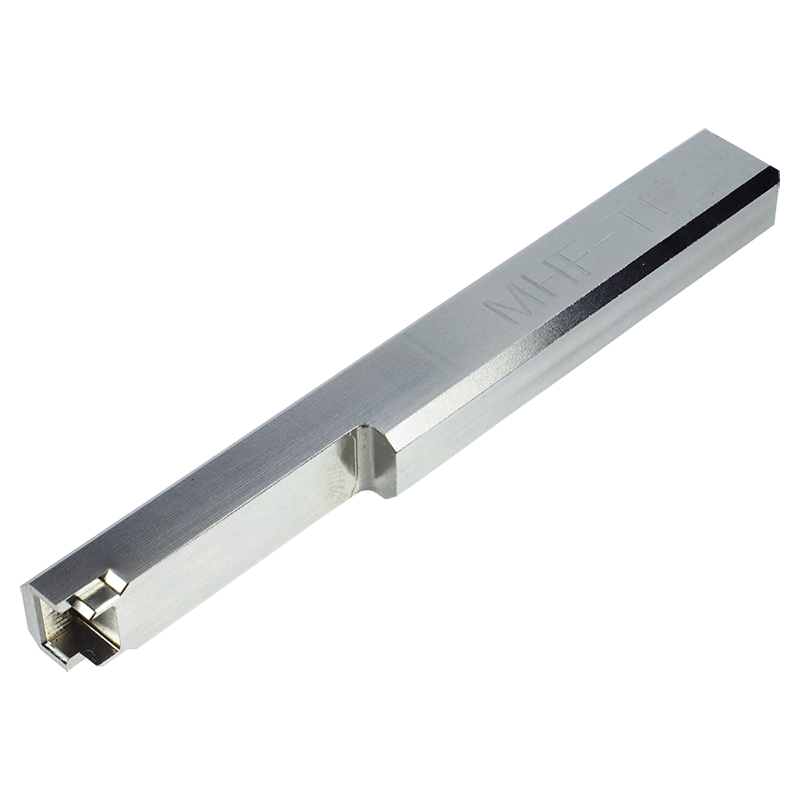

| MHF-TI Unlocking tool | 91097-0001 | 19330 |
|

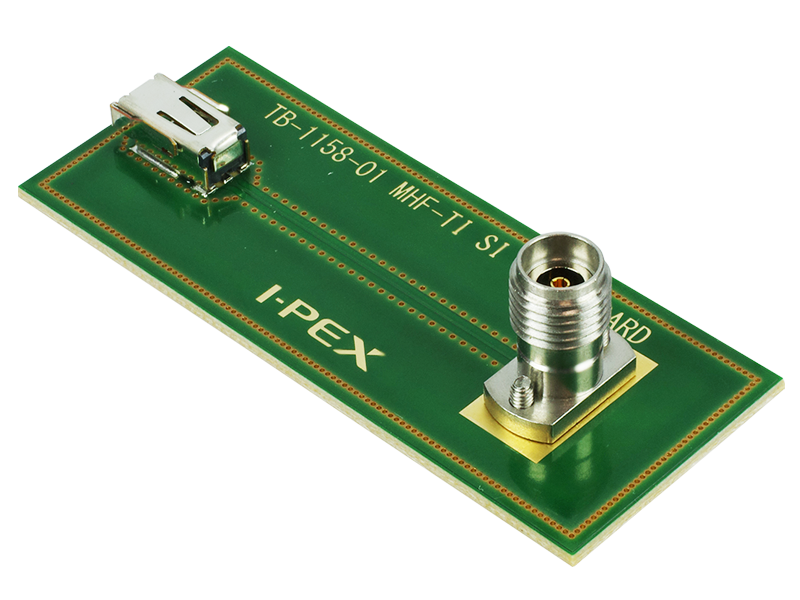

SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF TI | 91666-001B-001 | 18909 |
Main Board

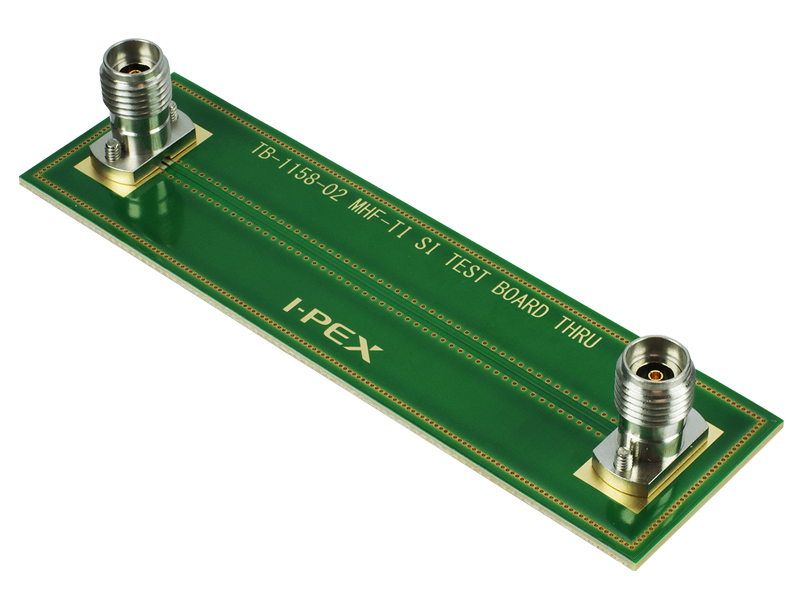

Thru Boar |

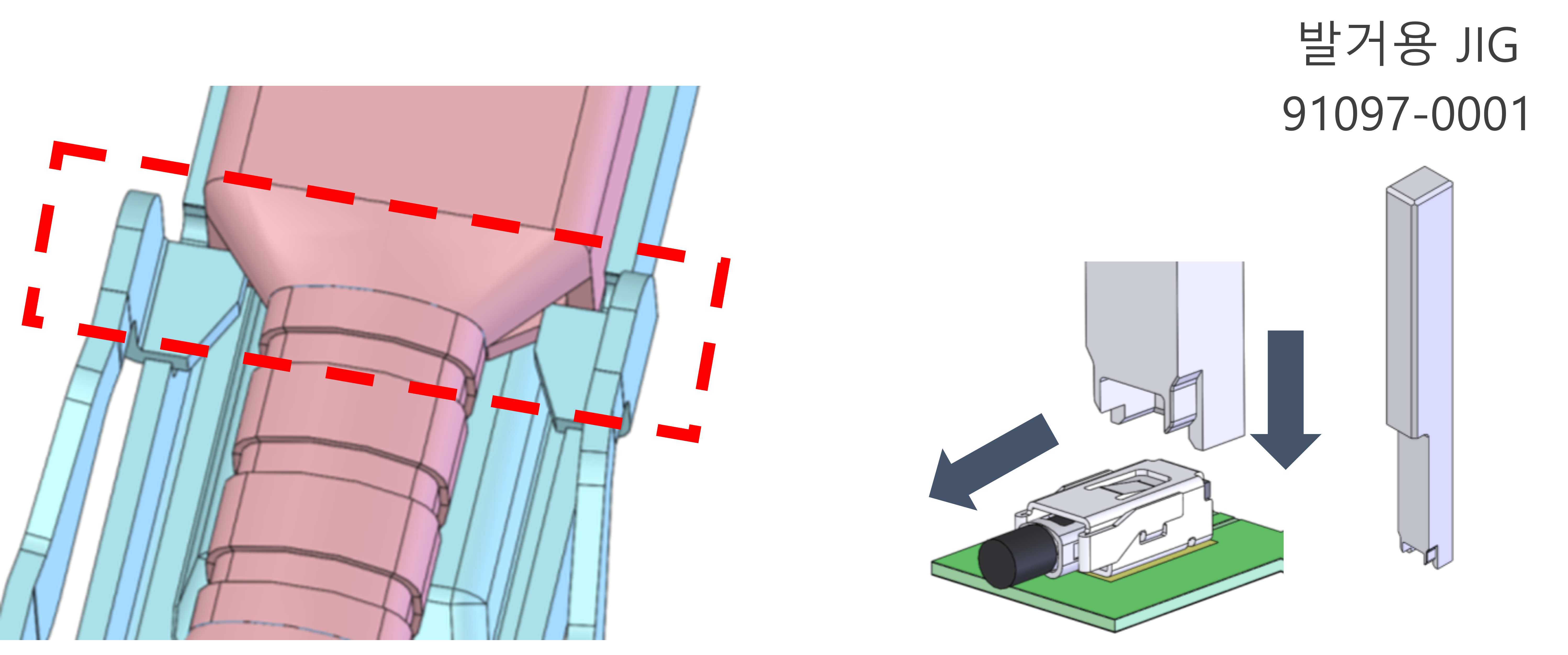

Unlocking tool to handle MHF®-TI
MHF®-TI is a mechanical lock type. A dedicated extraction tool is provided for unlocking.
Push the tool vertically and unlock the mating lock.
Keep unlock condition and pull the cable plug horizontally for unmating.
SI Test board for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
