MHF^® I (4 pads receptacle)

4패드 리셉터클 설계를 통해 중심 정렬 정밀도와 솔더 전단 강도를 향상시켰으며, 최대 9 GHz를 지원하고 최대 결합 높이 2.5 mm의 RF 커넥터입니다

패드 추가로 인해 센터 얼라인먼트성 향상

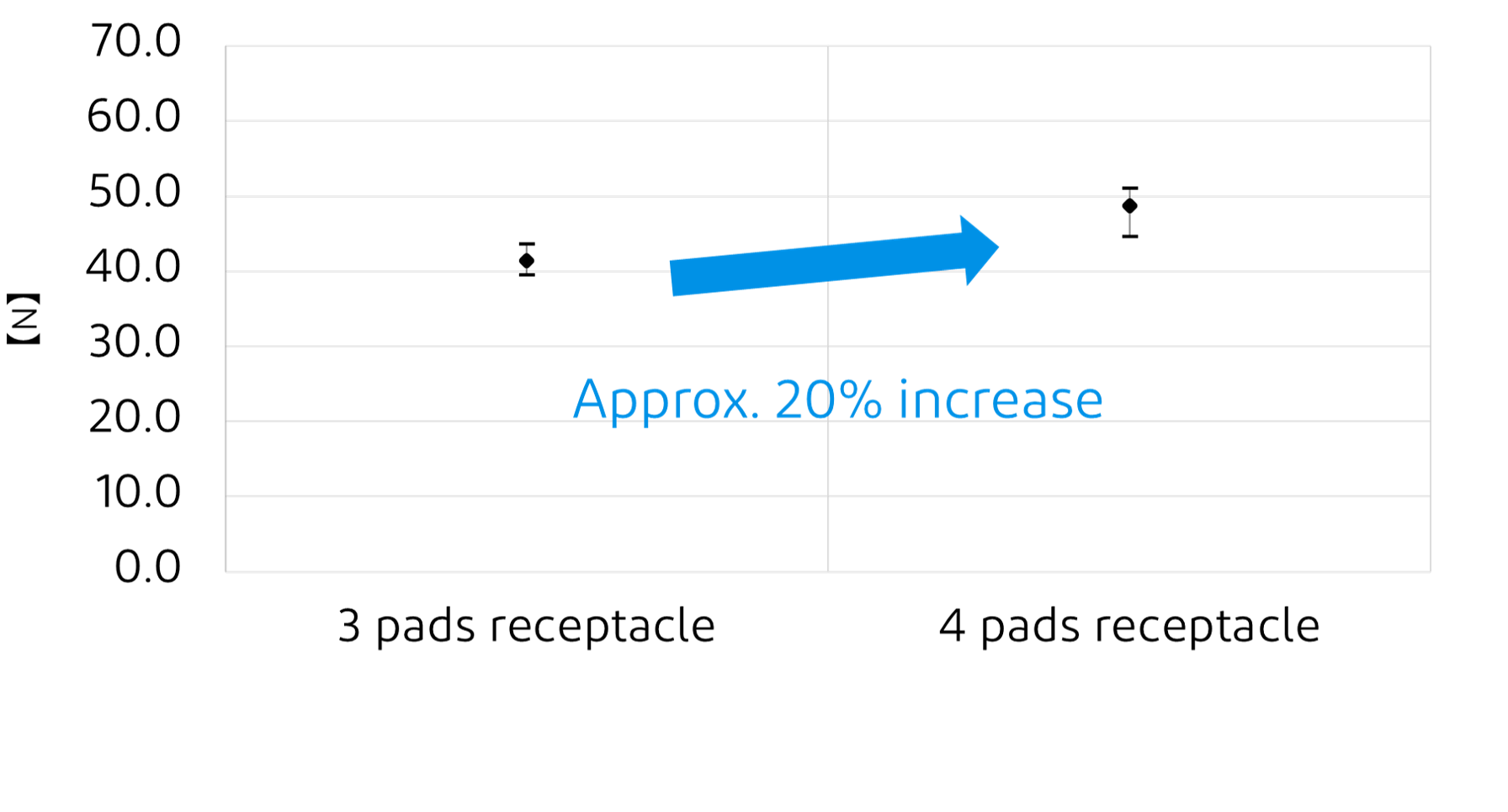

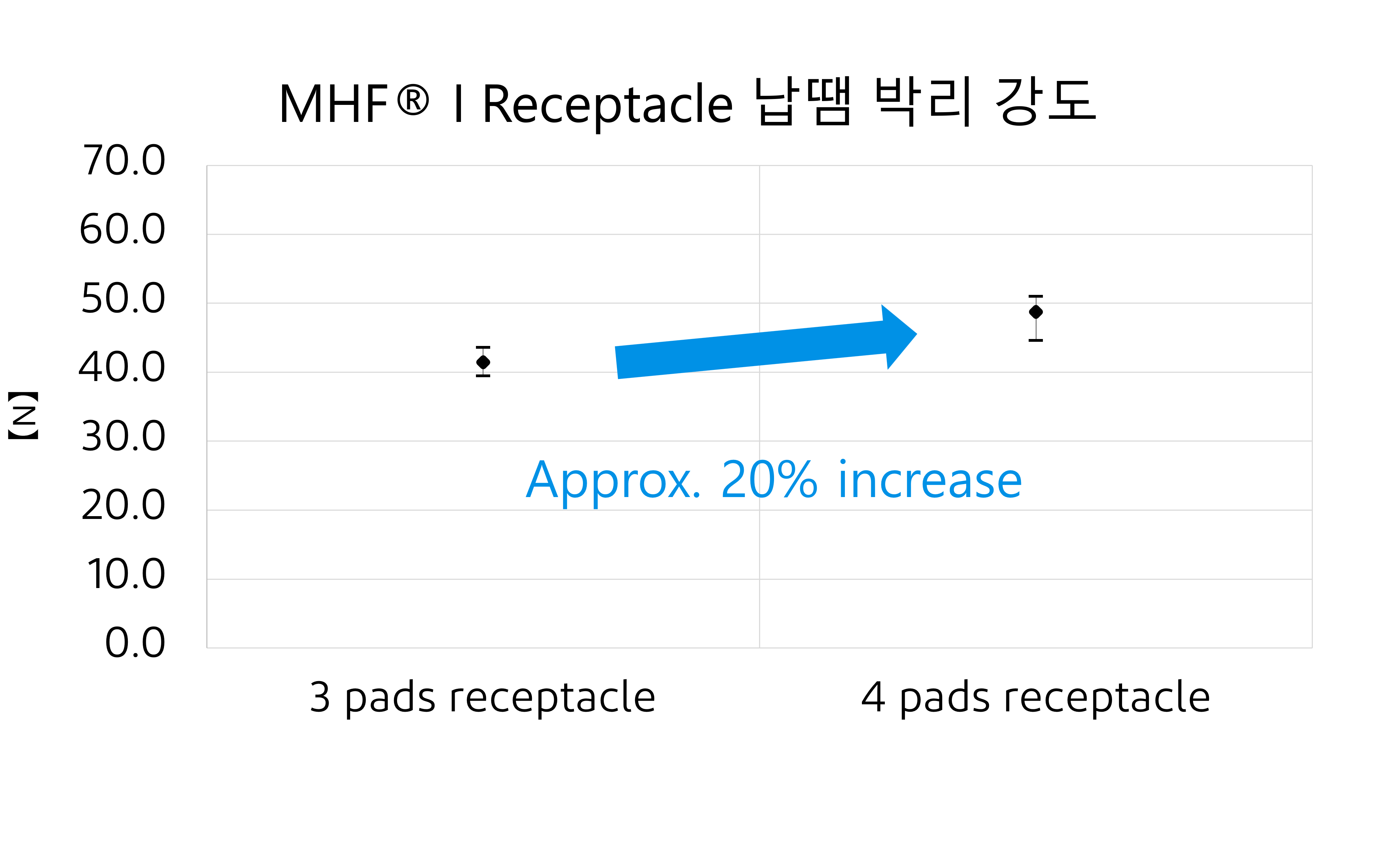

납땜 박리 강도 향상

다양한 케이블 직경과 기계식 잠금 장치의 MHF^® I 시리즈에 결합 가능

기계적 Lock 기구를 갖춘, 높은 결합 유지력의 플러그 케이블 어셈블리 MHF^®I LK도 준비되어 있습니다.

MHF^® I시리즈의 종합제품정보는 MHF^® I에서 참조해 주세요

Mated Height:

2.5 mm max.2.9 mm max.3.0 mm max.

Operating Temperature:

-40 to 90℃ (233 to 363 K)

Cable Size (Micro-Coaxial):

AWG 26 O.D. 2.0 mmAWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm

다운로드

Specs & Test Reports
- 제품 규격
  PRODSPEC MHF I PRS-1676

  PRODSPEC MHF I 137 PRS-1726

  PRODSPEC MHF I 200 PRS-2490
- 테스트 레포트
  TEST-REPORT MHF I TR-12044

  TEST-REPORT MHF I 137 TR-12096

  TEST-REPORT MHF I 200 TR-18041
- 포장 규격
  PACKING MHF I RECEPTACLE 4PADS TYPE PST-300-596

  PACKING MHF I PLUG PST-300-233

  PACKING MHF I 200 PLUG PST-16007
PCB/FPC Data
- Symbols & Footprints

악세사리
제품 상세
제품 규격 제품 규격
번호
단종제품번호

패드 추가로 인해 센터 얼라인먼트성 향상

4 pads receptacle

☑ 구현 프로세스의 품질 향상

☑ 이상적인 설계에 가까운 RF 회로 실현

☑ RF 하네스와의 정확한 위치 결정 가능

납땜 박리 강도 향상

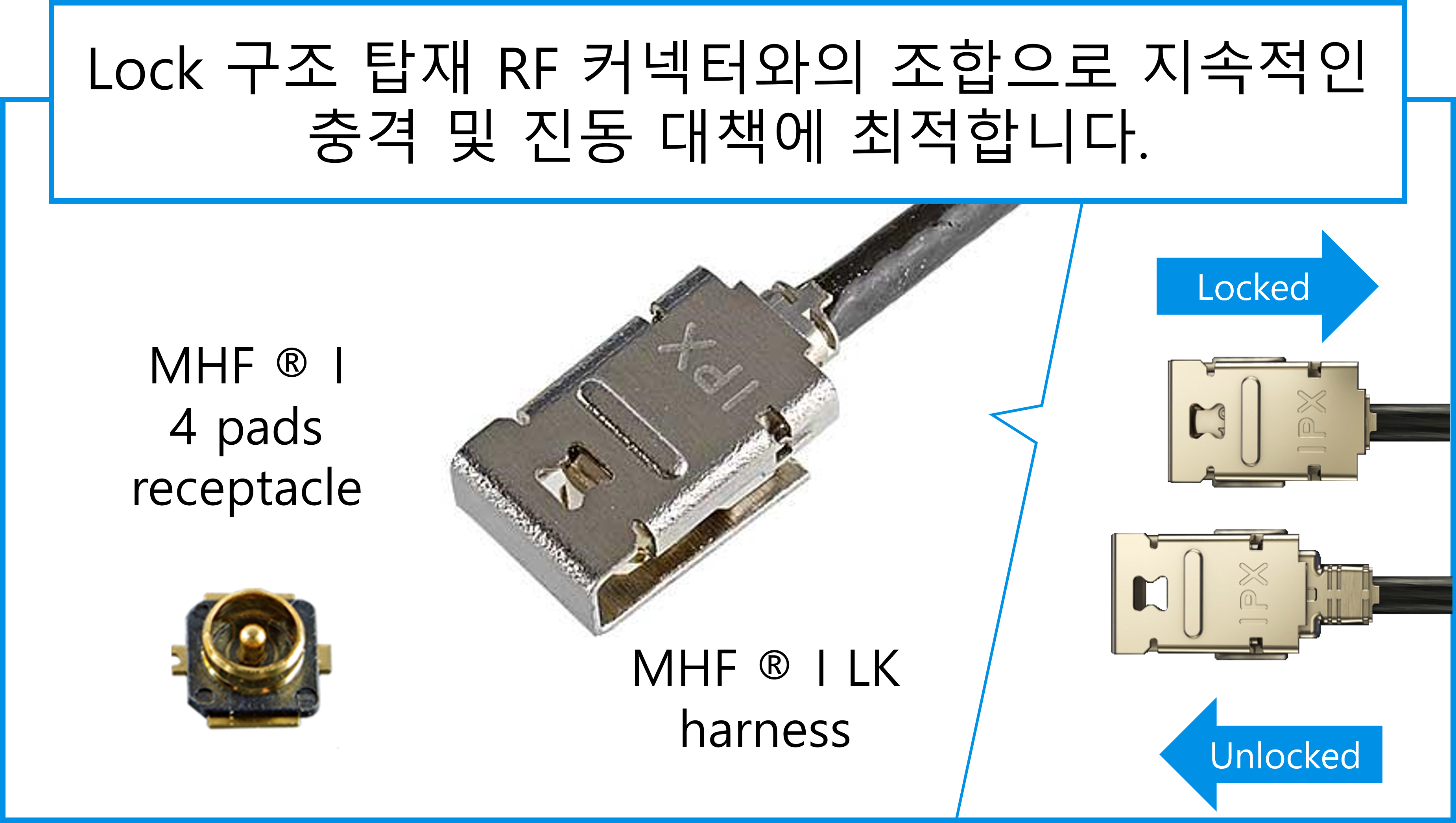

다양한 케이블 직경과 기계식 잠금 장치의 MHF^® I 시리즈에 결합 가능


Product name		MHF^® I LK	MHF^® I	MHF^® I
Lock		With Lock	Without Lock	Without Lock
Mating Height		2.9 mm max.	2.5 mm max.	3.0 mm max.
Coaxial O.D. (Center Conductor AWG)	2.00 mm (AWG 26)			●
	1.80 mm (AWG 30)	●	●
	1.37 mm (AWG 30)	●	●
	1.32 mm (AWG 32)	●	●
	1.13 mm (AWG 32)	●	●
	0.81 mm (AWG 36)	●	●
Receptacle		MHF® I receptacle 20279-001E-03 (3 pads) / 20441-001E-01 (4 pads)

Mated Height	2.5 mm max.2.9 mm max.3.0 mm max.
SMT Size	3.1 x 3.0 mm
Frequency Range	Up to 9 GHz
Operating Temperature	-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)	AWG 26 O.D. 2.0 mmAWG 30 O.D. 1.8 mmAWG 30 O.D. 1.37 mmAWG 32 O.D. 1.32 mmAWG 32 O.D. 1.13 mmAWG 36 O.D. 0.81 mm
V.S.W.R (Plug)	DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 1.6 max. (O.D. 1.32, 2.0 mm), 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.8 mm)
Applicable Standards (Reference Only)	5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)	No
Mechanical Lock	No
VSWR (Harness only)	DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.5 max. 6 ~ 9 GHz : 1.6 max. (O.D. 1.32, 2.0 mm) 6 ~ 9 GHz : 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.80 mm)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.

MHF I RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I plug OD=0.81mm	20278-112R-08	61.52
MHF I plug OD=1.13mm	20278-112R-13	61.52
MHF I plug OD=1.32mm	20278-112R-32	61.52
MHF I plug OD=1.37mm	20351-112R-37	61.52
MHF I plug OD=1.80mm	20278-112R-18	61.52
MHF I plug OD=2.00mm	20767-001R-20	101.6
MHF I receptacle 4 pads	20441-001E-01	16

다른 형번

Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.

MHF I OTHER PART NUMBERS

Part Number Description	Part Number	Weight (mg)
MHF I plug smooth insert type OD=0.81mm	20631-112R-08	62.92
MHF I plug smooth insert type OD=1.13mm	20631-112R-13	62.92
MHF I plug smooth insert type OD=1.32mm	20631-112R-32	62.92
MHF I plug smooth insert type OD=1.37mm	20631-112R-37	62.92
MHF I plug smooth insert type Ni plating OD=0.81mm	20670-001R-08	62.92
MHF I plug smooth insert type Ni plating OD=1.13mm	20670-001R-13	62.92
MHF I plug smooth insert type Ni plating OD=1.80mm	20670-001R-18	62.92
MHF I plug smooth insert type Ni plating OD=1.32mm	20670-001R-32	62.92
MHF I plug smooth insert type Ni plating OD=1.37mm	20670-001R-37	62.92
MHF I plug smooth insert type OD=1.13mm 105℃	20797-112R-13	62.92
MHF I plug smooth insert type OD=1.32mm 105℃	20797-112R-32	62.92
MHF I plug smooth insert type OD=1.37mm 105℃	20797-112R-37	62.92
MHF I receptacle 3 pads	20279-001E-05	16
MHF I receptacle 3 pads	20279-001E-06	16
MHF I receptacle 3 pads 105℃	20803-001E	16

MHF I ACCESSORIES PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Image
MHF I/I LK SMA adapter for plug electrical-performance-check	90193-001	2293.7
MHF I/I LK SMA adapter for plug voltage-check	90194-001	709.1
MHF I/I LK SMA adapter for receptacle electrical-performance-check	90193-002	1453.3
MHF I/I LK SMA adapter for receptacle high-cycle	90539-001	6737.3
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm	90577-0100	4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm	90577-0200	5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm	90577-0350	6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm	90577-0750	9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe	90575-0001	1499
MHF series SMA adapter for receptacle high-cycle detachable base	90684-0001	15104.1
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe	90416-001	1650
MHF I insertion/extraction tool	90224-001	1572.2
MHF I extraction tool	90192-001	1501.4

SI Test Board with 2.92mm Adapter

Part Number Description

Part Number

Weight (mg)


SI Test Board for MHF I for 4 pads receptacle

91616-001B-001

17700

MHF I(4padRece) SI TB-1280 Main Board

Main Board

MHF I(4padRece) SI TB-1280 THRU Board

Thru Board

Insertion/Extraction tools to handle MHF^®I (4 pads receptacle)

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.

How to extract

Insertion/Extraction tools to handle MHF® I (4 pads receptacle)

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.

Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series	High Cycle Series
Standard series	Standard type	Narrow Pitch type	Detachable type
Durability: 500	Durability: 10,000	Durability: 10,000 (Probe), 100 (Cable)	Durability: 10,000 (Probe), 200,000 (Base)
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.	The Standard type connects directly from the probe to the measuring instrument.	The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.	The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.

SI Test boards for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board

MHF I Plan to EOL PART NUMBERS

Part Number Descriptions	EOL P/N	Alternative I-PEX P/N	Differences to alternative item
MHF I receptacle 3 pads	20279-001E-01	20279-001E-03 (3 pad) 20441-001E-01 (4 pad)	MOQ Additional soldering pad
