CABLINE®-UY
較低嵌合高度（嵌合高度 = 0.82 mm Max.），適用於高速數據傳輸(32Gbps/lane),較窄間距（0.35 mm pitch）， 90度出線垂直插拔款的極細同軸線連接器
小而低的設計，適用於狹窄的空間
高速率傳輸, 32Gbps/lane應用的理想選擇
適於穿孔的窄小型設計
Contact Pitch:
0.35 mm
Mating Type / Direction:
Vertical (Right Angle)
Cable Size (Micro-Coaxial):
AWG 40AWG 42
Cable Size (Discrete):
AWG 36
下載
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
操作手冊
*SI測試板數據位於2D圖面之下
小而低的設計，適用於狹窄的空間
|
連接器組合大小  |
5 pin 公座和一美分硬幣大小比較  |
|
高速率傳輸, 32Gbps/lane應用的理想選擇
|
Measurement results |
 |
適於穿孔的窄小型設計

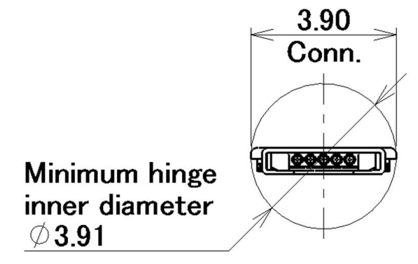

模擬如下情境 (5 pin)：  |
模擬情境（大於5 pin）：最小轉軸內徑(mm) （未做粘接處理） |

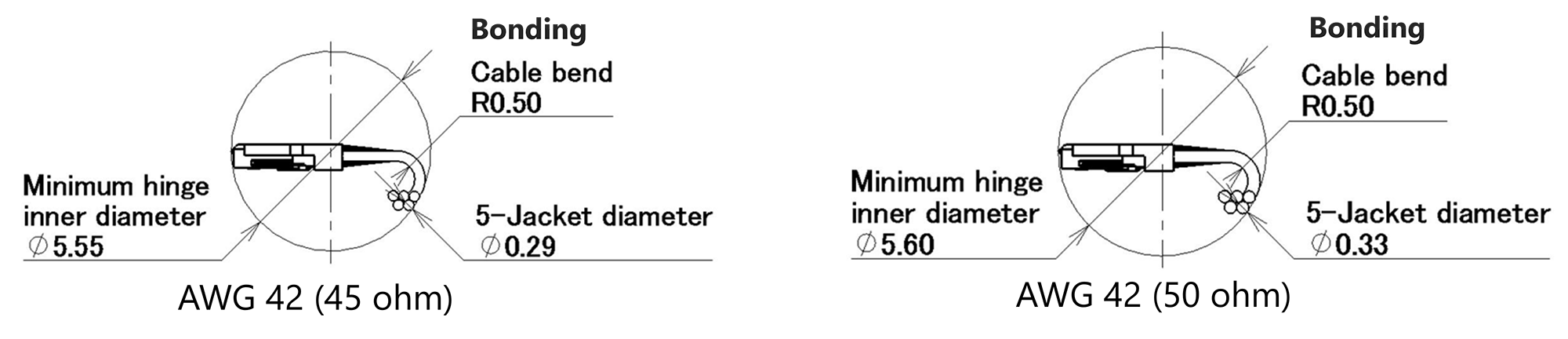

模擬情境（大於5 pin）：最小轉軸內徑(mm) （做粘接處理） |
| Transmission Speed (Reference Only) | 32 Gbps/lane NRZ |
| Contact Pitch | 0.35 mm
|
| Mating Type / Direction | Vertical (Right Angle)
|
| Available Pin Count | Signal: 5, 10 |
| Depth | 3.1 mm
|
| Width | 2.15 + (0.35 x pin count) mm
|
| Cable Size (Micro-Coaxial) | AWG 40AWG 42
|
| Cable Size (Discrete) | AWG 36
|
| Current Rating | |
| Applicable Standards (Reference Only) | 32 Gbps/laneUSB4 Gen 4 (40 Gbps/lane PAM3)Thunderbolt 5(40 Gbps/lane PAM3)USB4 Gen 3(20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)V-By-One US (16 Gbps/lane)HDMI 2.1 (12 Gbps/lane)USB 3.2 Gen 2 (10 Gbps/lane)DisplayPort UHBR3 (8.1 Gbps/lane)HDMI 2.0 (6 Gbps/lane)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | No
|
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
CABLINE-UY RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UY plug cable assembly 5pin | 20857-005T-01 | 24.868 |
| CABLINE-UY plug cable assembly 10pin | 20857-010T-01 | 32.85 |
| CABLINE-UY receptacle 5pin | 20854-005E-02 | 6.3 |
| CABLINE-UY receptacle 10pin | 20854-010E-02 | 9.74 |
| CABLINE-UY shell A 5pin | 3568-0051 | 18.938 |
| CABLINE-UY shell A 10pin | 3568-0101 | 23.850 |
CABLINE-UY SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=100mm 1-N | 81426-100B-03-D | - |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=200mm 1-N | 81426-100B-02-D | - |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=300mm 1-N | 81426-100B-01-D | 522 |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=100mm 1-N | 81787-100B-03-D | - |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=200mm 1-N | 81787-100B-02-D | - |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=300mm 1-N | 81787-100B-01-D | 1007.4 |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=100mm 1-1 | 82681-100B-01-D | - |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=200mm 1-1 | 82682-100B-01-D | - |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=300mm 1-1 | 82448-100B-02-D | - |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=100mm 1-1 | 82683-100B-01-D | - |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=200mm 1-1 | 82684-100B-01-D | - |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=300mm 1-1 | 82449-100B-02-D | - |
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
CABLINE-UY OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UY receptacle 5pin | 20854-005E-12 | - |
| CABLINE-UY plug housing 5pin | 20907-005E-01 | 5.930 |
| CABLINE-UY plug housing 10pin | 20907-010E-01 | 9.000 |
| CABLINE-UY shell A 5pin | 3568-0052 | 18.938 |
CABLINE-UY ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |

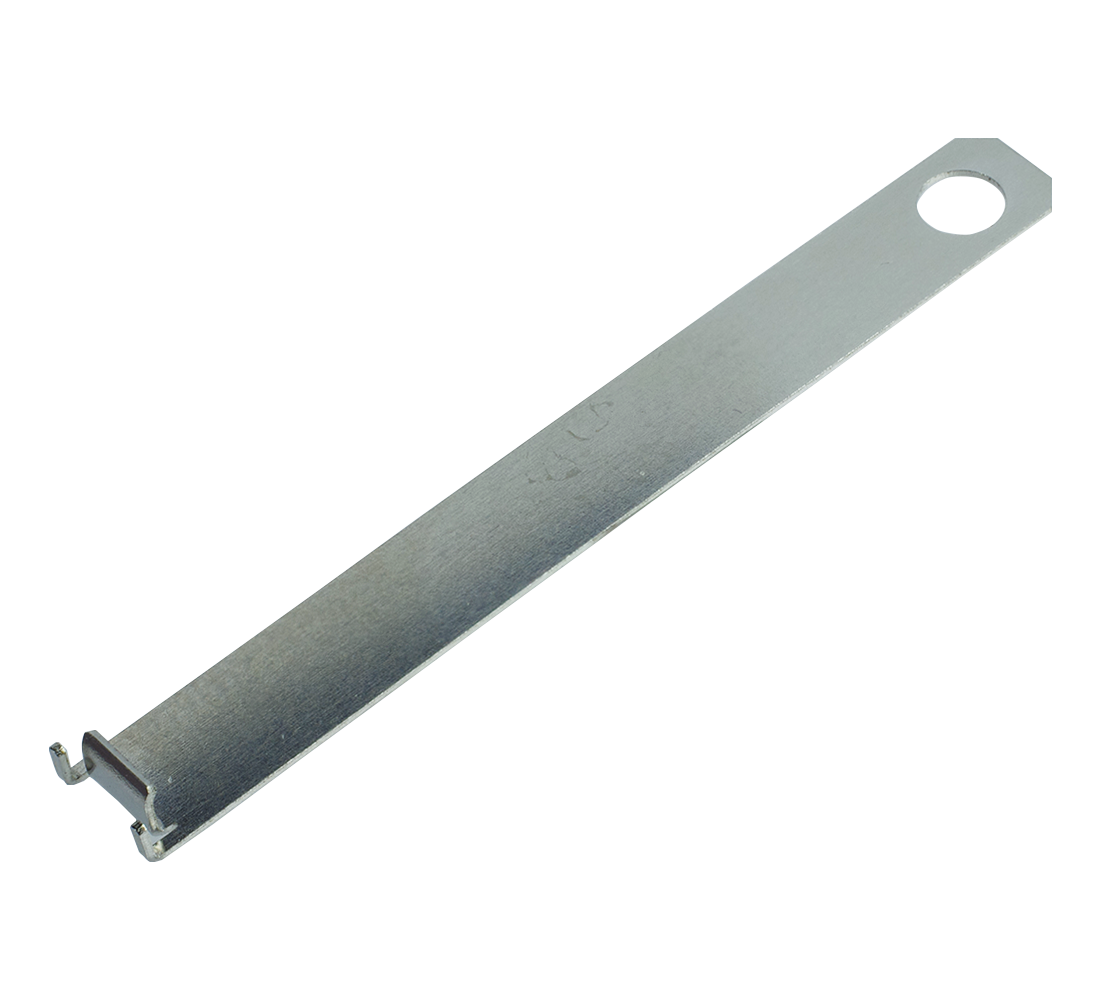

| CABLINE-UY hand tool plug insertion/extraction 5p | 91174-0001 | 440 |
| CABLINE-UY hand tool plug insertion/extraction 10p | 91174-0002 | 600 |

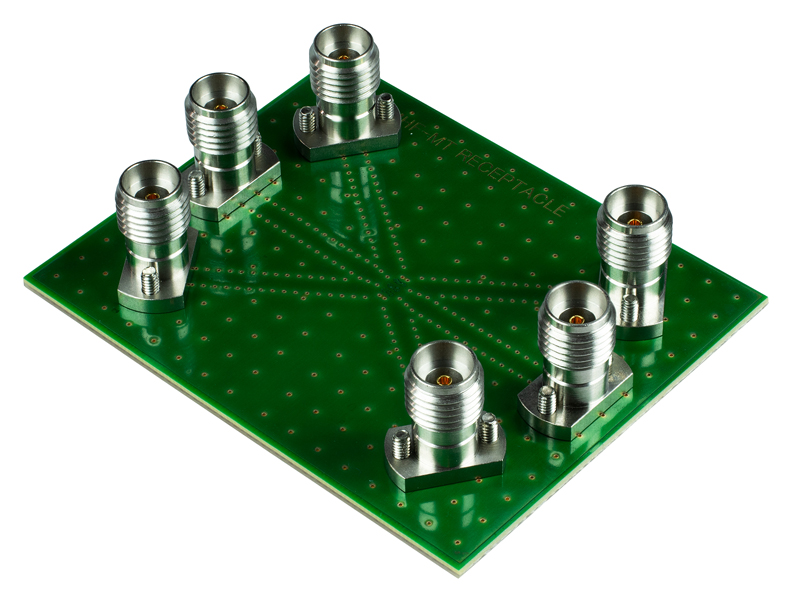

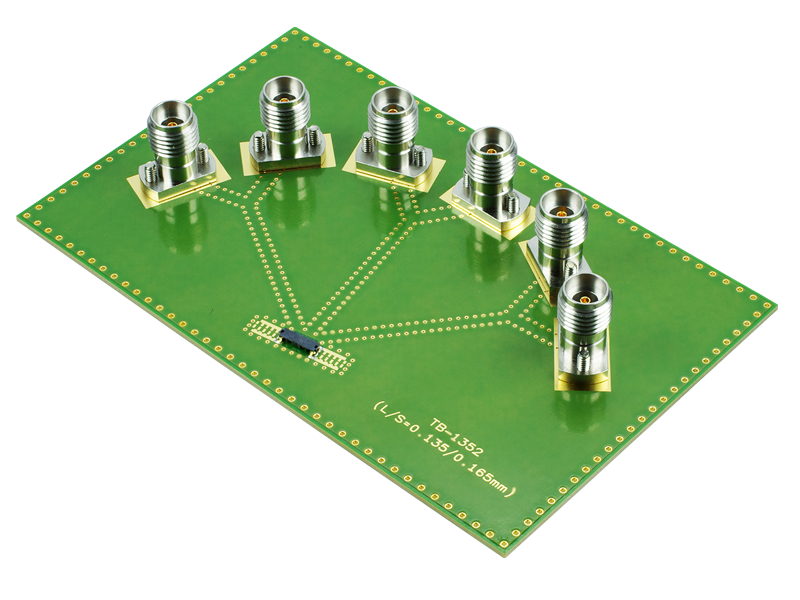

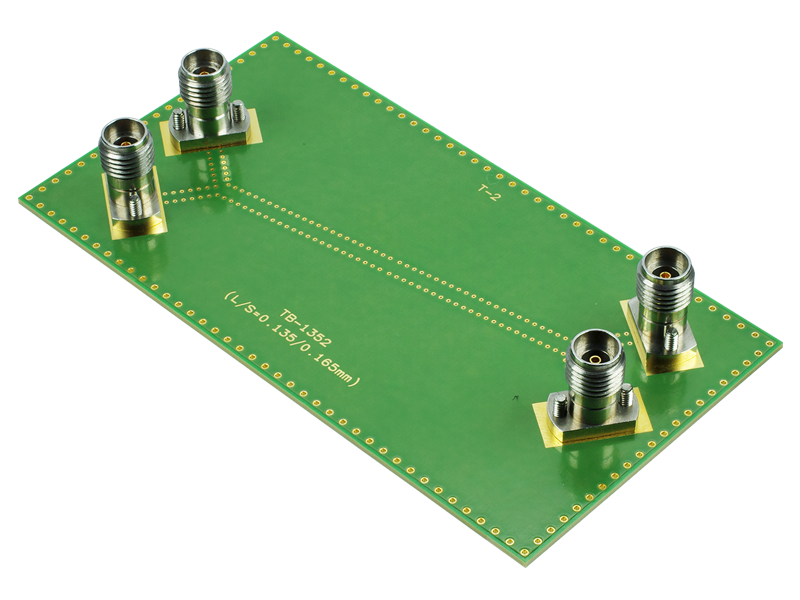

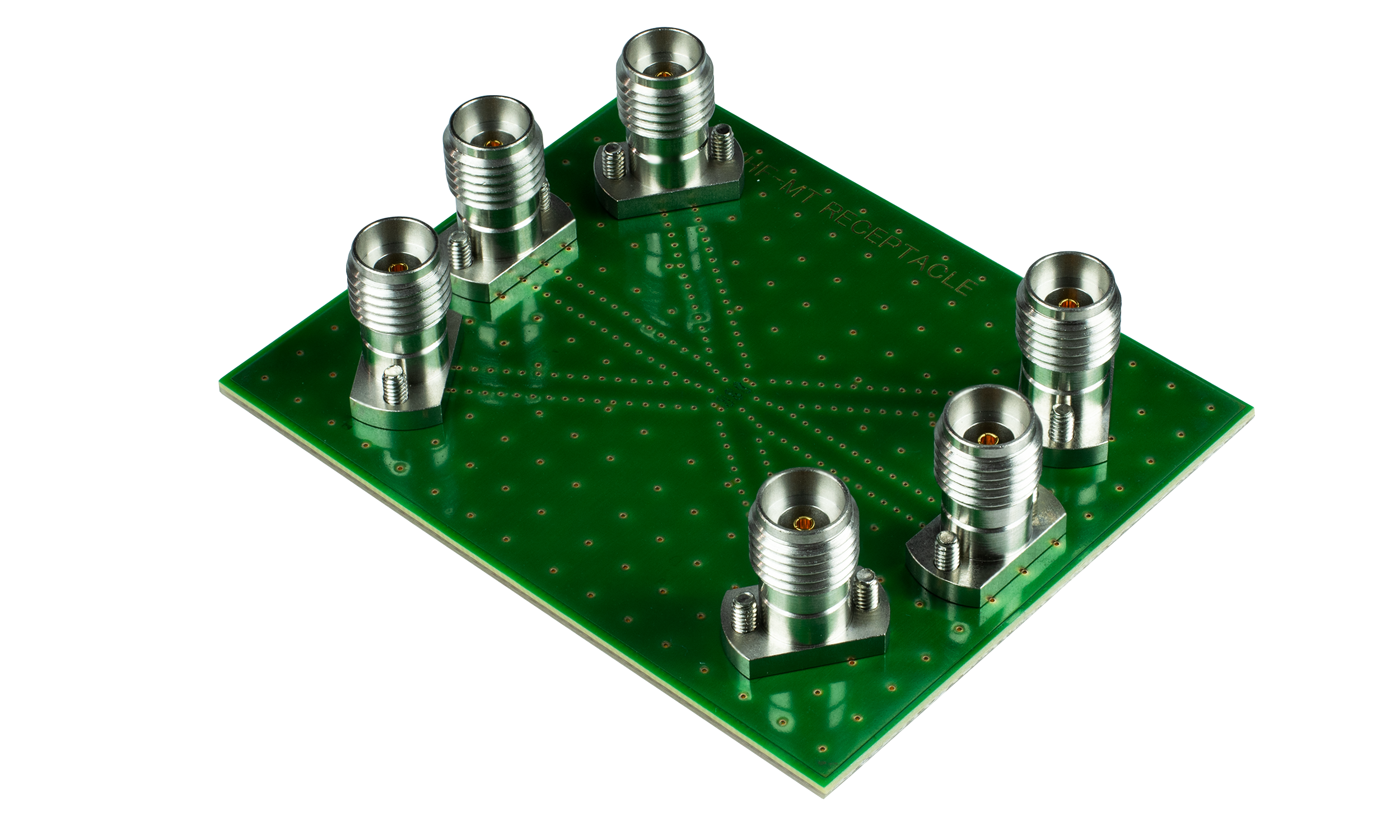

SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for CABLINE-UY 5p | 91565-005B-001 | 39708.72 |

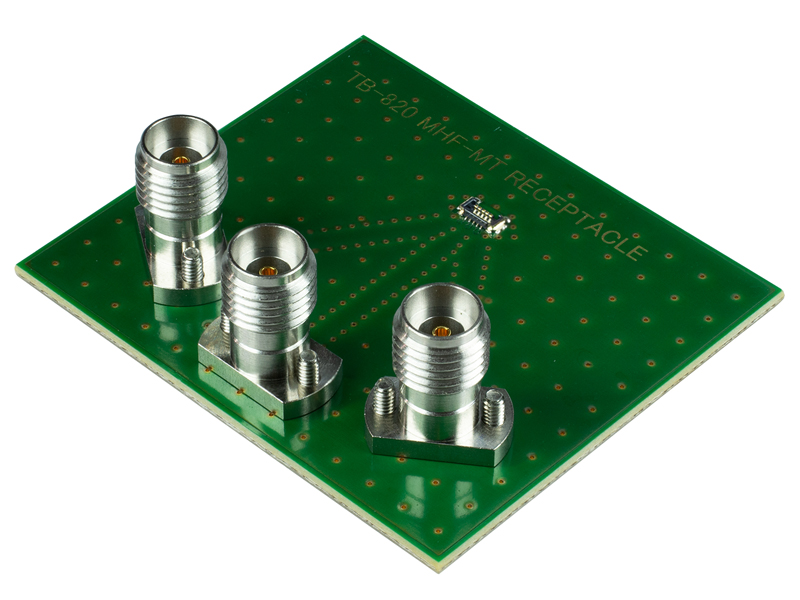

Main Board
|
| SI Test Board for CABLINE-UY 10p | 91688-010B-001 |
CABLINE-UY Plan to EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| CABLINE-UY receptacle 5pin | 20854-005E-00 | shell Ni-Pd-Au plating | 20854-005E-02 | shell Au-Ni plating |
| CABLINE-UY receptacle 10pin | 20854-010E-01 | shell Ni-Pd-Au plating | 20854-010E-02 | shell Au-Ni plating |
CABLINE-UY EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| CABLINE-UY SMT plug 5pin | 20853-005E-01 | Contact us | ||
| CABLINE-UY SMT plug 10pin | 20853-010E-01 | Contact us |
