CABLINE®-CAF
带屏蔽功能的机械锁扣和多点接地设计，适用于高速数据传输 (32 Gbps/lane)， 0.4 mm 间距, 水平对插款的FPC 型公头连接器
机械锁扣防止连接器不完全嵌合及脱落/未嵌合
EMI 屏蔽和多点接地设计
高速率传输, 32Gbps/lane应用的理想之选
该公座连接器与 CABLINE®-CA 母座 (20525-#**E-02) 相匹配。
Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 1.0 +/- 0.1 mm
FPC / FFC Thickness:
Contact Area: 0.26 +/-0.02 mmGround Area: 0.40 +/-0.05 mm
下载
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
-
操作手册
*SI测试板数据位于二维图纸中

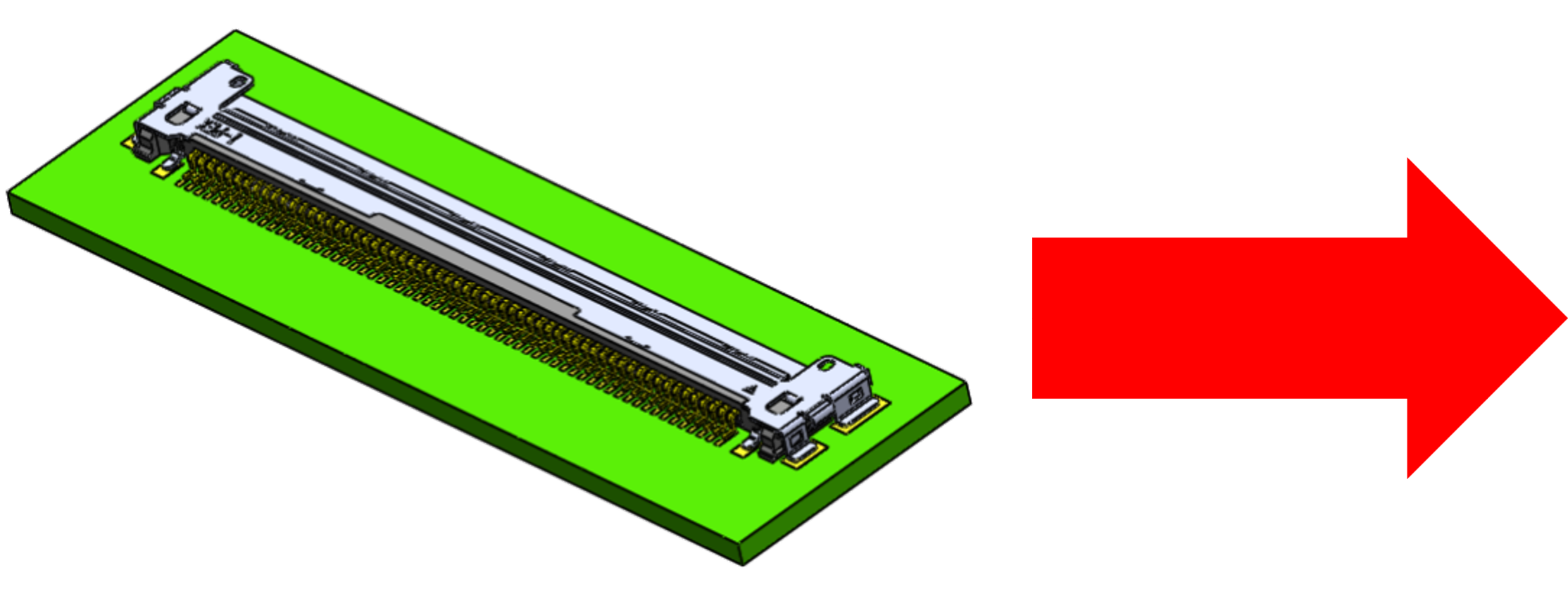

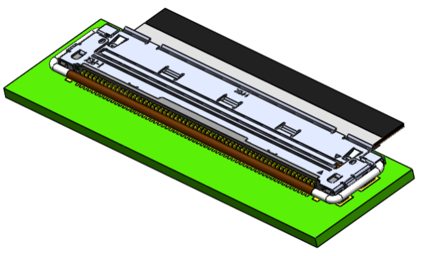

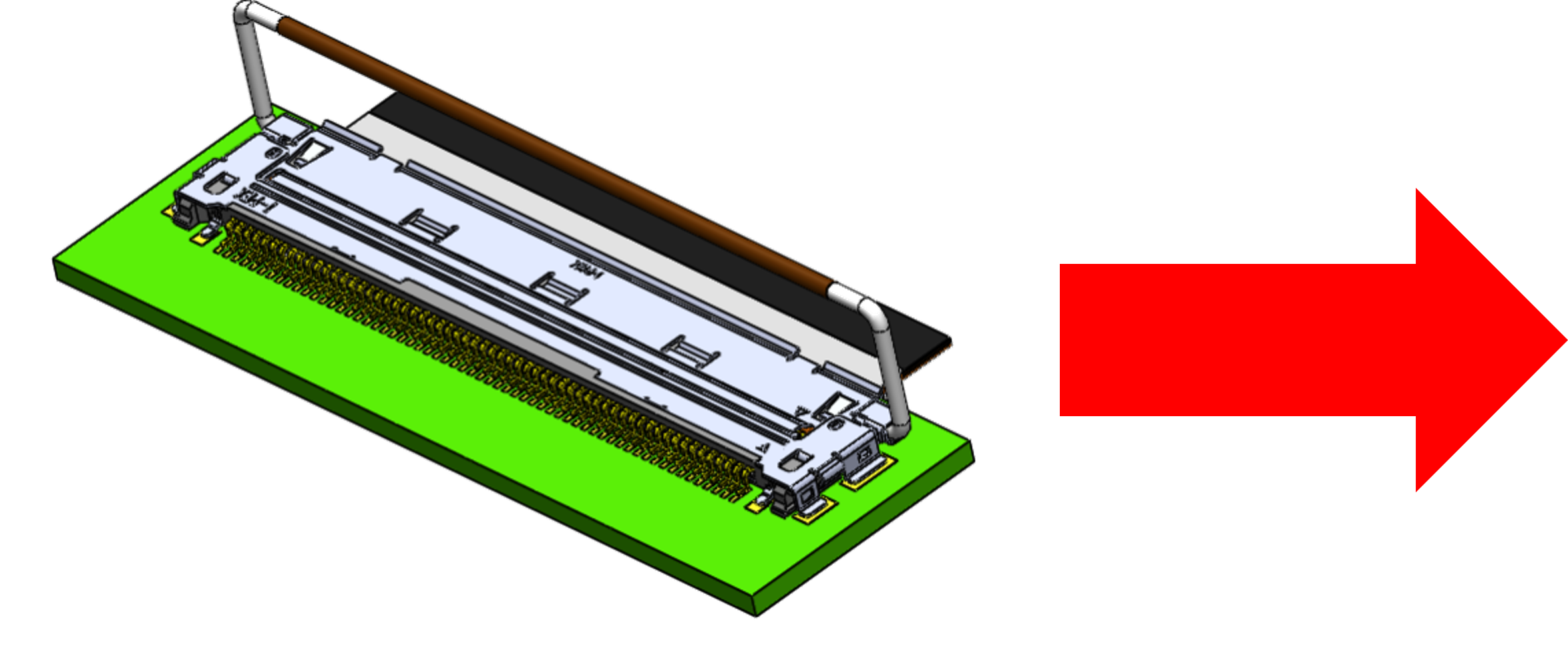

机械锁扣防止连接器不完全嵌合及脱落/未嵌合
|
|
 |
|||
| 只有当公座完全和母座嵌合时，机械锁扣才能锁上。 | |||||
干涉
|
|
||||
嵌合
锁定
半嵌合

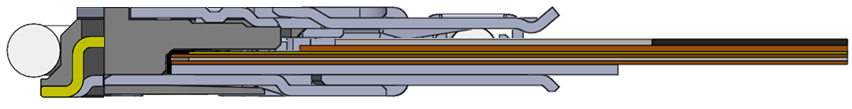

完全嵌合

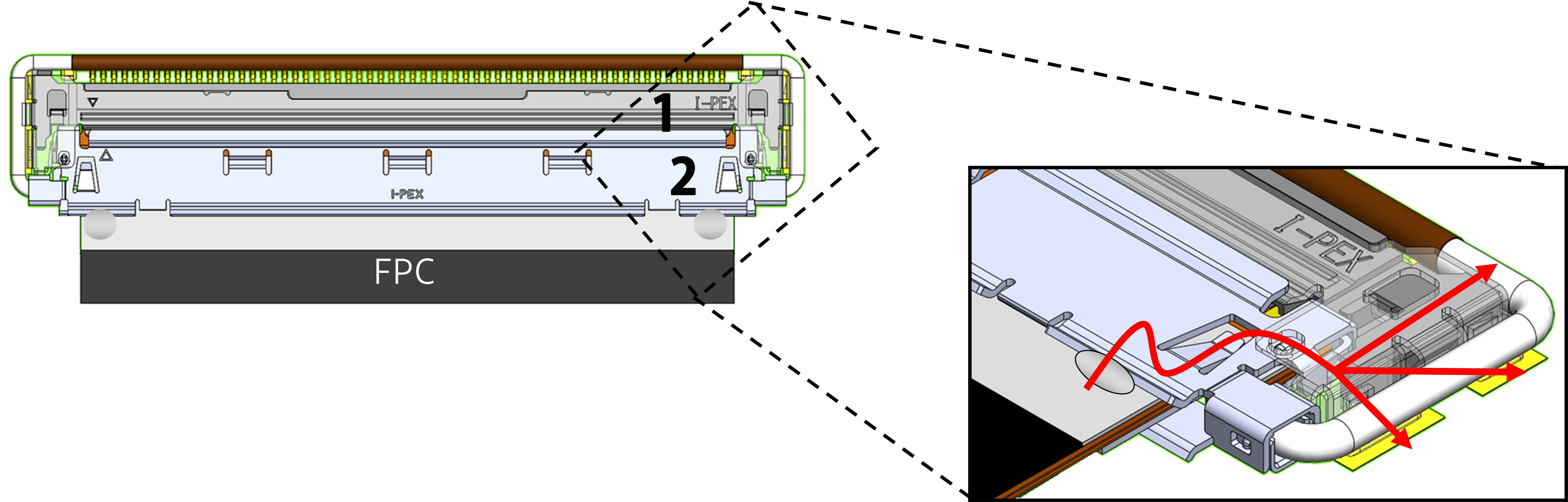

EMI 屏蔽和多点接地设计
1.CABLINE-CA 母座外壳 2. CABLINE-CAF公座外壳

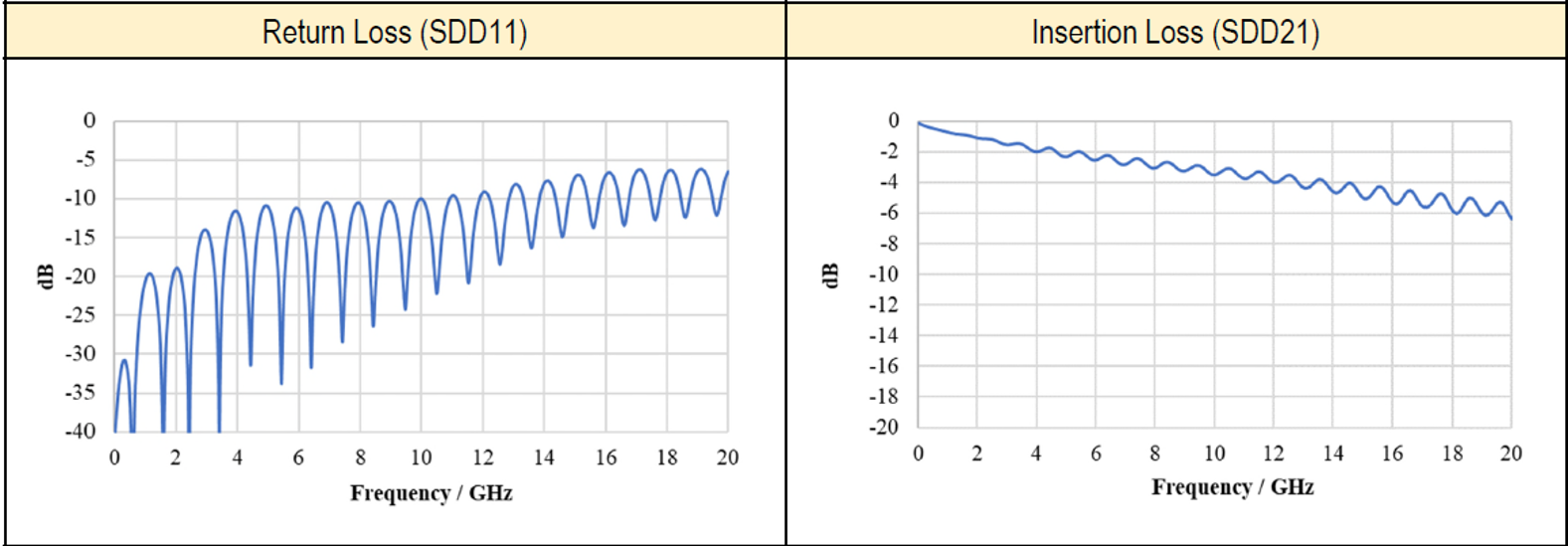

高速率传输, 32Gbps/lane应用的理想之选
|
Measurement results |
 |
| Transmission Speed (Reference Only) | 32 Gbps/lane NRZ |
| Contact Pitch | 0.4 mm
|
| Mating Type / Direction | Horizontal
|
| Mated Height | Nom. 1.0 +/- 0.1 mm
|
| Available Pin Count | Signal: 40, 60 |
| Depth | 6.06 mm
|
| Width | 5.75 + (0.4 x pin count) mm
|
| Operating Temperature | |
| FPC / FFC Thickness | Contact Area: 0.26 +/-0.02 mmGround Area: 0.40 +/-0.05 mm
|
| FPC Type | Shielded/Non-shielded FPC
|
| Current Rating | |
| Applicable Standards (Reference Only) | 32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| FPC | Shielded/Non-shielded |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
CABLINE-CAF RECOMMENDED Part Number
| Part Number Description | Part Number | Weight (mg) | Note |
| CABLINE-CAF shell assembly 40pin | 20858-040T-01 | 186 | |
| CABLINE-CAF shell assembly 60pin | 20858-060T-01 | 246.182 | |
| CABLINE-CA receptacle 40pin | 20525-040E-02 | 149.684 | |
| CABLINE-CA receptacle 60pin | 20525-060E-02 | 202.462 |
