High-power supply terminal, high heat resistance board-to-board connection. Contribute to miniaturization of power electronics devices, height differences can be customized

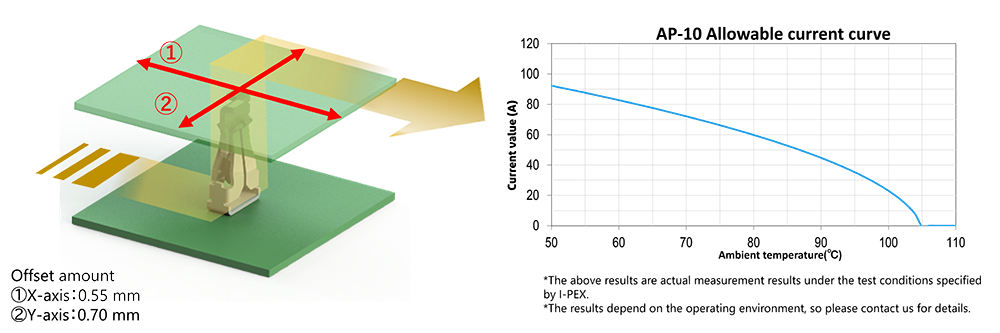

High current (30 A) and High temperature resistance, board-to-board power supply terminal

Contribute space-saving design on PCB achieved by miniaturization of connector

Flexible board to board spacing design for DIP and SMT

Mating Type / Direction:

Vertical

Height:

Receptacle: Nom. 11.7 +/- 0.2 mmPlug (3531-0001-00T): Nom. 7.5 +/- 0.1 mmPlug (3539-0001-45T): Nom. 14.5 +/- 0.1 mm

Operating Temperature:

-40 to 105℃ (233 to 378 K)

Current Rating:

Power: 30 A DC

Downloads

3D Models
- STEP
  AP-10_STEP
- IGES
  AP-10 IGES
Specs & Test Reports
- Product Specification
  PRODSPEC AP-10 PRS-2616

  PRODSPEC AP-10 PRS-2979
- Test Reports
  TEST-REPORT AP-10 TR-19063

  TEST-REPORT AP-10 TR-25060
- Packing Standard
  PACKING AP-10 PLUG 7.5MM PST-17120

  PACKING AP-10 PLUG 14.5MM(TRAY) PST-22010

  PACKING AP-10 PLUG 14.5MM(EMBOSS) PST-23067

  PACKING AP-10 RECEPTACLE PST-17121

  PACKING AP-10 RECEPTACLE TERMINAL PST-25055

*SI Test Boards data are under 2D Drawings

Product Details
Specifications Spec.
Part Number

High current (30 A) and High temperature resistance, board-to-board power supply terminal

Contribute space-saving design on PCB achieved by miniaturization of connector

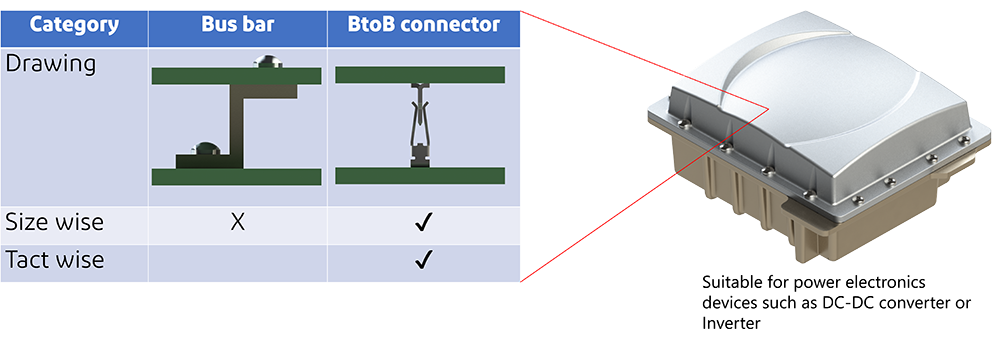

Comparison with traditional connect methods

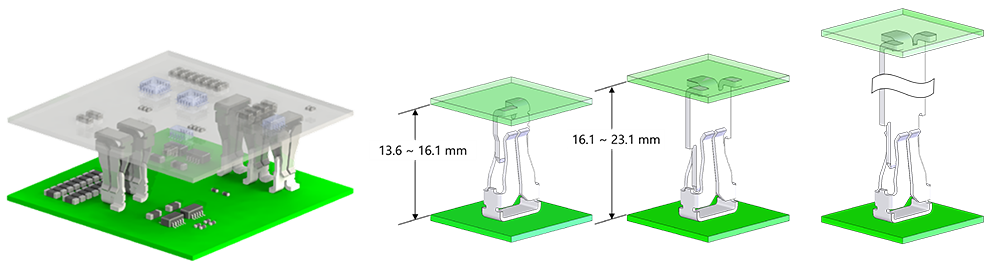

Flexible board to board spacing design for DIP and SMT

Mating Type / Direction	Vertical
Height	Receptacle: Nom. 11.7 +/- 0.2 mmPlug (3531-0001-00T): Nom. 7.5 +/- 0.1 mmPlug (3539-0001-45T): Nom. 14.5 +/- 0.1 mm
Depth	Receptacle: 3.4 mmPlug (3531-0001-00T): 6.0 mmPlug (3539-0001-45T): 7.6 mm
Width	Receptacle: 7.6 mmPlug (3531-0001-00T): 3.4 mmPlug (3539-0001-45T): 5.2 mm
Operating Temperature	-40 to 105℃ (233 to 378 K)
Current Rating	Power: 30 A DC
Mating Force	15 N max.
Full EMI Shielding (ZenShield®)	No
Mechanical lock	No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.

AP-10 RECOMMENDED PART NUMBER

Part Number Description	Part Number	Weight (mg)	Note
AP-10 plug H=7.5mm	3531-0001-00T	294.4
AP-10 plug H=14.5mm	3539-0001-45T	695.3

Other Part Numbers

AP-10 OTHER PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Note
AP-10 receptacle H=11.70mm	3532-0012-00T	-
AP-10 receptacle H=24.95mm	3927-0001-00T	1033.6
AP-10 receptacle with cap	21022-001E	654
AP-10 plug H=14.5mm	3539-0001-45E	295
