高周波信号やパワー信号を保護する必要性
Sometimes there is a need to transmit power, low speed control and high speed data signals all in the same harness. While the micro-coaxial cables provide shielding to electromagnetic field and keep it inside the cable these full 360 degrees EMI shielding metallic cover over the mated signal contacts, called ZenShield® prevents the high speed signals to interfere with antennas and other surface mounted components in close proximity. ZenShield is included on the plugs for flexible printed circuits (FPC), micro-coaxial, and twinaxial cables in CABLINE® series products to cover both the signal contacts and soldered tails of mated connector. ZenShield® is offered in CABLINE®-VS II, CABLINE®-VS IIF, CABLINE®-CA II, CABLINE®-CA II PLUS, CABLINE®-CA IIP PLUS, CABLINE®-CA IIF, CABLINE®-CX II and CABLINE®-UM series products.
As electronic devices are evolving to be more high-performance, power-saving, and compact, the high speed signal requirement in these devices increases, the number of electronic components operating at lower voltage increases and the density of mounted electronic components becomes higher. If electromagnetic noise is added from the outside, unnecessary current may be induced to the circuits in the devices causing a malfunction or damage to high-performance electronic components which may also lead to electronic device breakdown. Also, in electronic devices with wireless communication functions (for example, notebook PCs, tablets and mobile phones) electromagnetic waves generated within the devices can add to the wireless communication circuit noise which can affect antenna reception performance.
In such cases, in general, the measures against electromagnetic noise inside the device are implemented by incorporating electromagnetic noise filter components into the circuit and/or physically blocking the electromagnetic noise by adding a metal shield that covers the components.
With the introduction of smaller devices and high density of mounted components, and the high speed signal communication within these devices, it is imperative to take measures against electromagnetic noise at the jumper connections in devices. I-PEX has developed a high-performance EMC connector series (ZenShield®) that solves electromagnetic noise in the connector by using an appropriate grounding structure and cover which includes the mounting position of the signal contact tails with metal shields. This solution is widely adopted by many customers to prevent electromagnetic interference, especially in high-performance devices equipped with wireless communication functions such as Wi-Fi, GPS, and LTE.
Both shielded FPC and High performance micro-coaxial cables can be used to minimize the RF emissions, leakage and contain the high speed data signals with in the cables. Shielded structure of micro-coaxial cables also allows to supply DC power signals by using inner center conductor for DC voltage and outer shield for return current. Use of micro-coaxial cables for power transmission is specially helpful to ensure clean supply voltages in noisy power switching mode applications like servo motor control circuits in Robotics etc.

In a high definition Display System, exposed tails of graphics connectors typically radiate EMI noise at Nyquest frequencies which interferes with many wireless carrier frequency bands. This high frequency EMI noise also affects the quality of Graphics on the display. For this reason, a shielded Graphics Display connector with integrated solder tail shielding feature must be used for high frequency signal transmission as shown in the figure below. More details about EMI shielded connectors can be found at
WEBINAR: EMC Shielding Connectors

Contents
- 1) What is a Micro-coaxial Cable Harness and why do you need it?
- 2) What is a Twinaxial Cable Harness and why do you need it?
- 3) What is the maximum operating frequency in your application?
- 4) What is the available real estate for connector/ receptacle and plug assembly?
- 5) Is there a need to shield the high frequency or power signals in the harness?
- 6) What are the main losses in high speed cable assemblies? How can the losses be minimized in my Harness Assemblies?
- 7) What are the bend, flex and twist requirements of the harness?
- 8) What is the required pin out of harness assemblies?
- 9) What is the required jacketing and bundling type on harness?
- 10) What are the typical high speed protocols supported by these harnesses?
- 11) How is a Micro-coaxial Cable Harness prepared and how many types of cables can be supported?
電力、低速制御、高速データ信号のすべてを同じハーネスで伝送する必要がある場合があります。細線同軸ケーブルは電磁界をシールドし、ケーブル内部に電磁界を保持しますが、ZenShield®と呼ばれる、嵌合された信号接点を覆う360度フルEMIシールド金属カバーは、高速信号が近接するアンテナやその他の表面実装部品に干渉するのを防ぎます。ZenShield®は、CABLINE®シリーズ製品のフレキシブルプリント回路(FPC)、細線同軸ケーブル、Twinaxケーブルのプラグに搭載され、嵌合されたコネクタの信号コンタクトとはんだ付けテールの両方をカバーします。ZenShield®は、CABLINE®-VS II、CABLINE®-VS IIF、CABLINE®-CA II、CABLINE®-CA II PLUS、CABLINE®-CA IIP PLUS、CABLINE®-CA IIF、CABLINE®-CX II、CABLINE®-UMシリーズ製品に搭載されています。
電子機器の高性能化、省電力化、小型化に伴い、電子機器に要求される高速信号が増加し、低電圧で動作する電子部品が増加し、電子部品の実装密度が高くなっています。外部から電磁ノイズが加わると、機器内の回路に不要な電流が誘導され、高性能な電子部品の誤動作や破損を引き起こし、電子機器の故障につながる可能性があります。また、無線通信機能を持つ電子機器(ノートPC、タブレット端末、携帯電話など)では、機器内部で発生する電磁波が無線通信回路のノイズに加わり、アンテナの受信性能に影響を与えることがあります。
このような場合、一般的には、機器内部の電磁ノイズ対策として、電磁ノイズフィルタ部品を回路に組み込んだり、部品を覆う金属シールドを追加して物理的に電磁ノイズを遮断したりすることが行われています。
機器の小型化、高密度実装化、機器内の信号通信の高速化に伴い、機器内のジャンパー接続部の電磁ノイズ対策が急務となっています。I-PEXでは、信号接点テールの取り付け位置を金属シールドとした適切なアース構造とカバーにより、コネクタ内の電磁ノイズを解決する高性能EMCコネクタシリーズ(ZenShield®)を開発しました。 このソリューションは、特にWi-Fi、GPS、LTEなどの無線通信機能を搭載した高性能機器の電磁干渉対策として、多くのお客様にご採用いただいております。
シールド FPC と高性能細線同軸ケーブルの両方を使用することで、RF エミッションやリークを最小限に抑え、高速データ信号をケーブル内に封じ込めることができます。また、細線同軸ケーブルのシールド構造は、内部中心導体を直流電圧用に外部シールドをリターン電流用に使用することで、直流電力信号の供給も可能にします。電力伝送に細線同軸ケーブルを使用することは、ロボット工学のサーボモーター制御回路など、ノイズの多い電力スイッチング・モード・アプリケーションでクリーンな供給電圧を確保するのに特に役立ちます。

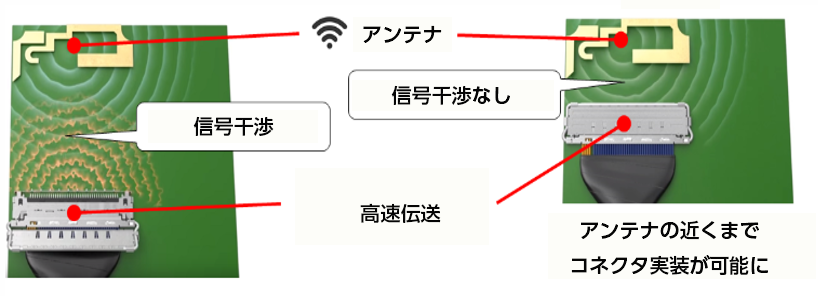

Signal |
|
NO Signal 1.アンテナ |
![]() |
コネクタから外部への電気ノイズがない 電磁干渉(EMI)
|

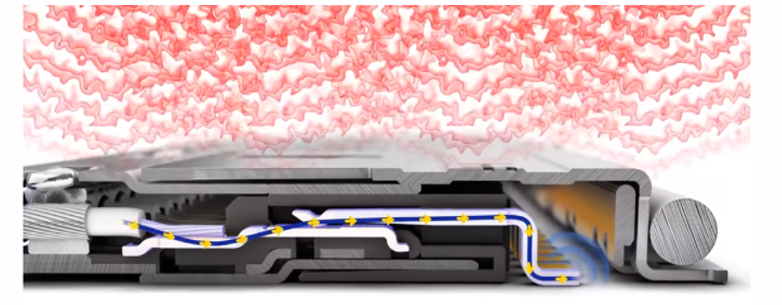

外部の電磁ノイズから伝送信号を保護する 電磁感受性(EMS)
高解像度ディスプレイ・システムでは、グラフィックス・コネクタの露出したテールが多くのワイヤレス・キャリア周波数帯に干渉するナイキスト周波数のEMIノイズを放射することが一般的です。この高周波EMIノイズは、ディスプレイ上のグラフィックスの品質にも影響します。このため、高周波信号の伝送には、下図に示すように、はんだ付け部のシールド機能を内蔵したシールド付きグラフィックスディスプレイコネクタを使用する必要があります。EMIシールドコネクタの詳細については、WEBINAR: EMCシールドコネクタ をご覧ください。
