MINIFLEX® 3-BFN LK

MINIFLEX 3-BFN LK Product Image
0.3 mm pitch, 높이 0.9 mm, mechanical lock, 수평 결합 type, back flip FPC connector

    기계식 Lock 기능에 의한 높은 FPC 유지력

    단자 변형 방지 설계

    FPC 미삽입 상태에서도 액추에이터 닫기 조작 가능(단자 변형 최소화)

Contact Pitch:
0.3 mm
Mating Type / Direction:
Horizontal
Height:
0.9 +/- 0.1 mm
Available Pin Count:
Short Actuator: 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37
Long Actuator: 51, 53, 57, 61, 71
FPC / FFC Thickness:
0.2 +/- 0.03 mm
Current Rating:
Signal: 0.3 A/pin

다운로드

기계식 Lock 기능에 의한 높은 FPC 유지력

추가적인 기계적 잠금 기능을 활용한 높은FPC 고정력

단자 변형 방지 설계

Contact변형을 방지하도록 설계

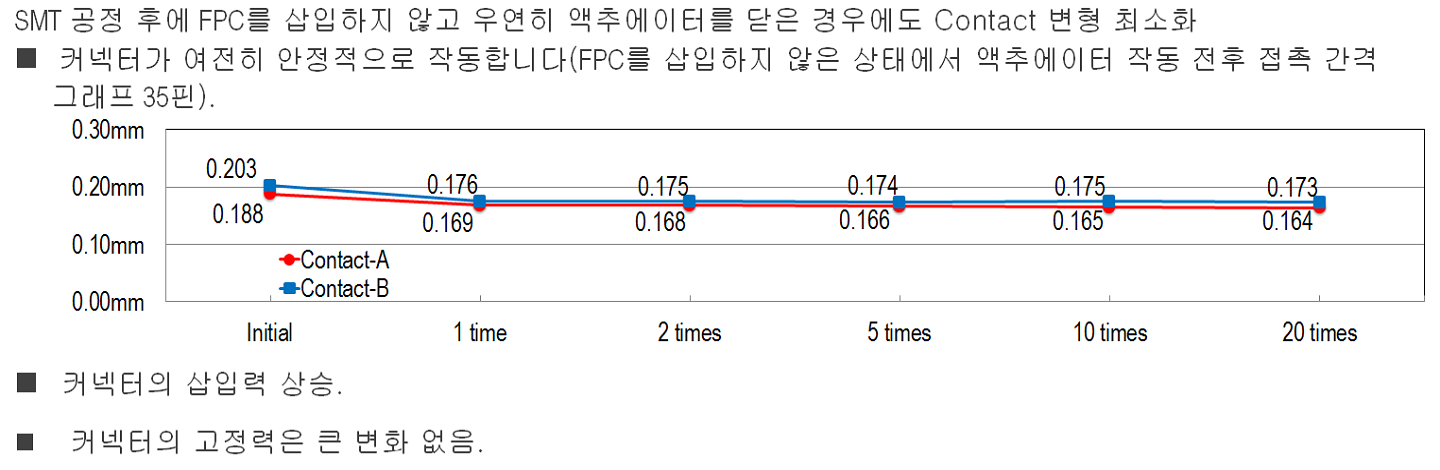

FPC 미삽입 상태에서도 액추에이터 닫기 조작 가능(단자 변형 최소화)

FPC 미삽입 상태에서도 액추에이터 닫기 조작 가능(단자 변형 최소화)White Paper: I-PEX's unique countermeasure to potential issues caused by closing actuator without FPC inserted


Product Type
Back Flip
Contact Pitch
0.3 mm
Mating Type / Direction
Horizontal
Height
0.9 +/- 0.1 mm
Available Pin Count Short Actuator: 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37
Long Actuator: 51, 53, 57, 61, 71
Depth
Short Actuator Open: 2.55 mmShort Actuator Close: 3.0 mmLong Acutuator Open: 2.55 mmLong Acutuator Close: 3.5 mm
Width
2.1 + (0.3 x pin count) mm
FPC / FFC Thickness
0.2 +/- 0.03 mm
Current Rating
Signal: 0.3 A/pin
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
Yes
Other Features
High-retention mechanical lock

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.


MINIFLEX 3-BFN LK standard vs long size



MINIFLEX 3-BFN LK RECOMMENDED Part Number

Part Number Description Part Number Weight (mg) Note
MINIFLEX 3-BFN LK standard 9pin 20599-009E-01 18.28 　
MINIFLEX 3-BFN LK standard 11pin 20599-011E-01 21.58 　
MINIFLEX 3-BFN LK standard 13pin 20599-013E-01 24.88 　
MINIFLEX 3-BFN LK standard 15pin 20599-015E-01 28.18 　
MINIFLEX 3-BFN LK standard 17pin 20599-017E-01 31.48 　
MINIFLEX 3-BFN LK standard 19pin 20599-019E-01 34.08 　
MINIFLEX 3-BFN LK standard 21pin 20599-021E-01 36.58 　
MINIFLEX 3-BFN LK standard 23pin 20599-023E-01 39.08 　
MINIFLEX 3-BFN LK standard 25pin 20599-025E-01 41.78 　
MINIFLEX 3-BFN LK standard 27pin 20599-027E-01 44.98 　
MINIFLEX 3-BFN LK standard 29pin 20599-029E-01 47.98 　
MINIFLEX 3-BFN LK standard 31pin 20599-031E-01 51.18 　
MINIFLEX 3-BFN LK standard 33pin 20599-033E-01 54.48 　
MINIFLEX 3-BFN LK standard 35pin 20599-035E-01 57.78 　
MINIFLEX 3-BFN LK standard 37pin 20599-037E-01 61.08 　
MINIFLEX 3-BFN LK long 51pin 20584-051E-01 85.38 　
MINIFLEX 3-BFN LK long 53pin 20584-053E-01 87.88 　
MINIFLEX 3-BFN LK long 57pin 20584-057E-01 98.28 　
MINIFLEX 3-BFN LK long 61pin 20584-061E-01 104.88 　
MINIFLEX 3-BFN LK long 71pin 20584-071E-01 121.08 　

MINIFLEX 3-BFN LK Plan to EOL Part Number

Part Number Description EOL P/N EOL P/N feature Alternative P/N Alternative P/N feature
MINIFLEX 3-BFN LK long 29pin 20584-029E-01 Long actuator: close 3.5 mm 20599-029E-01 Standard actuator: close 3.0 mm
MINIFLEX 3-BFN LK long 31pin 20584-031E-01 Long actuator: close 3.5 mm 20599-031E-01 Standard actuator: close 3.0 mm
MINIFLEX 3-BFN LK long 35pin 20584-035E-01 Long actuator: close 3.5 mm 20599-035E-01 Standard actuator: close 3.0 mm
MINIFLEX 3-BFN LK long 37pin 20584-037E-01 Long actuator: close 3.5 mm 20599-037E-01 Standard actuator: close 3.0 mm
MINIFLEX 3-BFN LK long 40pin 20584-040E-01 No FPC lock, no hold down 20655-040E-01 With FPC lock, with hold down
MINIFLEX 3-BFN LK long 41pin 20584-041E-01 Normal retention force 20613-041E-02 High retention force
MINIFLEX 3-BFN LK long 45pin 20584-045E-01 Normal retention force 20613-045E-02 High retention force
MINIFLEX 3-BFN LK long 47pin 20584-047E-01 　 Contact us
