MINIDOCK™ SLIM

堅牢な多極ドッキングI/Oコネクタ
多くのアプリケーションに対応した堅牢なコネクタ(ポータブル機器や医療機器等)
挿抜保証回数:5,000サイクル
嵌合タイプと保有芯数が豊富
コンタクトピッチ (mm):
0.635 mm
芯数:
80
160
嵌合タイプ:
水平嵌合
垂直嵌合
ダウンロード
-
PCB/FPCデータ
-
シンボル&フットプリント
シンボル&フットプリントは外部サイト(SnapMagic)に遷移後ダウンロードいただけます。
-
-
-
証明書
多くのアプリケーションに対応した堅牢なコネクタ(ポータブル機器や医療機器等)

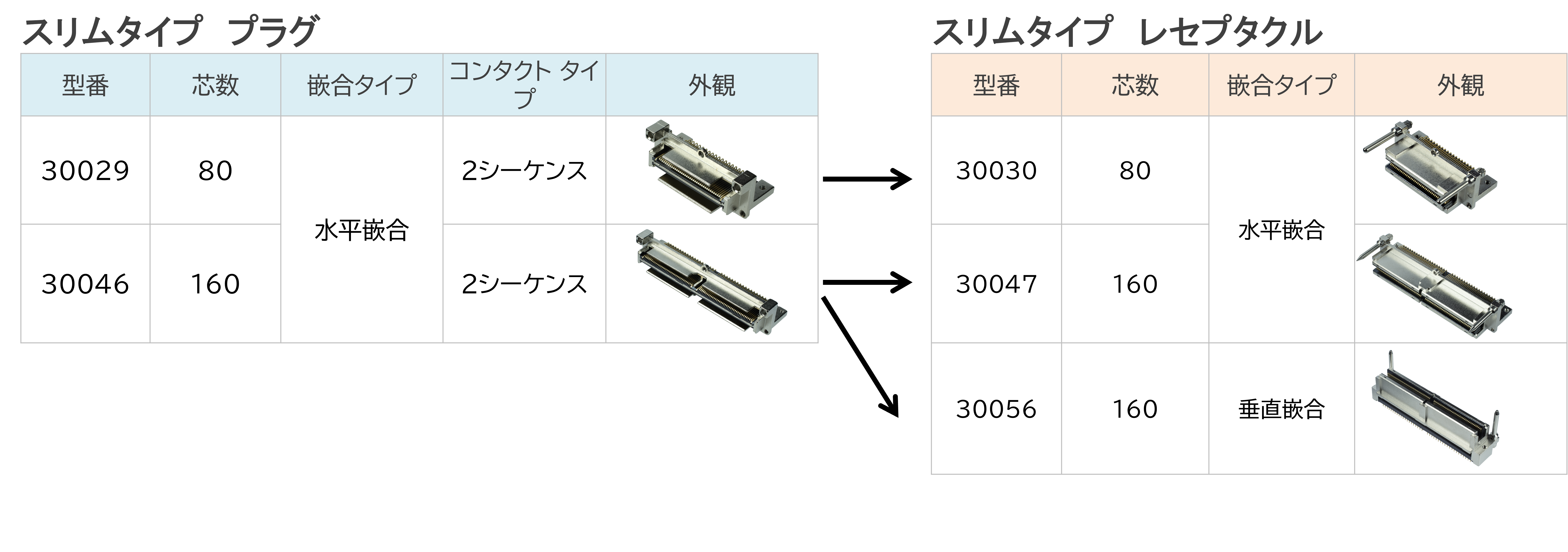

スリムタイププラグ スリムタイプレセプタクル
型番 | 芯数 | 嵌合タイプ | コンタクトタイプ | 外観 | 型番 | 芯数 | 嵌合タイプ | 外観 | |
30029 |
80 |
水平嵌合
|
2 シーケンス |
![]() |
→ |
30030 |
80 |
水平嵌合 |
![]() |
30046 |
160 |
2 シーケンス |
![]() |
→ |
30047 |
160 |
![]() |
||
30056 |
160 |
垂直嵌合 |
![]() |
挿抜保証回数:5,000サイクル

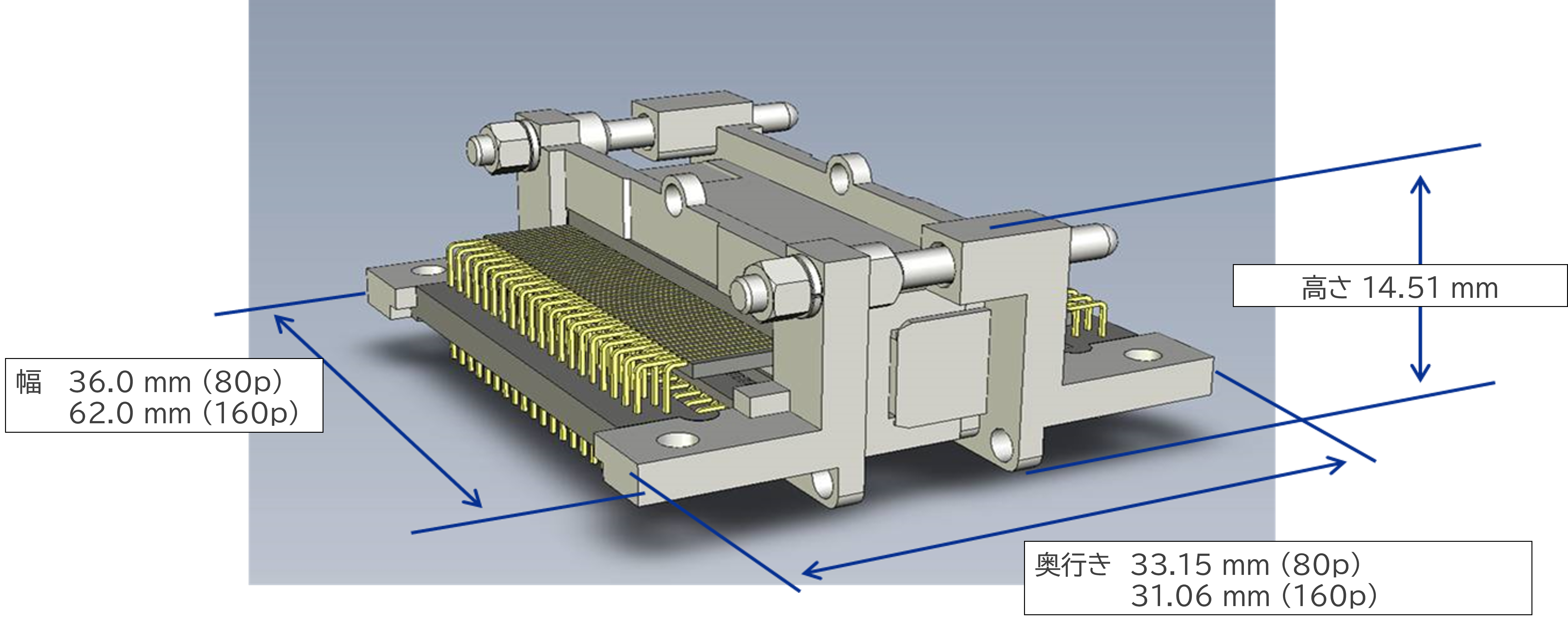

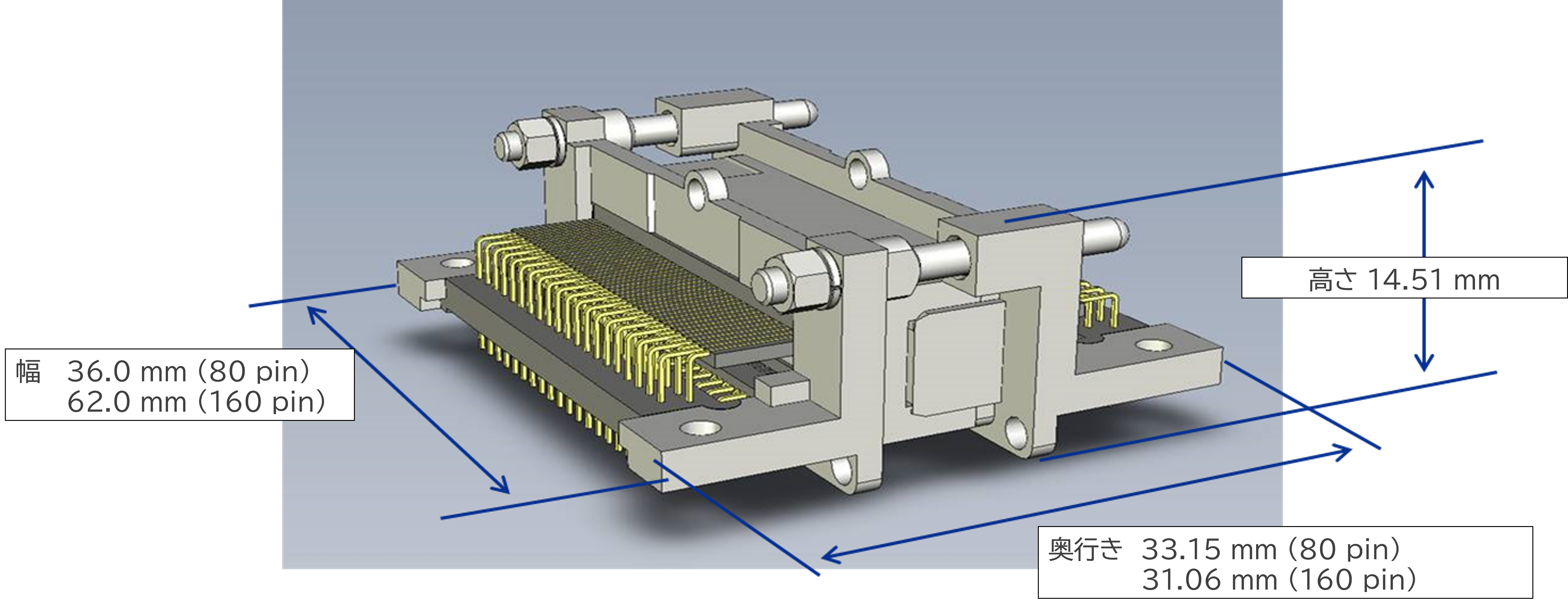

水平嵌合プラグ – 水平嵌合レセプタクル
型番

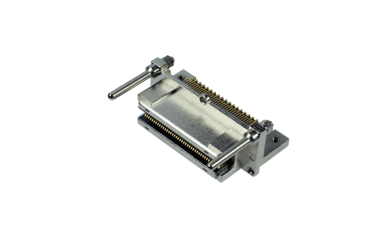

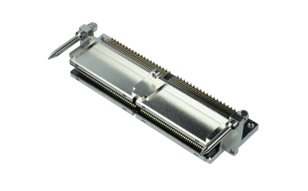

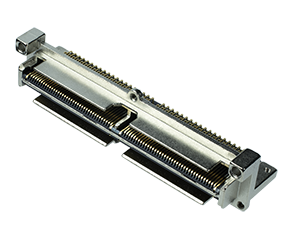

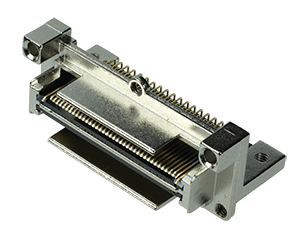

プラグ 30029 (80 pin), 30046 (160 pin)

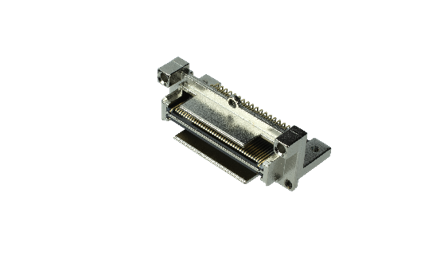

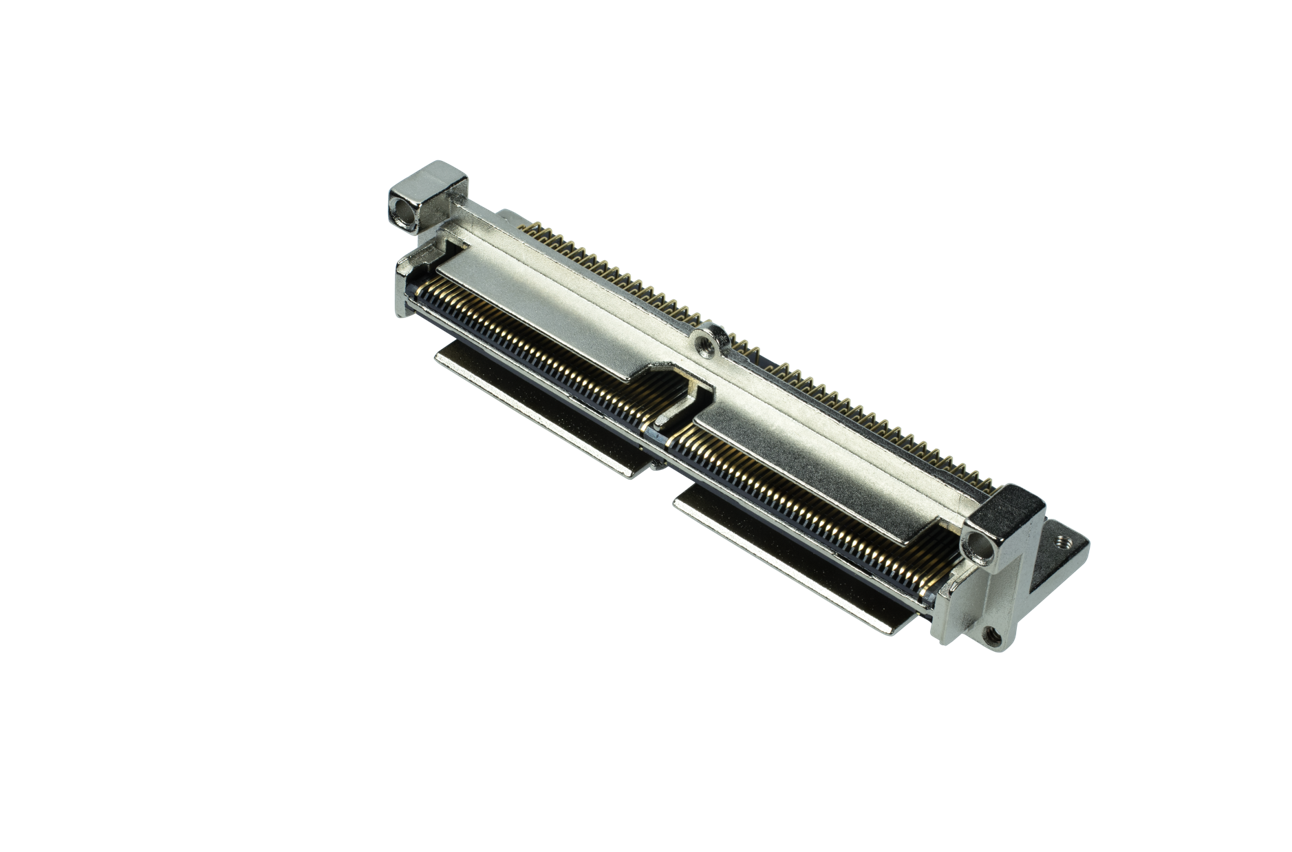

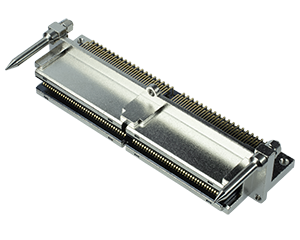

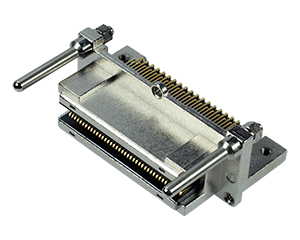

レセプタクル 30030 (80 pin), 30047 (160 pin)

嵌合タイプと保有芯数が豊富

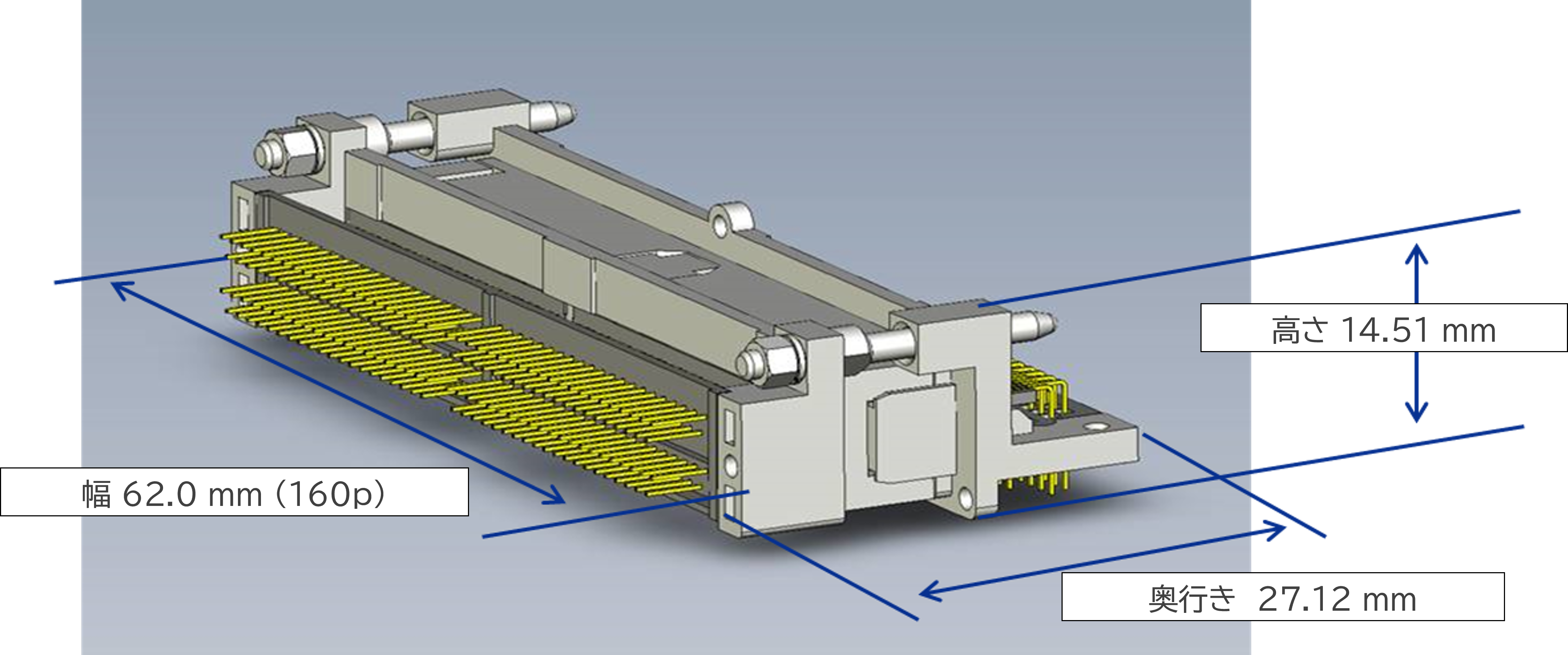

水平嵌合プラグ – 垂直嵌合レセプタクル
型番
プラグ 30046 (160 pin)

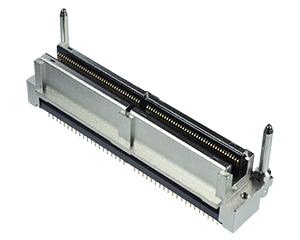

レセプタクル 30056 (160 pin)

嵌合タイプ |
水平嵌合
垂直嵌合
|
Width Formula |
36.0 ~ 96.10 mm (Plug / Rece) mm
|
Pin count |
80
160
|
Other Features |
With BOSS
With screw
|
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
MINIDOCK (Slim) RECOMMENDED PART NUMBERS
Part Number Description | Part Number | Weight (mg) |
MINIDOCK SLIM plug right-angle 80pin without boss without screw | 30029-080T-01F | 10090 |
MINIDOCK SLIM plug right-angle 160pin with screw, contact length L=5.36 | 30046-160T-F | 17375.2 |
MINIDOCK SLIM receptacle right-angle 80pin without boss without screw | 30030-080T-03F | 13378 |
MINIDOCK SLIM receptacle right-angle 160pin without screw | 30047-160T-01F | 20800 |
MINIDOCK SLIM receptacle vertical 160pin with screw | 30056-160T-F | 23809.2 |
OTHER MINIDOCK (Slim) PART NUMBERS
Part Number Description | Part Number | Weight (mg) |
MINIDOCK SLIM plug right-angle 80pin with boss with screw | 30029-080T-02F | 10310 |
MINIDOCK SLIM plug right-angle 80pin with boss without screw | 30029-080T-03F | 10360 |
MINIDOCK SLIM plug right-angle 80pin without boss with screw | 30029-080T-F | 10310 |
MINIDOCK SLIM plug right-angle 160pin without screw | 30046-160T-01F | 15840 |
MINIDOCK SLIM plug right-angle 160pin without screw, contact length L=4.66 | 30046-160T-03F | 18985.2 |
MINIDOCK SLIM receptacle right-angle 80pin without boss with screw | 30030-080T-01F | 13410 |
MINIDOCK SLIM receptacle right-angle 80pin with boss with screw | 30030-080T-19F | 13958 |
MINIDOCK SLIM receptacle right-angle 160pin with screw | 30047-160T-04F | 61515.6 |
MINIDOCK SLIM receptacle vertical 160pin without screw | 30056-160T-01F | 20780 |
MINIDOCK SLIM plug right-angle 160pin | 30046-160T-02F | 15840 |
MINIDOCK SLIM receptacle right-angle 160pin | 30047-160T-F | 61515.6 |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
