MHF® 4

节省空间的低背设计，非常适合紧凑型无线设备，支持最高可达 9 GHz，射频连接器最大嵌合高度为 1.2 mm

    对应9 GHz的高性能小型连接器

    使用“i-Fit®” 技术的无需焊接极细同轴线连结

    MHF ® 4 公座适用的极细同轴线外径(AWG): 0.81 mm (36)

*MHF® 4 可与 MHF® 4L 互配。
*如您需要了解与MHF®4母座匹配的更小或更大电缆外径的公座，请查看MHF®4L产品资料。
*关于机械锁扣的额外嵌合保持力，请查看MHF®4L LK公座电缆组件资料。我们提供1.37 mm电缆外径类型。
Mated Height:
1.2 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 36 O.D. 0.81 mm

下载

对应9 GHz的高性能小型连接器

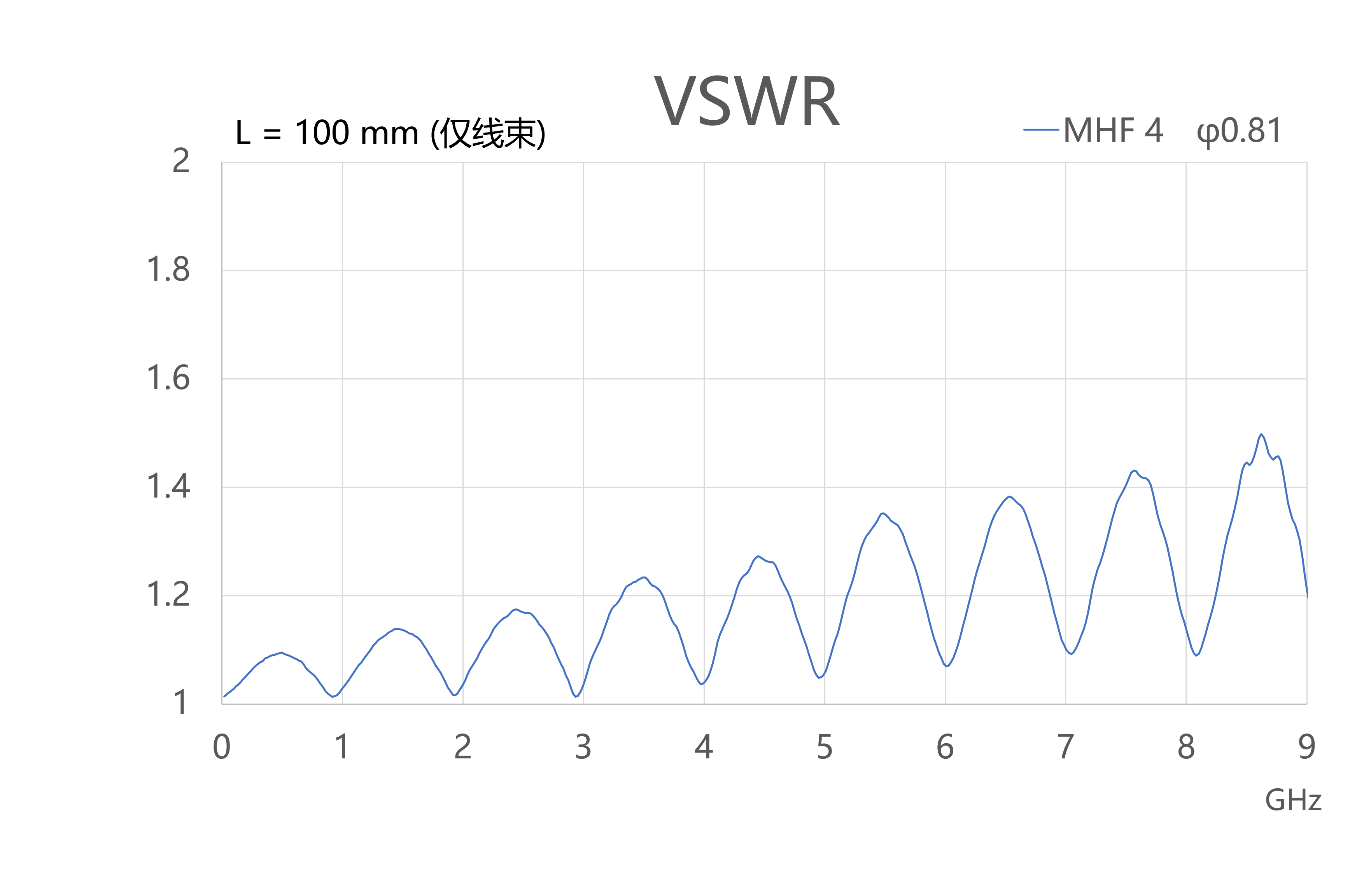

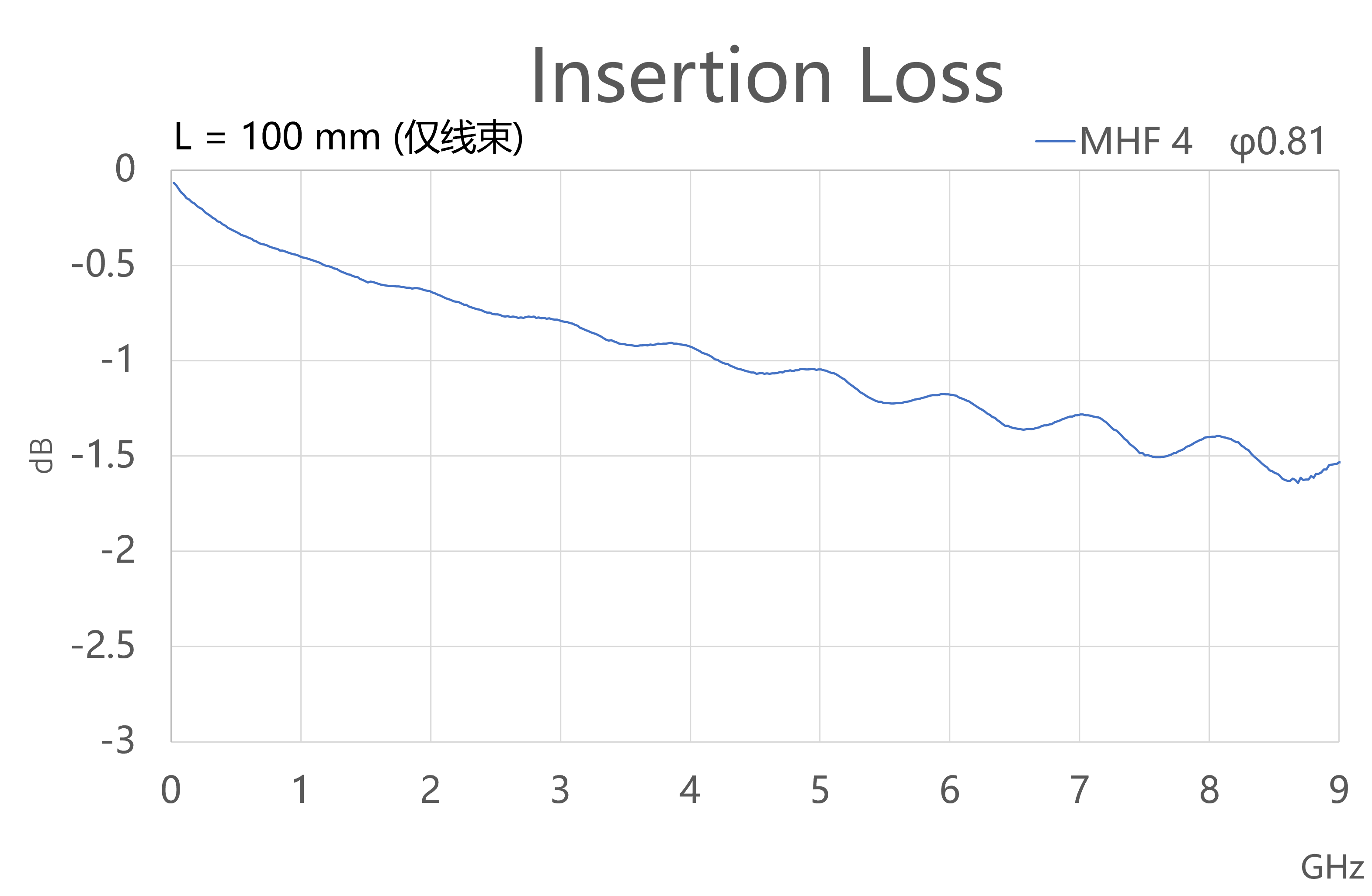

MHF 4_VSWR MHF 4_Insertion Loss



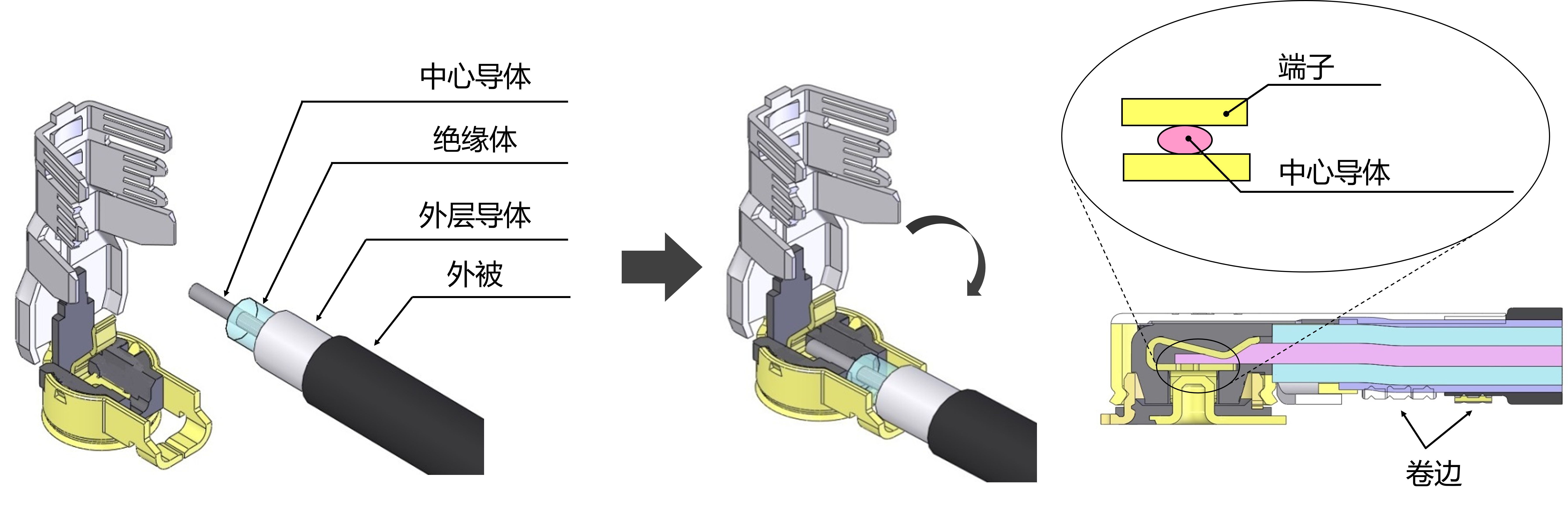

使用“i-Fit®” 技术的无需焊接极细同轴线连结

使用“i-Fit®” 技术的无需焊接极细同轴线连结

MHF ® 4 公座适用的极细同轴线外径(AWG): 0.81 mm (36)



Product name
MHF® 4L
MHF® 4
Frequency
DC ~ 12 GHz (MHF® 4L Plug x MHF® 4L Rece.)
DC ~ 9 GHz (MHF® 4L Plug x MHF® 4 Rece.)
DC ~ 9 GHz
Mating Height
1.7 mm max.
1.4 mm max.
1.2 mm max.
1.2 mm max.
Coaxial O.D. (Center Conductor AWG)
1.37 mm (AWG 30)
●



1.13 mm (AWG 32)

●


0.95 mm (AWG 33)

●


0.81 mm (AWG 36)


●
●
0.64 mm (AWG 36)


●

Receptacle
MHF® 4L/MHF® 4 receptacle
MHF® 4L / MHF® 4 receptacle




Product Type
Coaxial RF Connector
Mated Height
1.2 mm max.
SMT Size
2.0 x 2.0 mm
Frequency Range Up to 9 GHz
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 36 O.D. 0.81 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 2.0 max.
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
No
VSWR (Harness only) DC ~ 3 GHz : 1.3 max.
3 ~ 6 GHz : 1.5 max.
6 ~ 9 GHz : 2.0 max.

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



MHF 4 RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4 plug  OD=0.81mm 20611-001R 16.64
MHF 4 receptacle 20449-001E-03 4.54



MHF 4 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4-4 OD0.81MM 100MM

Part Number Description Part Number Weight (mg)
MHF 4-4 harness OD=0.81mm L=100mm 8-25-0886 200.4
MHF 4-4 harness OD=0.81mm L=200mm 8-25-0887 400.8
MHF 4-4 harness OD=0.81mm L=300mm 8-25-0888 601.2
MHF 4-4 harness OD=0.81mm L=400mm 8-25-0889 801.6
MHF 4-4 harness OD=0.81mm L=500mm 8-25-0890 1002



MHF 4 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4-4 OD0.81MM 100MM Type-2

Part Number Description Part Number Weight (mg)
MHF 4-4 harness OD=0.81mm L=100mm 180 degree orientation 8-25-0912 199.2
MHF 4-4 harness OD=0.81mm L=200mm 180 degree orientation 8-25-0913 366.2
MHF 4-4 harness OD=0.81mm L=300mm 180 degree orientation 8-25-0914 624.6
MHF 4-4 harness OD=0.81mm L=400mm 180 degree orientation 8-25-0915 791.6
MHF 4-4 harness OD=0.81mm L=500mm 180 degree orientation 8-25-0916 1002
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



OTHER MHF 4 PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4 plug  Au plating OD=0.81mm 20448-001R-081 16.64
MHF 4 plug 20448-001R-081E 4.54
MHF 4 receptacle thick plating type 20449-001E 4.54
MHF 4 receptacle 20449-001E-01 16.64

MHF 4 ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check 90449-001 2571.2

For_Plug_Voltage_MHF_4&4L&4L_LK
MHF 4/4L/4L LK adapter for plug voltage-check 90449-003-01 680

For voltage check
MHF 4 SMA adaptor for plug low mating 90449-003-02 680
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check 90449-002 1685

For electrical performance check
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle 90698-0001 7170

Probe
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm 90577-0100 4503.2

Adaptor cable (Attach to probe)
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm 90577-0200 5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm 90577-0750 9769.8
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe 90576-0001 1458.1

Probe
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF series SMA adapter for receptacle high-cycle detachable base
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe 90683-0001 1822.3

Probe
MHF 4 insertion/extraction tool 90435-001 648.5

Insertion/Extraction tool
MHF 4 insertion/extraction tweezer 90482-001 17834.6

MHF_4L_LK_Insertion_Extraction_Tweezer
MHF 4 high cycle SMA adaptor for receptacle 90510-001 6770
MHF4 plug reinforced lock SMA adaptor 90638-0001 2600



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF 4 91603-001B-001 18066

MHF_4_SI_TB-1039_Test_Board_(C)

Main Board

MHF_4L_SI_TB-859_THRU_Board_(C)
Thru Board



Insertion/Extraction tools and tweezer are ready for MHF® 4 connector

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.



Insertion/Extraction tool

How to extract

Insertion/Extraction tools to handle MHF® I (4 pads receptacle)

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.



Insertion/Extraction tweezer

How to extract

Insertion/Extraction tweezer_1

Closing the tool lightly, slide it to the end.

 Insertion/Extraction tweezer_2

Clip the plug and pull the tool vertically from the receptacle to withdraw.



Adapters for plugs and receptacles

 For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series High Cycle Series
Standard type Narrow Pitch type Detachable type
Durability: 500 Durability: 10,000 Durability: 10,000 (Probe), 100 (Cable) Durability: 10,000 (Probe), 200,000 (Base)
MHF_I&_LK_Rece_Standard

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.

 MHF_I&_LK_Rece_High_Cycle_Standard

The Standard type connects directly from the probe to the measuring instrument.

 MHF_I&_LK_Rece_High_Cycle_Narrow

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

 MHF_I&_LK_Rece_High_Cycle_Detachable

The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.



SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board



MHF 4 EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF 4 receptacle 20449-001E-07 Smaller reel size, MOQ: 2,500 20449-001E-03 Larger reel size, MOQ: 10,000
