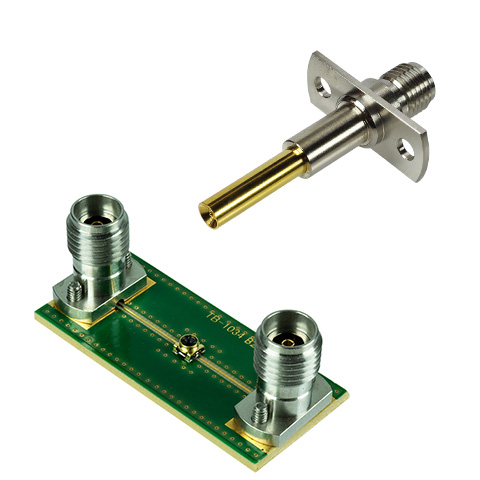

Accessories for MHF^®-SW23

Inspection tools and SI test boards are essential for verifying that connectors are implemented as intended and perform as expected in actual applications.

■ Adapters
■ SI Test Boards
*A solution video demonstrating the flexibility to choose either the on-board antenna or an external antenna is available.
*For MHF^®-SW23 series products, please visit the MHF^®-SW23, MHF^®-SW23 PLUG pages.

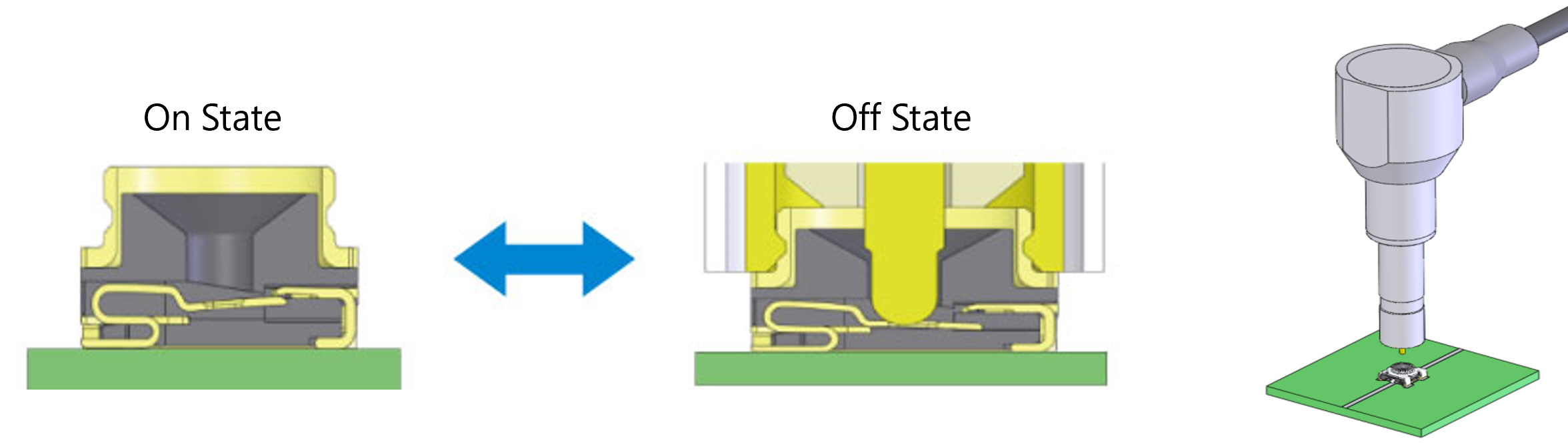

Adapters for MHF Switch

For MHF^® switch inspection, we provide three types to suit different applications, such as a cable probe (friction lock) and two high-cycle probes (standard and floating).

Type	Cable probe	High cycle series

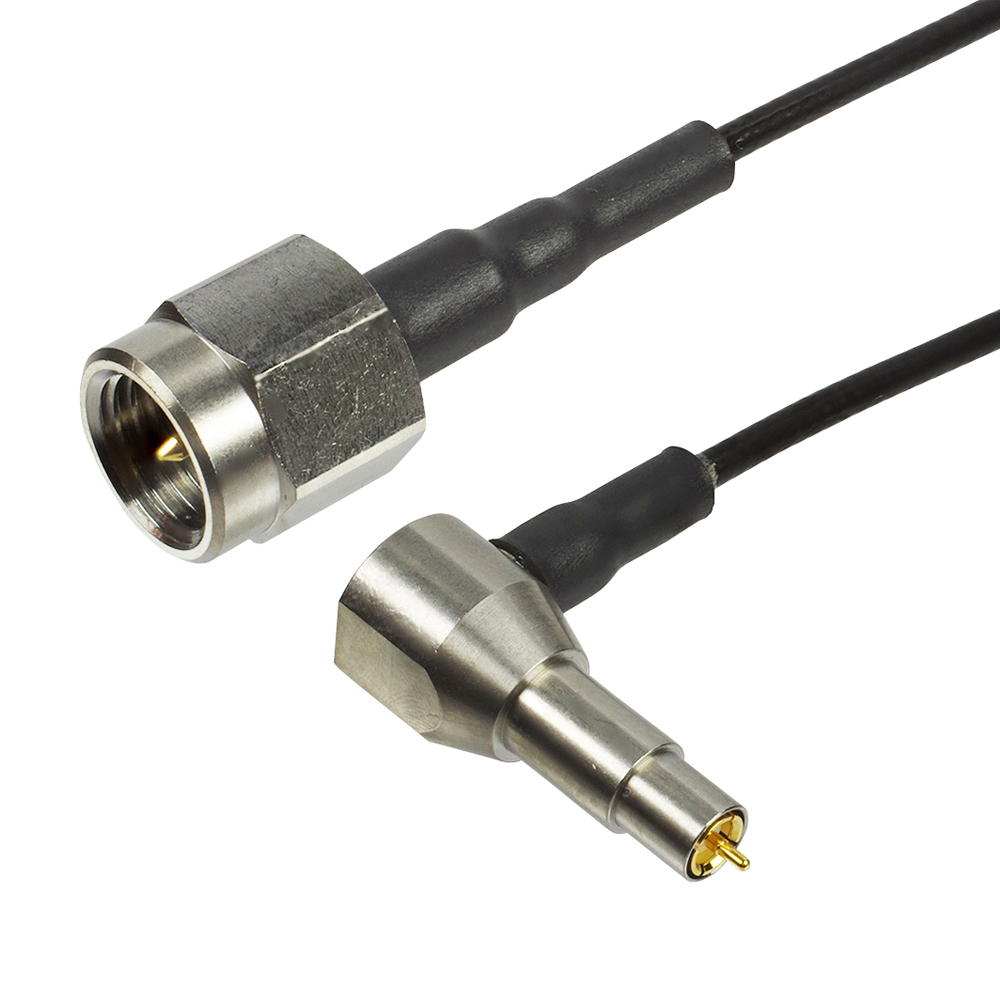

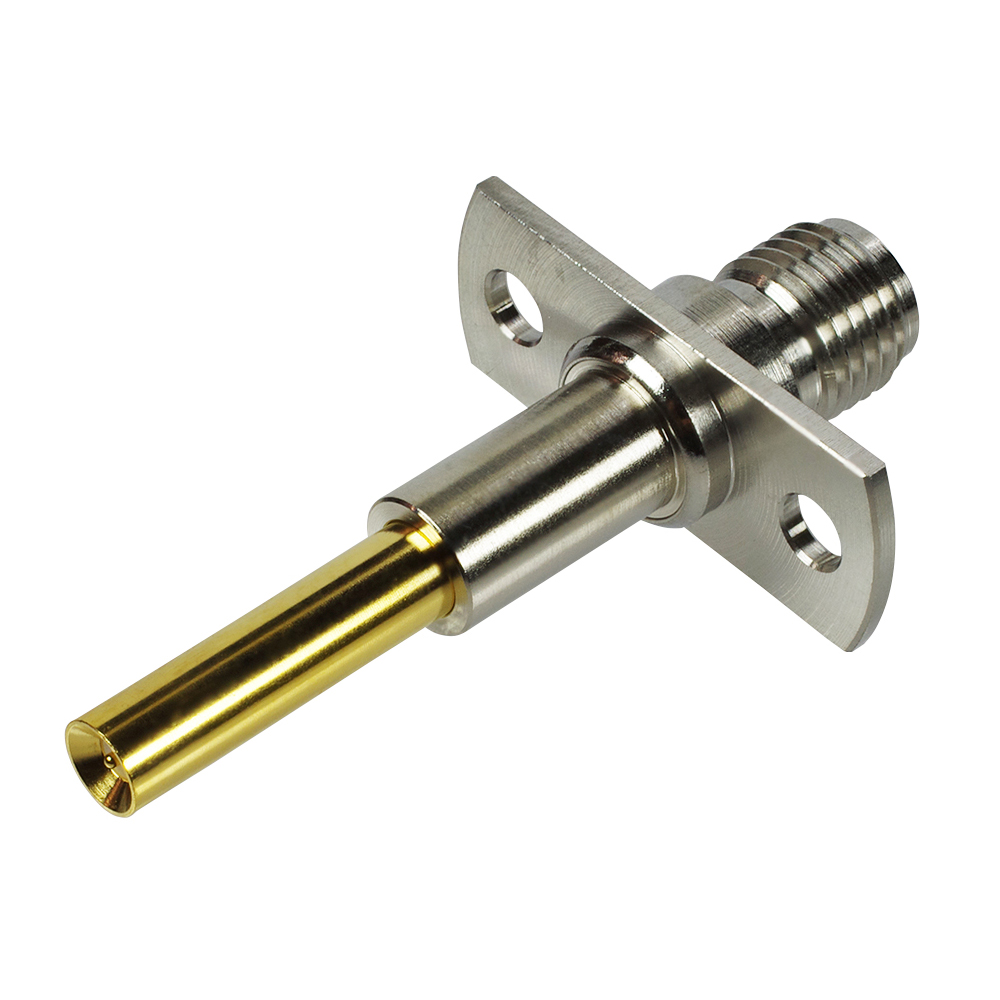

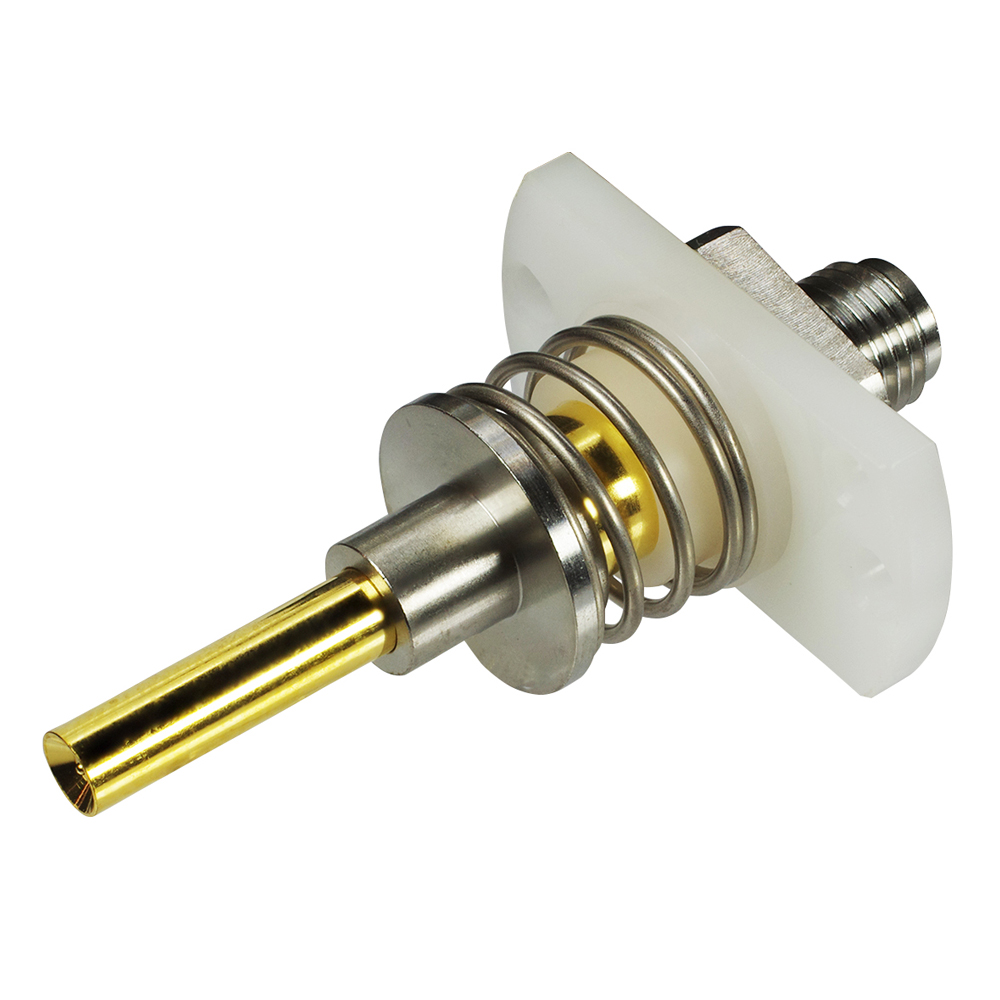

Type	Friction lock	Standard probe	Floating probe
Appearance (Reference)
Durability (cycles)	1,000	10,000	200,000
MHF^®-SW23	90582-0300 (Cable: 300 mm) 90582-0400 (Cable: 400 mm)	90604-0001	90605-0001

To learn more details, please see manuals in the table below.

SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

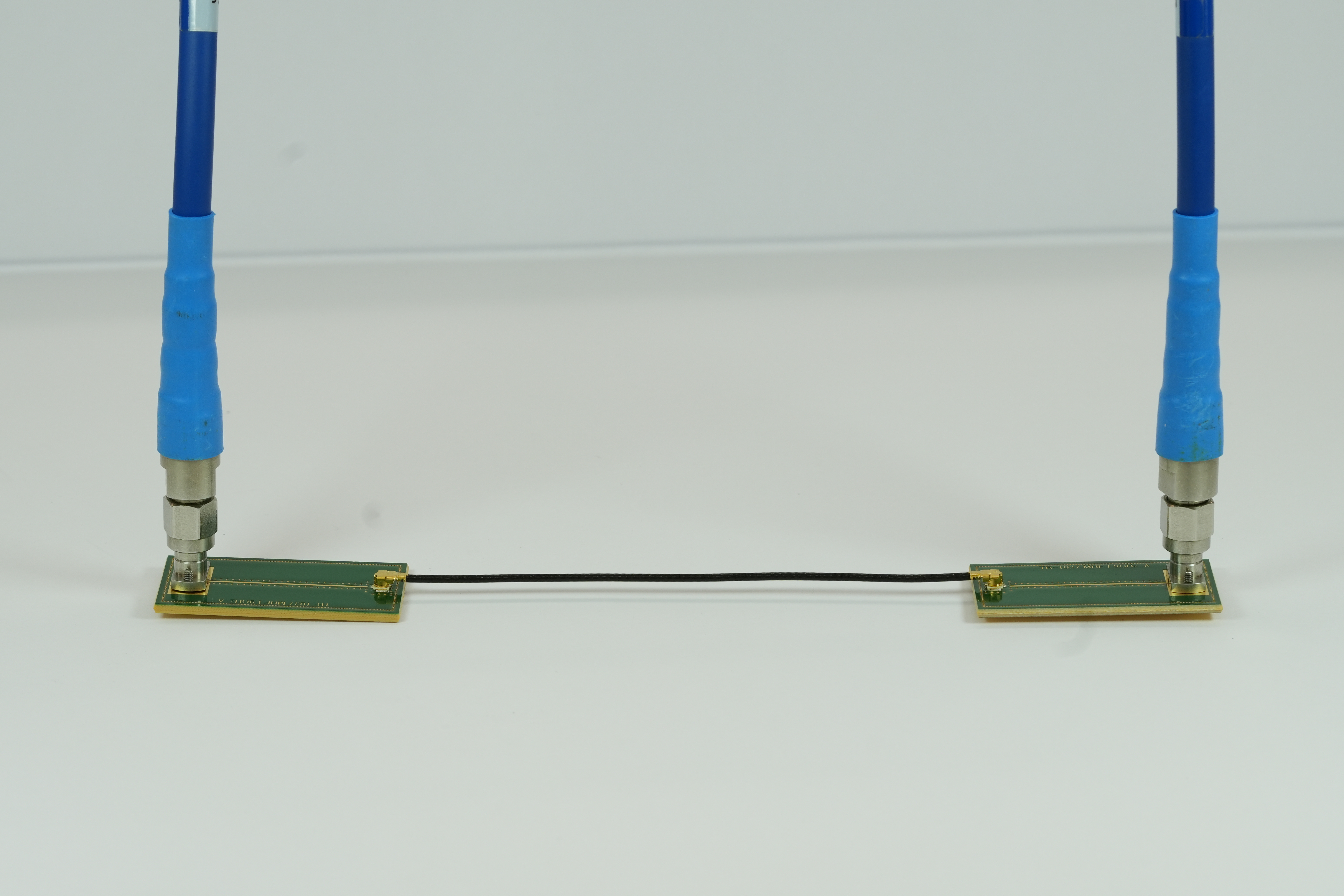

Signal Integrity Test Board

To learn more details, please see the table below.

Downloads

SMA Adapter for Switch
Product Description	Part Number	Image	2D Drawing	Product Specification	Packing Standard	Manual	Note

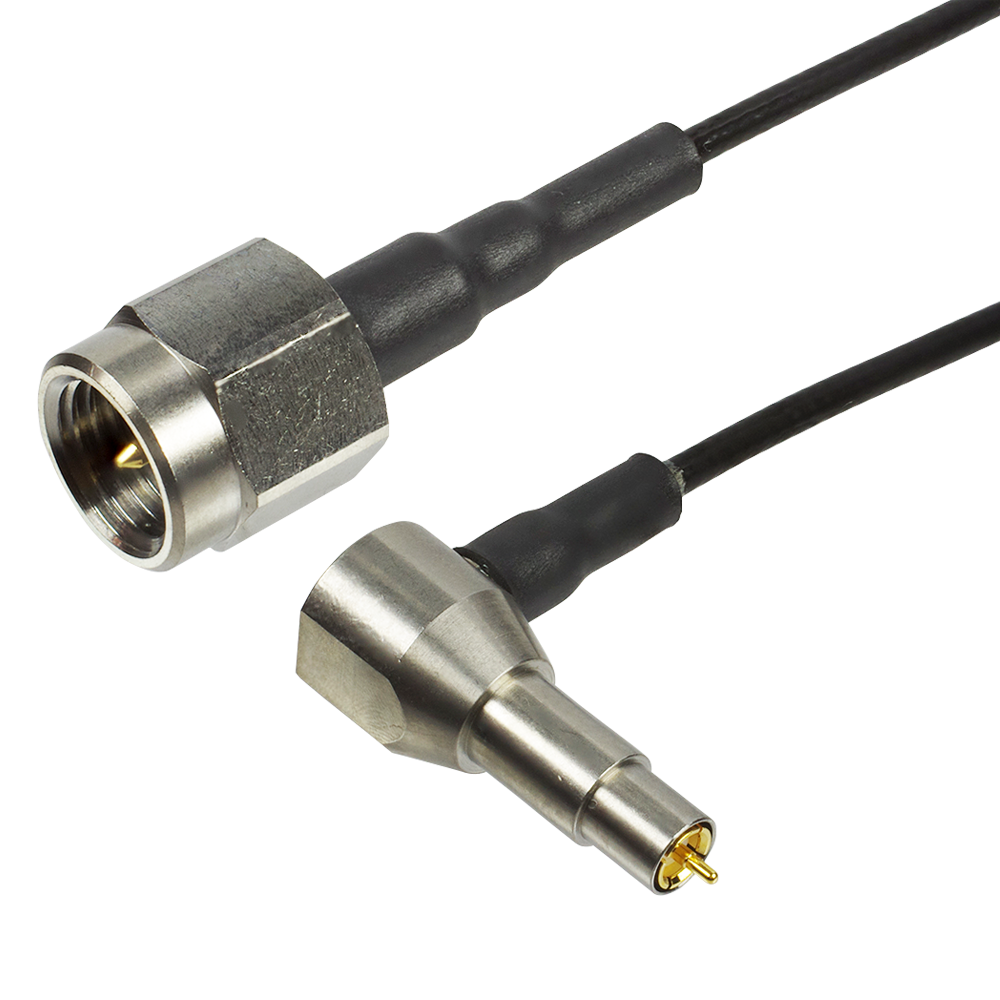

MHF-SW23 manual probe friction-lock L=300mm	90582-0300
MHF-SW23 manual probe Friction Lock L400mm	90582-0400

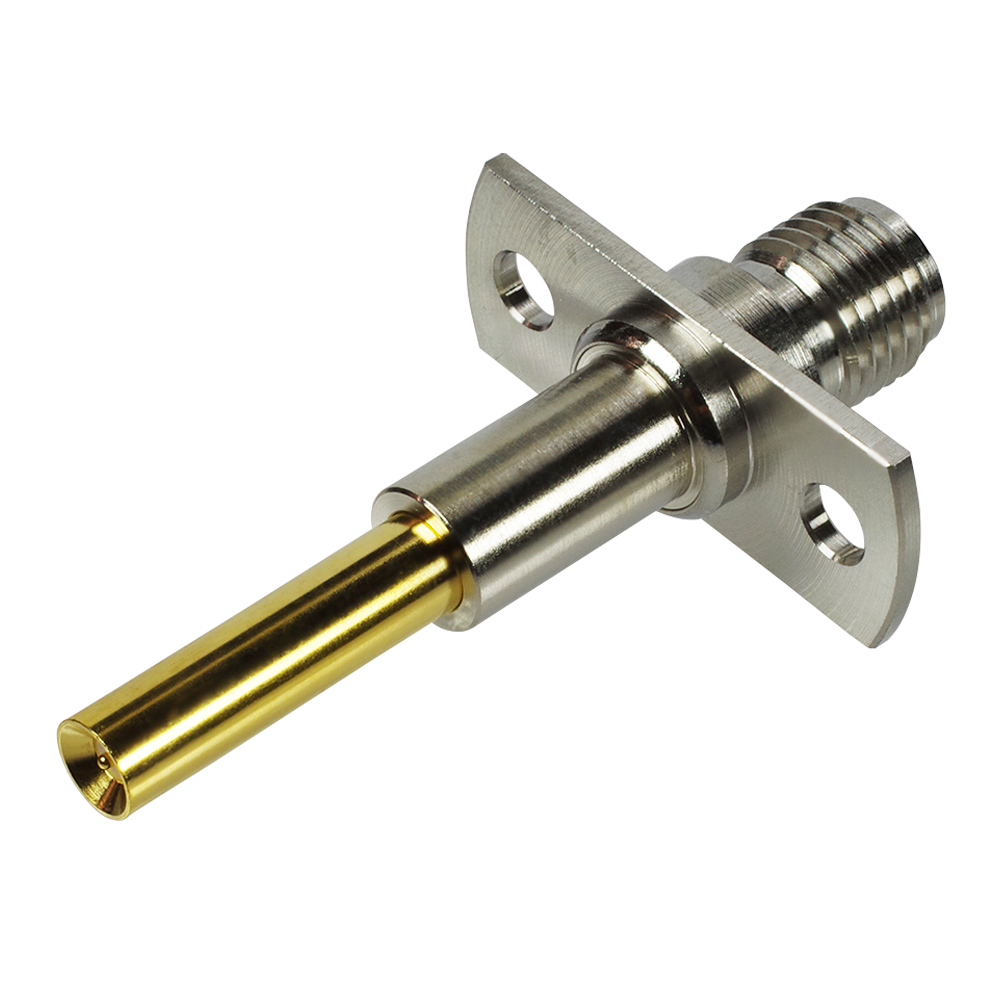

MHF-SW23 high cycle probe without-floating	90604-0001

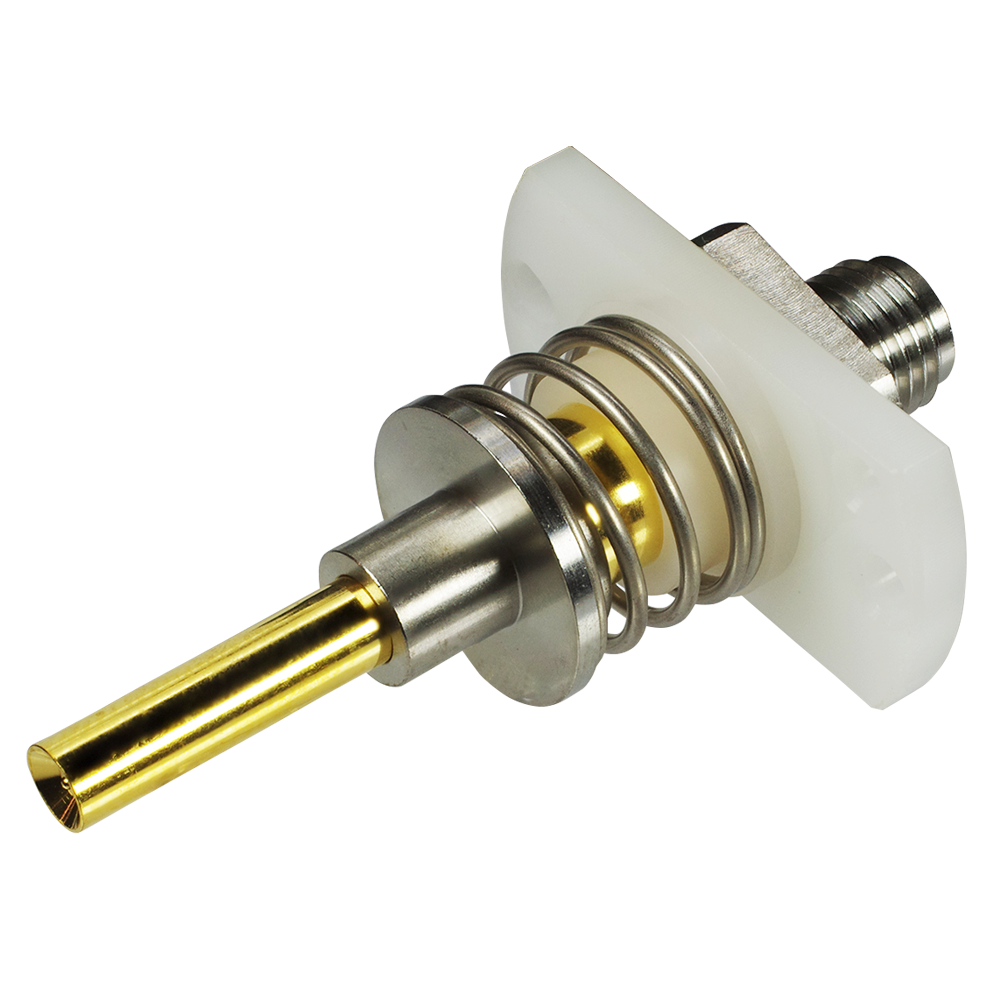

MHF-SW23 high cycle probe floating-type	90605-0001
SI Test Board
SI Test Board for MHF-SW23	91607-001B-001	Main Board Thru Board		-	-	-
