MHF®-SW23

RF switch connector with a 2.3 x 2.3 mm footprint, supports to 11 GHz

    2.3 x 2.3 mm excellent inspection connector for RF modules with on-board antennas

    Contaminant-resistant design prevents disruption

    Variety of inspection probes available

*Plug compatible with the MHF®-SW23 RF switch for external antennas, please review the MHF®-SW23 PLUG.

*A solution video demonstrating the flexibility to choose either the on-board antenna or an external antenna is available.
Mated Height:
1.35 max. mm
Frequency range:
Up to 11 GHz
Operating Temperature:
-40 to 85℃ (233 to 358 K)

Downloads

*SI Test Boards data are under 2D Drawings

2.3 x 2.3 mm excellent inspection connector for RF modules with on-board antennas

2.3 x 2.3 mm excellent Inspection connector for RF modules with on-board antennas

Contaminant-resistant design prevents disruption

Contaminant-resistant design prevents disruption

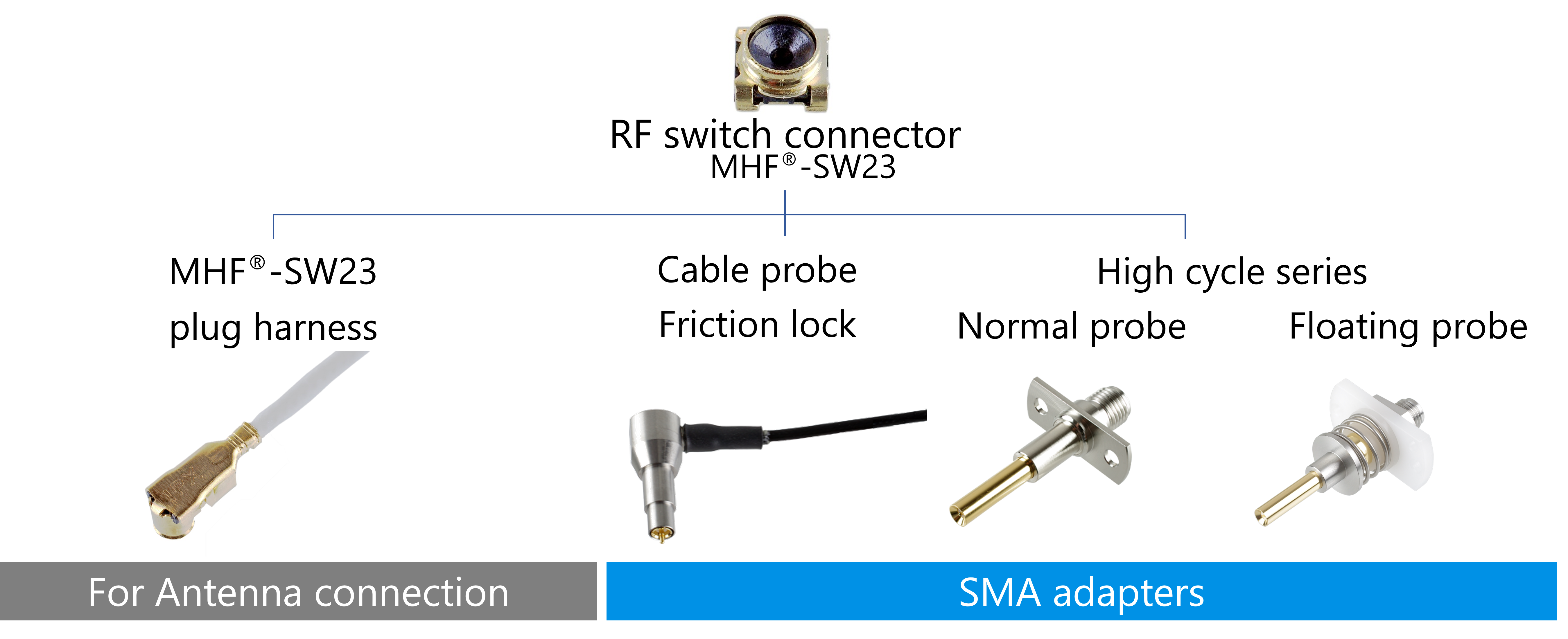

Variety of inspection probes available

Variety of inspection probes available


Product Type
RF switch
Mated Height
1.35 max. mm
SMT Size
2.3 x 2.3 mm
Frequency range Up to 11 GHz
Operating Temperature
-40 to 85℃ (233 to 358 K)
Shielded FPC / FFC
No
V.S.W.R.
DC to 2.5 GHz: 1.2 max.2.5 to 6 GHz: 1.3 max.6 to 11 GHz: 1.5 max.
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
Rated Power 2W max.
Characteristic Impedance 50 ohm
Insertion Loss DC to 2.5 GHz: 0.15 dB max.,
2.5 to 6 GHz: 0.2 dB max.,
6 to 11 GHz: 0.4 dB max.
Isolation DC to 3 GHz: 20.0 dB min.,
3 to 6 GHz: 15.0 dB min.,
6 to 11 GHz: 12.0 dB min.

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MHF-SW23 RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF-SW23 RF inspection switch 20549-001E 13.388
Other Part Numbers

Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



MHF-SW23 OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF-SW23 RF inspection switch 20549-001E-01 13.388

MHF-SW23 ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF-SW23 manual probe friction-lock L=300mm 90582-0300 5710 RF_t9_ACC1.png
MHF-SW23 manual probe friction-lock L=400mm 90582-0400 6200
MHF-SW23 high cycle probe without-floating 90604-0001 4250 RF_t9_ACC2.png
MHF-SW23 high cycle probe floating-type 90605-0001 9310 RF_t9_ACC3.png



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF-SW23 91607-001B-001 15677

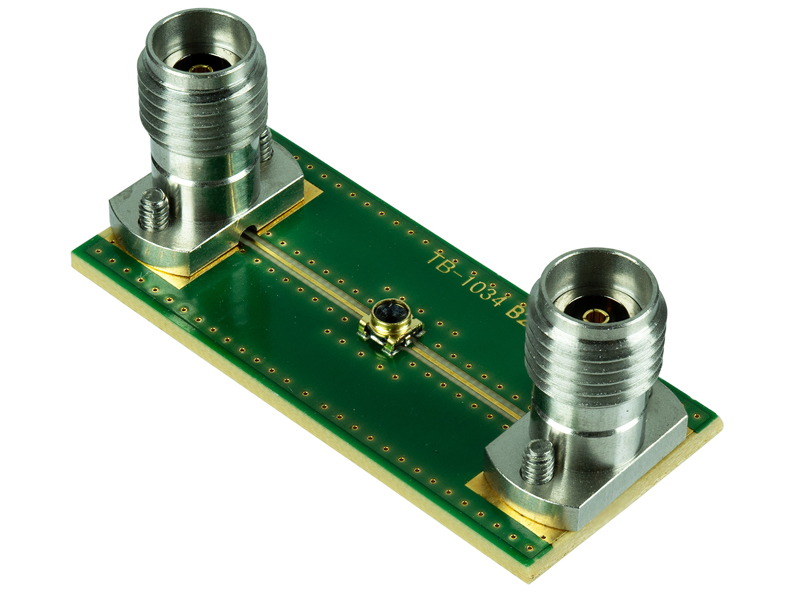

MHF-SW23_SI_TB-1034_Test_Board_(C)

Main Board

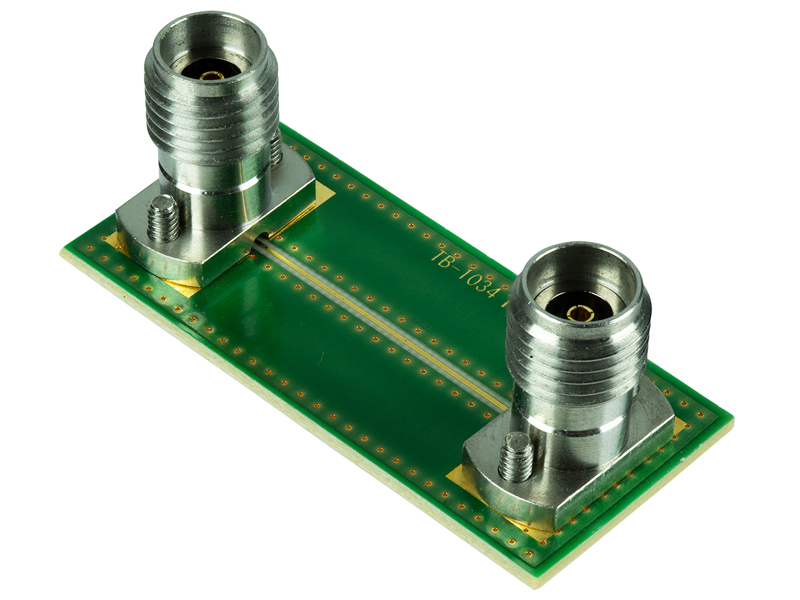

MHF-SW23_SI_TB-1034_THRU_Board_(C)
Thru Board
