MHF®-SW23 PLUG

Micro RF coaxial plug, mates to MHF®-SW23 RF switch PCB receptacle

    Flexibility to choose on-board antenna or external antenna

    Lower cost option for mating with MHF®-SW23 RF switch connector
    *MHF®-SW23

    Available harness configurations

*A solution video demonstrating the flexibility to choose either the on-board antenna or an external antenna is available.
Mated Height:
3.7 max. mm
Frequency Range:
Up to 9 GHz
Micro-Coaxial Cable:
AWG 32 O.D. 1.13 mm
Current rating:
4.5 A

Downloads

*SI Test Boards data are under 2D Drawings

Flexibility to choose on-board antenna or external antenna


Lower cost option for mating with MHF®-SW23 RF switch connector
*MHF®-SW23

MHF®-SW23

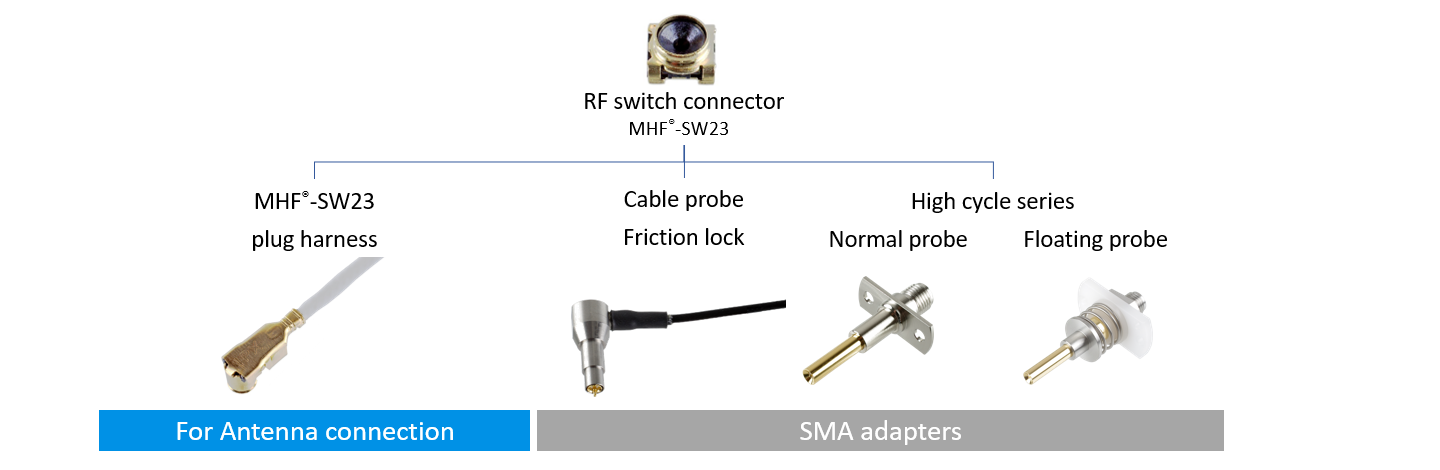

MHF_SW23_PLUG_FAB2_E



Available harness configurations


Product Type
Coaxial RF Connector
Mated Height
3.7 max. mm
SMT Size
2.3 x 2.3 mm
Frequency range Up to 9 GHz
Micro-Coaxial Cable
AWG 32 O.D. 1.13 mm
Shielded FPC / FFC
No
Current rating
4.5 A
Applicable Standards (Reference Only)
5G sub6IEEE802.11nIEEE802.11acIEEE802.11axIEEE802.11beWi-Fi 4Wi-Fi 5Wi-Fi 6/6EWi-Fi 7LTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
VSWR (Harness only) 0.3 ~ 3 GHz : 1.4 max.
3 ~ 6 GHz : 1.6 max.
6 ~ 9 GHz : 2.0 max.

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MHF-SW23 PLUG RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
MHF-SW23 harness OD=1.13mm Offered as harness only - *see note below
MHF-SW23 RF inspection switch connector 20549-001E 13.388 　

*The MHF-SW23 PLUG is offered as our MHF-SW23 PLUG harness assembly only.
  Please specify harness assembly specification (single-end or double-ended, cable size, length, color).



MHF-SW23 PLUG SAMPLE HARNESS FOR EVALUATION PART NUMBERS

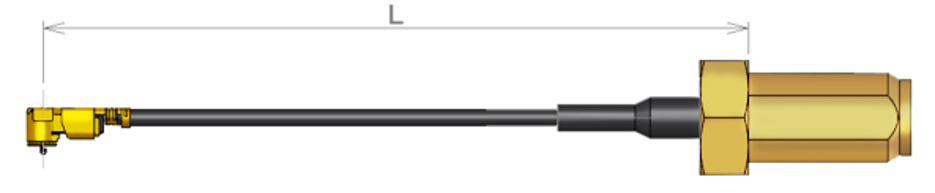

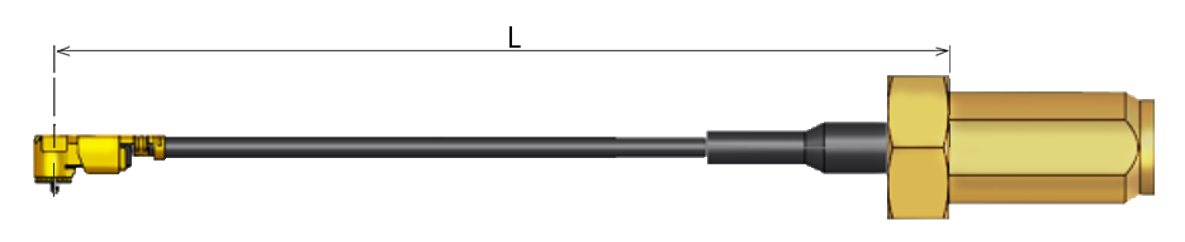

MHF-SW23-SMA JACK OD1.13MM 100MM

Part Number Description Part Number Weight (mg) Note
MHF-SW23-SMA Jack harness OD=1.13mm L=100mm 8-25-0540 - 　
MHF-SW23-SMA Jack harness OD=1.13mm L=150mm 8-25-0541 - 　
MHF-SW23-SMA Jack harness OD=1.13mm L=200mm 8-25-0542 - 　

SI Test Board with 2.92mm Adapter

 Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF-SW23 91607-001B-001 15677

MHF-SW23_SI_TB-1034_Test_Board_(C)

Main Board

MHF-SW23_SI_TB-1034_THRU_Board_(C)
Thru Board
