Lineup of adapters for MHF^® series.
Adapters are essential for verifying that products are properly set and ready to deliver optimal performance in their applications.​
These adapters are available for both plugs and receptacles, enabling reliable inspection and ensuring correct installation.

Adapters for Plug

SMA Adapters for Receptacle  (Lineup for Electrical Performance Check)

There are two types of plug inspection adapters: Electrical Performance Check and Voltage / Continuity Check.
Please note that the SMA type (Jack/Plug) for Electrical Check varies depending on the product.

Click on the product name in the list to go to the product page.

Products Name	Image	Description	Durability	Part Number	SMA type
MHF® I MHF® I LK		MHF I/I LK SMA adapter for plug electrical-performance-check	3,000	90193-001	Jack
MHF® 4 MHF® 4L MHF® 4L LK		MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check	3,000	90449-001	Plug

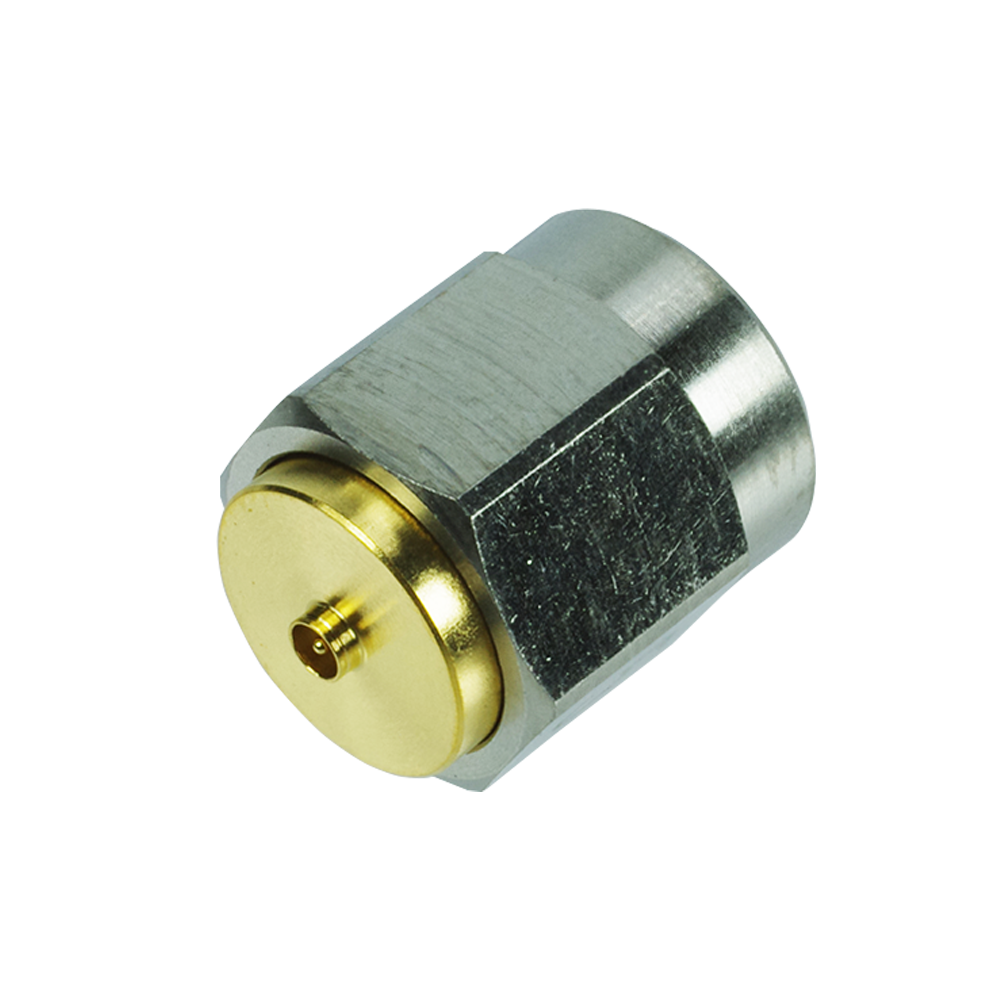

MHF® 5 MHF® 5L		MHF 5/5L SMA adapter for plug electrical-performance-check	3,000	90543-0001	Jack

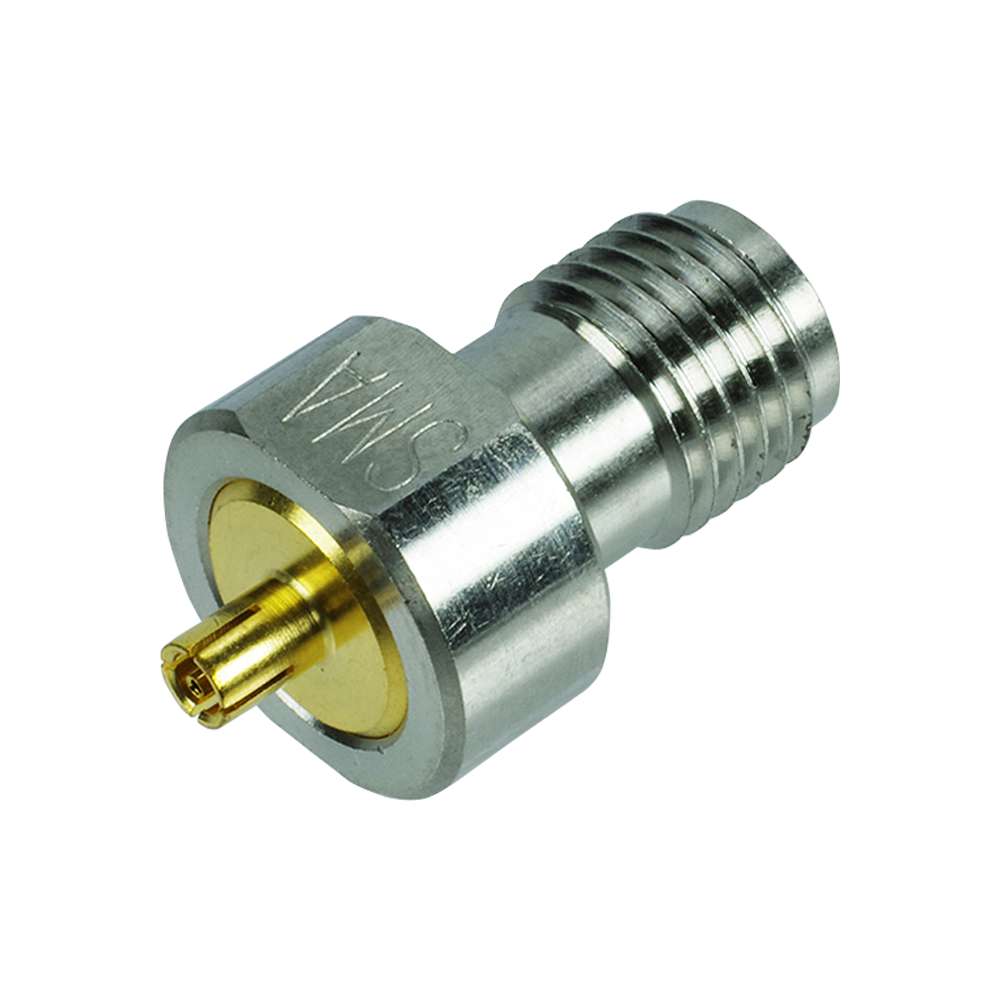

MHF® 7S		MHF 7S SMA adapter for plug electrical-performance-check	3,000	91255-0001	Plug

Click on the product name in the list to go to the product page.

Products Name	Image	Description	Durability	Part Number
MHF® I MHF® I LK		MHF I/I LK adapter for plug voltage-check	10,000	90194-001
MHF® 4 MHF® 4L MHF® 4L LK		MHF 4/4L/4L LK adapter for plug voltage-check	10,000	90449-003-01
MHF® 5 MHF® 5L		MHF 5/5L adapter for plug voltage-check	10,000	90586-0002

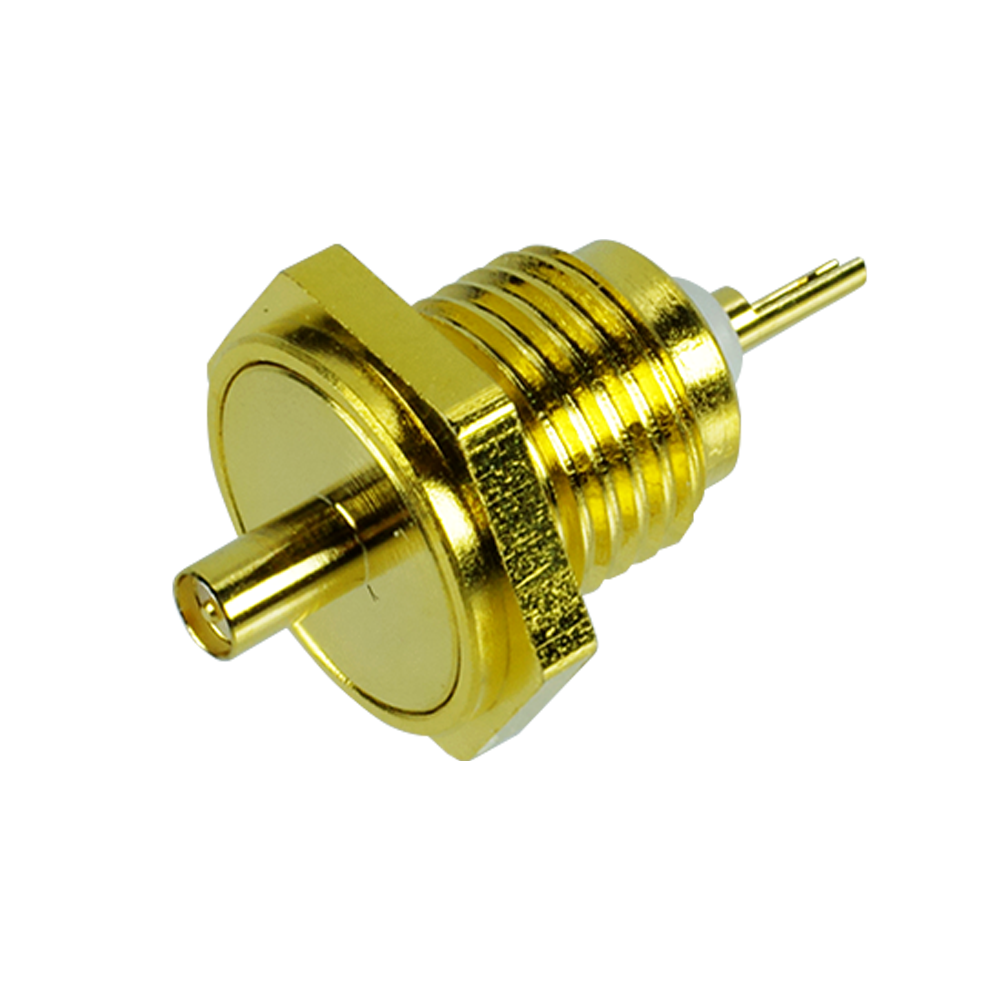

MHF® 7S		MHF 7S adapter for plug voltage-check	10,000	91245-0001

Electrical Check adapters are available for receptacles.
I-PEX offers a variety of types to suit different applications, including versions with different durability levels ranging from Standard type to High cycle type, as well as narrow pitch types that allow operation even on densely populated PCBs.
The High cycle series conducts electricity through a spring loaded pin in the jig, resulting in less wear on the receptacle compared to mating type tools, providing higher durability and making it suitable for mass production (factory use).

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500.
This type is best suited for inspection in small scale production environments, such as laboratories.

Click on the product name in the list to go to the product page.

Products Name	Image	Description	Durability	Part Number	SMA type
MHF® I MHF® I LK		MHF I/I LK SMA adapter for receptacle electrical-performance-check	500	90193-002	Plug

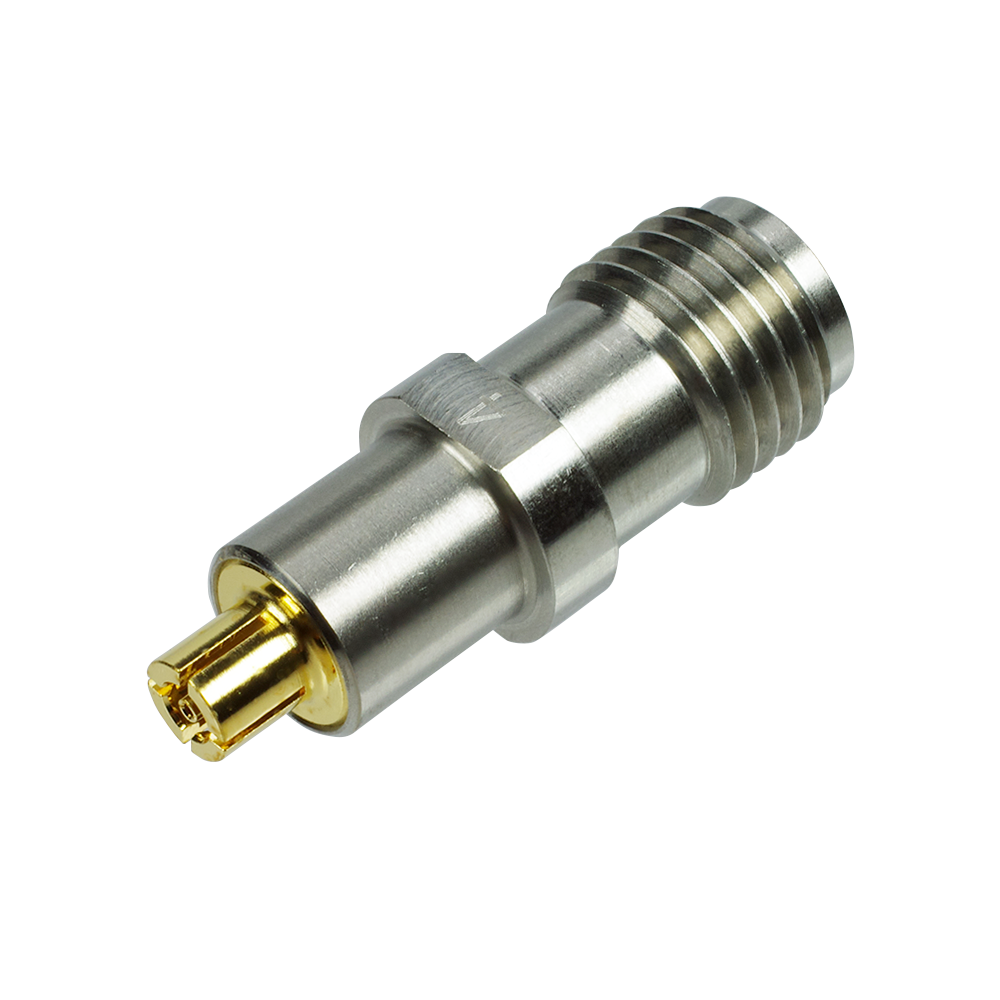

MHF® 4 MHF® 4L MHF® 4L LK		MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check	500	90449-002	Plug

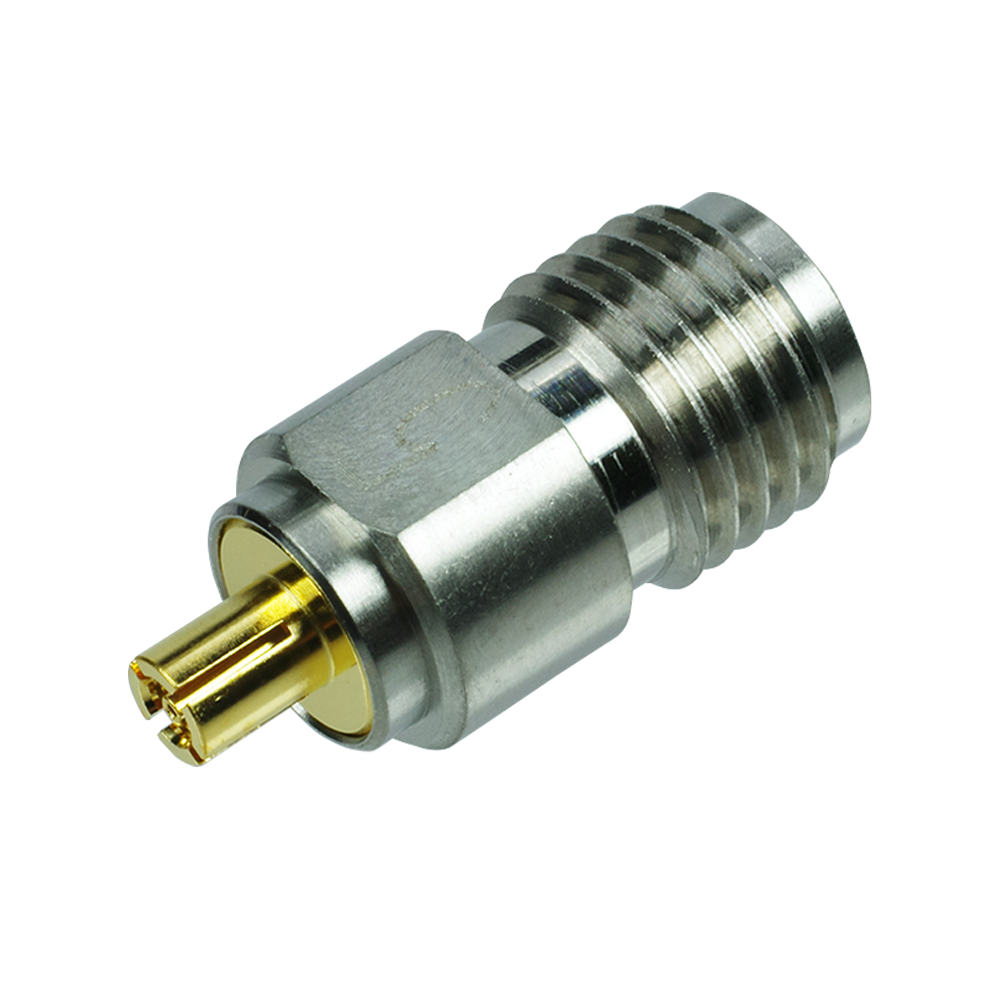

MHF® 5 MHF® 5L		MHF 5/5L SMA adapter for receptacle electrical-performance-check	500	90543-0002	Plug

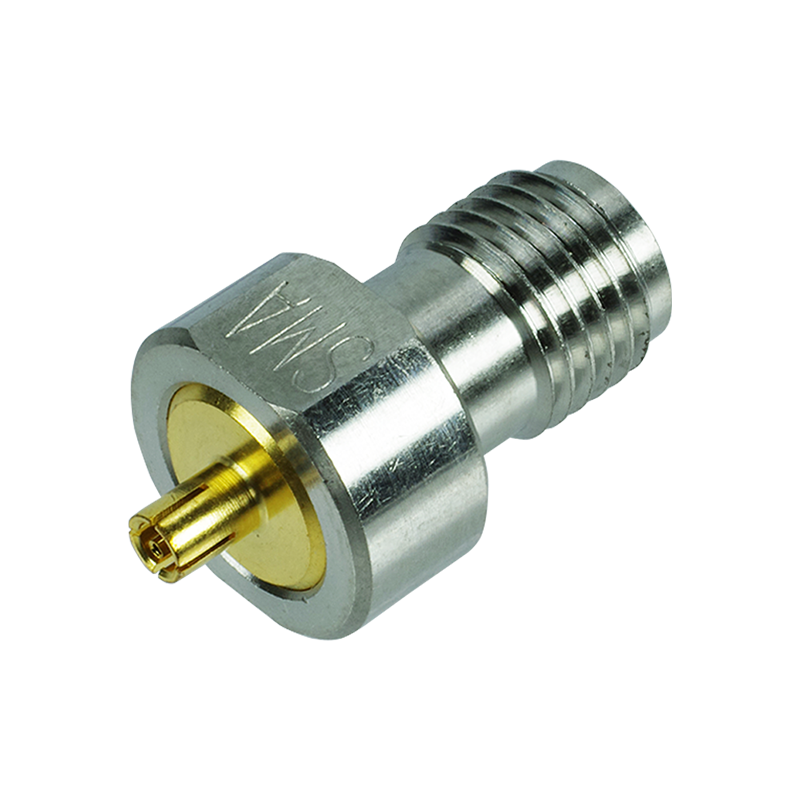

MHF® 7S		MHF 7S SMA adapter for receptacle electrical-performance-check	500	91256-0001	Plug

Its simple configuration enables easy electrical performance verification, making it suitable for production-line inspection, evaluation testing, and quality assurance applications.

Click on the product name in the list to go to the product page.

Products Name	Image	Description	Durability	Part Number	SMA type
MHF® I MHF® I LK		MHF I/I LK SMA adapter for receptacle high-cycle electrical-performance-check	10,000	90539-001	Plug

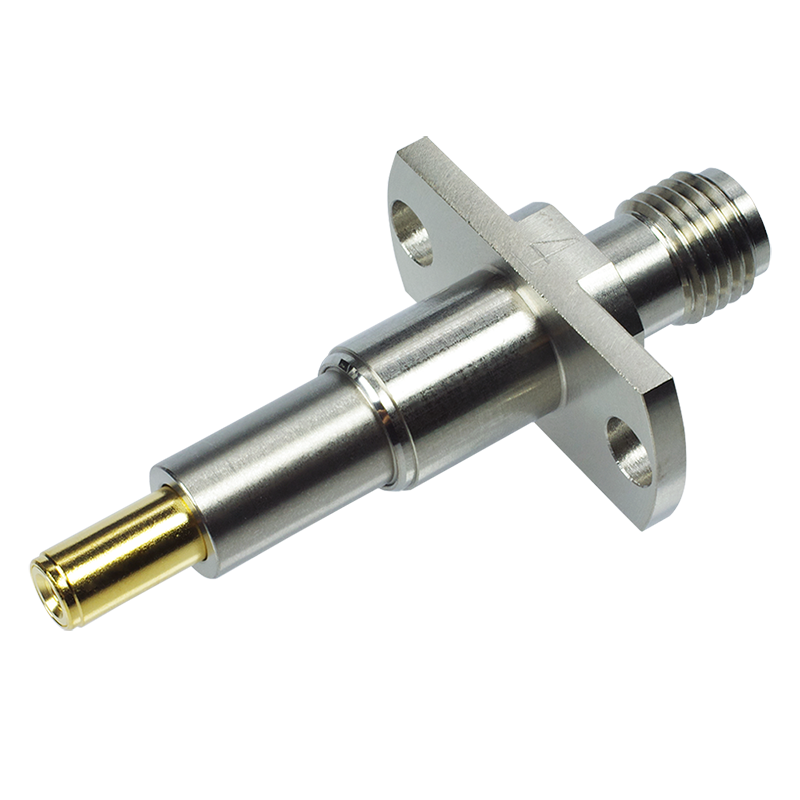

MHF® 4 MHF® 4L MHF® 4L LK		MHF 4/4L/4L LK SMA adapter for receptacle high-cycle electrical-performance-check	10,000	90698-0001	Plug

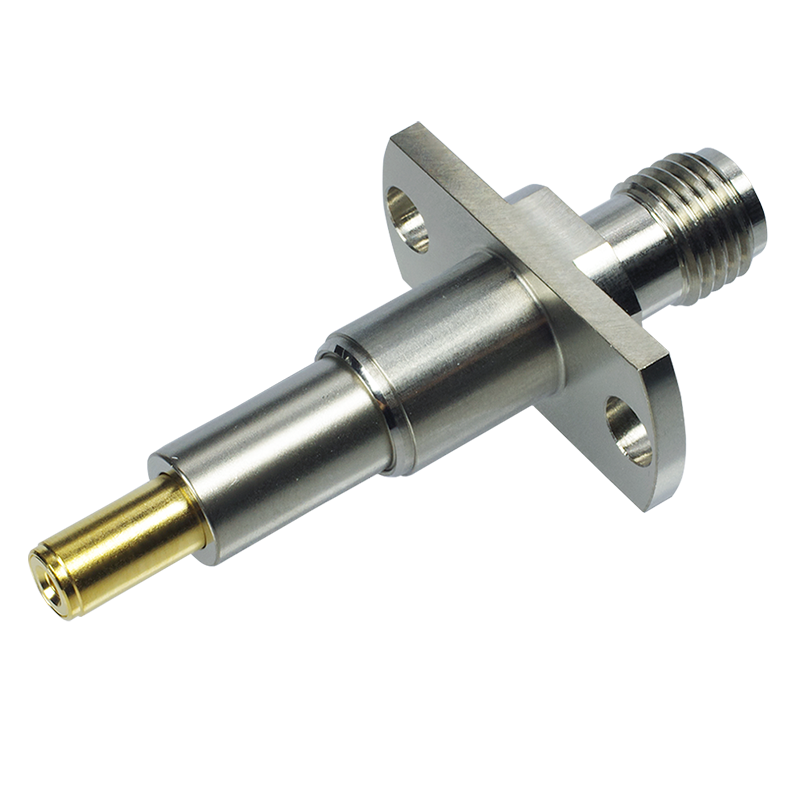

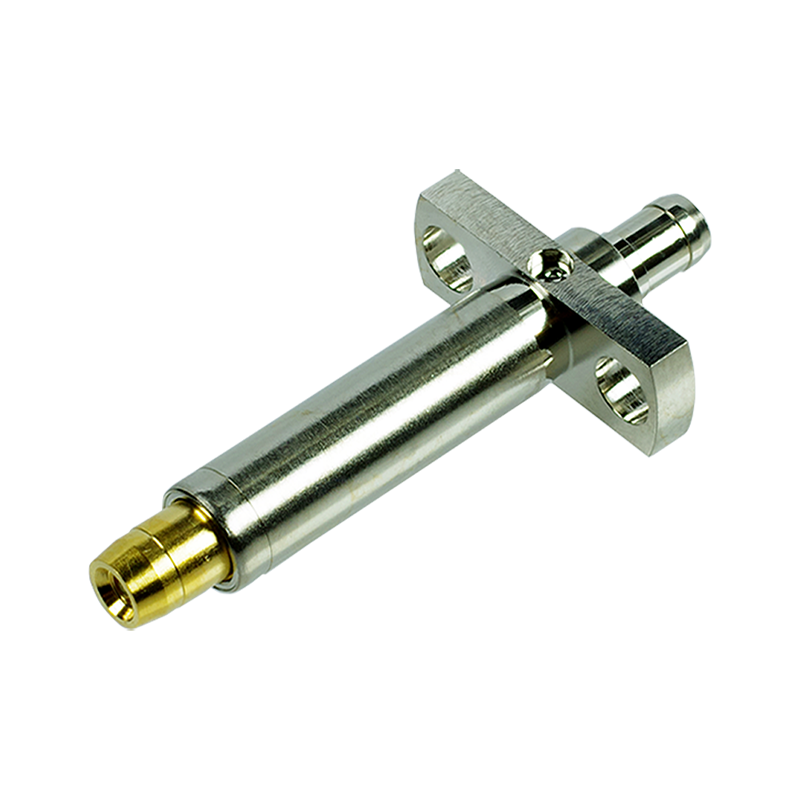

MHF® 5 MHF® 5L		MHF 5/5L SMA adapter for receptacle high-cycle electrical-performance-check	10,000	90793-0001	Plug

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

Click on the product name in the list to go to the product page.

Products name	Image	Description	Durability	Part Number	SMA type
MHF® I MHF® I LK		MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe electrical-performance-check	10,000	90575-0001	-

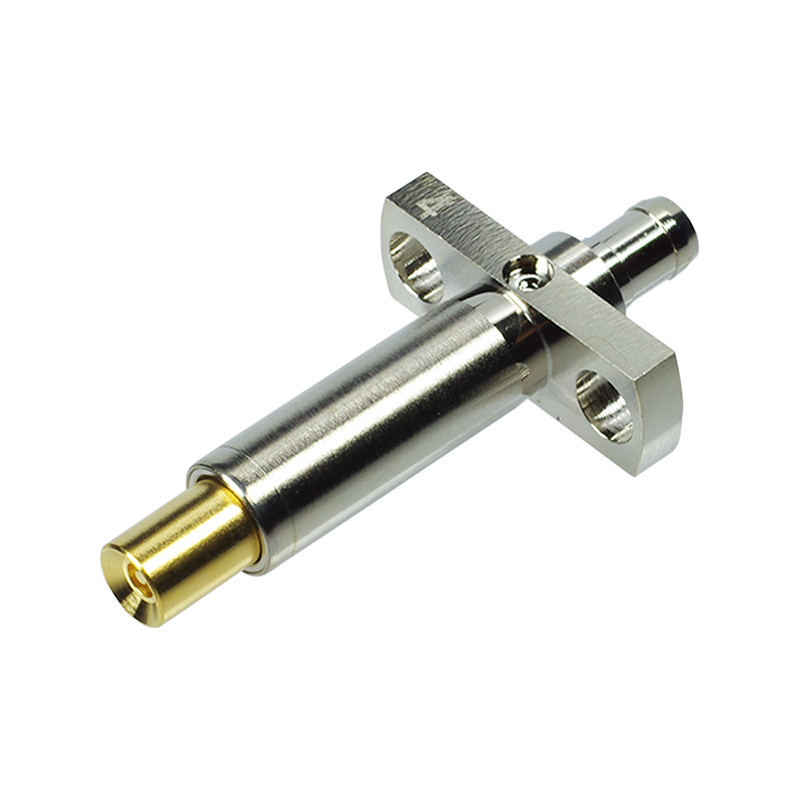

MHF® 4 MHF® 4L MHF® 4L LK		MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe electrical-performance-check	10,000	90576-0001	-
MHF® 5 MHF® 5L		MHF 5/5L SMA adapter for receptacle  high-cycle probe electrical-performance-check	10,000	90847-0001	-
MHF® I MHF® 4 MHF® 4L MHF® 4L LK MHF® 5 MHF® 5L		MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm	100	90577-0100	Jack
MHF® I MHF® 4 MHF® 4L MHF® 4L LK MHF® 5 MHF® 5L		MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=200mm	100	90577-0200	Jack
MHF® I MHF® 4 MHF® 4L MHF® 4L LK MHF® 5 MHF® 5L		MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm	100	90577-0350	Jack
MHF® I MHF® 4 MHF® 4L MHF® 4L LK MHF® 5 MHF® 5L		MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm	100	90577-0750	Jack

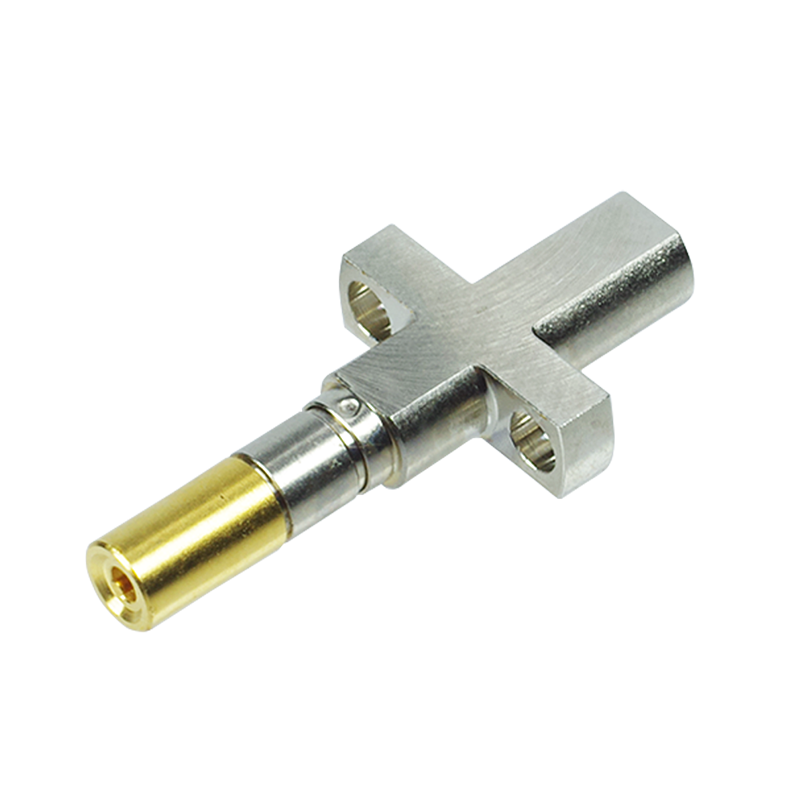

MHF® 7S		MHF 7S SMA adapter for receptacle high-cycle narrow-pitch without-floating-function electrical-performance-check	10,000	91136-0001	-

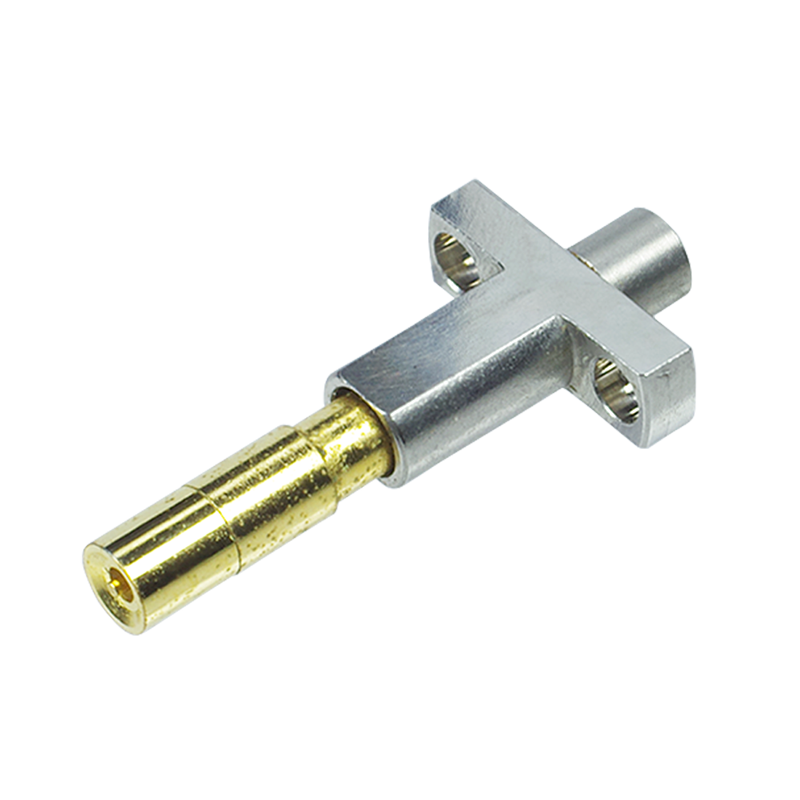

MHF® 7S		MHF 7S SMA adapter for receptacle high-cycle narrow-pitch with-floating-function electrical-performance-check	10,000	91145-0001	-

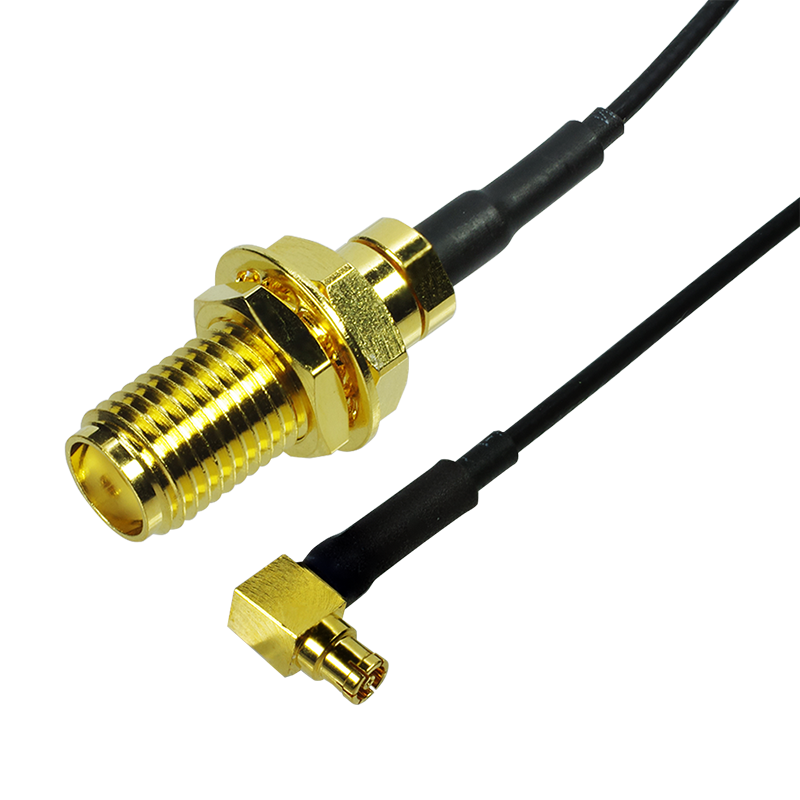

MHF® 7S		MHF 7S SMA adapter for receptacle high-cycle narrow-pitch wire SMA plug	100	91197-300P	-

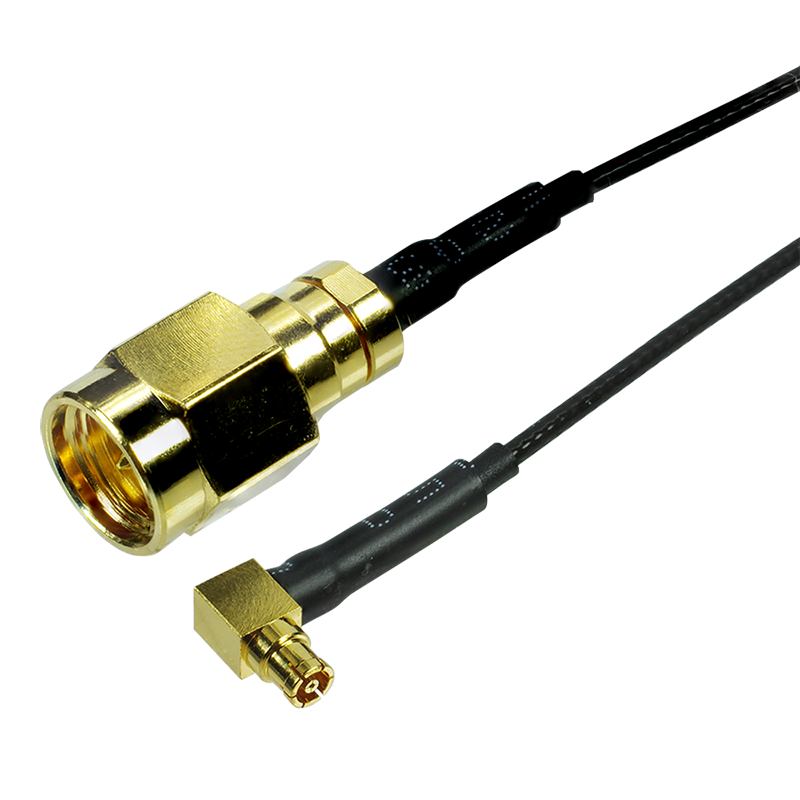

MHF® 7S		MHF 7S SMA adapter for receptacle high-cycle narrow-pitch wire SMA Jack	100	91197-300J	-

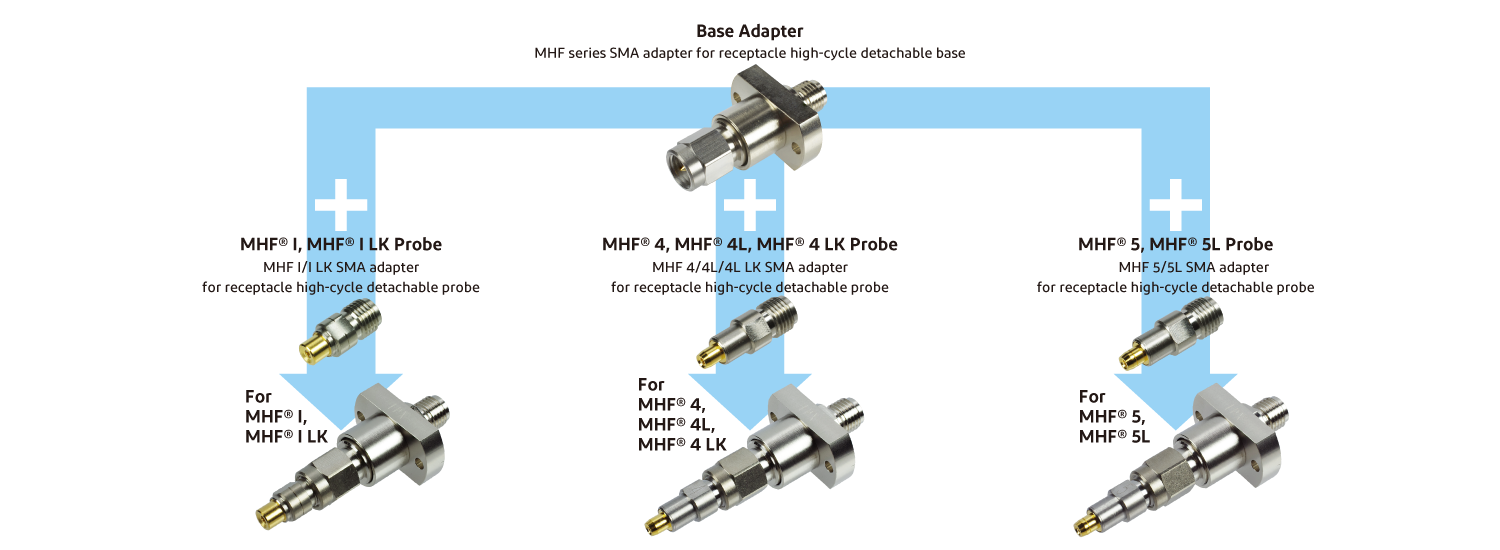

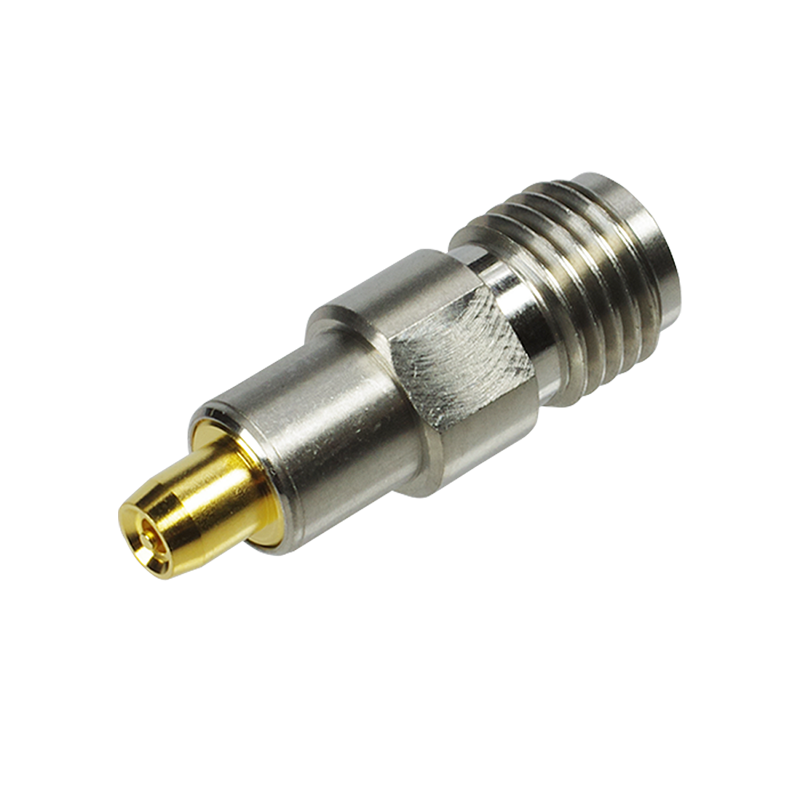

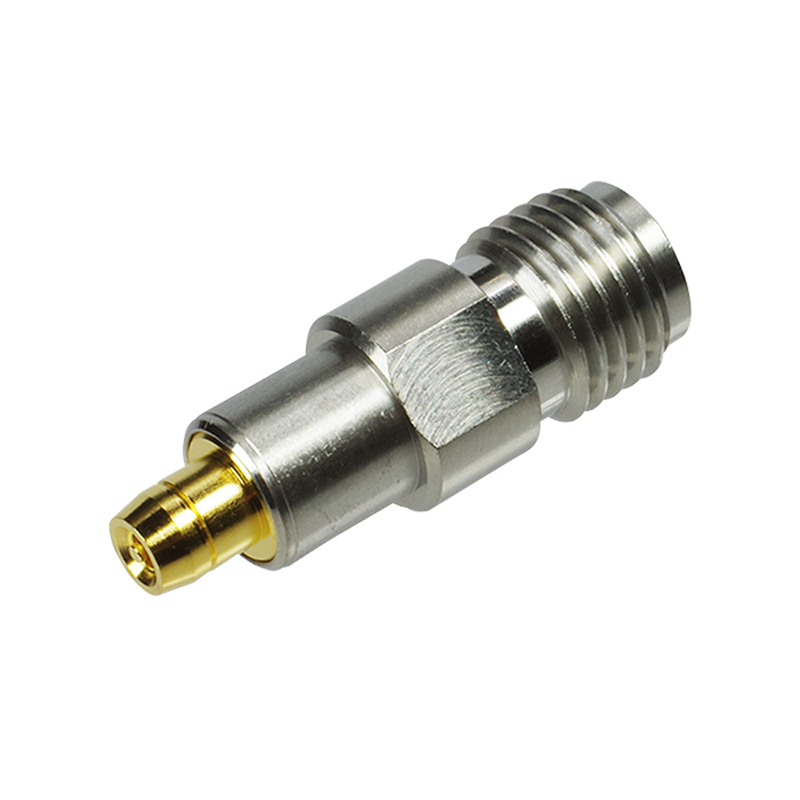

The Detachable type allows the adapter and probe to be removed and replaced.
The base adapter is compatible with all series.

Click on the product name in the list to go to the product page.

This is a lineup of SMA adapters for testing the RF-Switch MHF^®-SW23.
There are two types—friction-lock and high-cycle—and both can mate with the switch.
For the "high cycle" type, you can also choose whether or not to have a floating function.

Click on the product name in the list to go to the product page.

Products Name	Image	Description	Durability	Part Number	SMA type

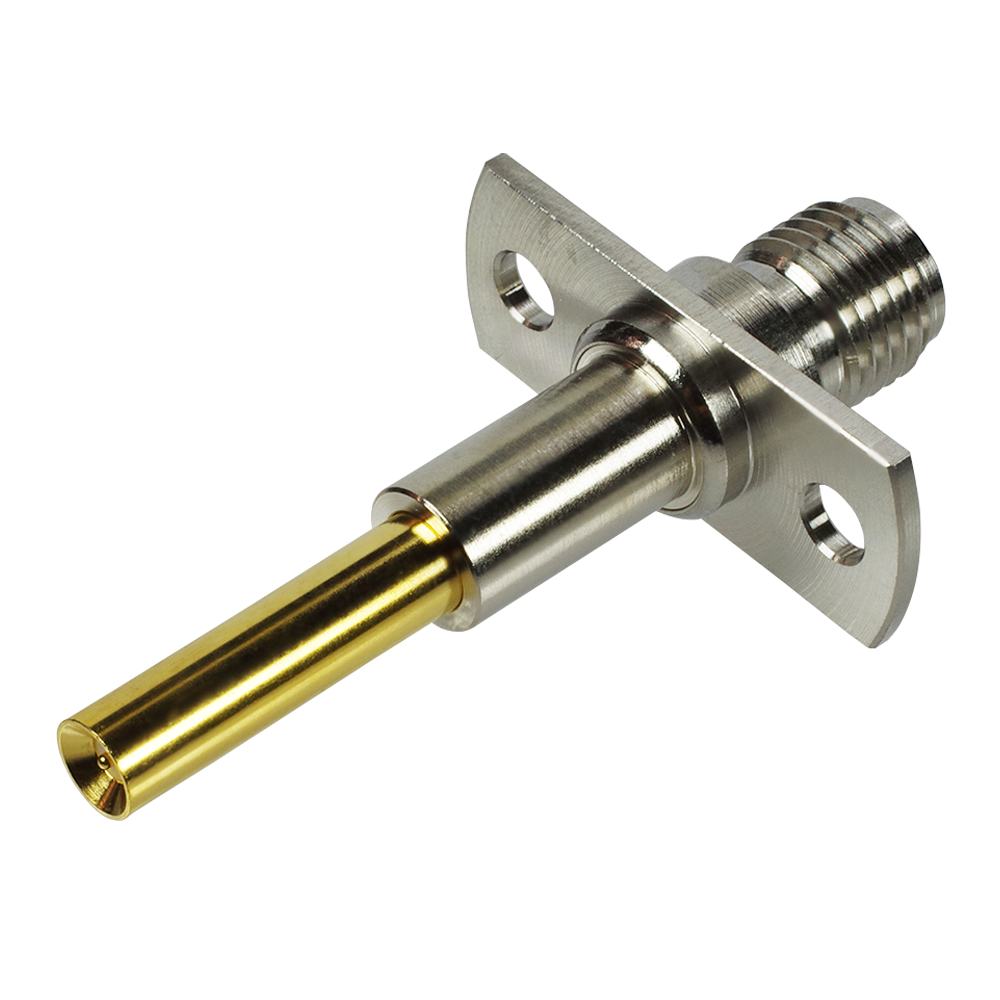

MHF®-SW23		MHF-SW23 high cycle probe standard type	10,000	90604-0001	Plug

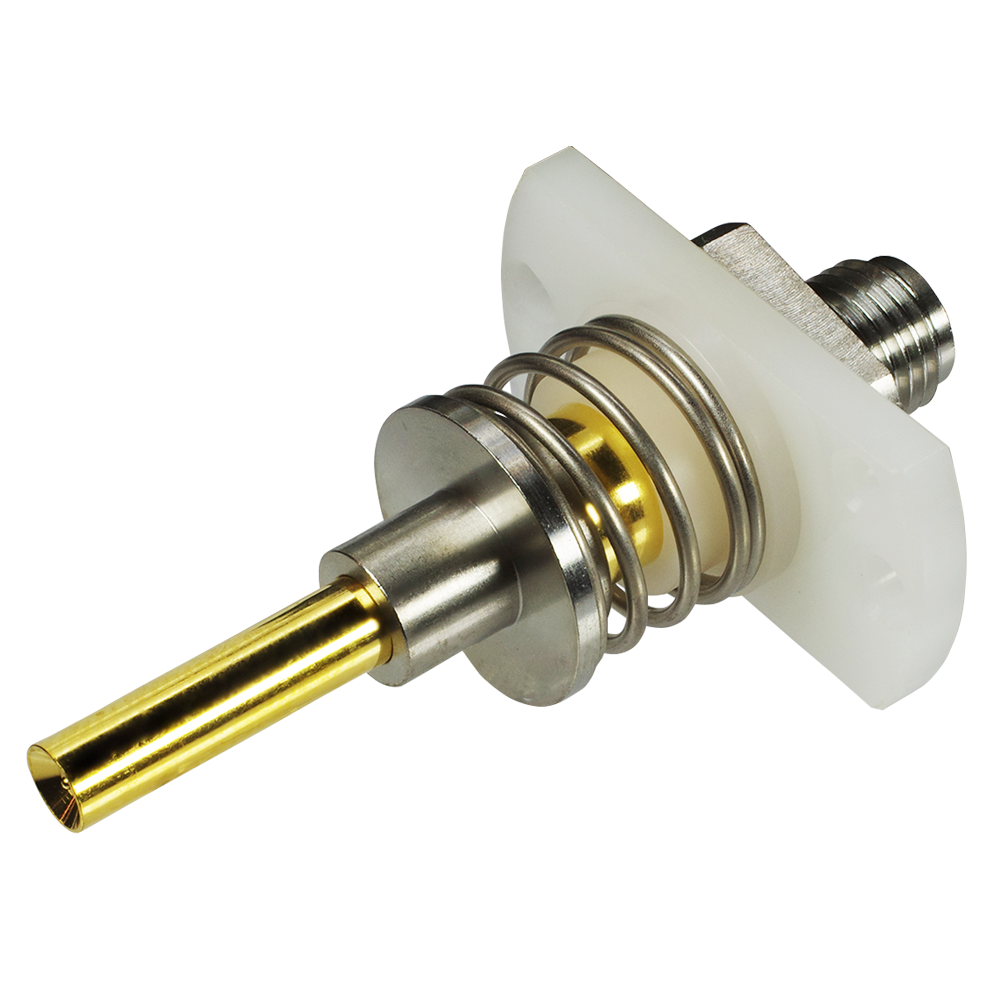

		MHF-SW23 high cycle probe floating-type	20,000	90605-0001	Plug

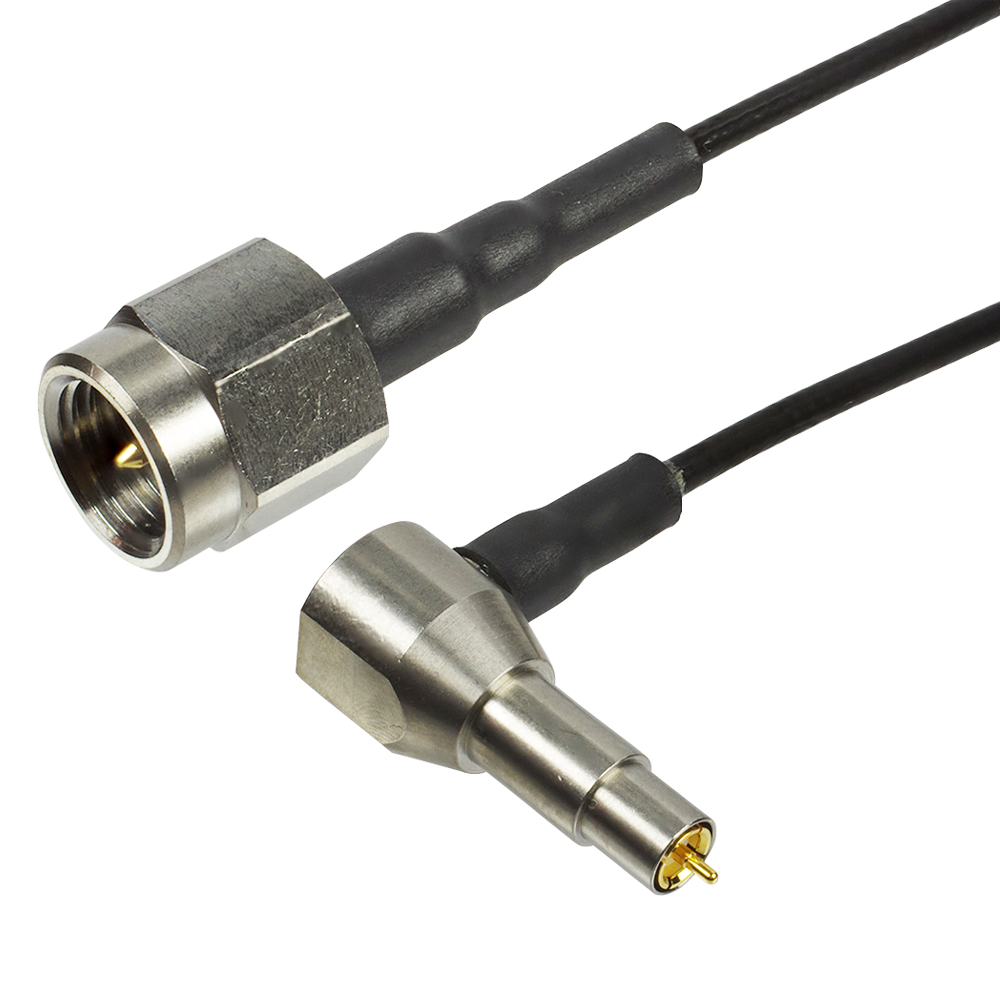

		MHF-SW23 manual probe friction-lock L=300mm	1,000	90582-0300	Jack
		MHF-SW23 manual probe friction-lock L=400mm	1,000	90582-0400	Jack
