MHF® 4

Low-profile design (mated height: 1.2 mm max.), ideal for use in limited spaces

    Small form factor with big performance through 9 GHz

    Solderless micro-coaxial termination technology "i-Fit®" provides consistent performance

    MHF® 4 Plug available micro-coaxial O.D. (AWG) : 0.81 mm (36)

*MHF® 4 is intermateable with MHF® 4L.
*For smaller or larger cable O.D. plugs that mate to MHF® 4 receptacle, please review MHF® 4L.
*For additional mating retention force with mechanical lock, please review MHF® 4L LK plug cable assembly. Available in 1.37mm cable O.D. type.
Mated Height:
1.2 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 36 O.D. 0.81 mm

Downloads

Small form factor with big performance through 9 GHz

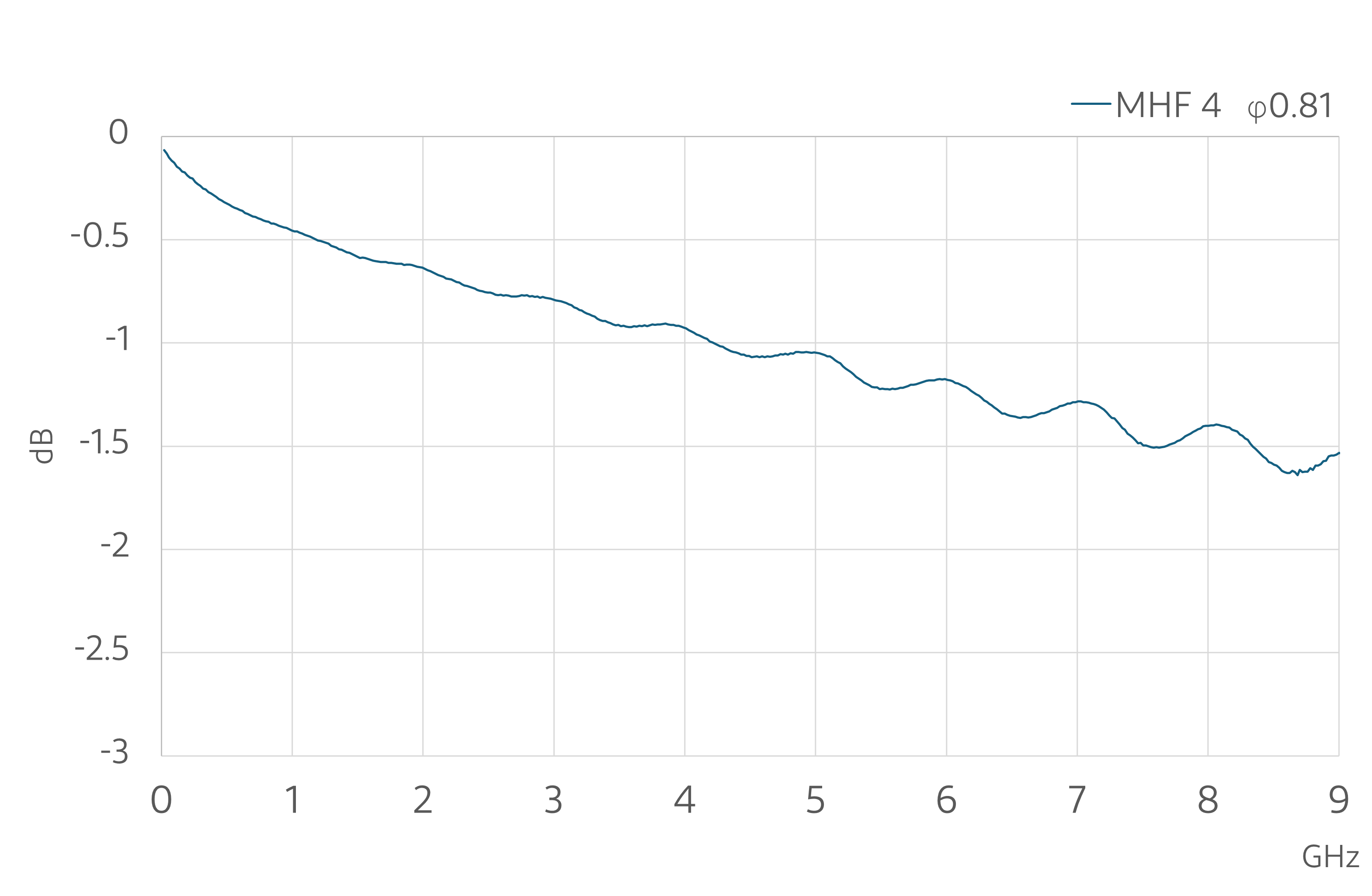

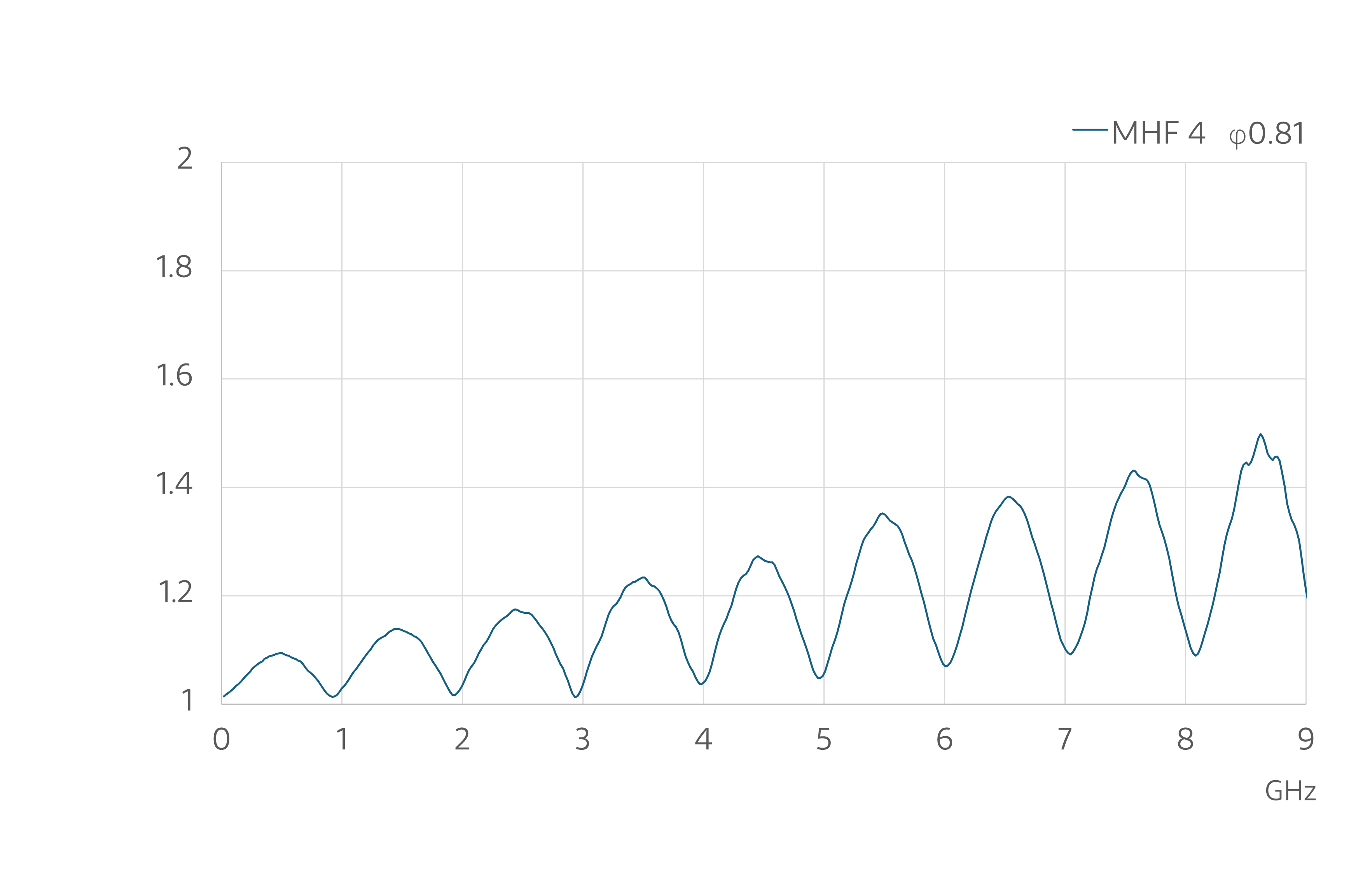

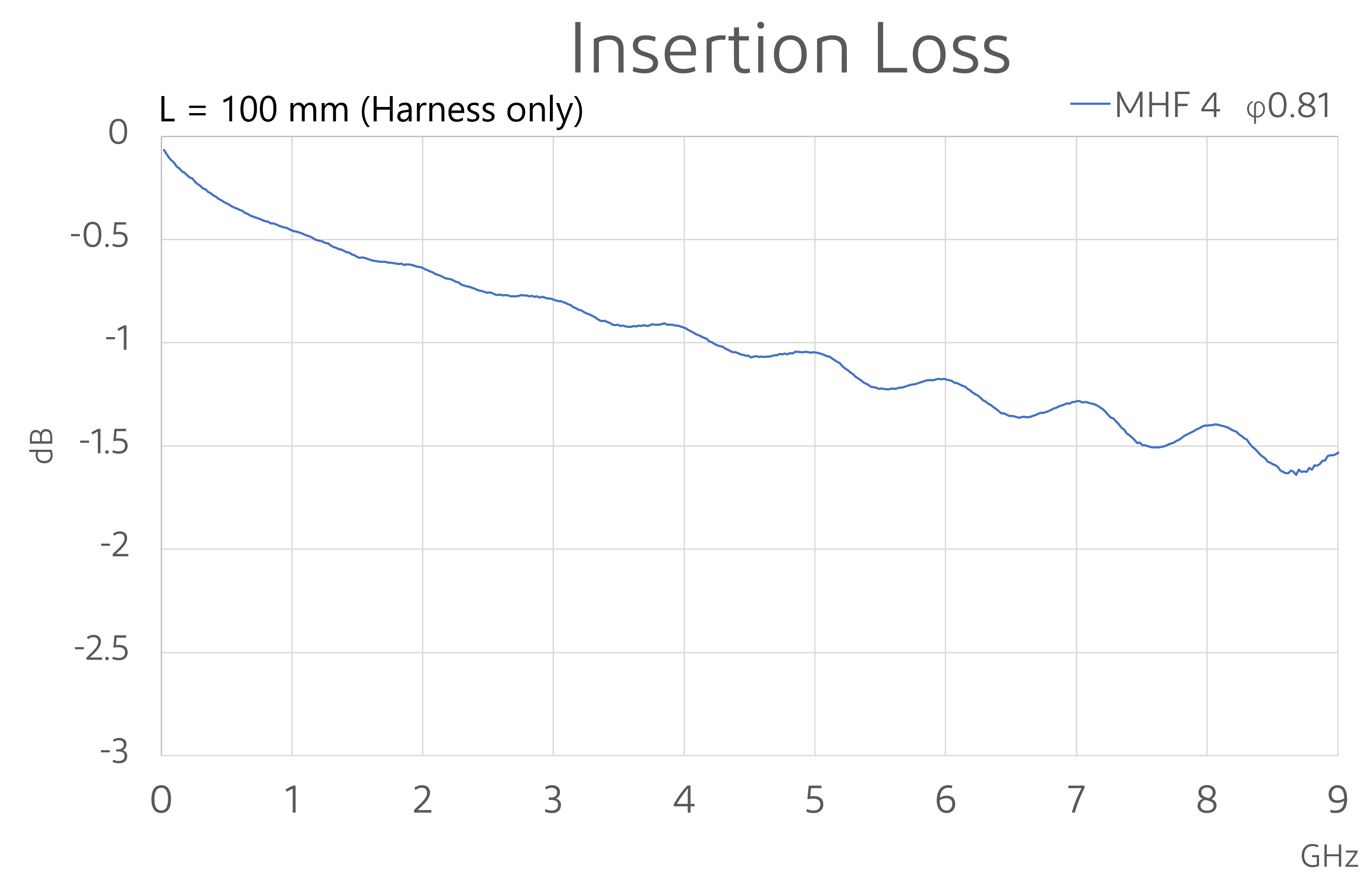

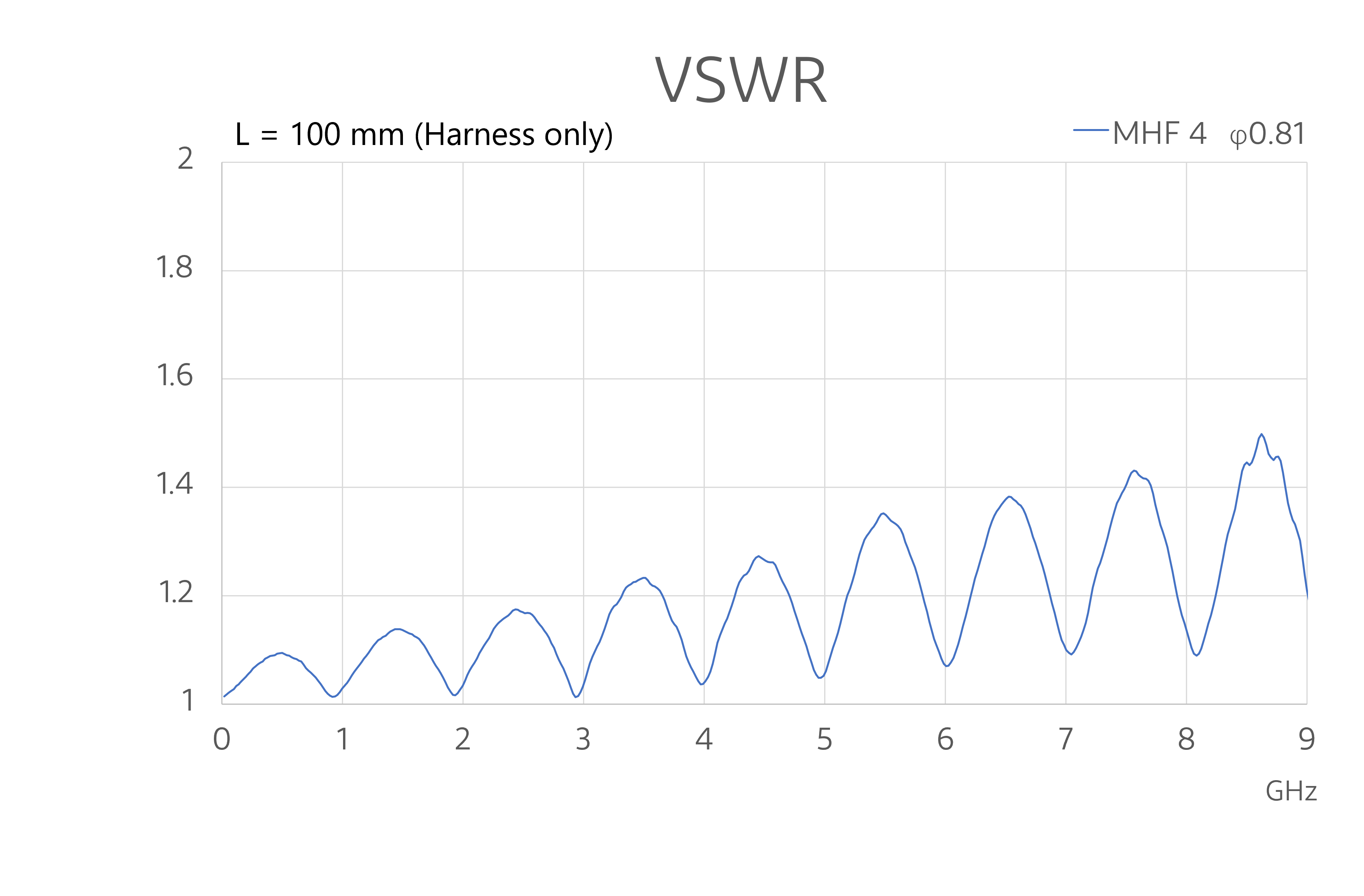

MHF 4_VSWR MHF 4_Insertion Loss



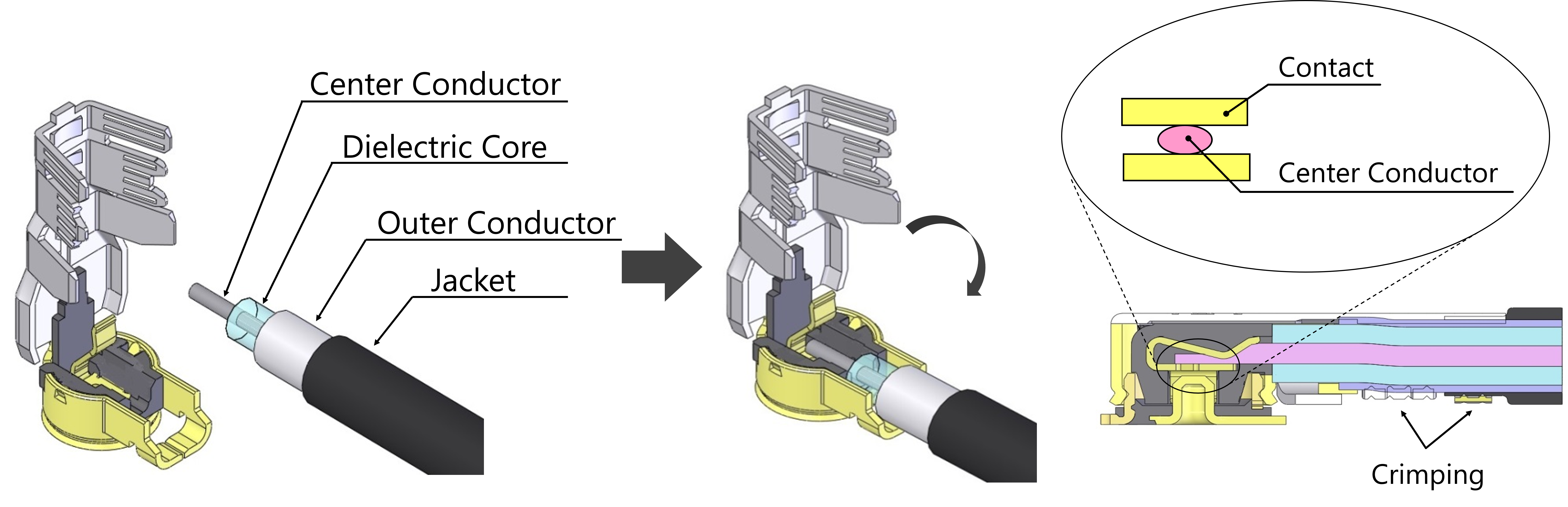

Solderless micro-coaxial termination technology "i-Fit®" provides consistent performance

Solderless micro-coaxial termination technology "i-Fit®" provides consistent performance

MHF® 4 Plug available micro-coaxial O.D. (AWG) : 0.81 mm (36)



Product name
MHF® 4L
MHF® 4
Frequency
DC ~ 12 GHz (MHF® 4L Plug x MHF® 4L Rece.)
DC ~ 9 GHz (MHF® 4L Plug x MHF® 4 Rece.)
DC ~ 9 GHz
Mating Height
1.7 mm max.
1.4 mm max.
1.2 mm max.
1.2 mm max.
Coaxial O.D. (Center Conductor AWG)
1.37 mm (AWG 30)
●



1.13 mm (AWG 32)

●


0.95 mm (AWG 33)

●


0.81 mm (AWG 36)


●
●
0.64 mm (AWG 36)


●

Receptacle
MHF® 4L/MHF® 4 receptacle
MHF® 4L / MHF® 4 receptacle




Product Type
Coaxial RF Connector
Mated Height
1.2 mm max.
SMT Size
2.0 x 2.0 mm
Frequency Range Up to 9 GHz
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 36 O.D. 0.81 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 2.0 max.
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MHF 4 RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4 plug  OD=0.81mm 20611-001R 16.64
MHF 4 receptacle 20449-001E-03 4.54



MHF 4 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4-4 OD0.81MM 100MM

Part Number Description Part Number Weight (mg)
MHF 4-4 harness OD=0.81mm L=100mm 8-25-0886 200.4
MHF 4-4 harness OD=0.81mm L=200mm 8-25-0887 400.8
MHF 4-4 harness OD=0.81mm L=300mm 8-25-0888 601.2
MHF 4-4 harness OD=0.81mm L=400mm 8-25-0889 801.6
MHF 4-4 harness OD=0.81mm L=500mm 8-25-0890 1002



MHF 4 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4-4 OD0.81MM 100MM Type-2

Part Number Description Part Number Weight (mg)
MHF 4-4 harness OD=0.81mm L=100mm 180 degree orientation 8-25-0912 199.2
MHF 4-4 harness OD=0.81mm L=200mm 180 degree orientation 8-25-0913 366.2
MHF 4-4 harness OD=0.81mm L=300mm 180 degree orientation 8-25-0914 624.6
MHF 4-4 harness OD=0.81mm L=400mm 180 degree orientation 8-25-0915 791.6
MHF 4-4 harness OD=0.81mm L=500mm 180 degree orientation 8-25-0916 1002
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER MHF 4 PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4 plug  Au plating OD=0.81mm 20448-001R-081 16.64
MHF 4 plug 20448-001R-081E 4.54
MHF 4 receptacle thick plating type 20449-001E 4.54
MHF 4 receptacle 20449-001E-01 16.64

MHF 4 ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check 90449-001 2571.2

MHF 4/4L/4L LK SMA adapter for plug voltage-check 90449-003-01 680

MHF 4 SMA adaptor for plug low mating 90449-003-02 680
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check 90449-002 1685

MHF 4/4L/4L LK SMA adapter for receptacle high-cycle 90698-0001 7170

MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm 90577-0100 4503.2

MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=200mm 90577-0200 -
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm 90577-0750 9769.8
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe 90576-0001 1458.1

MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe 90683-0001 1822.3

MHF 4 insertion/extraction tool 90435-001 648.5

MHF 4 insertion/extraction tweezer 90482-001 17834.6

MHF4 semiauto jig 90440-008 -
MHF 4 camera unit set 90453-001 -
MHF 4 high cycle SMA adaptor for receptacle 90510-001 6770
MHF4 plug reinforced lock SMA adaptor 90638-0001 2600



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF 4 91603-001B-001 18066

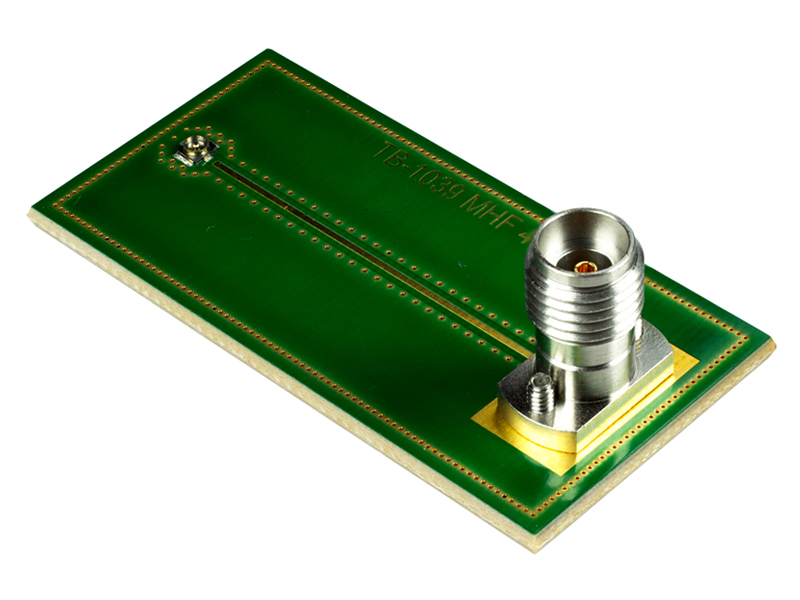

MHF_4_SI_TB-1039_Test_Board_(C)

Main Board

MHF_4L_SI_TB-859_THRU_Board_(C)
Thru Board

MHF 4 EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF 4 receptacle 20449-001E-07 Smaller reel size, MOQ: 2,500 20449-001E-03 Larger reel size, MOQ: 10,000
