MINIDOCK™ STANDARD
견고한 다핀수의 도킹식 I/O 커넥터
다양한 어플리케이션에 대응하는 견고한 커넥터(휴대용 기기나 의료 기기 등)
삽발 보증 회수：5,000 사이클
풍부한 결합 옵션과 보유 핀수
Contact Pitch:
0.635
(mm)
결합타입:
Horizontal
Vertical
유효핀수:
100
200
다운로드
-
PCB/FPC데이터
-
Symbols & Footprints
-
-
-
인증서
다양한 어플리케이션에 대응하는 견고한 커넥터(휴대용 기기나 의료 기기 등)

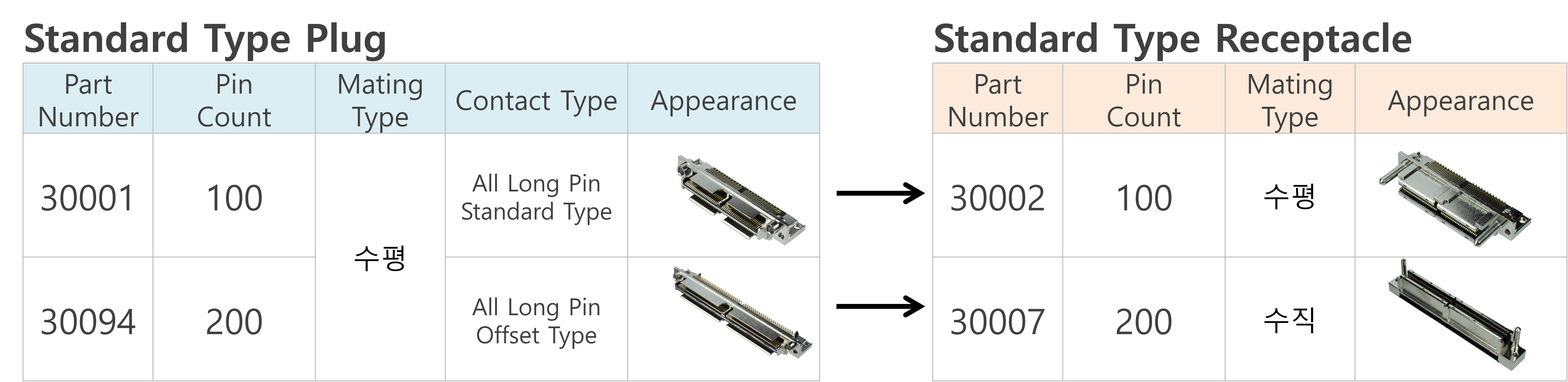

Standard Type Plug Standard Type Receptacle
| Part Number | Pin Count | Mating Type | Contact Type | Appearance | Part Number | Pin Count | Mating Type | Appearance | |
| 30001 | 100 |
수평 |
All Long Pin Standard Type |  |
→ | 30002 | 100 | 수평 |  |
| 30094 | 200 | All Long Pin Offset Type |  |
→ | 30007 | 200 | 수직 |  |
삽발 보증 회수：5,000 사이클

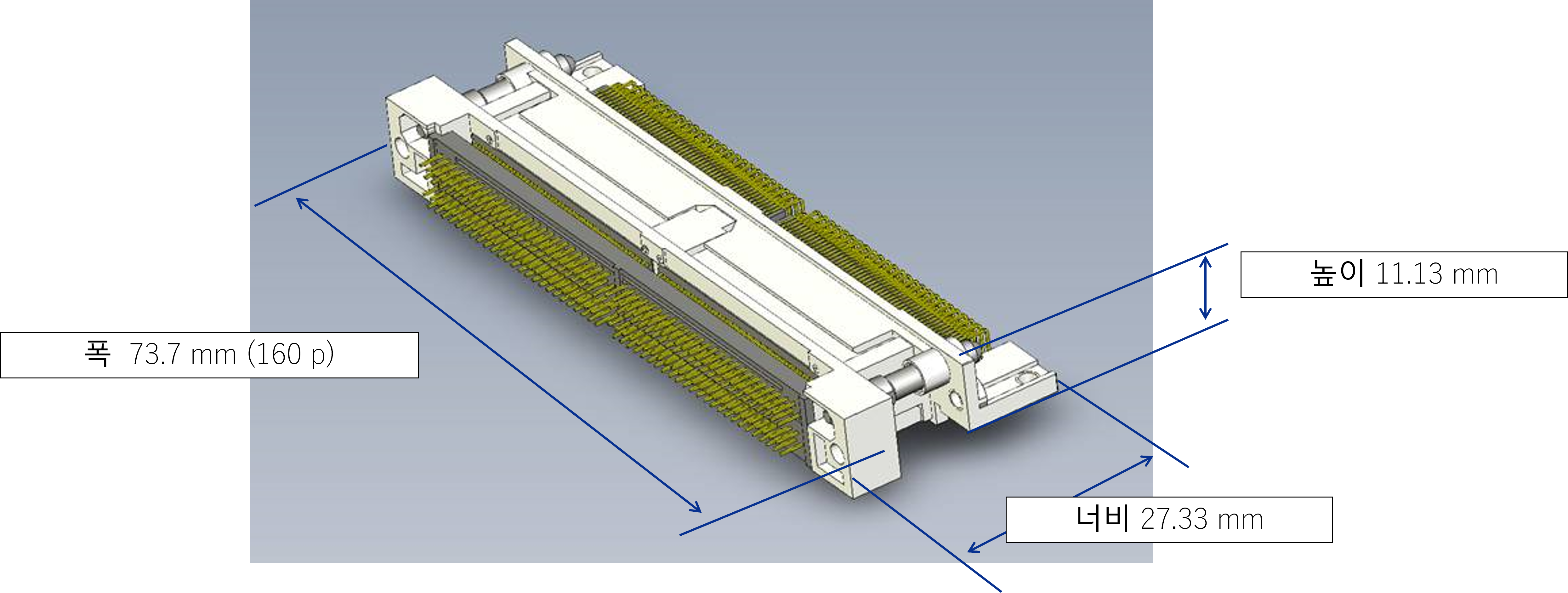

수평타입PLUG – 수평타입RECEPTACLE 결합
형번
Plug 30001 (100 pin)
Receptacle 30002 (100 pin)
풍부한 결합 옵션과 보유 핀수

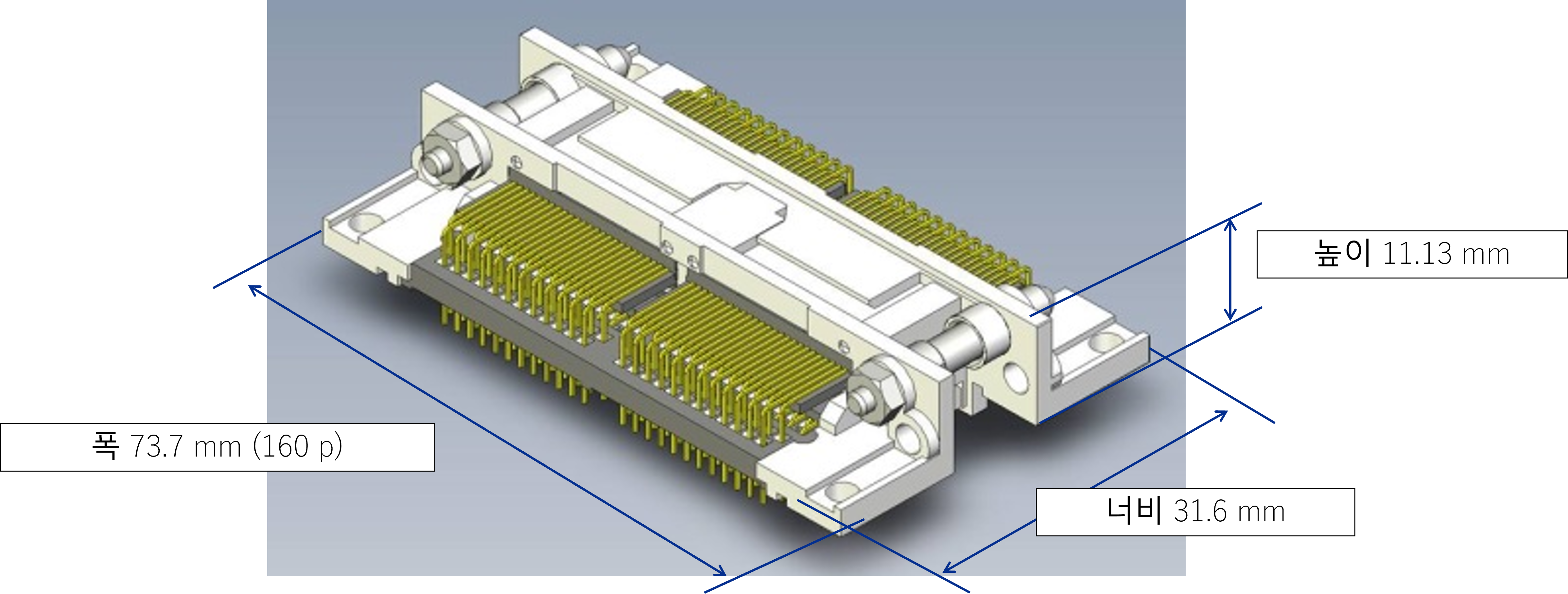

수평타입PLUG – 수직 RECEPTACLE 결합
형번
Plug 30094 (200 pin)
Receptacle 30007 (200 pin)
| Product Type |
Standard type
|
| Contact Pitch |
0.635
(mm)
|
| 결합타입 |
Horizontal
Vertical
|
| Available Pin Counts |
100
200
|
| Width Formula |
36.0 - 96.10 mm (Plug / Receptacle)
|
| Shielded FPC / FFC |
No
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
| Other Features |
With screw
Without BOSS
|
추천품번
찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.
MINIDOCK (Standard) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 200pin without screw | 30094-200T-01F | 21227.05 |
| MINIDOCK STANDARD receptacle right-angle 100pin without screw | 30002-100T-F | 18137 |
| MINIDOCK STANDARD receptacle vertical 200pin | 30007-200T-03F | 171240 |
| MINIDOCK STANDARD plug right-angle 100pin without screw | 30001-100T-F | 12591 |
OTHER MINIDOCK (Standard) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 100pin with screw | 30001-100T-01F | 11590 |
| MINIDOCK STANDARD plug right-angle 200pin with screw | 30094-200T-F | 21427.05 |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-12AT-F | - |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-12AT-F | - |
| MINIDOCK receptacle free 80pin | 30030-080T-04F | 13160 |
| MINIDOCK plug 160pin | 30033-160T-F | 26790.7 |
다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.
MINIDOCK (Standard) Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK STANDARD plug right-angle 240pin with screw | 30001-240T-02F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 240pin with screw | 30002-240T-01F | Contact us | |
| MINIDOCK receptacle free 80pin | 30030-080T-07F | 30030-080T-03F | footprint pattern, without boss, without screw |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | 30030-080T-03F | footprint pattern, without boss, without screw |
MINIDOCK (Standard) EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-01F | Contact us | |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-03F | Contact us | |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-F | Contact us | |
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-01F | Contact us | |
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-F | Contact us | |
| MINIDOCK STANDARD plug right-angle 200pin | 30001-200T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin without screw | 30002-120T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-120T-F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-02F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 200pin | 30002-200T-01F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-100T-F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-120T-F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-240T-F | Contact us | |
| MINIDOCK STANDARD | 30011-***T-** | Contact us | |
| MINIDOCK STANDARD | 30020-***T-** | Contact us | |
| MINIDOCK STANDARD | 30024-***T-** | Contact us | |
| MINIDOCK STANDARD | 30025-***T-** | Contact us | |
| MINIDOCK STANDARD | 30031-***T-** | Contact us | |
| MINIDOCK STANDARD | 30032-***T-** | Contact us | |
| MINIDOCK STANDARD | 30040-***T-** | Contact us | |
| MINIDOCK STANDARD | 30041-***T-** | Contact us | |
| MINIDOCK STANDARD | 30052-***T-** | Contact us | |
| MINIDOCK STANDARD | 30053-***T-** | Contact us | |
| MINIDOCK STANDARD | 30058-***T-** | Contact us | |
| MINIDOCK STANDARD | 30060-***T-** | Contact us | |
| MINIDOCK STANDARD | 30061-***T-** | Contact us | |
| MINIDOCK STANDARD | 30062-***T-** | Contact us | |
| MINIDOCK STANDARD | 30064-***T-** | Contact us | |
| MINIDOCK STANDARD | 30078-***T-** | Contact us | |
| MINIDOCK STANDARD | 30083-***T-** | Contact us | |
| MINIDOCK STANDARD | 30A12-***T-** | Contact us | |
| MINIDOCK plug 160pin | 30059-160T-F | Contact us |
