MINIDOCK™ SLIM

견고한 다핀수의 도킹식 I/O 커넥터
다양한 어플리케이션에 대응하는 견고한 커넥터(휴대용 기기나 의료 기기 등)
삽발 보증 회수:5000 사이클
풍부한 결합 옵션과 보유 핀수
단자Pitch:
0.635 mm
유효핀수:
80
160
결합타입:
Right angle
다운로드
-
PCB/FPC데이터
-
Symbols & Footprints
-
-
-
인증서
다양한 어플리케이션에 대응하는 견고한 커넥터(휴대용 기기나 의료 기기 등)

삽발 보증 회수:5000 사이클

풍부한 결합 옵션과 보유 핀수

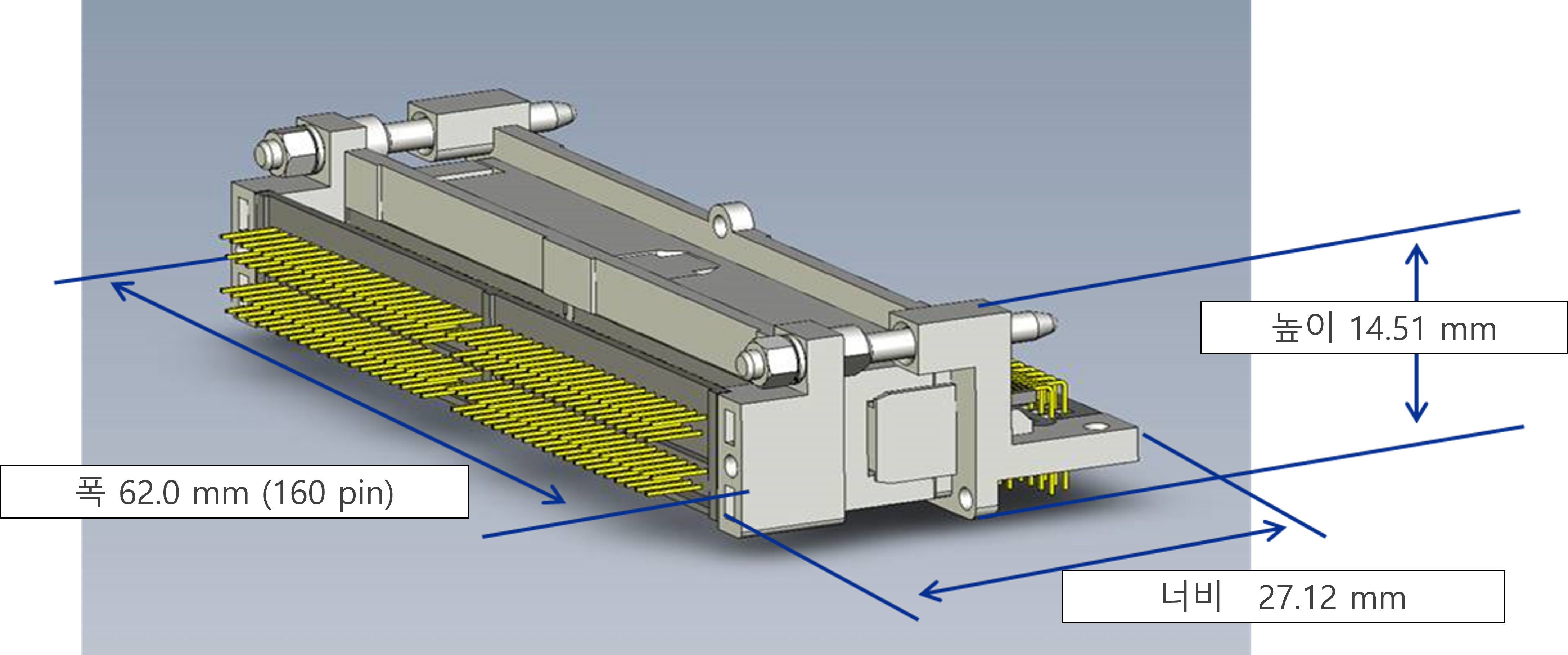

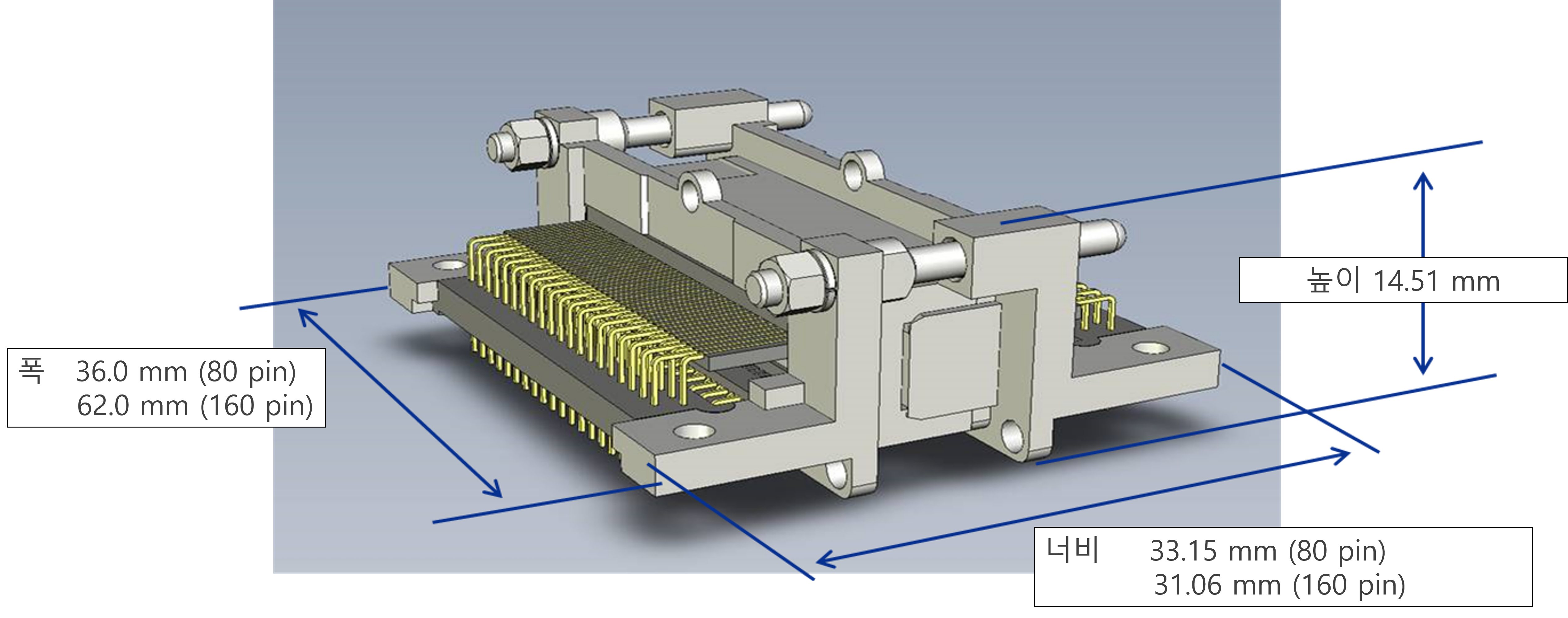

결합타입 |
Right angle
|
Width Formula |
36.0 ~ 96.10 mm (Plug / Rece) mm
|
Pin count |
80
160
|
Other Features |
With BOSS
With screw
|
추천품번
찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.

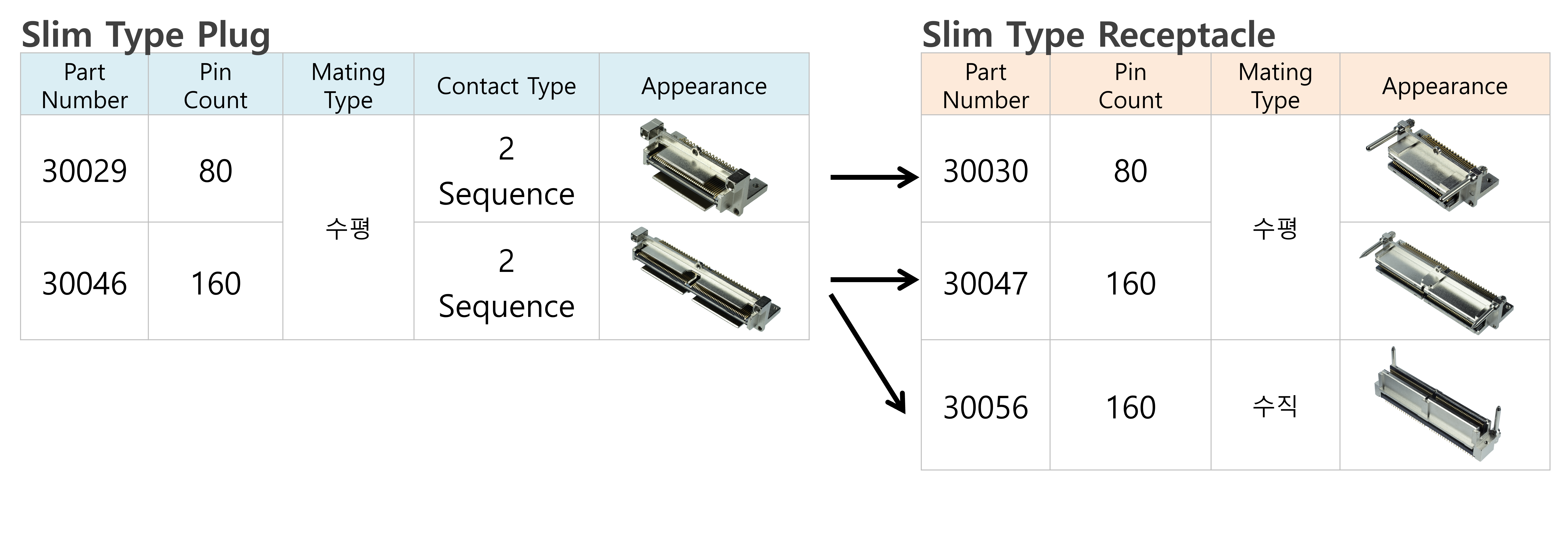

MINIDOCK (Slim) RECOMMENDED PART NUMBERS
Part Number Description | Part Number | Weight (mg) |

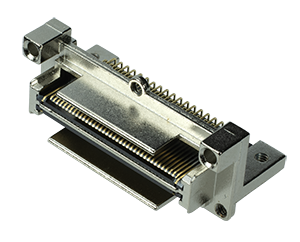

MINIDOCK SLIM plug right-angle 80pin without boss without screw | 30029-080T-01F | 10090 |

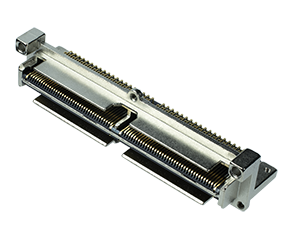

MINIDOCK SLIM plug right-angle 160pin with screw, contact length L=5.36 | 30046-160T-F | 17375.2 |

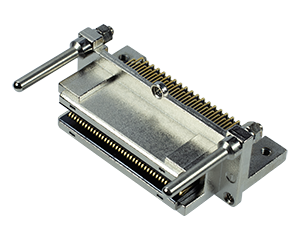

MINIDOCK SLIM receptacle right-angle 80pin without boss without screw | 30030-080T-03F | 13378 |

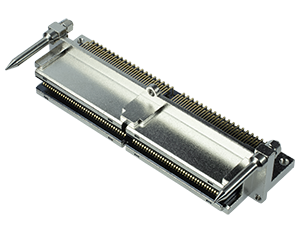

MINIDOCK SLIM receptacle right-angle 160pin without screw | 30047-160T-01F | 20800 |

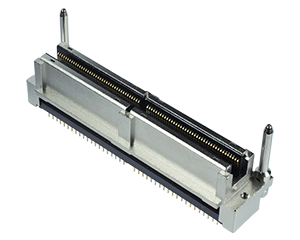

MINIDOCK SLIM receptacle vertical 160pin with screw | 30056-160T-F | 23809.2 |
OTHER MINIDOCK (Slim) PART NUMBERS
Part Number Description | Part Number | Weight (mg) |
MINIDOCK SLIM plug right-angle 80pin with boss with screw | 30029-080T-02F | 10310 |
MINIDOCK SLIM plug right-angle 80pin with boss without screw | 30029-080T-03F | 10360 |
MINIDOCK SLIM plug right-angle 80pin without boss with screw | 30029-080T-F | 10310 |
MINIDOCK SLIM plug right-angle 160pin without screw | 30046-160T-01F | 15840 |
MINIDOCK SLIM plug right-angle 160pin without screw, contact length L=4.66 | 30046-160T-03F | 18985.2 |
MINIDOCK SLIM receptacle right-angle 80pin without boss with screw | 30030-080T-01F | 13410 |
MINIDOCK SLIM receptacle right-angle 80pin with boss with screw | 30030-080T-19F | 13958 |
MINIDOCK SLIM receptacle right-angle 160pin with screw | 30047-160T-04F | 61515.6 |
MINIDOCK SLIM receptacle vertical 160pin without screw | 30056-160T-01F | 20780 |
다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.
