FPL™ II

FPL II Product Image
고속 전송 대응 (12 Gbps/lane), 파워용 케이블은 최대 AWG#32 결선 가능, 다중 접점 그라운드로 노이즈 대책, 라이트 앵글 세로 결합, 0.5mm 피치, 세선 동축 커넥터

    고속 데이터 전송, 12 Gbps/lane Application에 이상적

    파워용 케이블은 최대 AWG#32 결선 가능

    그라운드 설치 포인트가 많아, 노이즈 대책에 유효

Contact Pitch:
0.5 mm
Mating Type / Direction:
Vertical (Right Angle)
Mated Height:
Nom. 2.2 +/- 0.2 mm
Cable Size (Micro-Coaxial):
AWG 32 (*)AWG 34 (*)AWG 36AWG 38AWG 40* (Characteristic impedance unmatching)
Cable Size (Discrete):
AWG 32AWG 34AWG 36
Current Rating:
[AWG 40] 0.3 A/contact (up to 50 contacts)[AWG 38] 0.6 A/contact (up to 6 contacts)[AWG 36] 0.8 A/contact (up to 4 contacts)[AWG 34, 32] 1.0 A/contact (up to 7 contacts)

다운로드

고속 데이터 전송, 12 Gbps/lane Application에 이상적



Measurement results

Connector : FPL II 40P
Cable : Micro-coaxial cable
AWG #40,  50ohm , Length : 100 mm
Pin Assignment : GSSGSSG

 FPL II_FAB1_ALL

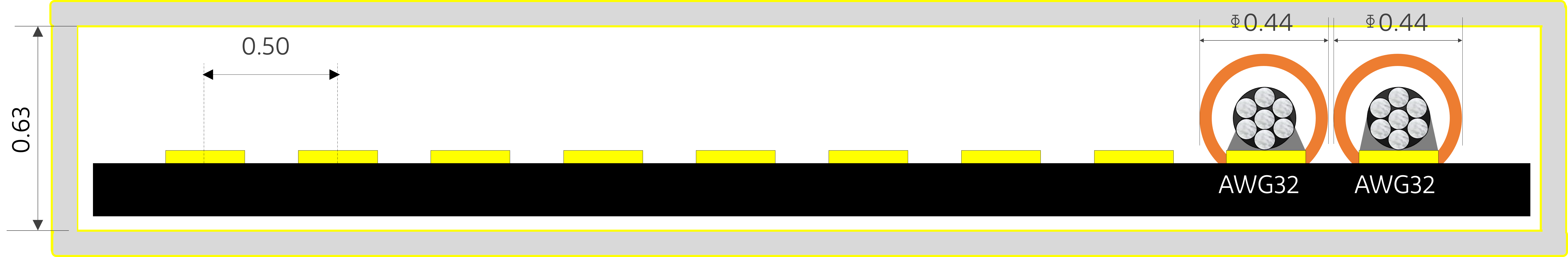

파워용 케이블은 최대 AWG#32 결선 가능

FPL II_FAB2_ALL

                   Metal shell                                                    FPL™ II 0.5 mm pitch with discrete wire                                                 (Unit : mm)

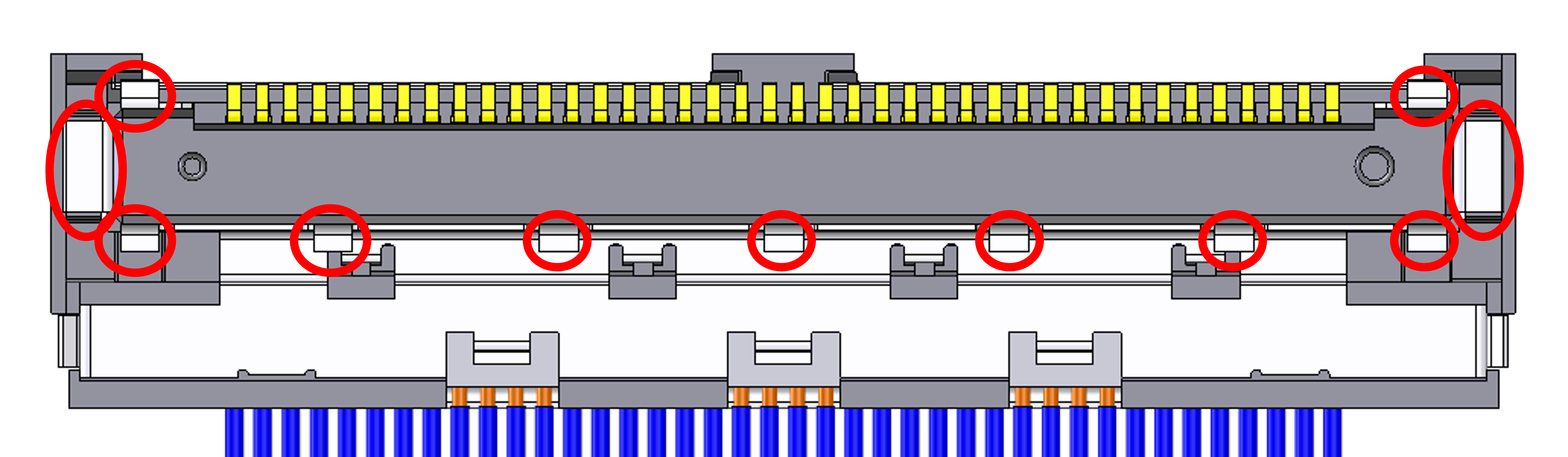

그라운드 설치 포인트가 많아, 노이즈 대책에 유효

FPL II_FAB3_ALL

              아래에서 본 커넥터 FPL™ II 30P                                                           CABLINE-UM_FAB1-2.jpg 그라운드 설치 부위




Transmission Speed (Reference Only) 12 Gbps/lane
Contact Pitch
0.5 mm
Mating Type / Direction
Vertical (Right Angle)
Mated Height
Nom. 2.2 +/- 0.2 mm
Available Pin Count Signal: 30, 40, 50
Depth
6.1 mm
Width
5.8 + (0.5 x pin count) mm
Cable Size (Micro-Coaxial)
AWG 32 (*)AWG 34 (*)AWG 36AWG 38AWG 40* (Characteristic impedance unmatching)
Cable Size (Discrete)
AWG 32AWG 34AWG 36
Current Rating
[AWG 40] 0.3 A/contact (up to 50 contacts)[AWG 38] 0.6 A/contact (up to 6 contacts)[AWG 36] 0.8 A/contact (up to 4 contacts)[AWG 34, 32] 1.0 A/contact (up to 7 contacts)
Applicable Standards (Reference Only)
HDMI 2.1 (12 Gbps/lane)USB 3.2 Gen 2 (10 Gbps/lane)DisplayPort UHBR3 (8.1 Gbps/lane)HDMI 2.0 (6 Gbps/lane)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.

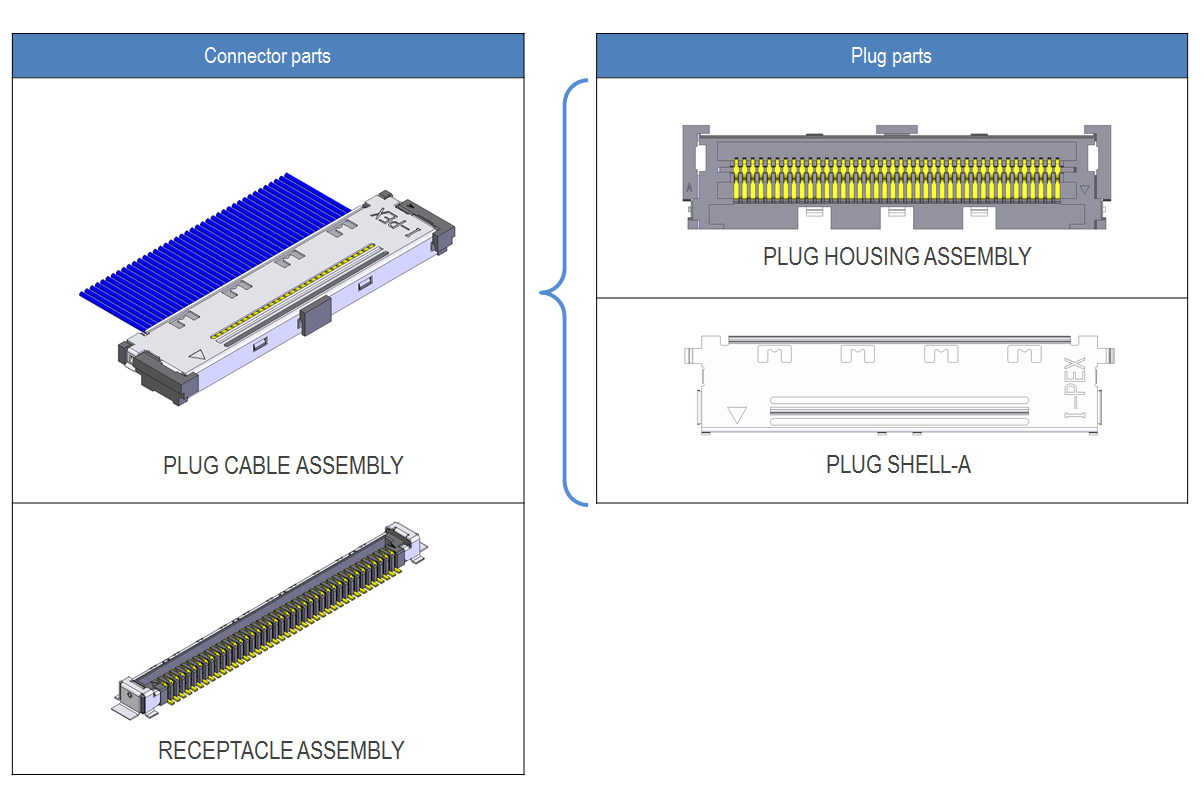

DIAGRAMS_FPL_II



FPL II RECOMMENDED PART NUMBERS

Part Number Description Pin count Part Number
PLUG FOR CABLE ASSEMBLY 30 20437-030T-01
　 　 40 20437-040T-01
　 　 50 20437-050T-01
　 PLUG HOUSING 30 20438-030T-01
40 20438-040T-01
50 20438-050T-01
PLUG SHELL 30 2496-030
40 2496-040
50 2496-050
RECEPTACLE 30 20439-030E-01
　 　 40 20439-040E-01
　 　 50 20439-050E-01
다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.



OTHER FPL II PART NUMBERS

Part Number Description Pin count Part Number
PLUG FOR CABLE ASSEMBLY 30 20437-030T-11
40 20437-040T-11
50 20437-050T-11
　 PLUG HOUSING 30 20438-030T-11
40 20438-040T-11
50 20438-050T-11
RECEPTACLE 30 20439-030E-02
30 20439-030E-03
30 20439-030E-11
30 20439-030E-12
40 20439-040E-02
40 20439-040E-03
40 20439-040E-11
40 20439-040E-12
40 20439-040E-13
50 20439-050E-02
50 20439-050E-03
50 20439-050E-11
50 20439-050E-12
50 20439-050E-14

FPL II EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
FPL II receptacle 30pin 20439-030E-02 with boss 20439-030E-01 without boss
FPL II receptacle 30pin 20439-030E-03 without vacuum clip 20439-030E-01 with vacuum clip
FPL II receptacle 30pin 20439-030E-12 Contact Au plating 0.3 um min, with boss 20439-030E-01 Contact Au plating 0.1 to 0.3 um, without boss
FPL II receptacle 40pin 20439-040E-02 with boss 20439-040E-01 without boss
FPL II receptacle 40pin 20439-040E-03 without vacuum clip 20439-040E-01 with vacuum clip
FPL II receptacle 40pin 20439-040E-12 Contact Au plating 0.3 um min, with boss 20439-040E-01 Contact Au plating 0.1 to 0.3 um, without boss
FPL II receptacle 40pin 20439-040E-13 Contact Au plating 0.3 um min, without clip 20439-040E-01 Contact Au plating 0.1 to 0.3 um, with clip
FPL II receptacle 50pin 20439-050E-02 with boss 20439-050E-01 without boss
FPL II receptacle 50pin 20439-050E-03 without vacuum clip 20439-050E-01 with vacuum clip
FPL II receptacle 50pin 20439-050E-12 Contact Au plating 0.3 um min, with boss 20439-050E-01 Contact Au plating 0.1 to 0.3 um, without boss
FPL II receptacle 50pin 20439-050E-14 Contact Au plating 0.3 um min, with boss, without clip 20439-050E-01 Contact Au plating 0.1 to 0.3 um, without boss, with clip
