MINIFLEX® 3-BFN LK
机械锁扣，低背(高度= 0.9 mm)，0.3 mm间距, 水平插拔, 后锁式
特有机械锁扣提供更大FPC保持力
独特的结构，防止端子变形
在没有插入 FPC 的情况下闭合钢琴盖，连接器仍可使用
Contact Pitch:
0.3
(mm)
嵌合类型:
水平
Height:
1.0
max.
(0.9 nom.)
(mm)
可提供Pin数:
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
51
53
57
61
71
FPC/FFC Thickness:
0.20
下载
特有机械锁扣提供更大FPC保持力
独特的结构，防止端子变形

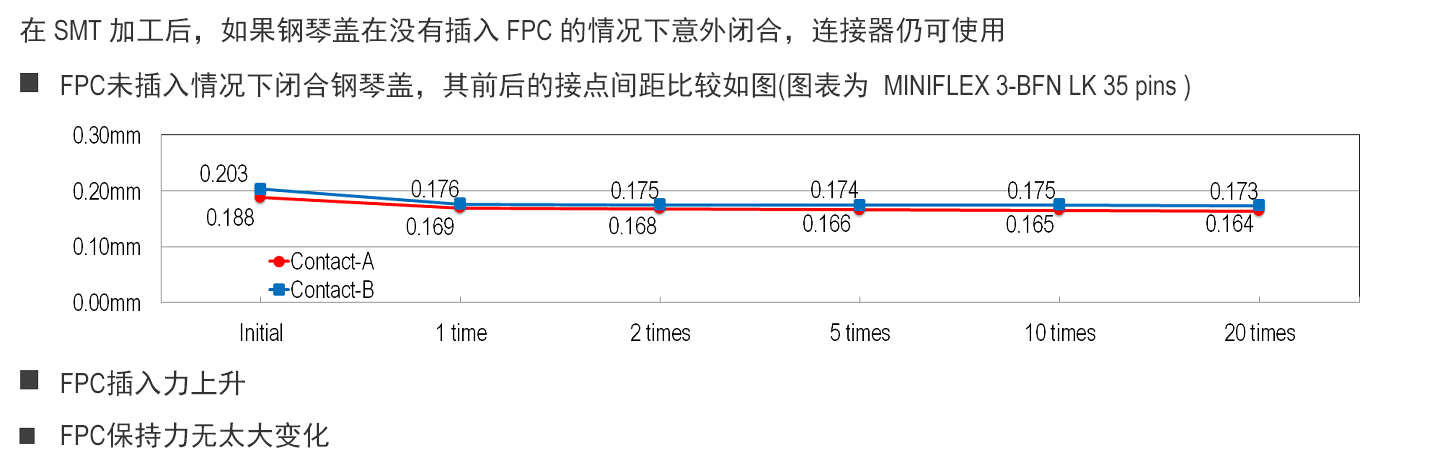

在没有插入 FPC 的情况下闭合钢琴盖，连接器仍可使用
| Product Type |
后锁式
|
| Contact Pitch |
0.3
(mm)
|
| 嵌合类型 |
水平
|
| Height |
1.0
max.
(0.9 nom.)
(mm)
|
| Available Pin Counts |
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
51
53
57
61
71
|
| Depth |
3.5 (mm)
|
| Width Formula |
2.1 + (0.3 x pin count) (mm)
|
| FPC/FFC Thickness |
0.20
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
Yes
|
| Other Features |
高保持力机械锁扣
|
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
MINIFLEX 3-BFN LK RECOMMENDED Part Number
| Part Number Description | Part Number | Weight (mg) | Note |
| MINIFLEX 3-BFN LK standard 9pin | 20599-009E-01 | 18.28 | |
| MINIFLEX 3-BFN LK standard 11pin | 20599-011E-01 | 21.58 | |
| MINIFLEX 3-BFN LK standard 13pin | 20599-013E-01 | 24.88 | |
| MINIFLEX 3-BFN LK standard 15pin | 20599-015E-01 | 28.18 | |
| MINIFLEX 3-BFN LK standard 17pin | 20599-017E-01 | 31.48 | |
| MINIFLEX 3-BFN LK standard 19pin | 20599-019E-01 | 34.08 | |
| MINIFLEX 3-BFN LK standard 21pin | 20599-021E-01 | 36.58 | |
| MINIFLEX 3-BFN LK standard 23pin | 20599-023E-01 | 39.08 | |
| MINIFLEX 3-BFN LK standard 25pin | 20599-025E-01 | 41.78 | |
| MINIFLEX 3-BFN LK standard 27pin | 20599-027E-01 | 44.98 | |
| MINIFLEX 3-BFN LK standard 29pin | 20599-029E-01 | 47.98 | |
| MINIFLEX 3-BFN LK standard 31pin | 20599-031E-01 | 51.18 | |
| MINIFLEX 3-BFN LK standard 33pin | 20599-033E-01 | 54.48 | |
| MINIFLEX 3-BFN LK standard 35pin | 20599-035E-01 | 57.78 | |
| MINIFLEX 3-BFN LK standard 37pin | 20599-037E-01 | 61.08 | |
| MINIFLEX 3-BFN LK long 51pin | 20584-051E-01 | 85.38 | |
| MINIFLEX 3-BFN LK long 53pin | 20584-053E-01 | 87.88 | |
| MINIFLEX 3-BFN LK long 57pin | 20584-057E-01 | 98.28 | |
| MINIFLEX 3-BFN LK long 61pin | 20584-061E-01 | 104.88 | |
| MINIFLEX 3-BFN LK long 71pin | 20584-071E-01 | 121.08 |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
MINIFLEX 3-BFN LK OTHER Part Number
| Part Number Description | Part Number | Weight (mg) | Note |
| MINIFLEX 3-BFN LK long 29pin | 20584-029E-01 | 53.58 | |
| MINIFLEX 3-BFN LK long 31pin | 20584-031E-01 | 56.98 | |
| MINIFLEX 3-BFN LK long 35pin | 20584-035E-01 | 60.38 | |
| MINIFLEX 3-BFN LK long 37pin | 20584-037E-01 | 63.28 | |
| MINIFLEX 3-BFN LK long 40pin | 20584-040E-01 | 72.68 | |
| MINIFLEX 3-BFN LK long 41pin | 20584-041E-01 | 67.58 | |
| MINIFLEX 3-BFN LK long 45pin | 20584-045E-01 | 74.88 | |
| MINIFLEX 3-BFN LK long 47pin | 20584-047E-01 | 81.98 |
MINIFLEX 3-BFN LK Plan to EOL Part Number
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIFLEX 3-BFN LK long 29pin | 20584-029E-01 | 20599-029E-01 | shape |
| MINIFLEX 3-BFN LK long 31pin | 20584-031E-01 | 20599-031E-01 | shape |
| MINIFLEX 3-BFN LK long 35pin | 20584-035E-01 | 20599-035E-01 | shape |
| MINIFLEX 3-BFN LK long 37pin | 20584-037E-01 | 20599-037E-01 | shape |
| MINIFLEX 3-BFN LK long 40pin | 20584-040E-01 | 20655-040E-01 | shape, specification |
| MINIFLEX 3-BFN LK long 41pin | 20584-041E-01 | 20613-041E-02 | shape, specification |
| MINIFLEX 3-BFN LK long 45pin | 20584-045E-01 | 20613-045E-02 | shape, specification |
| MINIFLEX 3-BFN LK long 47pin | 20584-047E-01 | Contact us |
MINIFLEX 3-BFN LK EOL Part Number
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIFLEX 3-BFN wide 31pin | 20667-031E-01 | 20527-031E-01 | shape |
| MINIFLEX 3-BFN wide 33pin | 20667-033E-01 | 20527-033E-01 | shape |
| MINIFLEX 3-BFN wide 35pin | 20667-035E-01 | 20527-035E-01 | shape |
| MINIFLEX 3-BFN wide 37pin | 20667-037E-01 | 20527-037E-01 | shape |
| MINIFLEX 3-BFN wide 39pin | 20667-039E-01 | 20527-039E-01 | shape |
