Input/Output (I/O) Connectors
I-PEX provides robust, secure, and reliable docking connectors.
I/O Connectors: MINIDOCK™ Series
The MINIDOCK™ series is a docking connector (Iinput/Ooutput connector) series for board-to-board connections. It maintains a robust and reliable connection and is installed in portable medical and industrial devices.
The main features of the MINIDOCK™ series are as follows:
- A multi-pin I/O connector featuring die-cast housing and large guide pins.
- Guaranteed up to 5,000 mating cycles.
- Options for vertical and horizontal mating, pin counts ranging from 80 to 240, and a three-stage arrangement of signals, power, and ground.
|
|

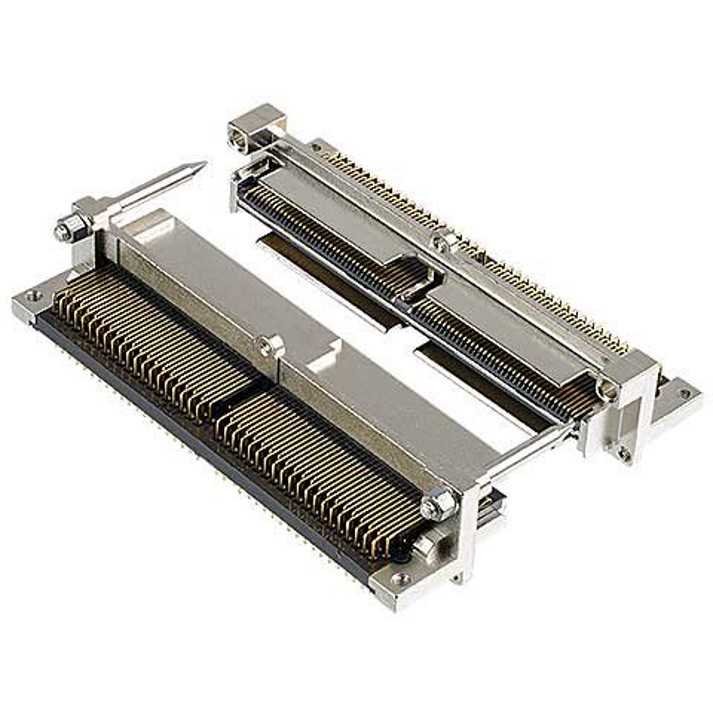

SLIM TYPE |

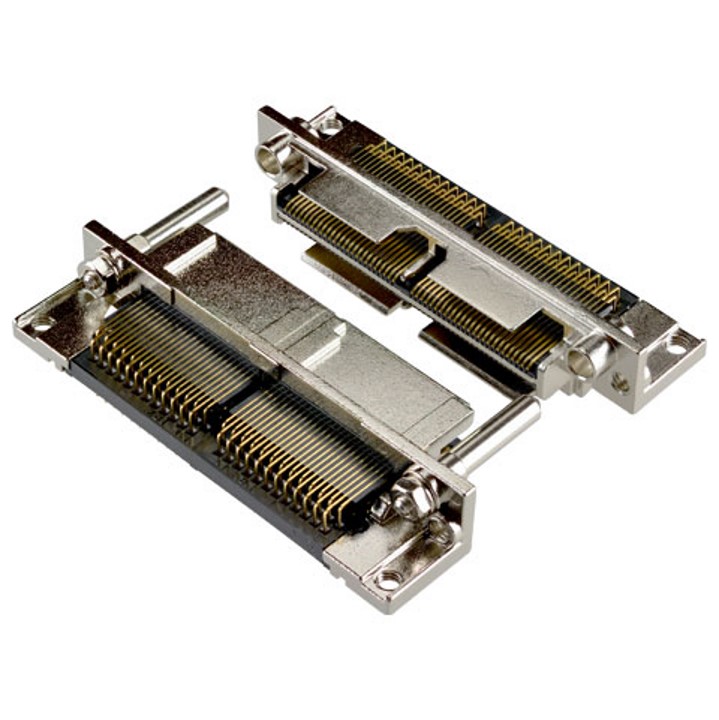

STANDARD TYPE |
|||
Type of plug |
Right angle |
Right angle |
|||
Contact type |
2 Sequences |
Standard (All long pins) |
All long pins Offset type |
||
Part number |
30029 |
30046 |
30001 |
30094 |
|
Pin contact |
80 |
160 |
100, 240 |
200 |
|
Dimensions (WxD) mm |
36.00 x 14.50 |
62.00 x 9.90 |
100 pin: 51.65 x 16.90240 pin: 96.10 x 16.90 |
83.40 x 9.90 |
|
PLUG |
 |
 |
 |
 |
|
RECEPTACLE |
 |
 |
 |
 |
 |
Type of rece. |
Right angle |
Vertical |
Right angle |
Vertical |
|
Part number |
30030 |
30047 |
30056 |
30002 |
30007 |
Pin count |
80 |
160 |
160 |
100, 240 |
200 |
Dimensions (WxD) mm |
36.00 x 14.50 |
62.00 x 9.70 |
62.00 x 16.03 |
100 pin: 51.65 x 20.30240 pin: 96.10 x 20.30 |
83.40 x 15.16 |
Features of the I-PEX MINIDOCK™
1. A multi-pin I/O connector featuring die-cast housing and large guide pins
The robust die-cast shell structure protects the connector. Additionally, the guide pins ensure secure mating and unmating.
Search I/O Connectors View Product Matrix Back to top
2. Guaranteed up to 5,000 mating cycles
(Per 1 pin)
The low insertion force contacts guarantee 5,000 mating cycles.
Search I/O Connectors View Product Matrix Back to top

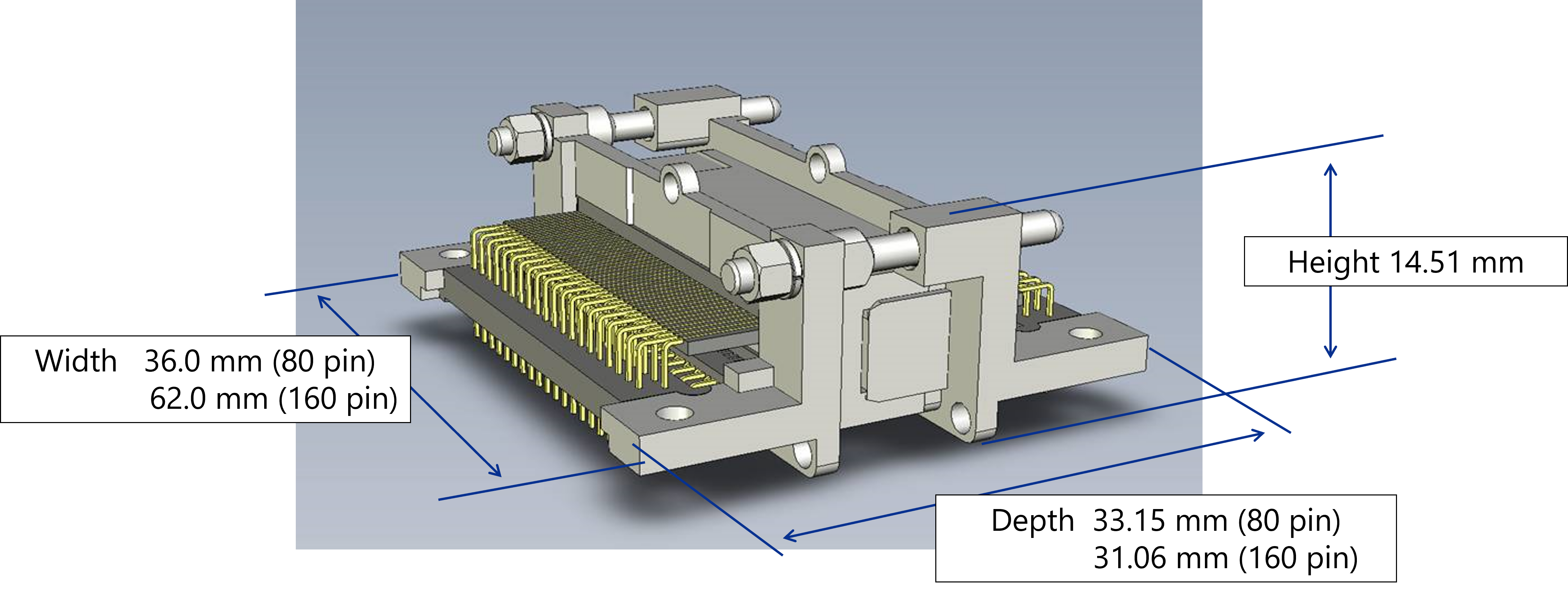

3-1. Slim Type Horizontal Plug–Horizontal Receptacle Mating (80P, 160P)
Search I/O Connectors View Product Matrix Back to top

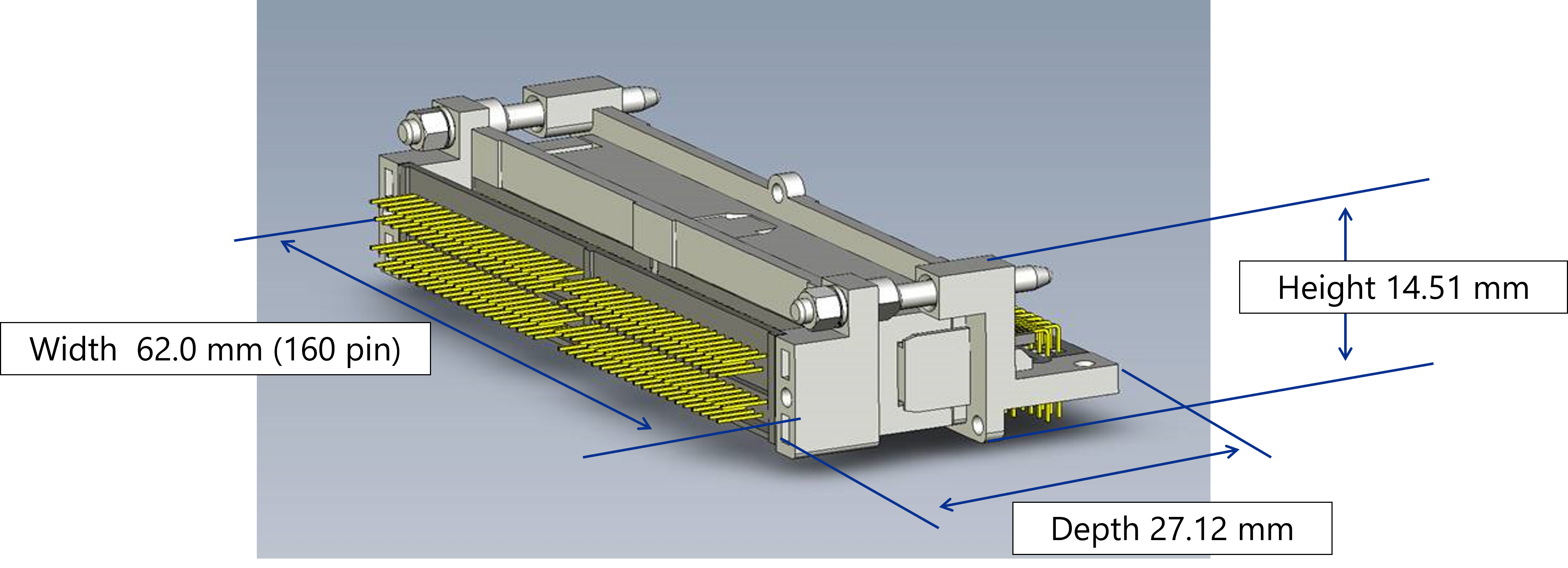

3-2. Slim Type Horizontal Plug-Vertical Receptacle Mating (160P)
Search I/O Connectors View Product Matrix Back to top

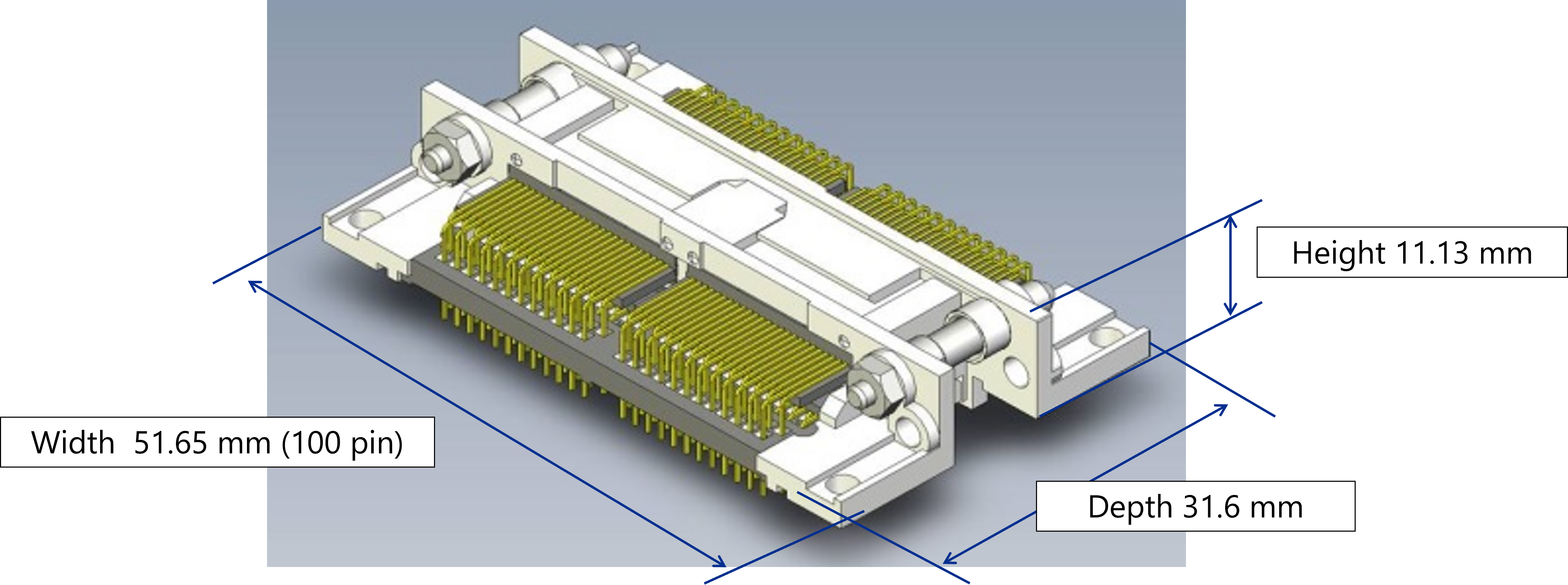

3-3. Standard Type Horizontal Plug-Horizontal Receptacle Mating (100P, 240P)
Search I/O Connectors View Product Matrix Back to top

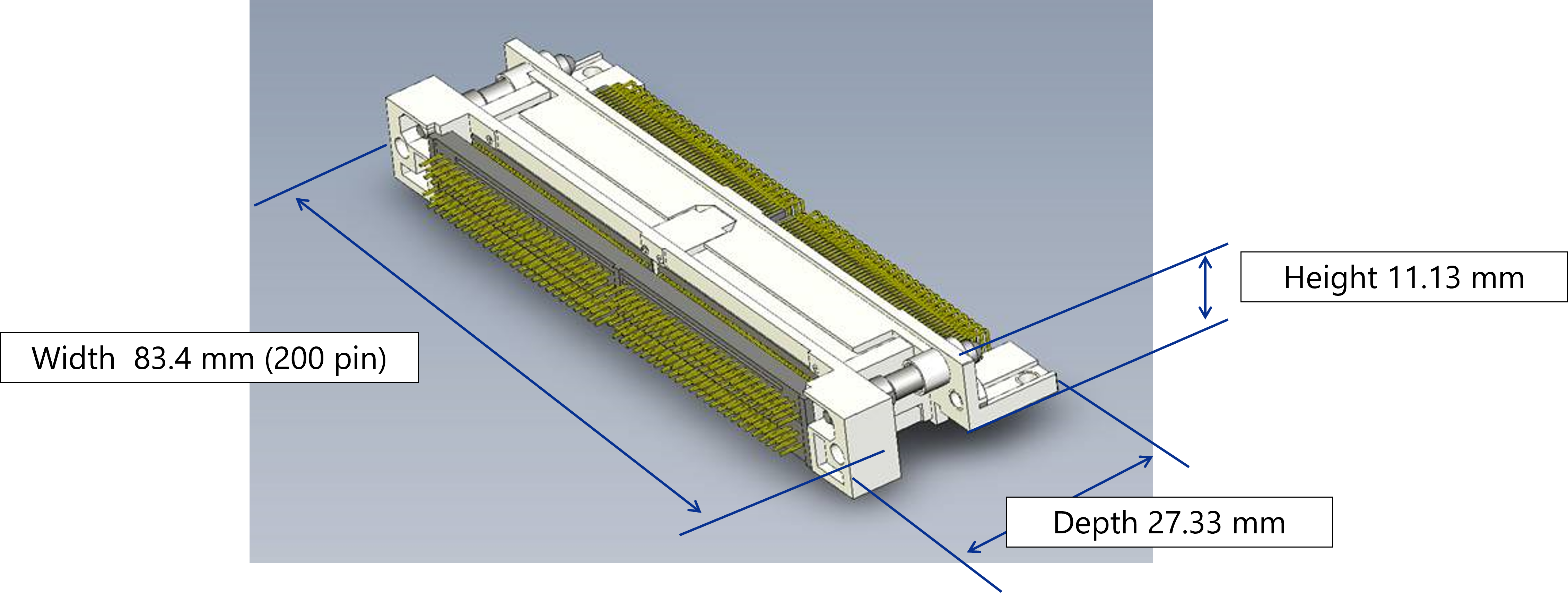

3-4. Standard Type Horizontal Plug-Vertical Receptacle Mating (200P)
We offer a wide range of mating types and pin counts, including sequential contact types for ground pins, signal pins, and power pins during mating and unmating.
We provide robust, secure, and reliable docking solutions for portable industrial devices, such as ultrasonic diagnostic equipment, medical devices, cable harness certification systems, and phased array flaw detectors.
For inquiries or questions regarding the MINIDOCK™ series, please contact us here.
