Enterprise Solutions for 112 Gbps PAM4 Applications

Check out I-PEX Enterprise Solutions for 112 Gbps PAM4 Applications. LEAPWIRE™ (Twinax Cable), DUALINE™ 195-HB, DUALINE™ 110-VB-M, and Board-to-Board (Optics or other mezzanine applications) are introduced in this video.

Visit the News section of our website to learn more about these products under development:
I-PEX Enterprise Solutions for 112 Gbps PAM4 (2022/Mar/18)

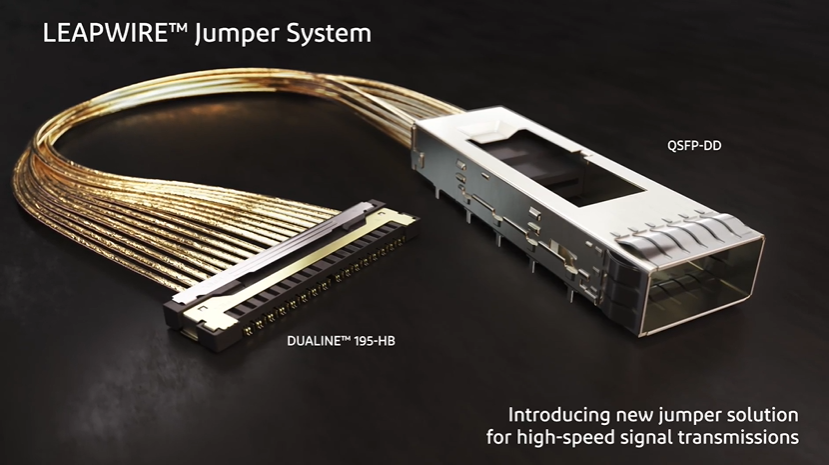

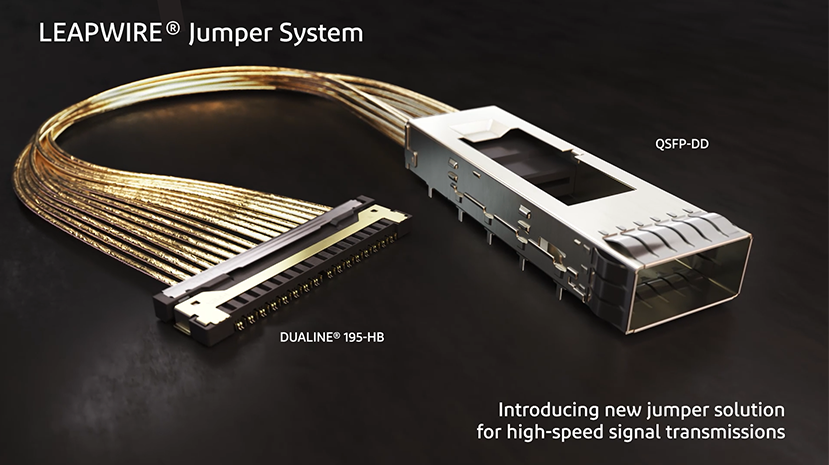

LEAPWIRE™ (Twinax Cable)


 - Can transmit approximately 10.3 times farther in the 28 GHz band than PCB transmission.

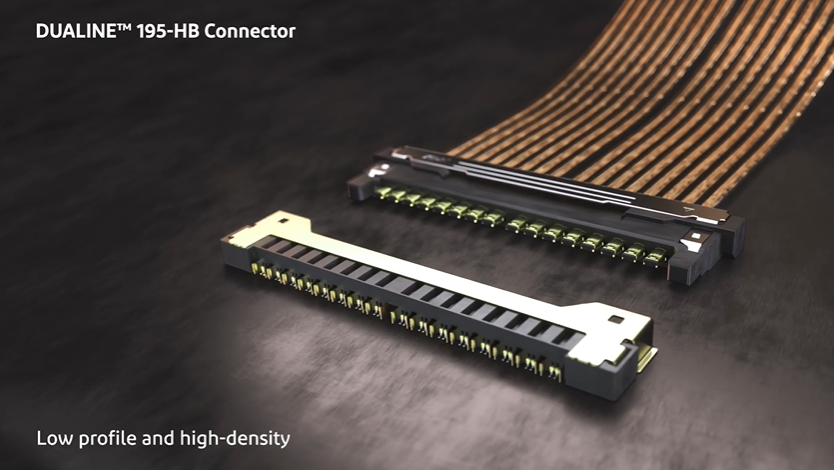

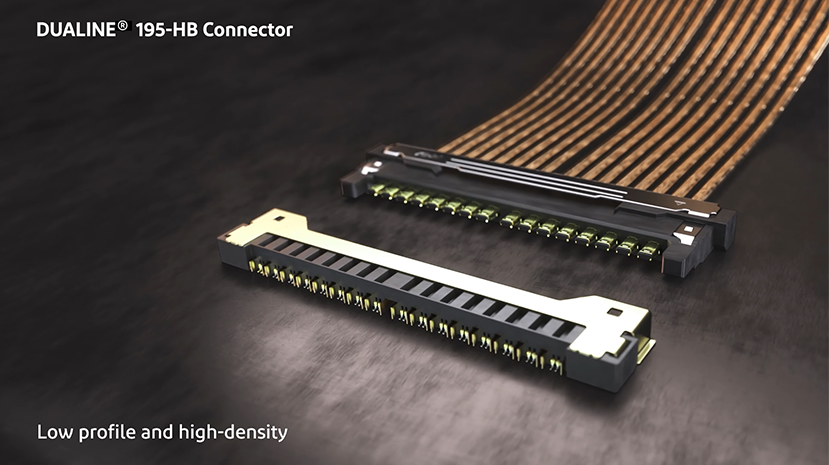

DUALINE™ 195-HB


- Supports high-speed transmission, such as 112 Gbps PAM4
Uses Twinax Cable with excellent signal integrity performance
- Low-profile design (H=3.0 mm)
Product can be placed under the heatsink, closer to the CPU to reduce transmission loss; small product size supports airflow measures in equipment
- Has mechanical lock to prevent un-mating

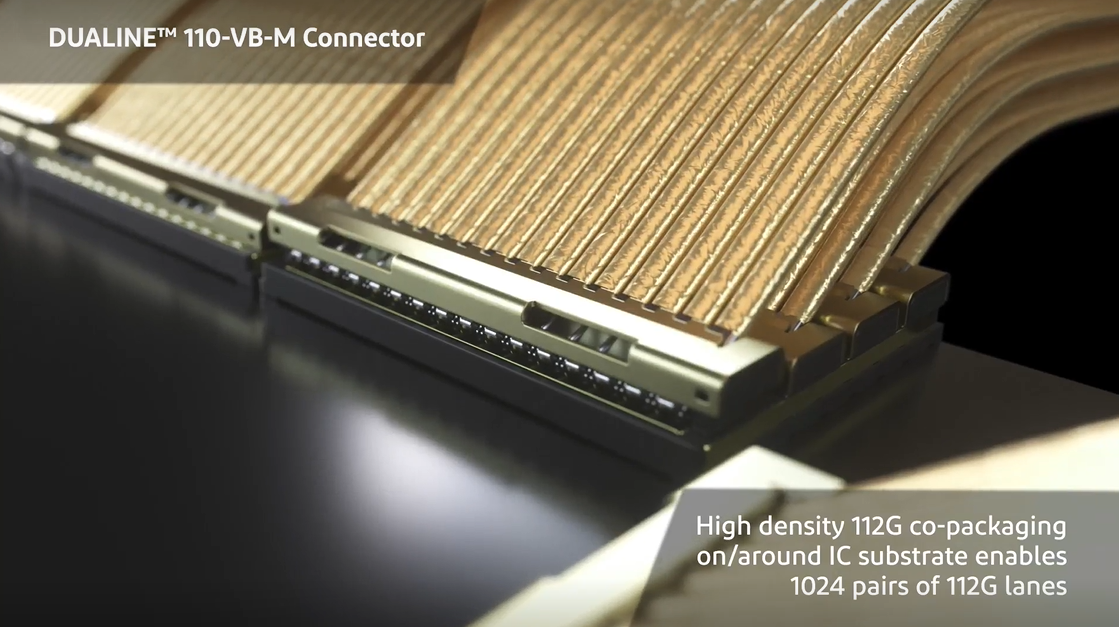

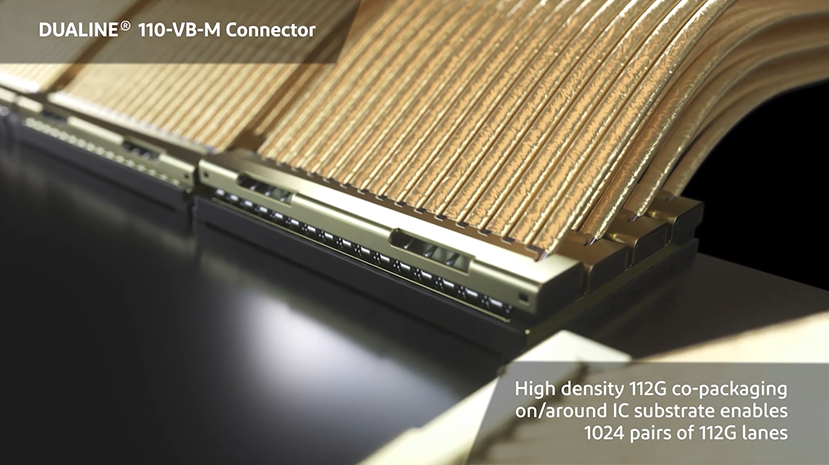

DUALINE™ 110-VB-M


- Supports high-speed transmission such as 112 Gbps PAM4
Uses Twinax Cable with excellent signal integrity performance
- Supports Co-Package system. Small space-saving product for high-density mounting
Multi-pin array, 64 pair (16 differential pair x 4 rows)

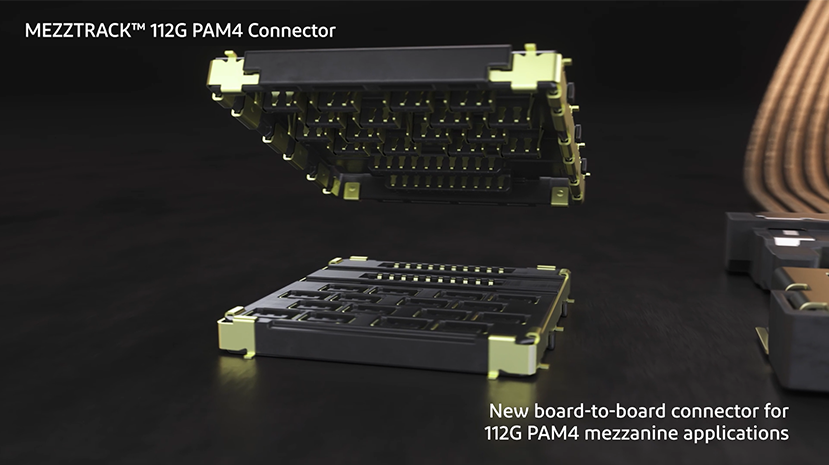

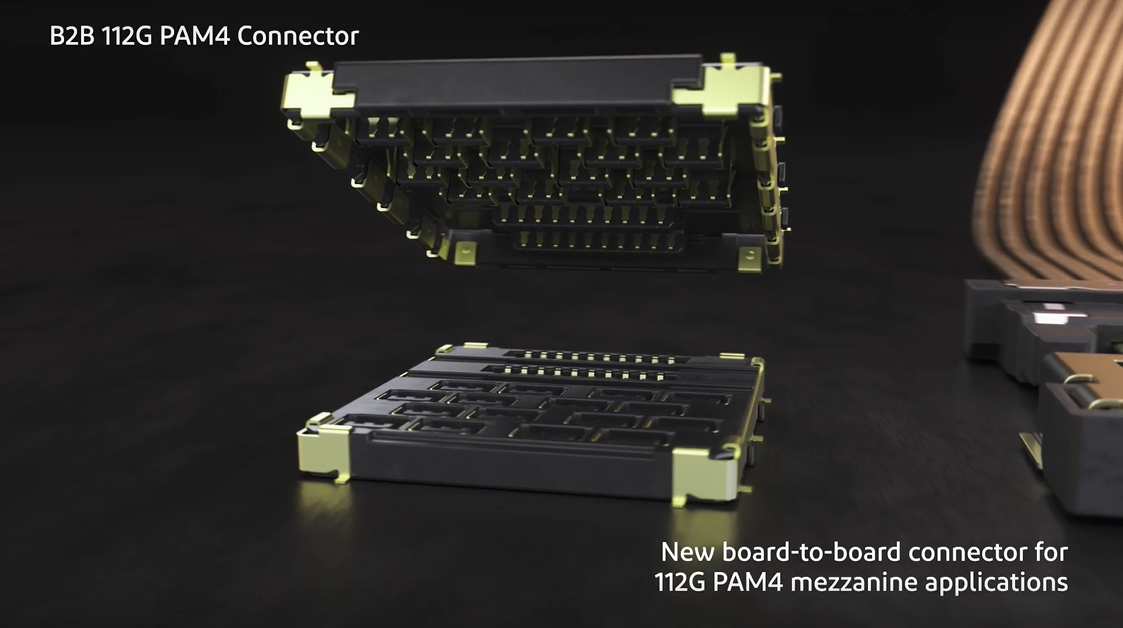

Board-to-Board (Optics or other mezzanine applications)


-Supports high-speed transmission such as 112 Gbps PAM4.
- Supports Co-Package system. Small space-saving product for high-density mounting
Height=1.5 mm, Depth=14.9 mm, Width=13.6 mm
