Efficient harness assembly with MHF wiring Jig

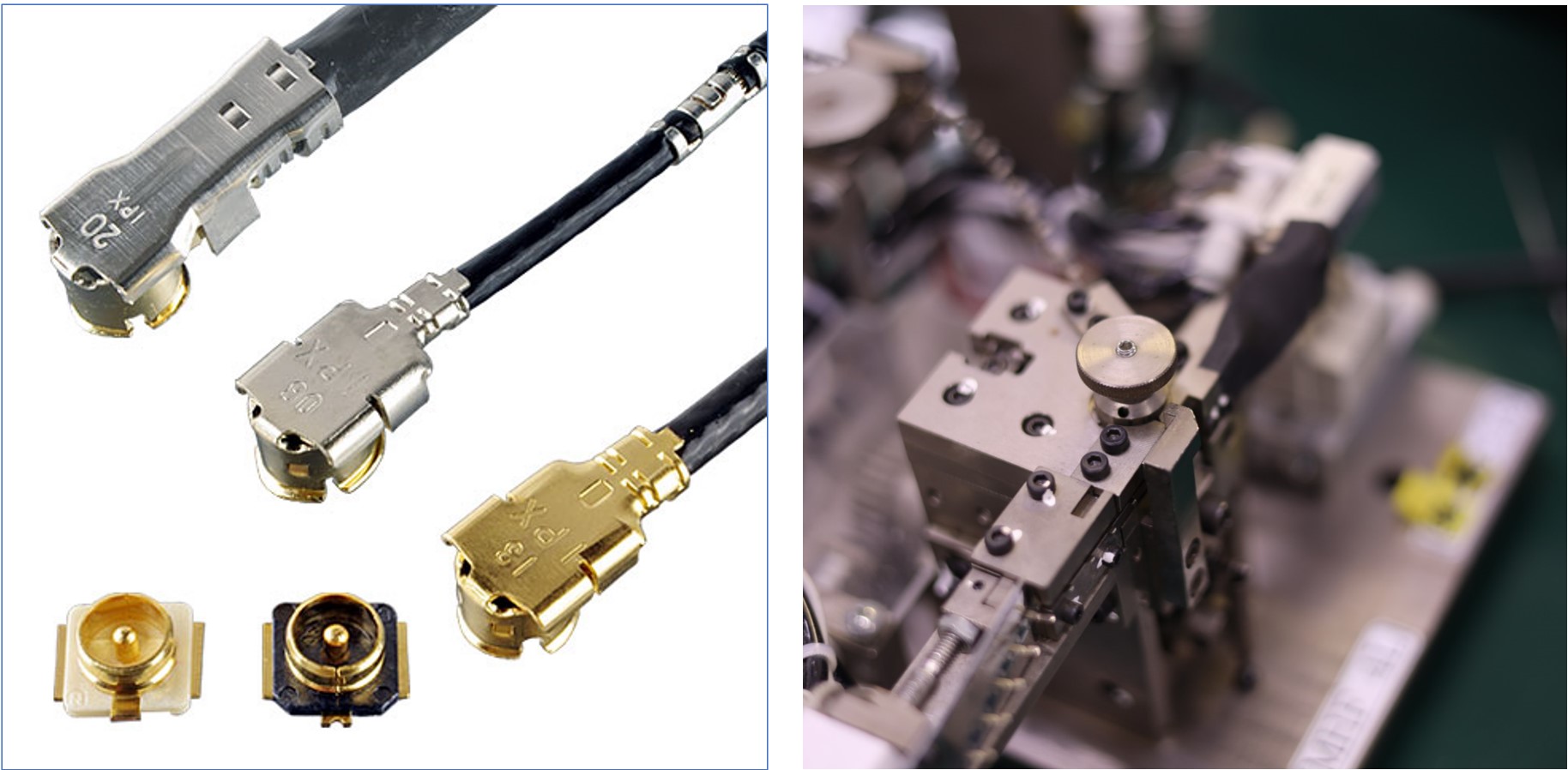

I-PEX MHF® with i-Fit® technology is also supported by many antenna and harness manufacturers.
MHF wiring Jig, which harnesses I-PEX MHF®, has shipped more than 1,000 units in total, and MHF Jig enables easy and efficient pinching process and stable production.








Harness assembly process by MHF connection Jig



 1. Cable Cutting & Stripping

   Accurate and stable using specialized machines

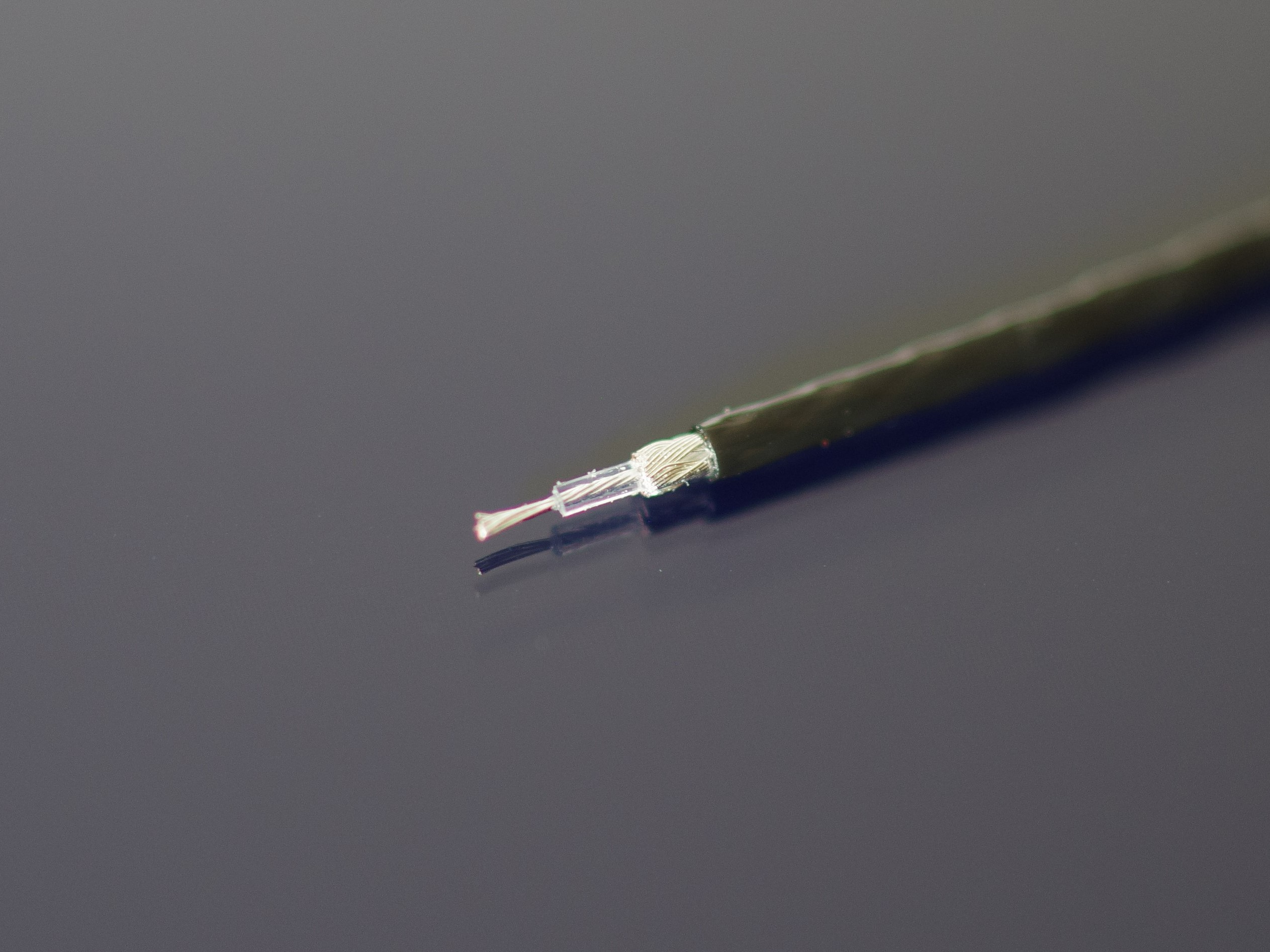

   Three-stage strip cable production

image2-vARW image2-1 image_arrow image2-2 image_arrow image2-3
Select the specified cable.   Set the specified length of cable in the constant length cutting machine. The cable is automatically cut to the specified length.   Three-stage stripping machine for RF coaxial cables.





 2. Harnesses Assemblies

  ***MHF®  wiring Jig is used in this proces ***

   MHF®  wiring with Jig  = High quality, high productivity MHF®  wiring with i-Fit®  technology





 3. Continuity and Withstand Voltage Tests & Appearance Inspection

   Conduction and withstand voltage tests are conducted in accordance with I-PEX product standards. High quality is ensured.

image2-vARW image3-1 image_arrow image3-2

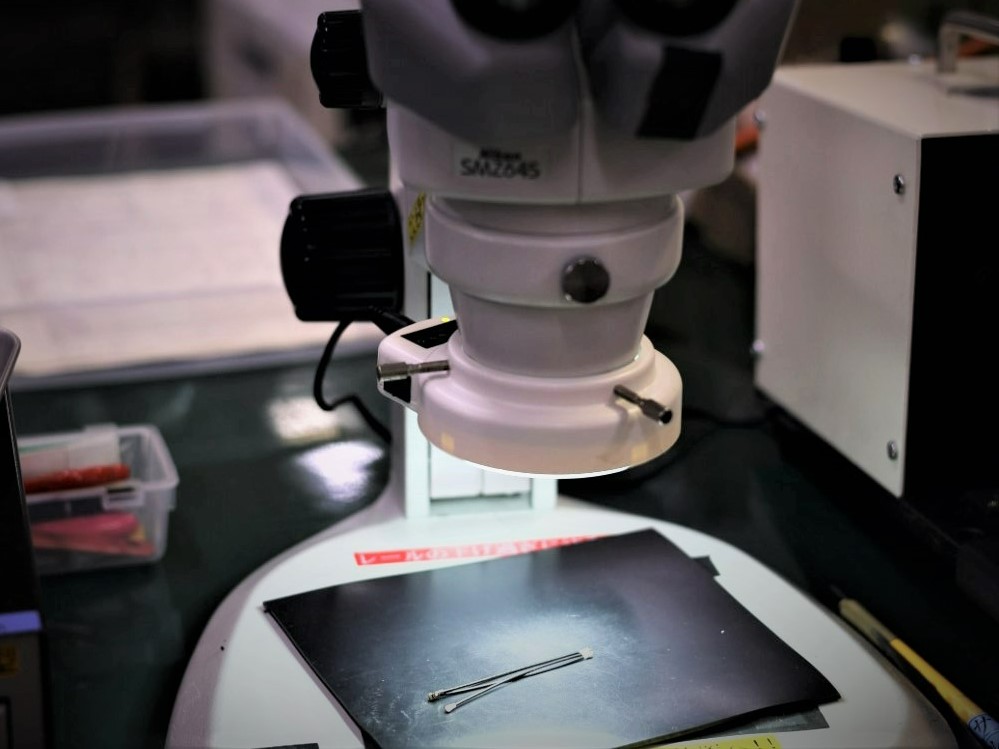

Conduct continuity and withstand voltage tests in accordance with I-PEX product standards using a testing machine to confirm consistency with the standards.(Click here for product standards including continuity and withstand voltage)   We also use a stereo microscope to check for scratches, dents, and other external defects before delivering the product to the customer.







Harnesses Assemblies

  MHF®  wiring with Jig = High quality, high productivity MHF®  wiring with i-Fit®  technology

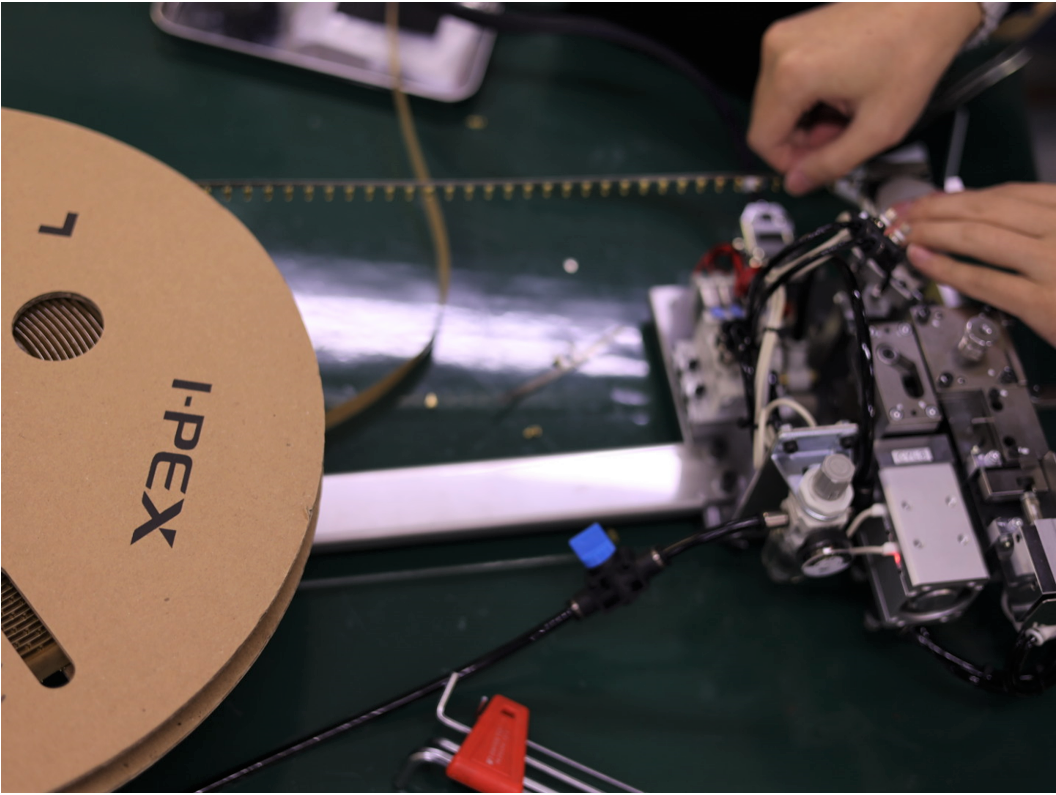

   1) Set the reel of the MHF®  Plug to the MHF®  wiring Jig with i-Fit®  technology.

image4-1



   2) The wiring is completed by precisely inserting the triple-stripped cable by hand into the MHF®  wiring Jig, which uses air pressure to pinch the spring. No solder is  used for MHF®  wiring, and the RF signal is conducted by clamping the center conductor of the RF coaxial cable between the contact springs of the connector plug.

image4-2

   Please refer to the i-Fit®  Technology/MHF®  ultra-small RF coaxial connector video for wiring instructions.

   https://www.i-pex.com/library/video/i-fit-crimping-technology



image4-3

By using the MHF Wiring Jig, you can realize more efficient and stable production of high quality MHF harnesses. For more information about I-PEX MHF Wiring Jig  (including consumables), please contact our sales representative or [Contact Us].
