MINIDOCK™ STANDARD
稳固的高pin数 Docking I/O连接器
适合于多种应用的稳固型连接器(移动设备、仪器仪表，医疗器械等)
高达 5,000 次的插拔寿命
定位导引，实现可靠对接
Contact Pitch:
0.635 mm
Mating Type / Direction:
Horizontal, Vertical
Height:
Plug: 11.13 mmReceptacle: 11.13 mm
Available Pin Count:
Signal: 100, 200
下载
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
-
认证
适合于多种应用的稳固型连接器(移动设备、仪器仪表，医疗器械等)
高达 5,000 次的插拔寿命
定位导引，实现可靠对接

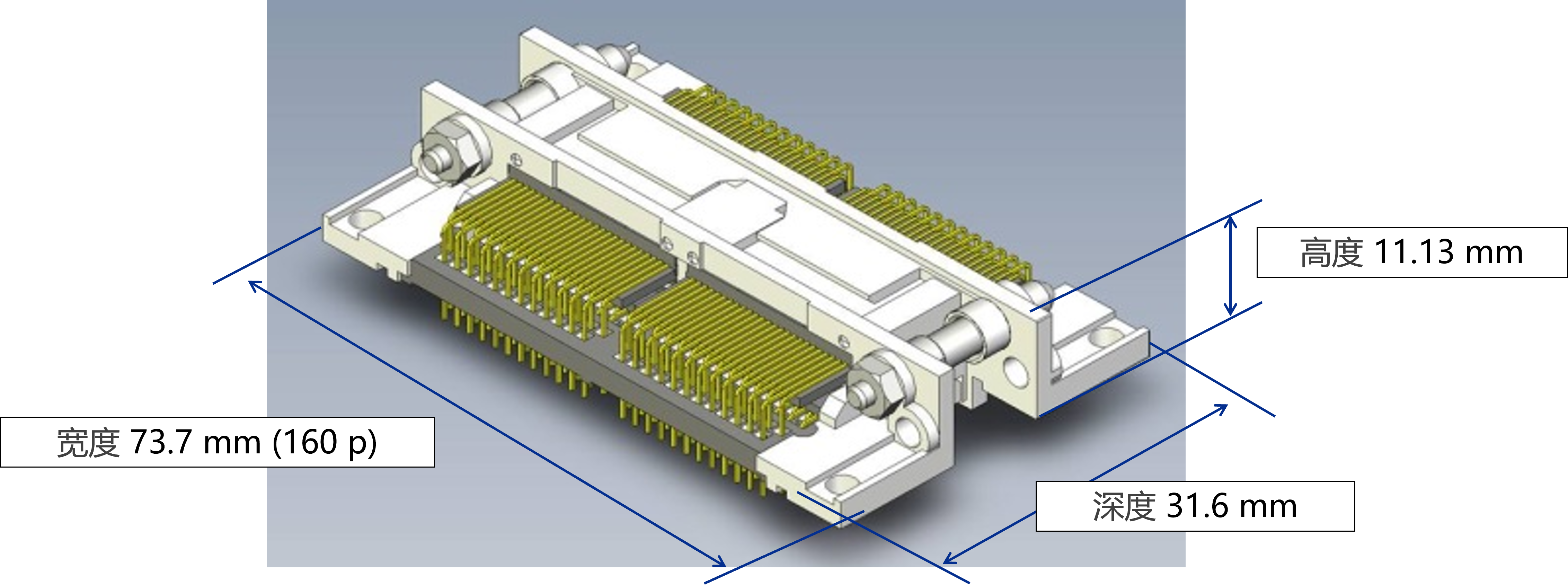

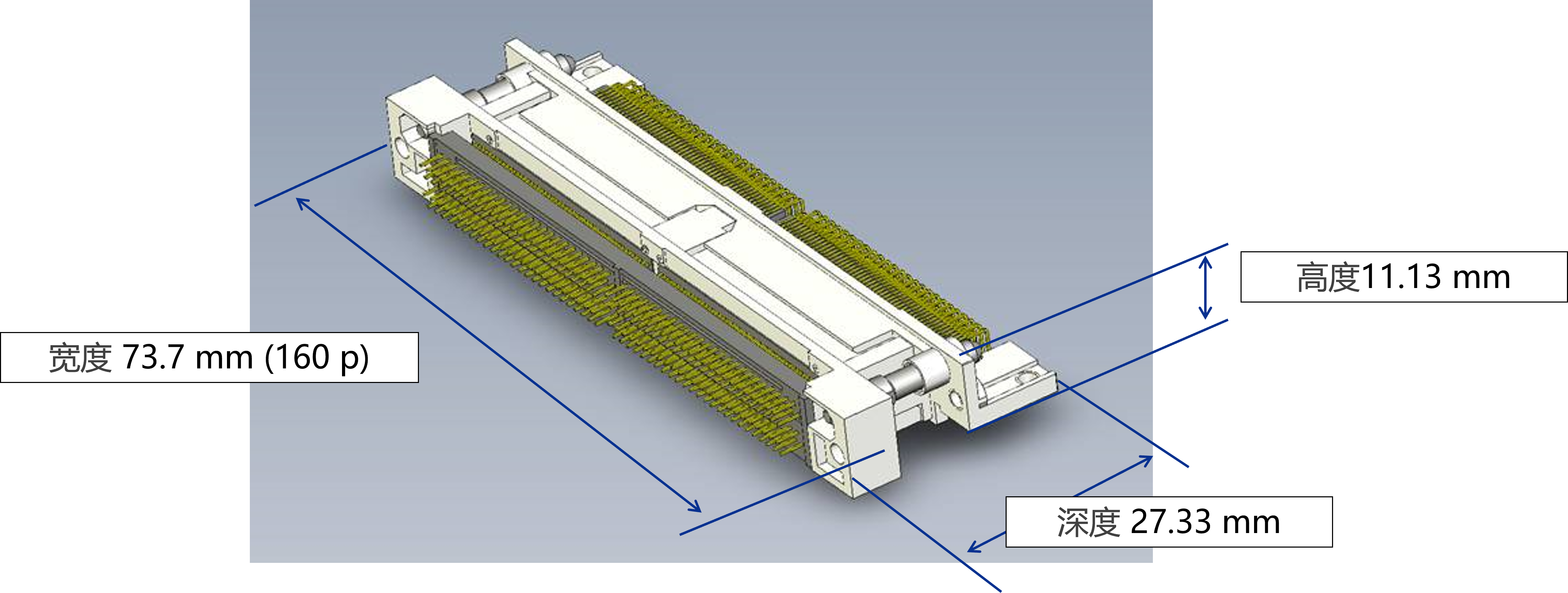

MINIDOCK™设计
配对示例：30046-160T 与 30056-160T
| Product Type | 标准款
|
| Contact Pitch | 0.635 mm
|
| Mating Type / Direction | Horizontal, Vertical
|
| Height | Plug: 11.13 mmReceptacle: 11.13 mm
|
| Available Pin Count | Signal: 100, 200 |
| Depth | Plug: 9.9 to 17.8 mmReceptacle: 11.13 to 22.53 mm
|
| Width | Plug / Receptacle: 36.0 to 96.1 mm
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | No
|
| Other Features | 带螺丝不带定位柱
|
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
MINIDOCK (Standard) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 200pin without screw | 30094-200T-01F | 21227.05 |
| MINIDOCK STANDARD receptacle right-angle 100pin without screw | 30002-100T-F | 18137 |
| MINIDOCK STANDARD receptacle vertical 200pin | 30007-200T-03F | 171240 |
| MINIDOCK STANDARD plug right-angle 100pin without screw | 30001-100T-F | 12591 |
OTHER MINIDOCK (Standard) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 100pin with screw | 30001-100T-01F | 11590 |
| MINIDOCK STANDARD plug right-angle 200pin with screw | 30094-200T-F | 21427.05 |
| MINIDOCK plug 160pin | 30033-160T-F | 26790.7 |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
MINIDOCK (Standard) Plan to EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL P/N feature | Alternative P/N | Alternative P/N feature |
| MINIDOCK STANDARD plug right-angle 240pin with screw | 30001-240T-02F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 240pin with screw | 30002-240T-01F | Contact us | ||
| MINIDOCK receptacle free 80pin | 30030-080T-07F | with screw, with boss | 30030-080T-03F | without screw, without boss |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | guidepin material stainless steel | 30030-080T-03F | guidepin material steel |
MINIDOCK (Standard) EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL P/N feature | Alternative P/N | Alternative P/N feature |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-12AT-F | Au 0.75um Plating | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-12AT-F | Au 0.75um Plating | Contact us | |
| MINIDOCK STANDARD receptacle free 80pin | 30030-080T-04F | without Guide pin | 30030-080T-03F | Sphere top Guide pin |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-01F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-03F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-01F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 200pin | 30001-200T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 120pin without screw | 30002-120T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-120T-F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-02F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 200pin | 30002-200T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-100T-F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-120T-F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-240T-F | Contact us | ||
| MINIDOCK STANDARD | 30011-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30020-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30024-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30025-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30031-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30032-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30040-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30041-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30052-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30053-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30058-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30060-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30061-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30062-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30064-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30078-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30083-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30A12-***T-** | Contact us |
