MINIDOCK™ SLIM


          稳固的高pin数 Docking I/O连接器

适合于多种应用的稳固型连接器(移动设备、仪器仪表,医疗器械等)
高达 5,000 次的插拔寿命
可选带螺丝的款式,具备理想的锁扣功能
Contact Pitch:


                          0.635

            (mm)

嵌合类型:

          直角
          垂直

可提供Pin数:

          80
          160

下载
适合于多种应用的稳固型连接器(移动设备、仪器仪表,医疗器械等)
紧凑型公座 紧凑型母座
| 料号 | Pin数 | 嵌合类型 | 端子类型 | 外观 | 料号 | Pin数 | 嵌合类型 | 外观 | |
| 30029 | 80 |

 直角
 | 2 列 |  | → | 30030 | 80 |
 直角 |  |
| 30046 | 160 | 2 列 |  |

 → | 30047 | 160 |  | ||
| 30056 | 160 | 垂直 |  |
高达 5,000 次的插拔寿命

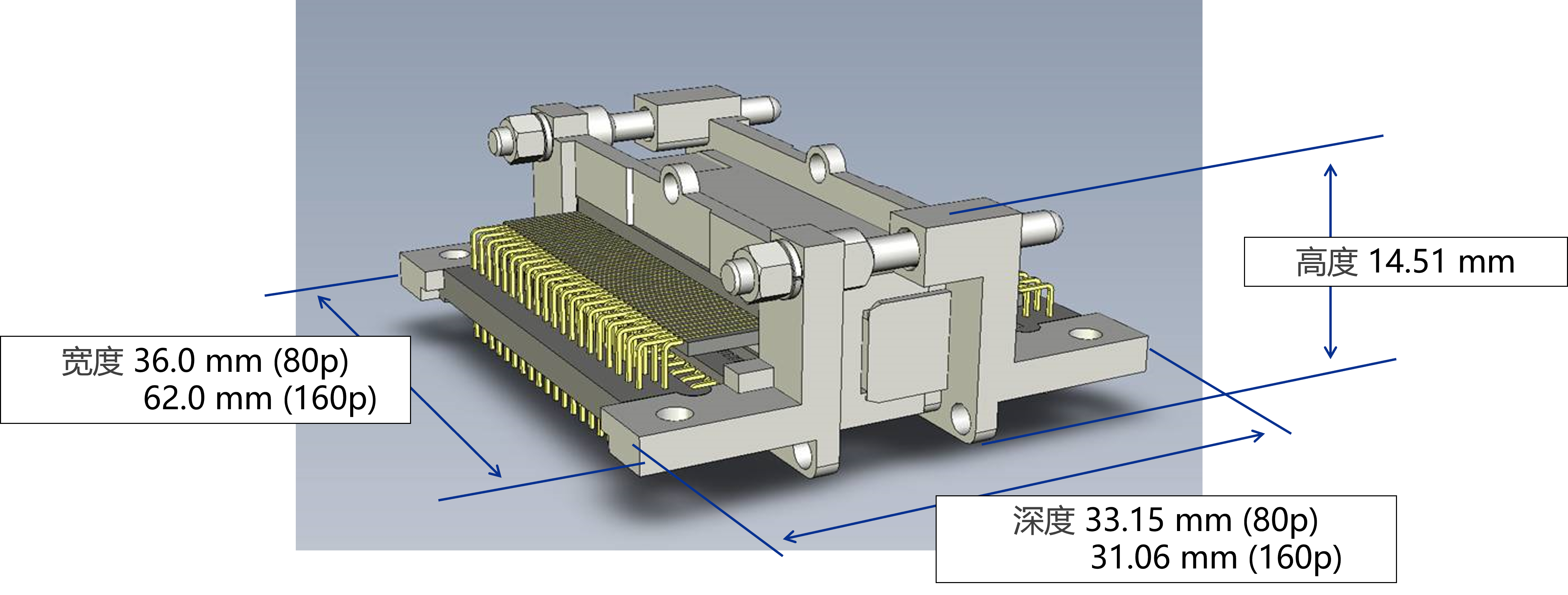

直角公座–直角母座一对
料号

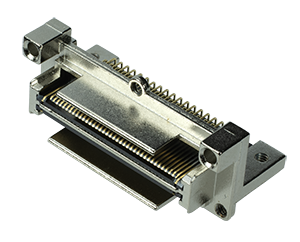

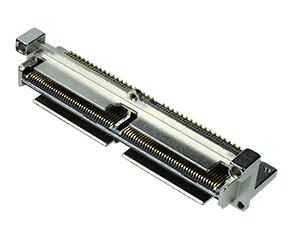

公座  30029 (80 pin), 30046 (160 pin)

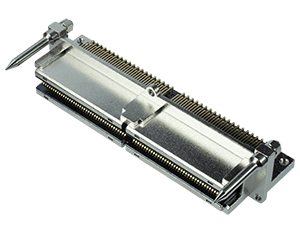

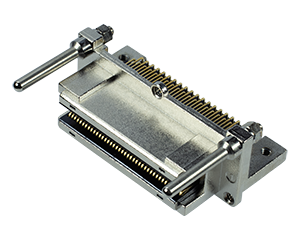

母座     30030 (80 pin), 30047 (160 pin)

可选带螺丝的款式,具备理想的锁扣功能

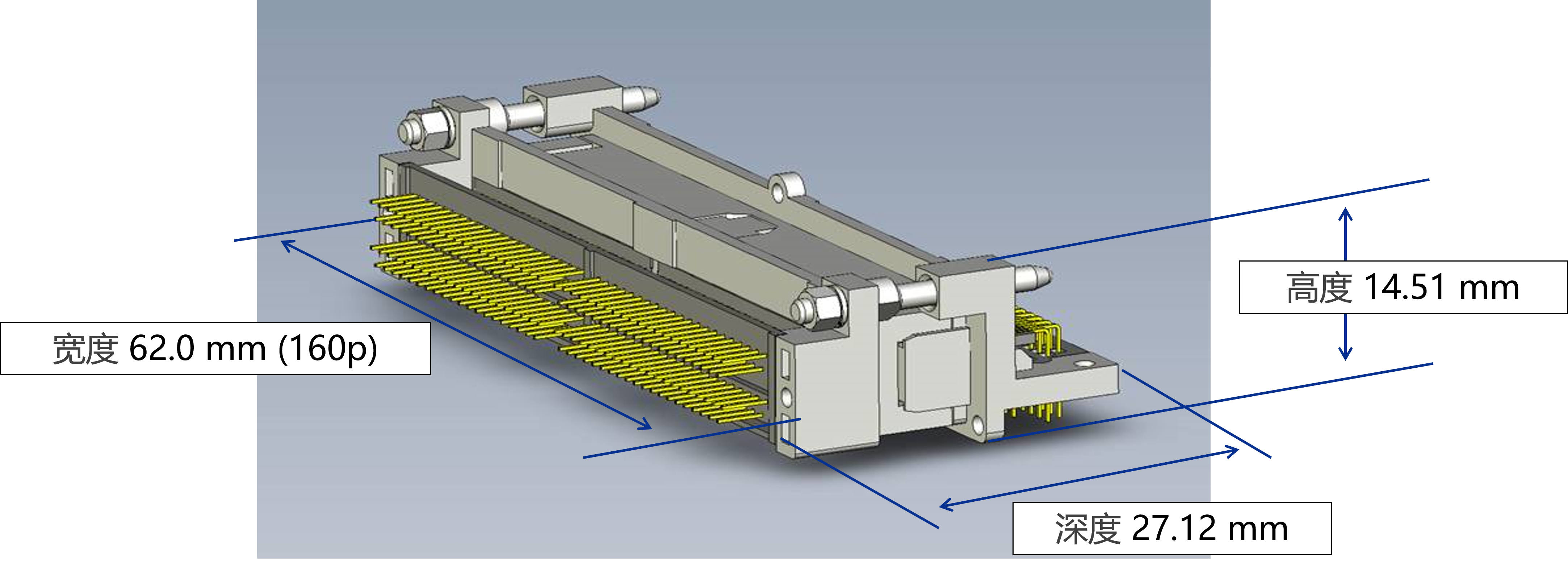

直角公座–垂直母座一对
料号
公座   30046 (160 pin)

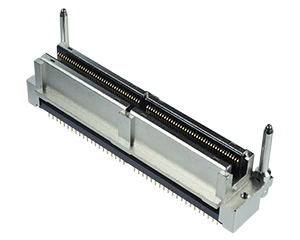

母座     30056 (160 pin)

      | Product Type |
          薄款
       |
| Contact Pitch |

                          0.635

            (mm)
         |
| 嵌合类型 |
          直角
          垂直
       |
| Available Pin Counts |
          80
          160
       |
| Width Formula |
          36.0 - 96.10 mm (Plug / Receptacle)
       |
| Shielded FPC / FFC |
          No
       |
| Full EMI Shielding (ZenShield®) |
          No
       |
| Mechanical lock |
          No
       |
| Other Features |
          带定位柱
          带螺丝
       |
推荐料号
若列表中查询不到您要查找的料号,请使用调查表询问。
MINIDOCK (Slim) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK SLIM plug right-angle 80pin without boss without screw | 30029-080T-01F | 10090 |
| MINIDOCK SLIM plug right-angle 160pin with screw, contact length L=5.36 | 30046-160T-F | 17375.2 |
| MINIDOCK SLIM receptacle right-angle 80pin without boss without screw | 30030-080T-03F | 13378 |
| MINIDOCK SLIM receptacle right-angle 160pin without screw | 30047-160T-01F | 20800 |
| MINIDOCK SLIM receptacle vertical 160pin with screw | 30056-160T-F | 23809.2 |
OTHER MINIDOCK (Slim) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK SLIM plug right-angle 80pin with boss with screw | 30029-080T-02F | 10310 |
| MINIDOCK SLIM plug right-angle 80pin with boss without screw | 30029-080T-03F | 10360 |
| MINIDOCK SLIM plug right-angle 80pin without boss with screw | 30029-080T-F | 10310 |
| MINIDOCK SLIM plug right-angle 160pin without screw | 30046-160T-01F | 15840 |
| MINIDOCK SLIM plug right-angle 160pin without screw, contact length L=4.66 | 30046-160T-03F | 18985.2 |
| MINIDOCK SLIM receptacle right-angle 80pin without boss with screw | 30030-080T-01F | 13410 |
| MINIDOCK SLIM receptacle right-angle 80pin with boss with screw | 30030-080T-19F | 13958 |
| MINIDOCK SLIM receptacle right-angle 160pin with screw | 30047-160T-04F | 61515.6 |
| MINIDOCK SLIM receptacle vertical 160pin without screw | 30056-160T-01F | 20780 |
| MINIDOCK SLIM plug right-angle 160pin | 30046-160T-02F | 15840 |
| MINIDOCK SLIM receptacle right-angle 160pin | 30047-160T-F | 61515.6 |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价,请参考上述推荐的料号。
MINIDOCK (Slim) Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK receptacle free 80pin | 30030-080T-07F | 30030-080T-03F | footprint pattern, without boss, without screw |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | 30030-080T-03F | footprint pattern, without boss, without screw |
MINIDOCK (Slim) EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK SLIM plug right-angle 160pin | 30057-160T-F | Contact us | |
| MINIDOCK SLIM plug right-angle 160pin | 30059-160T-01F | Contact us | |
| MINIDOCK SLIM plug right-angle 158pin | 30095-158T-F | Contact us | |
| MINIDOCK plug 160pin | 30059-160T-F | Contact us |
