LIGHTPASS®-EOB 100G

100 G（25 Gbps x 4 ch） Bi-directional, Low profile, MPU integrated, Low power consumption, photoelectric conversion module

  • Ultra-Thin Mating Height : 2.3 mm

  • High-Speed Transmission: 100 Gbps (25 Gbps x 4 Channels）

  • MPU Integrated Active Optical Module

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

    • Ultra-Thin Mating Height : 2.3 mm
    Ultra-Thin Mating Height : 2.3 mm

    High-Speed Transmission: 100 Gbps (25 Gbps x 4 Channels）
    LIGHTPASS EOB 100G E FAB2

    MPU Integrated Active Optical Module
    MPU Integrated Active Optical Module

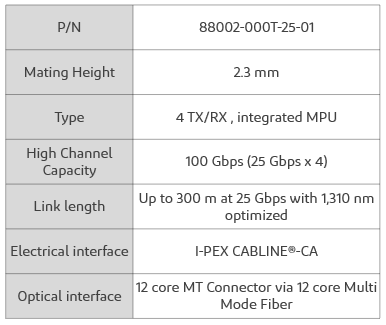

    LIGHTPASS-EOB 100G RECOMMENDED PART NUMBERS

    Product name Description Part Number
    LIGHTPASS®-EOB 100G Optical module 88002-000T-25-01
    CABLINE® -CA RECEPTACLE PCB connector 20525-260E-02

    *Click here to visit CABLINE®-CA product page (Drawing, Specifications, etc.)



    Related Products

    Related Topics

    Active Optical Modules LIGHTPASS® Series

    In this video LIGHTPASS®-EOB 100G (100 Gbps (25 Gbps x 4 Channels) Bi-directional, Low profile, MPU integrated, Low Power Consumption, Photoelectric Conversion Module) and LIGHTPASS®-EOM 100G (100 Gbps (25 Gbps x 4 Channels ) Bi-directional, High Density, Low Power Consumption, Mid-board Optical Module) are introduced.

    Enterprise Solutions for 112 Gbps PAM4 Applications

    Check out I-PEX Enterprise Solutions for 112 Gbps PAM4 Applications. LEAPWIRE® (Twinax Cable), DUALINE® 195-HB, DUALINE® 110-VB-M, and MEZZTRACK™ (Optics or other mezzanine applications) are introduced in this video.
    Video-Thumbnail-for-Web_Enterprise-Solution

    Server Design / Solutions for Enterprise Computing

    I-PEX connectors solutions for enterprise computing applications.
    Server-Solution

    Benefits of Using an On-Board Optical Modules in an FPGA Platform

    PCL reported verification results of 100 Gbps transmission using an FPGA platform at the China Semiconductor Technology International Conference. I-PEX’s LIGHTPASS®-EOB 100G optical module is one of the components on the FPGA-based verification platform by PCL. The results of PCL’s research have demonstrated the suitability of the newly created FPGA-based verification platform for characterizing high-speed data rates of 100 Gbps with 4×25G SerDes TX/RX.
