FPL™ II

FPL II Product Image
High-data-rate transfer (12 Gbps/lane), Max power delivery (AWG #32), Durable to noise, 0.5 mm pitch, Vertical mating type micro-coaxial connector

    High-data-rate transfer, ideal for 12 Gbps/lane applications

    Maximum power delivery (AWG #32)

    Several ground points durable to noise
Contact Pitch:
0.5 (mm)
Mating Direction:
Vertical
Height:
2.4 max. (mm)
Available Pin Count:
30 40 50
Micro-Coaxial Cable:
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.6A AC/DC [AWG #38] per contact/up to 6 contacts 0.8A AC/DC [AWG #40] per contact/up to 4 contacts 1.0A AC/DC [AWG #34, 32] per contact/up to 7 contacts

Downloads

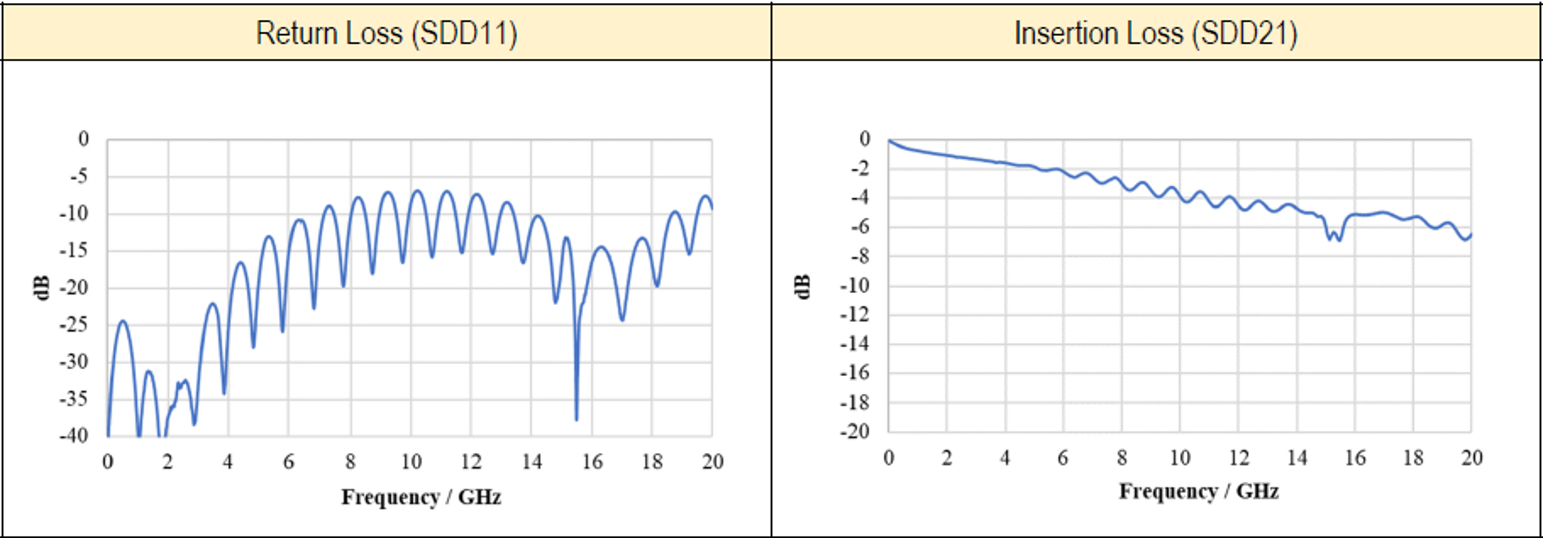

High-data-rate transfer, ideal for 12 Gbps/lane applications



Measurement results

Connector : FPL II 40P
Cable : Micro-corong> : 100 mm
Pin Assignment : GSSGSSG

 FPL II_FAB1_ALL

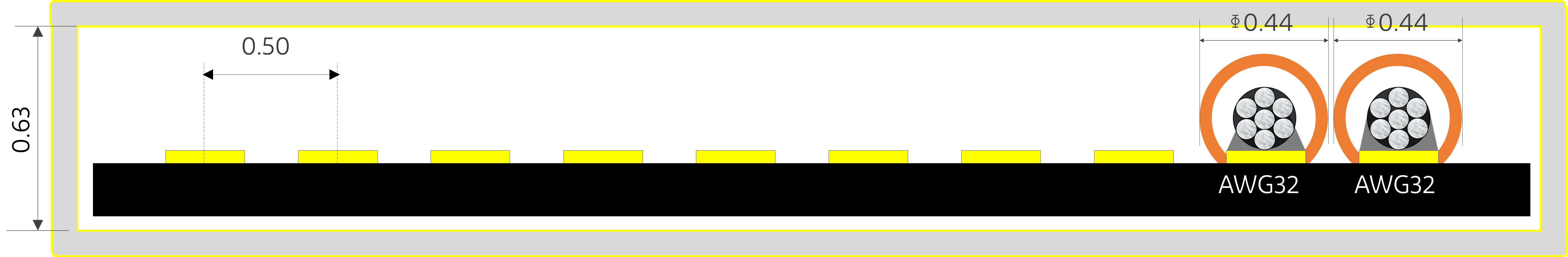

Maximum power delivery (AWG #32)
FPL II_FAB2_ALL

                    Metal shell                                                    FPL™ II 0.5 mm pitch with discrete wire                                                  (Unit : mm)

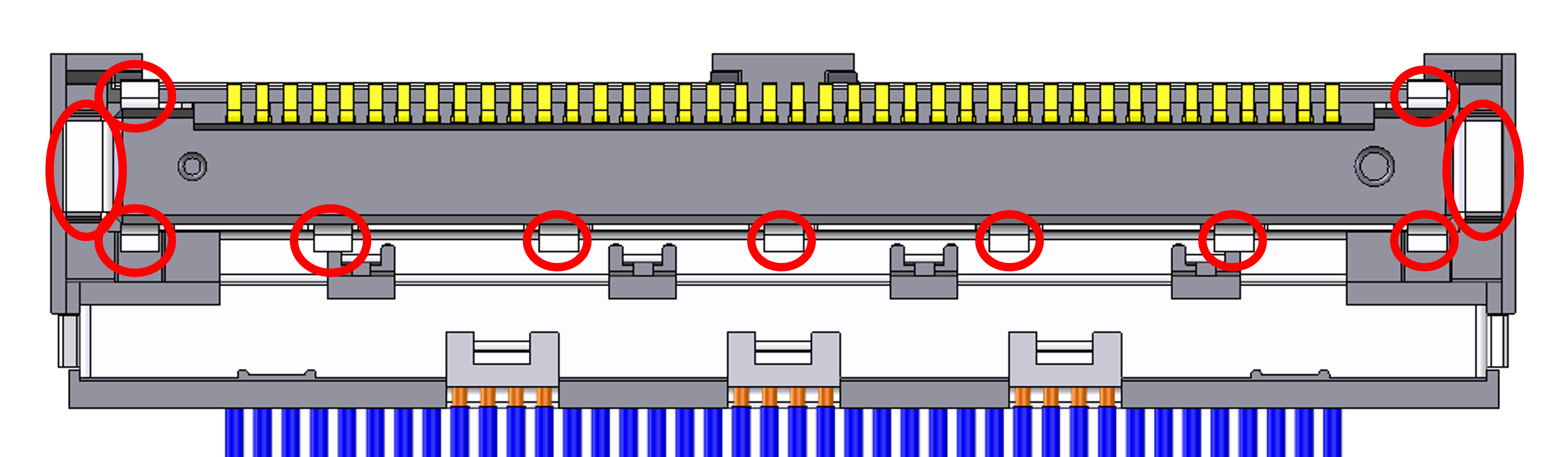

Several ground points durable to noise
FPL II_FAB3_ALL

              View from back FPL™ II 30P                                                              CABLINE-UM_FAB1-2.jpg Ground SMT points



Transmission Speed (Reference Only) 5 Gbps/Lane NRZ
Contact Pitch
0.5 (mm)
Mating Direction
Vertical
Height
2.4 max. (mm)
Available Pin Counts
30 40 50
Depth
6.1 (mm)
Width Formula
5.8+(0.5*?)
Micro-Coaxial Cable
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Discrete Cable
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.6A AC/DC [AWG #38] per contact/up to 6 contacts 0.8A AC/DC [AWG #40] per contact/up to 4 contacts 1.0A AC/DC [AWG #34, 32] per contact/up to 7 contacts
Applicable Standards (Reference Only)
USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



DIAGRAMS_FPL_II



FPL II RECOMMENDED PART NUMBERS

Part Number Description Pin count Part Number
PLUG FOR CABLE ASSEMBLY 30 20437-030T-01
　 　 40 20437-040T-01
　 　 50 20437-050T-01
　 PLUG HOUSING 30 20438-030T-01
40 20438-040T-01
50 20438-050T-01
PLUG SHELL 30 2496-030
40 2496-040
50 2496-050
RECEPTACLE 30 20439-030E-01
　 　 40 20439-040E-01
　 　 50 20439-050E-01
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER FPL II PART NUMBERS

Part Number Description Pin count Part Number
PLUG FOR CABLE ASSEMBLY 30 20437-030T-11
40 20437-040T-11
50 20437-050T-11
　 PLUG HOUSING 30 20438-030T-11
40 20438-040T-11
50 20438-050T-11
RECEPTACLE 30 20439-030E-02
30 20439-030E-03
30 20439-030E-11
30 20439-030E-12
40 20439-040E-02
40 20439-040E-03
40 20439-040E-11
40 20439-040E-12
40 20439-040E-13
50 20439-050E-02
50 20439-050E-03
50 20439-050E-11
50 20439-050E-12
50 20439-050E-14

FPL II EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
FPL II receptacle 30pin 20439-030E-02 20439-030E-01 with/without boss
FPL II receptacle 30pin 20439-030E-03 20439-030E-01 with/without vacuum clip
FPL II receptacle 30pin 20439-030E-12 20439-030E-01 with/without boss
FPL II receptacle 40pin 20439-040E-02 20439-040E-01 with/without boss
FPL II receptacle 40pin 20439-040E-03 20439-040E-01 with/without vacuum clip
FPL II receptacle 40pin 20439-040E-12 20439-040E-01 with/without boss
FPL II receptacle 40pin 20439-040E-13 20439-040E-01 with/without boss, with/without vacuum clip
FPL II receptacle 50pin 20439-050E-02 20439-050E-01 with/without boss
FPL II receptacle 50pin 20439-050E-03 20439-050E-01 with/without vacuum clip
FPL II receptacle 50pin 20439-050E-12 20439-050E-01 with/without boss
FPL II receptacle 50pin 20439-050E-14 20439-050E-01 with/without boss, with/without vacuum clip
