NOVASTACK® 35-HDP

NOVASTACK 35-HDP Product Image
高速 (20+ Gbps/lane) 全屏蔽式帶電力端子, 0.35 mm 間距, 高度: 0.7 mm

    ZenShield® 的全屏蔽設計和多點接地，有效防止 EMI 外泄

    高速率傳輸, USB4 / Thunderbolt 4 (20+ Gbps/lane)應用的理想之選

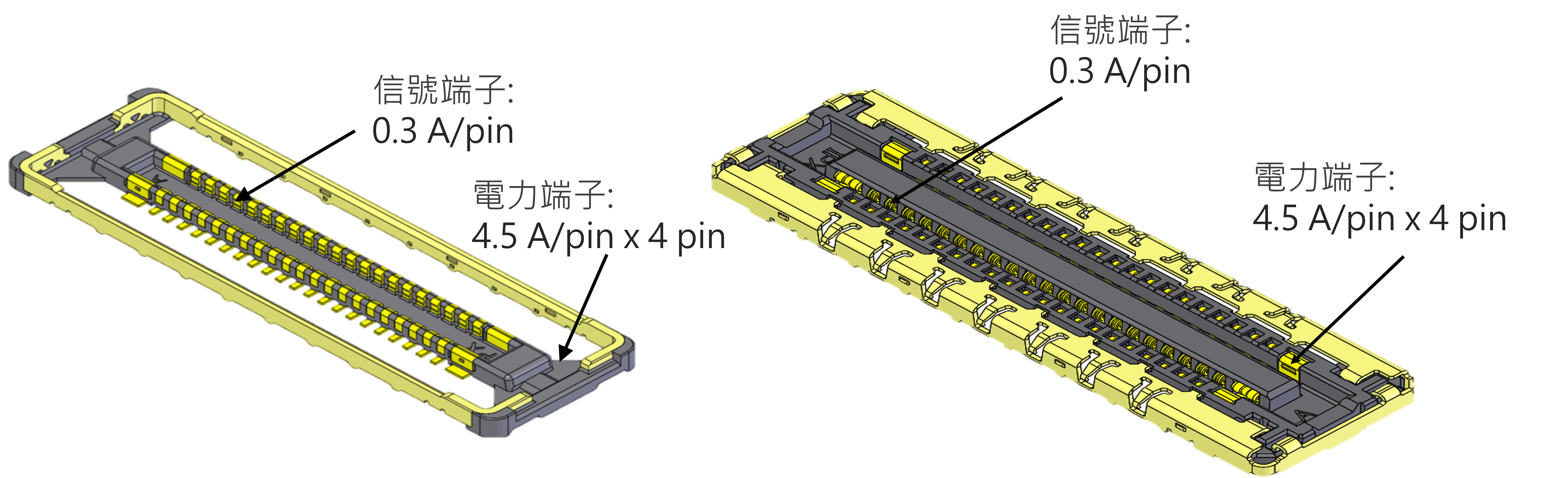

    2.2 A 電力 pin x 4 用於電力傳輸
Contact Pitch:
0.35 (mm)
Mated Height:
0.75 max. (0.7 nom.) (mm)
可提供Pin數:
16 28 34 42 56 62
Current rating:
0.3 A/Signal pin 2.2 A/Power pin

下載

ZenShield® 的全屏蔽設計和多點接地，有效防止 EMI 外泄

高速率傳輸, USB4 / Thunderbolt 4 (20+ Gbps/lane)應用的理想之選

2.2 A 電力 pin x 4 用於電力傳輸





Contact Pitch
0.35 (mm)
Mated Height
0.75 max. (0.7 nom.) (mm)
Available Pin Counts
16 28 34 42 56 62
Depth
3.7 (mm)
Width Formula
4.89+(0.35*?p/2)
Shielded FPC / FFC
No
Current rating
0.3 A/Signal pin 2.2 A/Power pin
Applicable Standards (Reference Only)
USB4 (20 Gbps/Lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
No
Other Features
全遮罩

推薦料號

若清單中查詢不到您要找的料號，請使用調查表詢問。



NOVASTACK 35-HDP RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
NOVASTACK 35-HDP plug 16pin 20697-016E-01-P 21.84
NOVASTACK 35-HDP plug 28pin 20697-028E-01 28.9
NOVASTACK 35-HDP plug 34pin 20697-034E-01 33
NOVASTACK 35-HDP plug 42pin 20697-042E-01 34.88
NOVASTACK 35-HDP plug 56pin 20697-056E-01 41.24
NOVASTACK 35-HDP plug 62pin 20697-062E-01 45
NOVASTACK 35-HDP receptacle 16pin 20698-016E-01 22.1
NOVASTACK 35-HDP receptacle 28pin 20698-028E-01 29.543
NOVASTACK 35-HDP receptacle 34pin 20698-034E-01 32.49
NOVASTACK 35-HDP receptacle 42pin 20698-042E-01 36.8
NOVASTACK 35-HDP receptacle 56pin 20698-056E-01 44.96
NOVASTACK 35-HDP receptacle 62pin 20698-062E-01 48.53
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。



NOVASTACK 35-HDP OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
NOVASTACK 35-HDP plug 28pin 20697-028E-01-P 30.4
NOVASTACK 35-HDP plug 34pin 20697-034E-01-P 31.4
NOVASTACK 35-HDP plug 34pin 20697-034E-03 33.7
NOVASTACK 35-HDP plug 42pin 20697-042E-01-P 35.44
NOVASTACK 35-HDP plug 56pin 20697-056E-01-P 41.4
NOVASTACK 35-HDP plug 62pin 20697-062E-01-P 44.67
NOVASTACK 35-HDP receptacle 34pin 20698-034E-03 32.5
NOVASTACK 35-HDP receptacle 62pin 20875-062E-01 48.53
NOVASTACK 35-HDP FPC assembly 62pin 91130-0002 -
NOVASTACK 35-HDP FPC assembly 62pin 91130-0002-01 -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for NOVASTACK 35-HDP 42pin 91654-042B-001 84611.67

NOVASTACK_35-HDP_TB-1009_Plug_Jack-side_(C)

Main Board

NOVASTACK_35-HDP_TB-1009_Thru_(C)
Thru Board
SI Test Board for NOVASTACK 35-HDP 56pin 91654-056B-001 84625
SI Test Board for NOVASTACK 36-HDP 62pin 91654-062B-001 84631.2

NOVASTACK 35-HDP EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
NOVASTACK 35-HDP plug 42pin 20697-042E-01M 20697-042E-01 MOQ
NOVASTACK 35-HDP plug 56pin 20697-056E-01M 20697-056E-01 MOQ
NOVASTACK 35-HDP receptacle 42pin 20698-042E-01M 20698-042E-01 MOQ
NOVASTACK 35-HDP receptacle 56pin 20698-056E-01M 20698-056E-01 MOQ
