IARPB® VERTICAL
抗振、一体式、垂直款入板式连接器
弹性定位柱进行初定位，再降端子和定位柱同时压入PCB板定位孔中
连接可靠性高
产品同时具有水平出线和垂直出线方式，客户可以根据需要选择，方便设计和作业
Contact Pitch:
2.5
(mm)
嵌合类型:
垂直
Height:
8.7
max.
(mm)
可提供Pin数:
2
3
4
5
6
7
8
9
10
Discrete Cable:
AWG 22 O.D. 1.67 mm
下载
弹性定位柱进行初定位，再降端子和定位柱同时压入PCB板定位孔中
|

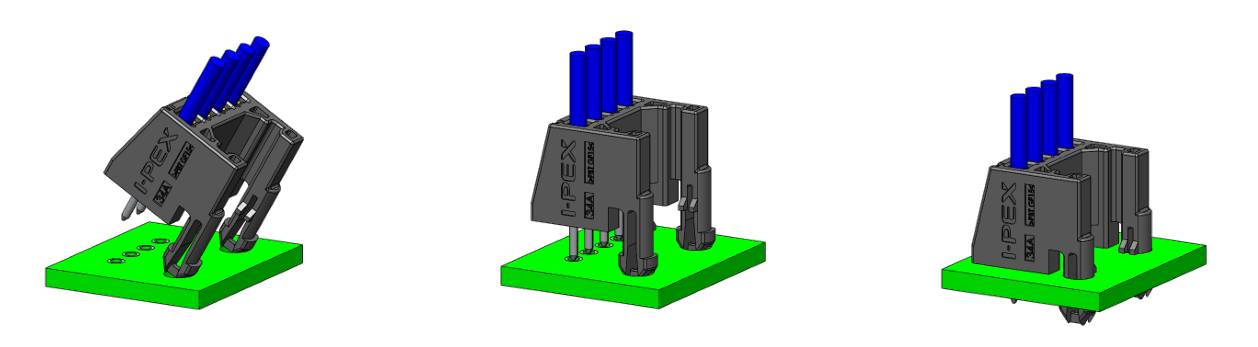

1. 倾斜着将弹性定位柱置于孔中，进行初定位 |
2. 再降塑胶垂直，端子正好位于PCB通孔中 |
3. 向下施力，完全压入 |
|
||
连接可靠性高

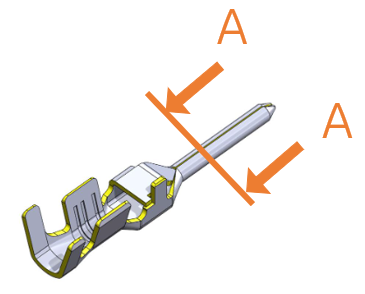

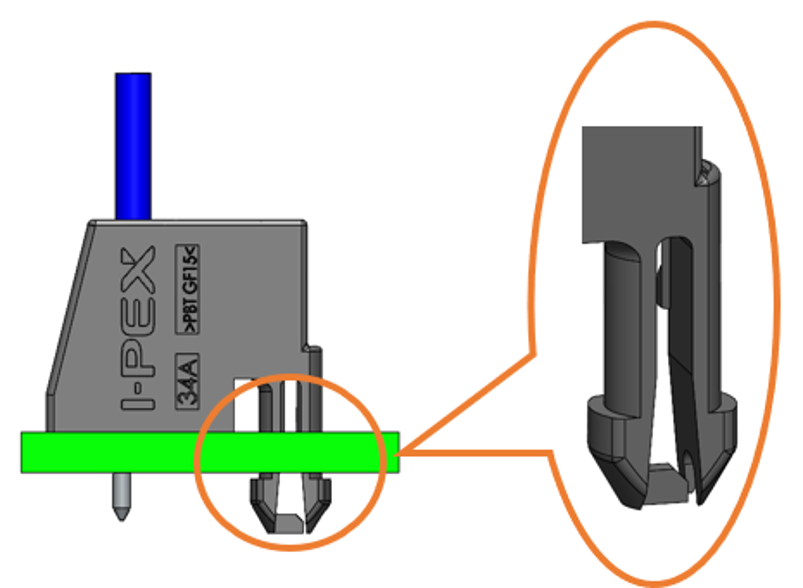

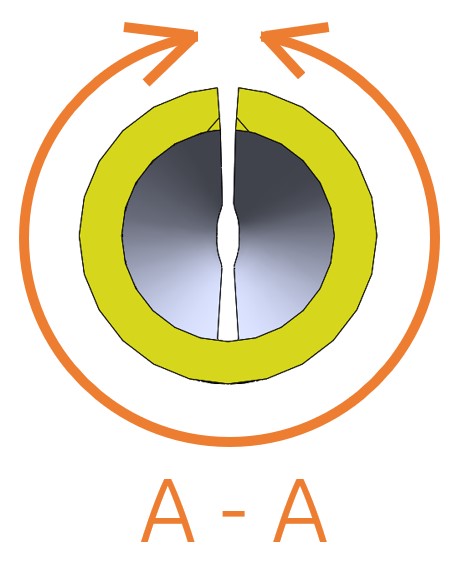

| 塑胶壳体自带弹性定位柱，可提高振动性能 | 端子表面全部镀锡， 具有高度可焊性 | ||
 |
 |
全镀锡 |
|
 |
|||
产品同时具有水平出线和垂直出线方式，客户可以根据需要选择，方便设计和作业
| Contact Pitch |
2.5
(mm)
|
| 嵌合类型 |
垂直
|
| Height |
8.7
max.
(mm)
|
| Available Pin Counts |
2
3
4
5
6
7
8
9
10
|
| Depth |
10.95 (mm)
|
| Width Formula |
1.5 + (2.5 x pin count) (mm)
|
| Discrete Cable |
AWG 22 O.D. 1.67 mm
|
| Current rating | |
| Other Features |
Through Hole Mounting
High Heat Resistant
High Vibration Resistant
|
IARPB (Vertical Type) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| IARPB VERTICAL housing 2pin | V0145-91002-01 | 390 |
| IARPB VERTICAL housing 3pin | V0145-91003-01 | 440 |
| IARPB VERTICAL housing 4pin | V0145-91004-01 | 500 |
| IARPB VERTICAL housing 5pin | V0145-91005-01 | 560 |
| IARPB VERTICAL housing 6pin | V0145-91006-01 | 630 |
| IARPB VERTICAL housing 7pin | V0145-91007-01 | 670 |
| IARPB VERTICAL housing 8pin | V0145-91008-01 | 730 |
| IARPB VERTICAL housing 9pin | V0145-91009-01 | 790 |
| IARPB VERTICAL housing 10pin | V0145-91010-01 | 840 |
