Shielded M.2 B-key card edge connector

    Enhanced shielding structure on the M.2 connector ​
    for superior EMI suppression

    The contact mounting area can be visually inspected

    M.2 compliant signal integrity performance

Applicable Standard: Compliant with the PCI Express® M.2 Specification defined by PCI-SIG®
Contact Pitch:
0.5 mm
Mating Type / Direction:
Board-in-Horizontal
Height:
Nom. 3.05 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Current Rating:
0.5 A AC/DC (per contact)

Downloads

Enhanced shielding structure on the M.2 connector ​
for superior EMI suppression

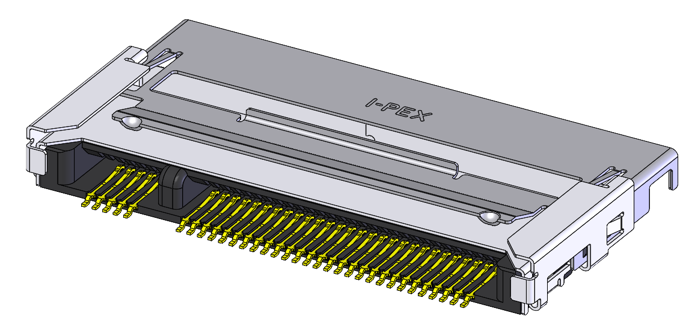

SX-M2_FAB1-1　　　　　　

　　Reduce Noise Leakage Around Connecto

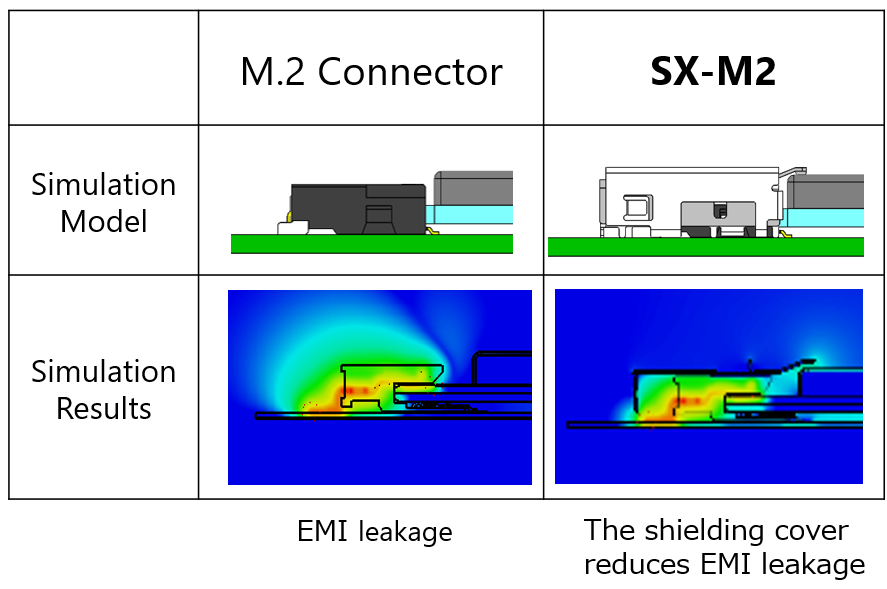

Reduce Noise Leakage Around Connector

　　　　　　　　　EMI leakage                     No EMI leakage

The contact mounting area can be visually inspected

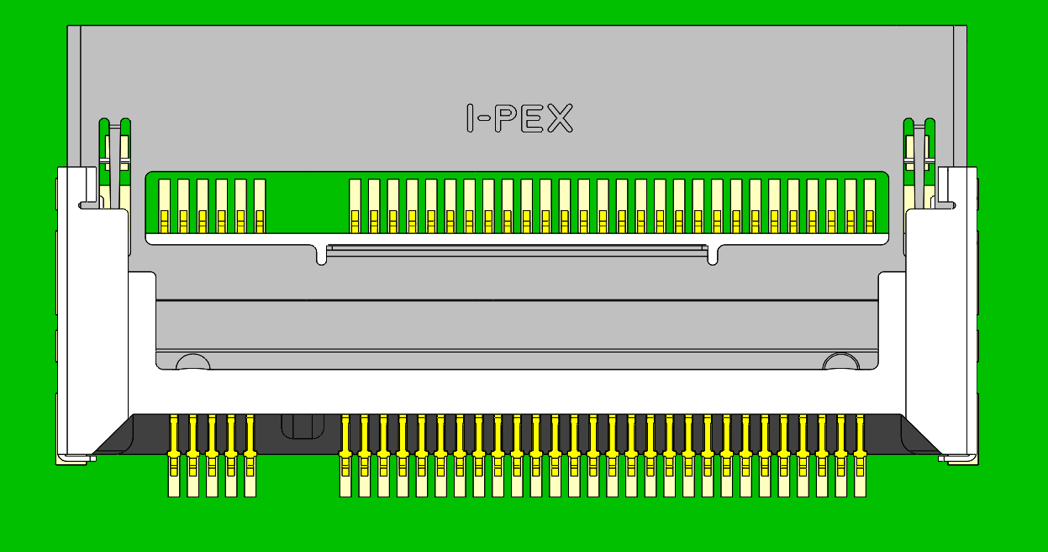

Contacts are visible for inspection when the cover is open
Contacts are visible for inspection
when the cover is open

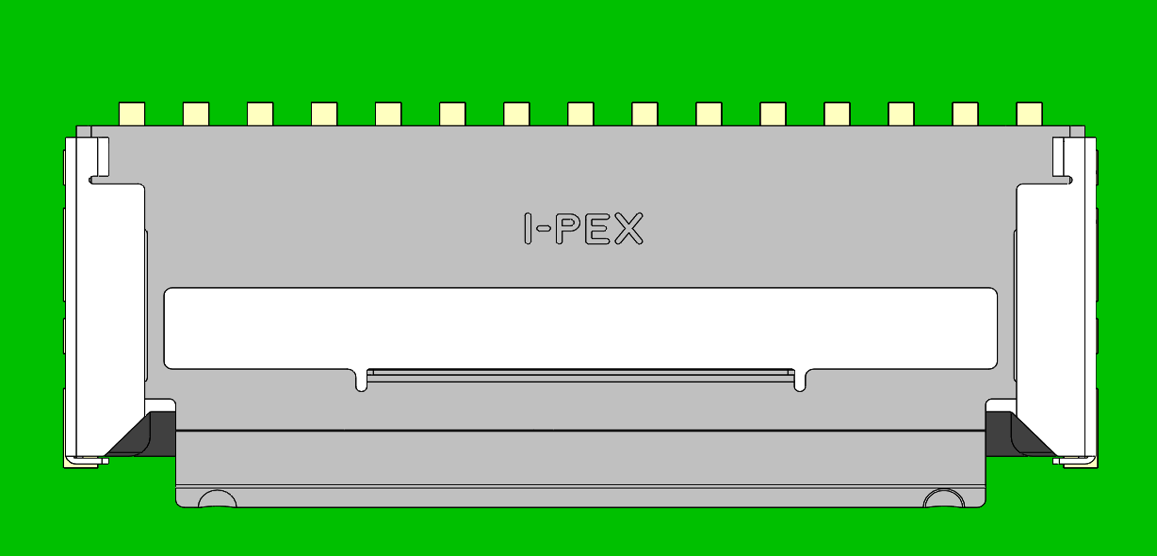

Closing the cover hides the contacts and provides EMI protection
Closing the cover hides the contacts
and provides EMI protection



M.2 compliant signal integrity performance

M.2 compliant signal integrity performance


Product Type
Card Edge
Contact Pitch
0.5 mm
Mating Type / Direction
Board-in-Horizontal
Height
Nom. 3.05 mm
Available Pin Count Signal: 67
Width
24.1 mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Current Rating
0.5 A AC/DC (per contact)
Applicable Standards (Reference Only)
Compliant with the PCI Express® M.2 Specification defined by PCI-SIG®
Full EMI Shielding (ZenShield®)
Yes
Voltage Rating 35 V AC (per contact)

SX-M2 RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
SX-M2 M.2 connector with shield assembly 67pin 21065-067E-01 932
